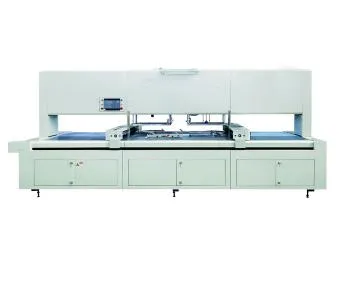

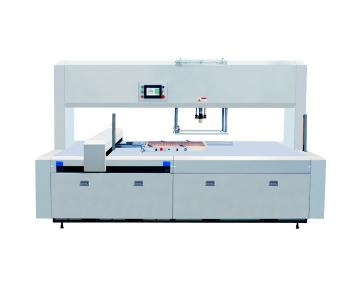

Zomagtc Paper Striping Machine for After Die Cutting Striping
After Die Cutting Paper Stripping Machine/Blanking with Mechanicas paper cup Product DescriptionThe introduction of the blanking machine:Automatic Blanking Machine:This machine is used for blanking the finished cardboard, plastic and leathers which processed by die cutting machine. With compact stru......
Send Inquiry
Product Description
After Die Cutting Paper Stripping Machine/Blanking with Mechanicas paper cup
Product Description
The introduction of the blanking machine:
Automatic Blanking Machine:This machine is used for blanking the finished cardboard, plastic and leathers which processed by die cutting machine. With compact structure, high pressure and precision, it is easy for operation with reliable quality to lower the working intensity and labor cost. This machine is suitable for printing, packaging and plastic industry, high speed.
Main parameters of After Die Cutting Paper Stripping Machine/Blanking with Mechanicas paper cup:
| MODEL | ZM-920 | ZM-1080 |
| Max sheet size(mm) | 920*650mm | 1080*780mm |
| Min sheet size(mm) | 550*280mm | 600*400mm |
| Max pile height(mm) | 100mm | 100mm |
| Min pile height(mm) | 40 | 40 |
| Bench height(mm) | 850 | 850 |
| Max stripping size(mm) | 360*360mm | 550*550mm |
| Min stripping size(mm) | 30*30mm | 30*30mm |
| Stripping speed(times/min) | 25 | 25 |
| Powder voltage(V) | 360-420 | 360-420 |
| Max pressure(bar) | 80 | 90 |
| Frequency(Hz) | 50/60 | 50/60 |
| Max consumption power(kw) | 3.75kw | 5.5kw |
| Insurance electric current(A) | 10 | 10 |
| Air consumption(L/min) | 2 | 2 |
| Air compression(bar) | 4-7 | 4-7 |
| Input power(phase) | 3P | 3P |
| Machine weight(kg) | 2000kg | 2400kg |
| Machine dimension(mm) | 3300*1560*1900mm | 3750*1800*1900mm |
Main Features of After Die Cutting Paper Stripping Machine/Blanking with Mechanicas paper cup
1.Automatic marking machine Replace manual disassembly, Save manpower.Improve product quality and enterprise benefit.
2.For automatic die cutting and semi-automatic cutting all kinds of cardboard, trademarks (tag), plastic film and other small packages automatically remove the edge and take this product of professional equipment.
3.The machine adopts the latest hydraulic cylinder system, high precision wire rod guide rail and modern program controller, which can guarantee the machine is durable and safe operation.
4.Table chrome, thimble automatic locking, convenient customer palette.
Packaging & Shipping
Package: Carton,standard export box ,also can be adjusted at your demand
MOQ: 1 set
Shipment: By sea, By air or By international courier
Port: Main ports of China
Delivery time: 2-5 days after formal order,according to your quantity
Production capacit: 2000 sets per month
♥Professinoal peson reply your questions
♥One year warranty for you
♥Perfect and careful after-sale service
♥Fast delivery for you
♥24 hours on-line service for you

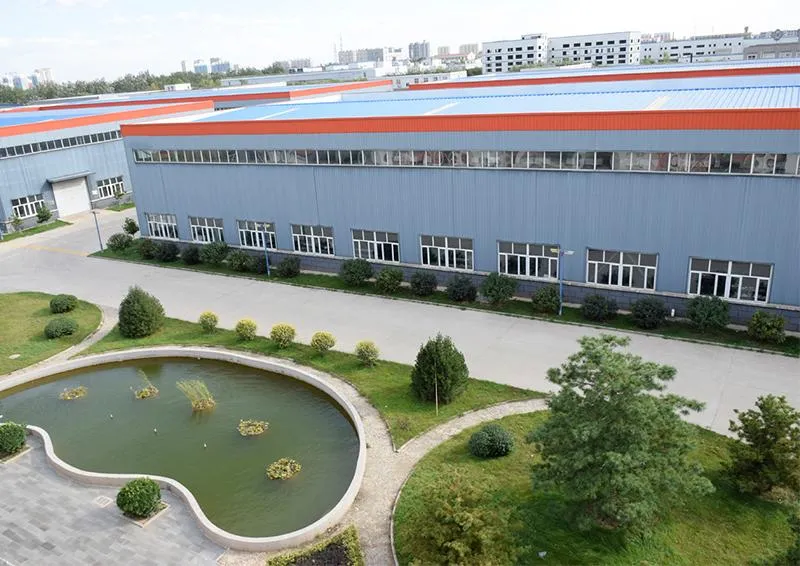

Zhengzhou Zomagtc Machinery Company Ltd have been designing, developing,
manufacturing and marketing Machinery for more than 10 years. Firstly we mai-
nly sever china mainland customers, Inorder to adapt to world market development,
now we do the exporting business directly. After theseyears of development, we have
high quality professional teams, skillful talents, strong technical force, strong and
independent research and development capabilities, advanced productionequipment
and a perfect after-sales service system. So choose us, equaling to choose the comp-
etitive price and stable quality both.
Company advantage:
1.Lower price:We produce and export machine directly
2.Competitive price:With a cheaper labor force which make our price more competitive
3.On time shipment:Most developed highway system and logistics deliver company
make sure on time shipment
4.Producing Line:Own advanced manufacturing equipments andcomputer controlled making
machine,so our factory implement assembly line entirely.
5.QC:Strict quality control system to make sure the quality is good and stable.
6.Sincerity:Once cooperation, the whole life friendship. Not for others just for the quality
A: Our person is 24hours on-line. When nobody reply you , please leave your requirements
on e-mail or chat tool, we will reply you as soon as possible.
Q:Can you guarantee your quality?
A:Of course. We are the manufacture factory. More important, we put a high value on our
reputation. Best quality is our principle all the time. You can be assured on our production
completely.
Q:How do you make your price?
A: We make the price according to our comprehensive costing. And our price will lower
than the trade company because we are manufacture. You will get competitive price and
better quality.
If you have any question, please feel free to ontact me.I will reply you soon.
