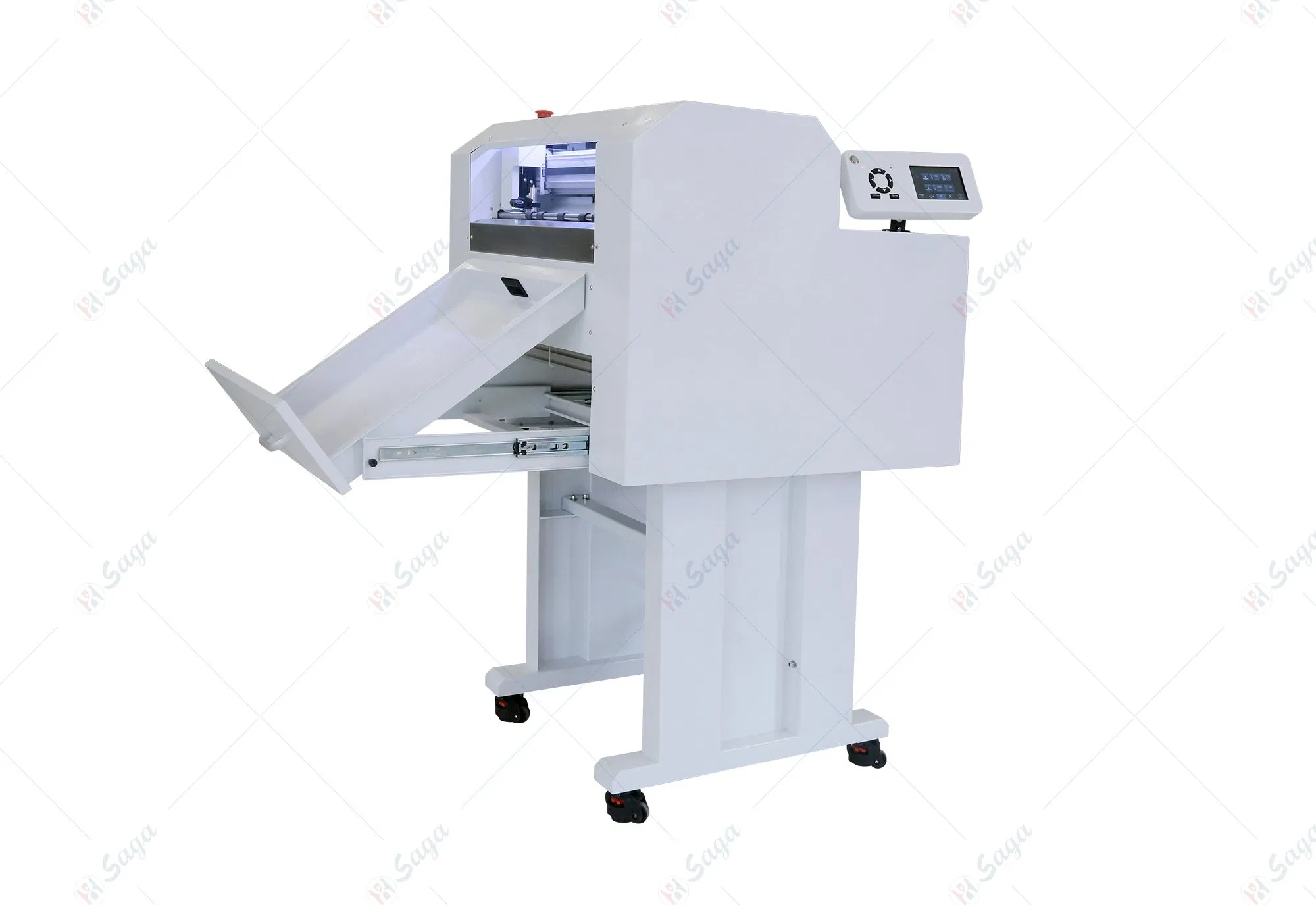

CCD Camera Adsorbed Automatic Sheet to Sheet Vinyl Die Cutter (SG-ASC 1907 )
SG automatic adsorbed sheet cutterFeatures:1. Lightweight and space-saving design, suitable for desktop use. 2. Optimized auto sheet feeding mechanism ensures productivity with minimized paper jams 3. Auto-recognition of registration marks guarantees scanning and cutting accuracy, multi-cutting jobs......
Send Inquiry
Product Description
SG automatic adsorbed sheet cutter
Features:
1. Lightweight and space-saving design,
suitable for desktop use.
2. Optimized auto sheet feeding mechanism
ensures productivity with minimized paper jams
3. Auto-recognition of registration marks
guarantees scanning and cutting accuracy,
multi-cutting jobs
Technical Parameters:
| Model Name | SG-ASC 1907 |
| Cutting control system | X-High-power brushless servo motor Y-High-power brushless servo motor |
| Positioning sensor type | Digital camera(CCD) |
| Control panel | 5 inch capacitive touch screen |
| Number of tool holders | Double tool holders |
| Tools | Blade,creasing tool and pen |
| Machine performance | |
| Media hold method | Vacuum suction |
| Scanning code type | Mark/QR code |
| Maximum cutting size | A3+(483mm×330mm) |
| Scanning speed | 5-10s |
| Maximum actual cutting speed | 12mm/s-960mm/s 12mm/s Step |
| Maximum cutting force | Creasing:0-750gf(3gf Step) Blade:0-750gf(3gf Step) |
| Mechanical resolution | 0.02mm |
| Programmable resolution | HGPL 0.025mm |
| Repeat precision | ≤0.05 |

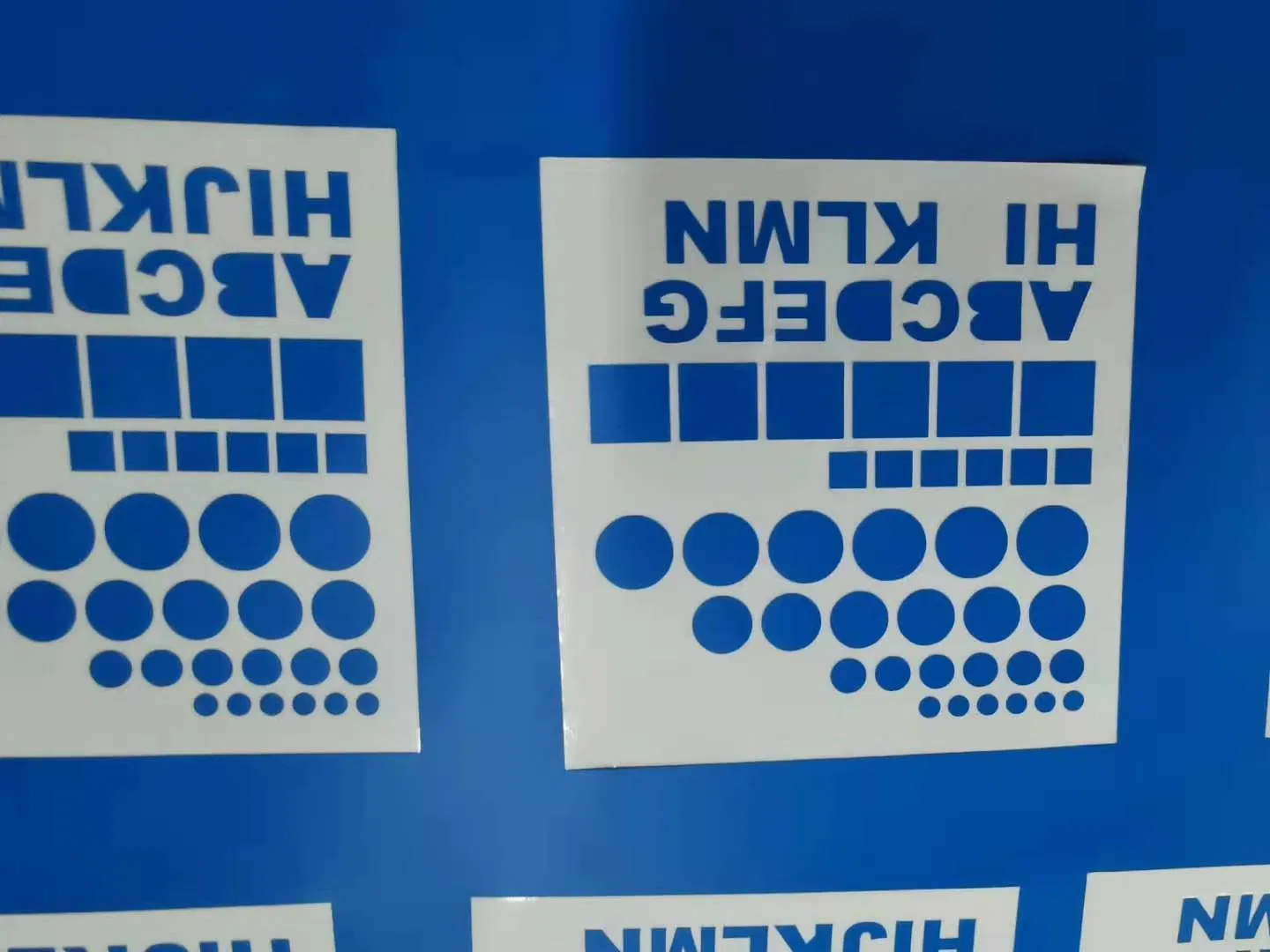

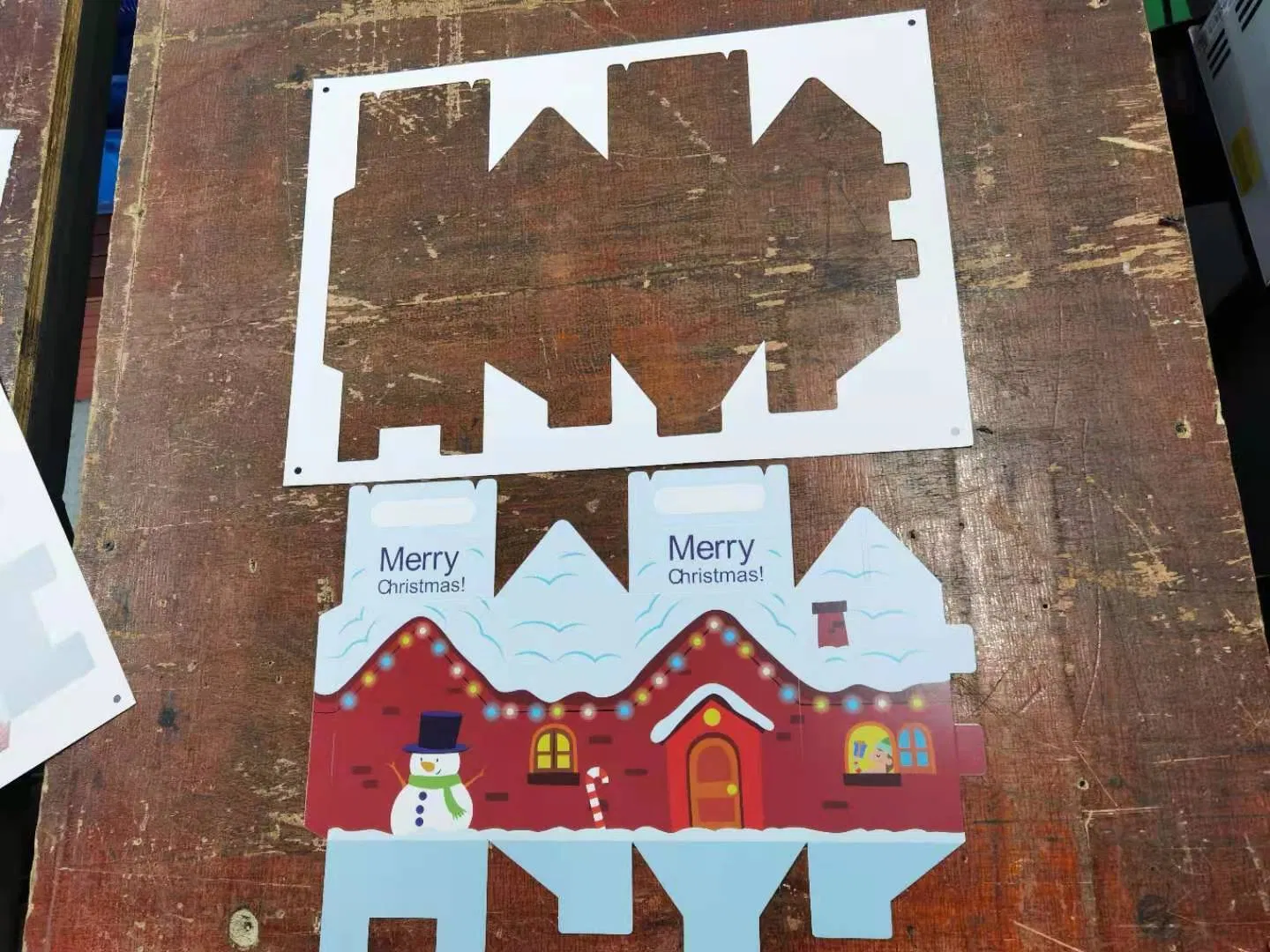

| Cutting media types | Self-adhesive sticker,cardboard,PVC,etc |
| Software and compatibility | |
| Connectvity | USB |
| Software and compatibility | Corel Draw,Adobe Illustrator PC only,compatiable for Windows7,8,10 |
| Power and working envionment requirements | |
| Voltage and current | 100VAC-120VAC.50/60Hz,Maximum current 6.8A 200VAC-240VAC,50/60Hz,Maximum current 3.4A |
| Power | 350W |
| Voltage and current(Vacuum Pump) | 50Hz,1.1KW;60Hz,1.3KW |
| Stand | Included |
| Operation environment | Temperature+5ºC to +35ºC(Fahrenheit 41-95),Humility 30%-75%(Non-condensing) |
| Dimensions and weights | |
| Actual dimensions | L 787mm×W 740mm×H 1320mm |
| Package dimensions | L 970mm×W 970mm×H 880mm |
| NW/GW | 114kg/146kg |
