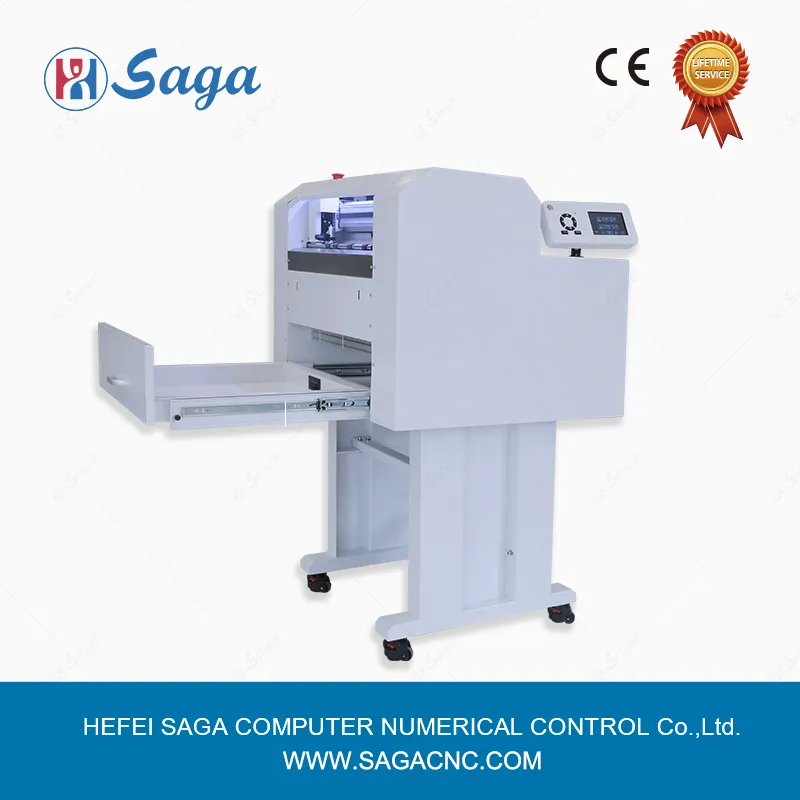

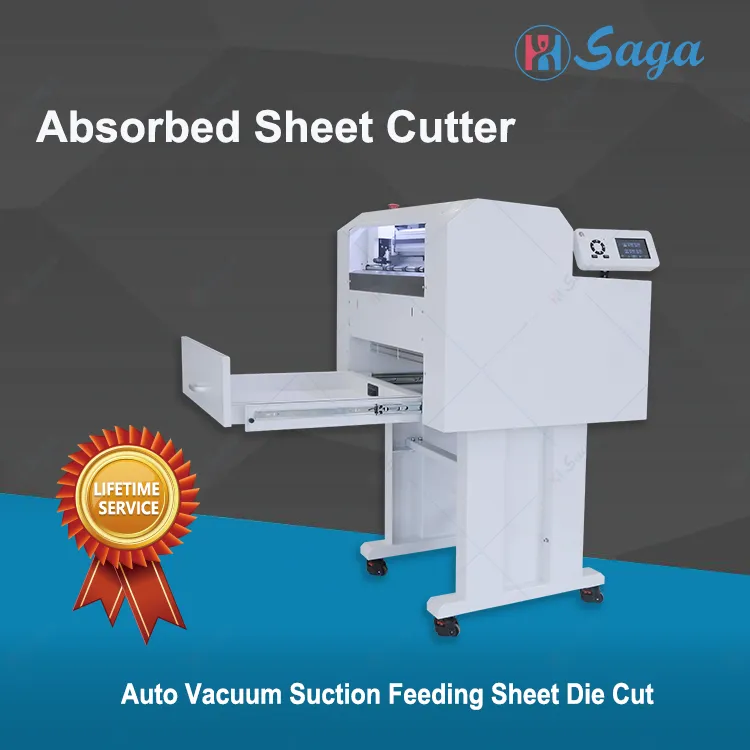

Adsorbed Auto Feeding Cutting and Creasing Die Cutter Can Half/Kiss-Cut for Self-Adhesive Wire Drawing Material, Label, Synthetic Paper and Thin PVC
Automatic Adsorbed Digital Feeding Die Cutter Plotter ASC-1907 Product DescriptionADVANTAGE:The latest Saga Sheet Cutter has been upgraded with CCD Camera which allows the machine to read QR code for registration and it increases ......
Send Inquiry
Product Description
ASC-1907

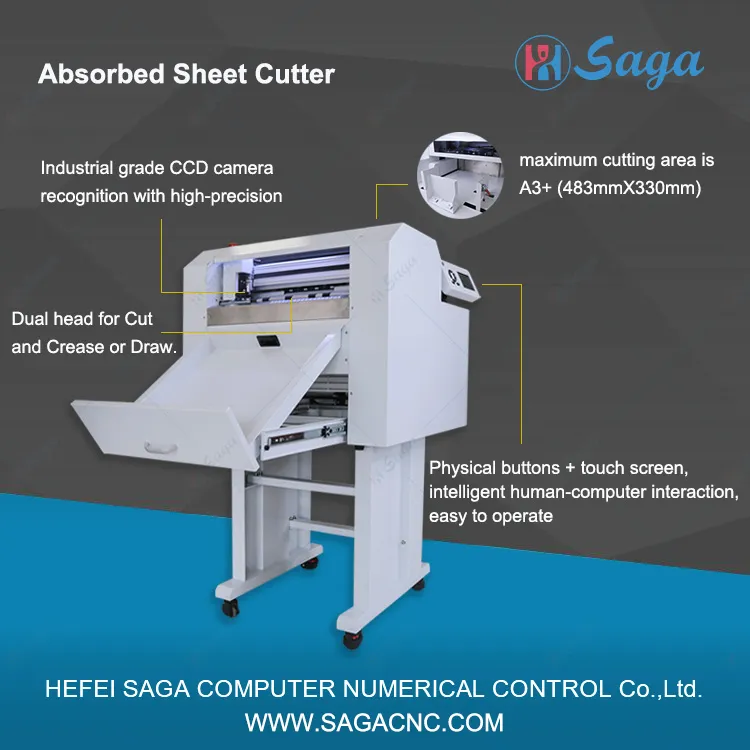

ADVANTAGE:The latest Saga Sheet Cutter has been upgraded with CCD Camera which allows the machine to read QR code for registration and it increases the scanning speed by 100%+.
catering to market demands perfectly.
Application:
Cardcoard, stickers, kraft paper, pvc, pet, plastic thin board, fibrous cardboard, rubber sheet, film etc,.
PVC: Less than 0.4mm
Reflective Film: All types
Sandblast, Hard paper: Less than 450gsm
Magnetic Sticker: Less than 600micron
PET: Less than 0.3mm, vinyl, etc.
| Model Name | SG-SCSG-ASC1907A3+II PRO |
| Cutting control system | High-Power Brushless Digital Servo Motor |
| Positioning sensor type | Digital CCD Camera |
| Scanning code type | Maker Points&QR Code |
| Number of tool holders | Double tool holders |
| Sheet feeding | Up to 12cm depends on thickness of the paper |
| Scanning speed | 5-10S |
| Maximum cutting size | 483mmX330mm |
| Maximum actual cutting speed | 960mm/s |
| Maximum cutting force | 750GSM(3gsm step) |
| Maximum creasing force | 750GSM(3gsm step) |
| Control panel | LCD touch with keys |
| Package dimensions | 970mm×970mm×880mm |

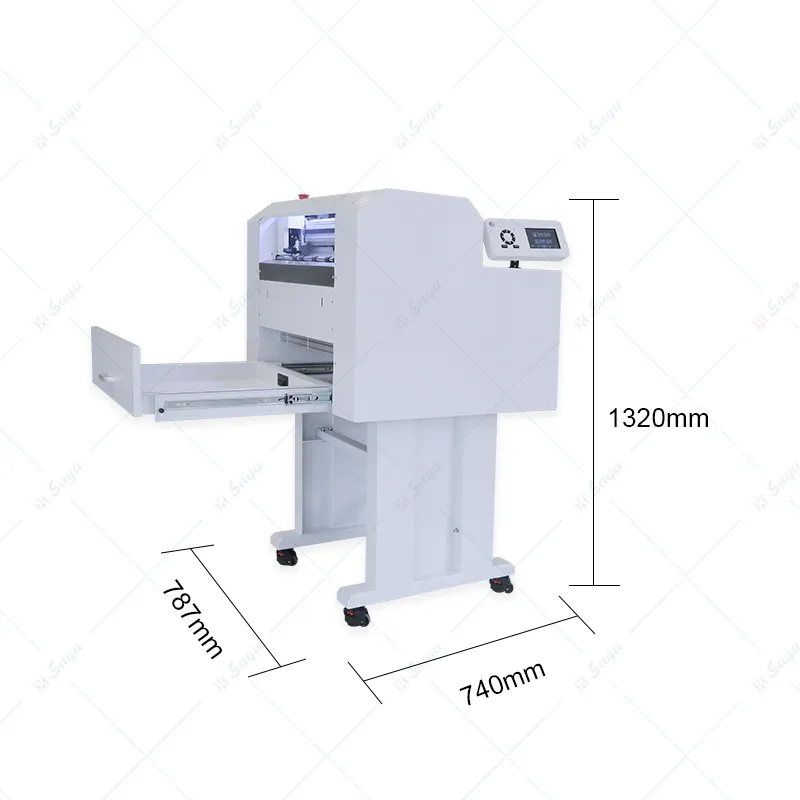

| Actual dimensions | 787mm×740mm×1320mm |
| Net/Gross weight | 114kg/146kg |
| Software and compatiblity | SignMasterTM Pro,PC only,compatible for Windows7,8,10(USB interfaces) Corel Draw/ Illustrator Plug-in, PC only (USB interfaces) |
| Voltages and Current | 110VAC,50Hz,Rated current 12.4A;60Hz,Rated current 17.2A |
| Power(Vacuum Pump) | 50HZ,1.1KW;60HZ,1.3KW |
| Power | 350W |
Since funded in 2009, SAGA Computer Numerical Control Co., Ltd has become an integrated high-tech enterprise with its business scope covers R&D, Manufacturing and Trading of Cutting Plotter, Sheet Cutter, Die Cutter, Flatbed Cutter, Vinyl Cutter, Paper Trimmer/Slitter as well as other printing and cutting solutions. Besides hardware, SAGACNC also develops and provides certain software applications for all associated products.
SAGACNC currently possesses an 8000 square-meter factory, and more than 100 employees. We have an annual yield of 20000 units of machines which are exported to over 40 countries and regions. With professional high-notch systems development team and mechanical design team of over 30 engineers, SAGACNC assures its products all designed and developed with independence, rationality, stability and continuity. After a decade of development, SAGACNC has made its name with good reputation and track-record via the excellent product quality and service concept.
