Rotary Cutting Rule, Perforation Cut- Crease , Corrugated and Solid Board Cutting Rule, PA
* Perforating Rule Usage:- Perforating Rule is developed for Die Cutting for printing, packing industries, etc, and it can be formed into different shapes according to user's pattern designs. Effectively eliminate burrs, faster and cleaner cutting.- Applicable to cut: tear-off labels, paper, co......
Send Inquiry
Product Description
* Perforating Rule Usage:
- Perforating Rule is developed for Die Cutting for printing, packing industries, etc, and it can be formed into different shapes according to user's pattern designs. Effectively eliminate burrs, faster and cleaner cutting.
- Applicable to cut: tear-off labels, paper, corrugated board, solid board, continuous stationery, woven bag thread, etc..
* Series: PR, PE, PA, PT

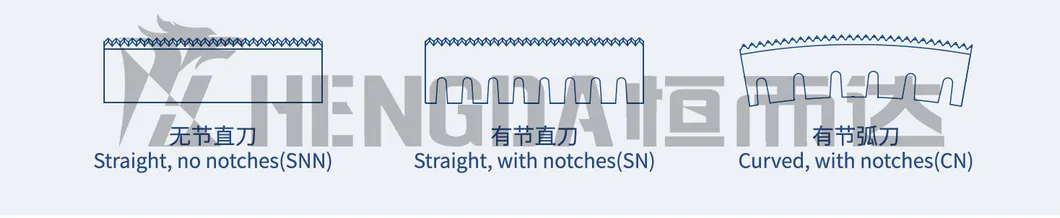

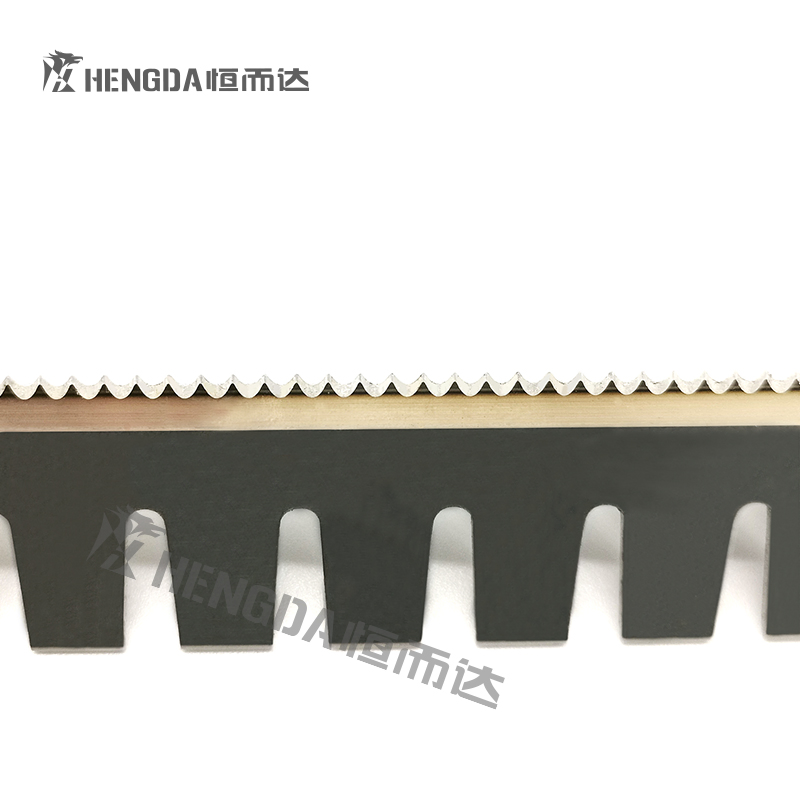

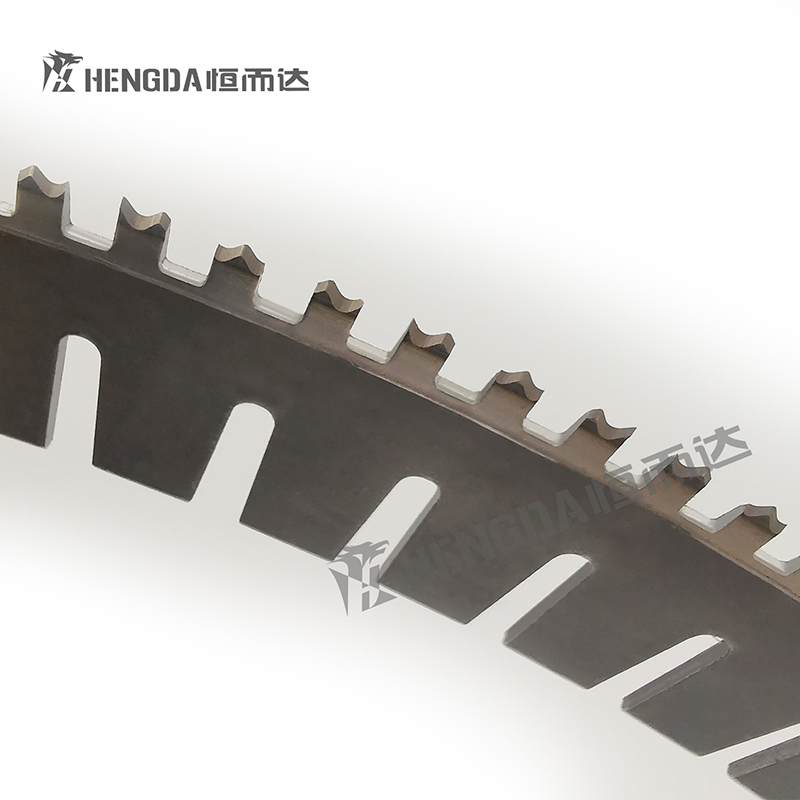

ALL ABOVE series can also be made into curved, or straight with notches, or no notches.
* SELF-OWNED BRAND: LING YING
PA series introduction:
*** Other dimension and profile available as per customers requests
COMPANY HIGHLIGHTS:

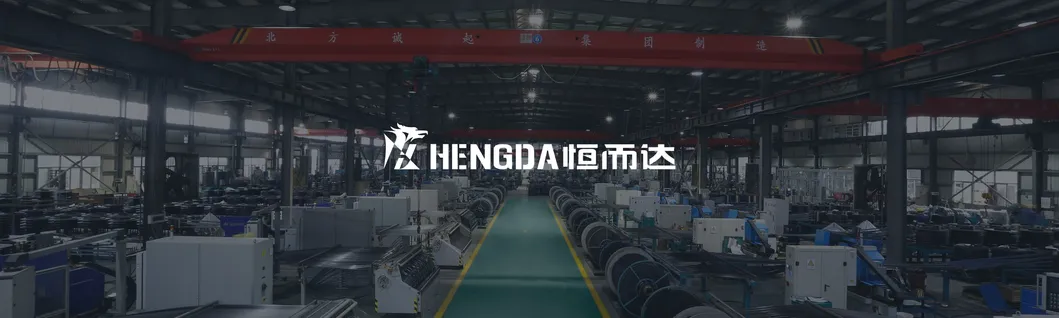

1. Hengda was established in 1995, headquartered in Fujian Province, China with 5 branch plants at present. The total occupied area is close to 1,779,504.74 sq.ft and the building area is close to 430,556 sq.ft.
2. More than 550 employees, specializing in the cutting fields of new materials.
3. The company was honored as National Hi-Tech Enterprise.
4. Hengda's main products: rule die steel, bi-metal band saw blade, steel rule, rotary cutting rules, utility knife
5. The production capacity for rule die steel is 60million meters/year, bi-metal band saw blade 10million meters/year, steel rules (flatbed) 30million meters/year, rotary cutting rules 2million meters/year at present.
6. Strong professional R & D team, leading by more than 30 senior engineers.
7. Self-innovated and self-designed products, self-owned brands.
8. 100% strict Q & A control and 100% inspection pre-delivery.
9. ISO:9001and ISO:14001 certified company, patents owned company.
10. ON-TIME delivery.
11. Ingenious craftsmanship, sincere services.
* Product Highlight:
- Uses superior quality materials.
- The edge sharpness of shaved and ground bevels got enhanced by high-frequency quenching.
- The proper combination of edge and body hardness ensures high performance and longer lifetime of products.
- Hengda can increase body hardness while maintaining high toughness of the product according to customer' s requirements.
- Perforating Rule is developed for Die Cutting for printing, packing industries, etc, and it can be formed into different shapes according to user's pattern designs. Effectively eliminate burrs, faster and cleaner cutting.
- Applicable to cut: tear-off labels, paper, corrugated board, solid board, continuous stationery, woven bag thread, etc..
* Series: PR, PE, PA, PT
ALL ABOVE series can also be made into curved, or straight with notches, or no notches.
* SELF-OWNED BRAND: LING YING

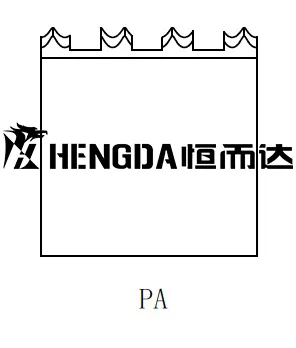

PA series introduction:
| Thickness | 0.71mm(2pt) | 1.05mm(3pt) | 1.42mm(4pt) | cardboards,corrugated board,woven bag thread etc. | |||||||||
| Height | 22.0mm-50.0mm | ||||||||||||
| Spacing (tooth/gap) | 3×3 5×5 5×8 6×6 8×8 10×10 | ||||||||||||
| Body hardness | HRC36-38 | ||||||||||||
| Edge hardness | HV650-700(HRC58-60) | ||||||||||||

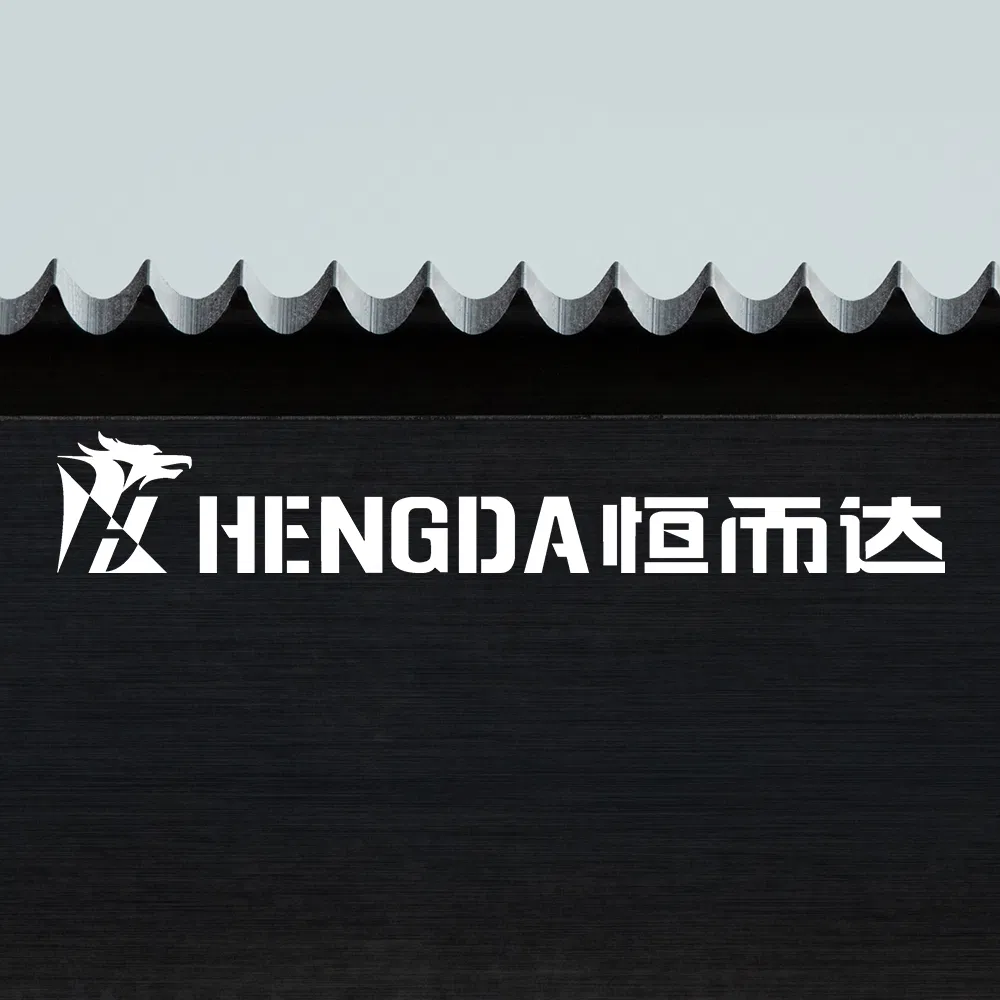

| Tooth shape | sharp pointed teeth, round gullets | ||||||||||||

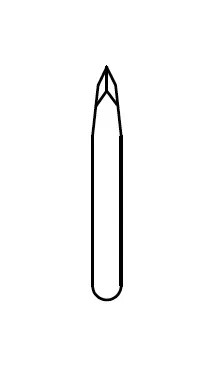

| Edge angle | 42°/ 52° | ||||||||||||
| Back execution | SNN / SN / CN | ||||||||||||

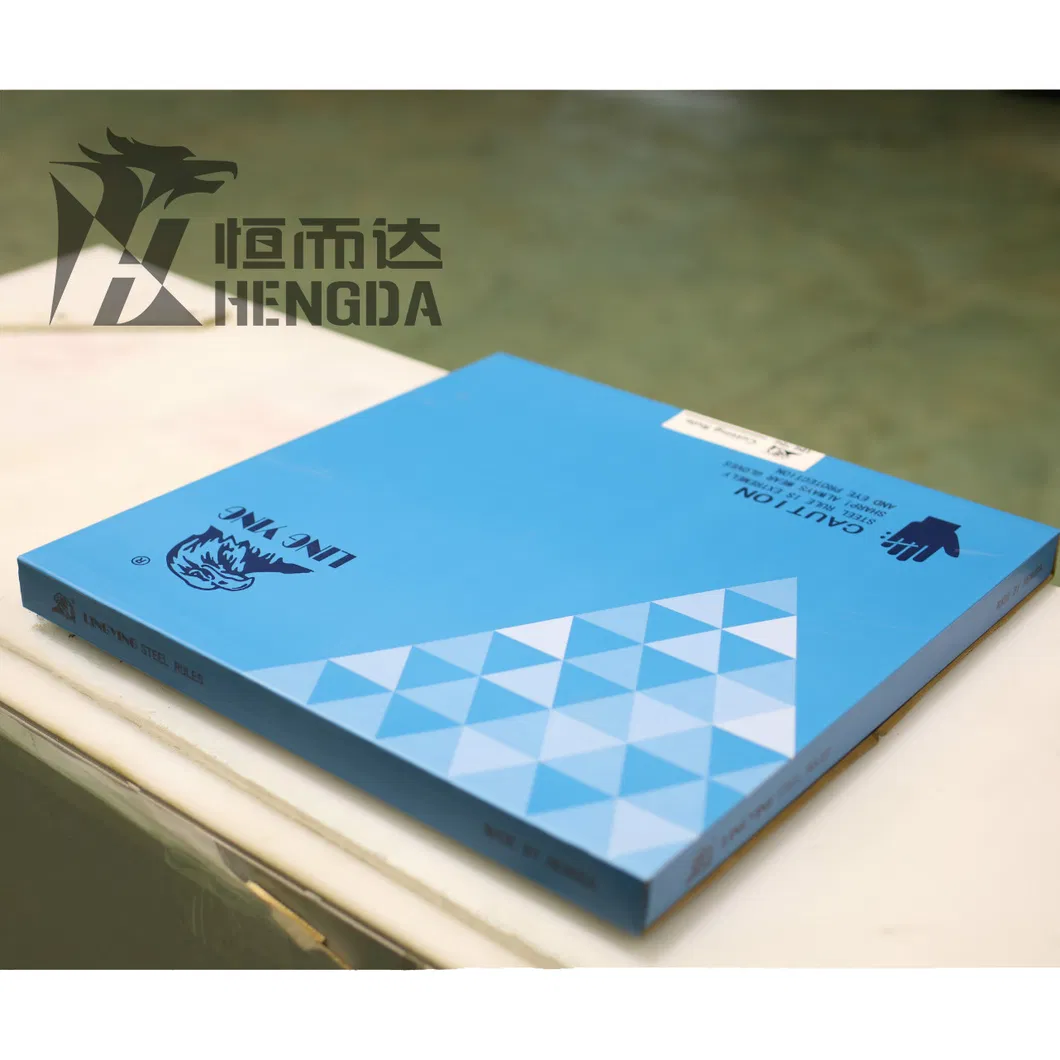

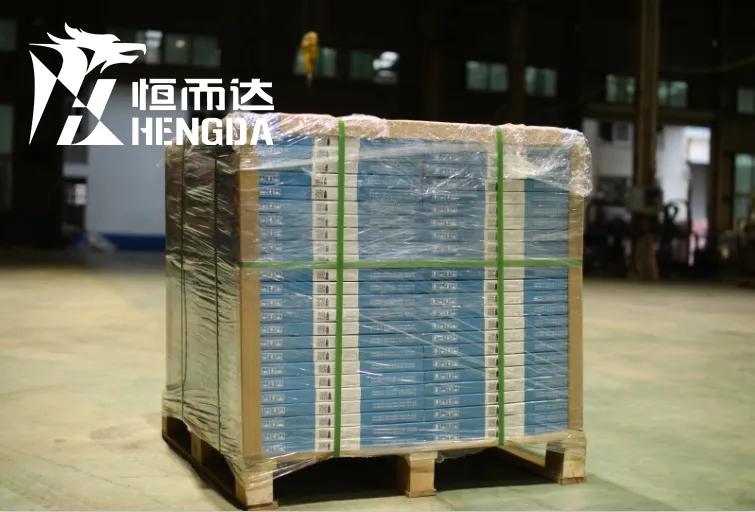

| Packaging | length 30m, diameter 180-800mm or on request | ||||||||||||
| Product Tolerance | ||
Height <35mm | ±0.02mm | |
Height ≥35mm | ±0.03mm | |
Straightness | ±0.5mm/1m rule length L | |
| Flatness | ≤1.0‰ rule height H | |
Cross camber | pieces:±5mm/1m rule length L coils:±10mm/1m rule length L | |
Twist | ±0.5mm/1m rule length L | |
| Thickness Tolerance | ||
Thickness | Tolerance | |
| mm | pt | |
| 0.45 | 1.3 | ±0.015 |
| 0.53 | 1.5 | ±0.015 |
| 0.71 | 2 | ±0.015 |
| 1.05 | 3 | ±0.020 |
| 1.42 | 4 | ±0.028 |
*** Other dimension and profile available as per customers requests
COMPANY HIGHLIGHTS:
1. Hengda was established in 1995, headquartered in Fujian Province, China with 5 branch plants at present. The total occupied area is close to 1,779,504.74 sq.ft and the building area is close to 430,556 sq.ft.
2. More than 550 employees, specializing in the cutting fields of new materials.
3. The company was honored as National Hi-Tech Enterprise.
4. Hengda's main products: rule die steel, bi-metal band saw blade, steel rule, rotary cutting rules, utility knife
5. The production capacity for rule die steel is 60million meters/year, bi-metal band saw blade 10million meters/year, steel rules (flatbed) 30million meters/year, rotary cutting rules 2million meters/year at present.
6. Strong professional R & D team, leading by more than 30 senior engineers.
7. Self-innovated and self-designed products, self-owned brands.
8. 100% strict Q & A control and 100% inspection pre-delivery.
9. ISO:9001and ISO:14001 certified company, patents owned company.
10. ON-TIME delivery.
11. Ingenious craftsmanship, sincere services.
* Product Highlight:
- Uses superior quality materials.
- The edge sharpness of shaved and ground bevels got enhanced by high-frequency quenching.
- The proper combination of edge and body hardness ensures high performance and longer lifetime of products.
- Hengda can increase body hardness while maintaining high toughness of the product according to customer' s requirements.
