Roll to Roll/Sheet Free Adhesive Tpae/ Label Die Cutter
JMQ-320A Roll to roll or sheet adhesive tape die cutting machineCharacteristic:JMQ-320A Roll to roll or sheet adhesive tape die cutting machine is designed as high precision flat die cutting, pulling material, fixing position in printing's both sides and lengthways are accurately tracking by thr......
Send Inquiry
Product Description

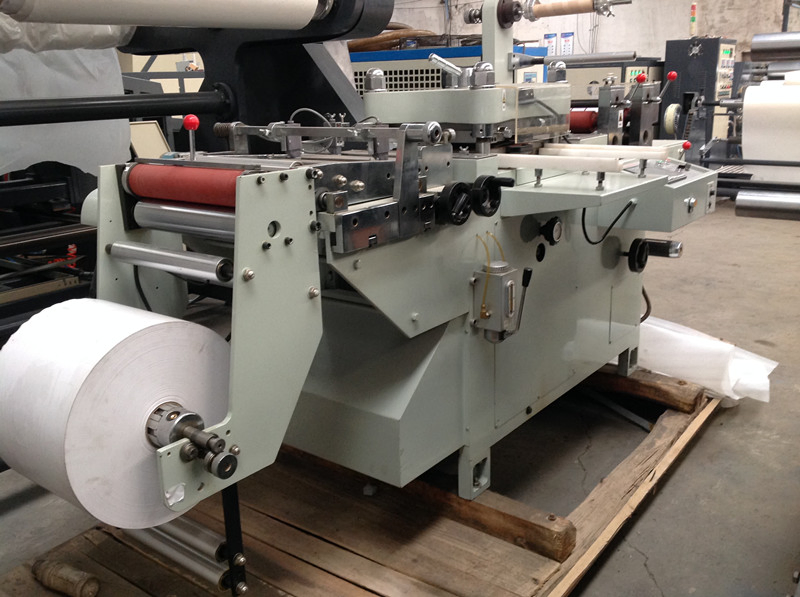

JMQ-320A Roll to roll or sheet adhesive tape die cutting machine
Characteristic:JMQ-320A Roll to roll or sheet adhesive tape die cutting machine is designed as high precision flat die cutting, pulling material, fixing position in printing's both sides and lengthways are accurately tracking by three photocell eyes, collecting waste, computer controlled cutting sheet or rewinding roll used for automatic labeling machine can be processed in one processing.
Usage:
JMQ-320A label/adhesive tape die cutting machine is suitable for die cutting self-adhesive paper, label, dacron film tradenark and laser anti-false trademark. It is a ideal and highly efficient supporting equipment for flexographic press, continuous screen printing machine, intaglio press and anti-false trademark die cutter.
Main Technical Parameter
| Model | JMQ-320A |
| Cutting speed | 20-180 time/min |
| Maximum unwind diameter | 450mm |
| Maximum web width | 320mm |
| Maximum die cutting width | 300mm |
| Maximum die cutting length | 290mm |
| Overprint Precision | ± 0.1mm |
| Main motor | 2.2KW |
| Total power | 3.5KW |
| Power voltage | 220V± 10% |
| Machine weight | About 1500kg |
| Overall dimensions(L× W× H) | 2800× 950× 1400mm |
