Precise and Fast High Optical Sensor CAD Kiss Cut Roll Cut Cutting Plotter Auto Stickers/Vinyl/ Self-Adhesive Durable Digital Film Cutter with Arms (SG-B720IIP)
Product Description ARMS Servo Cutting Plotter SG B seriesThe SG-B series cutting plotter was special designed for users who requires working with large plots and processing large quantities in professional quality. With a SAGA Vinyl plotter and DragonCut software you have a formidab......
Send Inquiry
Product Description
ARMS Servo Cutting Plotter SG B series
The SG-B series cutting plotter was special designed for users who requires working with large plots and processing large quantities in professional quality. With a SAGA Vinyl plotter and DragonCut software you have a formidable combination of sign design and layout tools; Utilizing the strength of the Advanced Registration Mark Sensing system, the cutter can continually adjust itself to allow for any skew or stretch within the artwork, to achieve long distance tracking. With 750g cutting force and unique mental structure, it can cleanly cut even the most challenging medias such as high intensity reflective films.
Main Features:
- Compatible with various computer system, like WinXP, Win7,Win8,Win10.

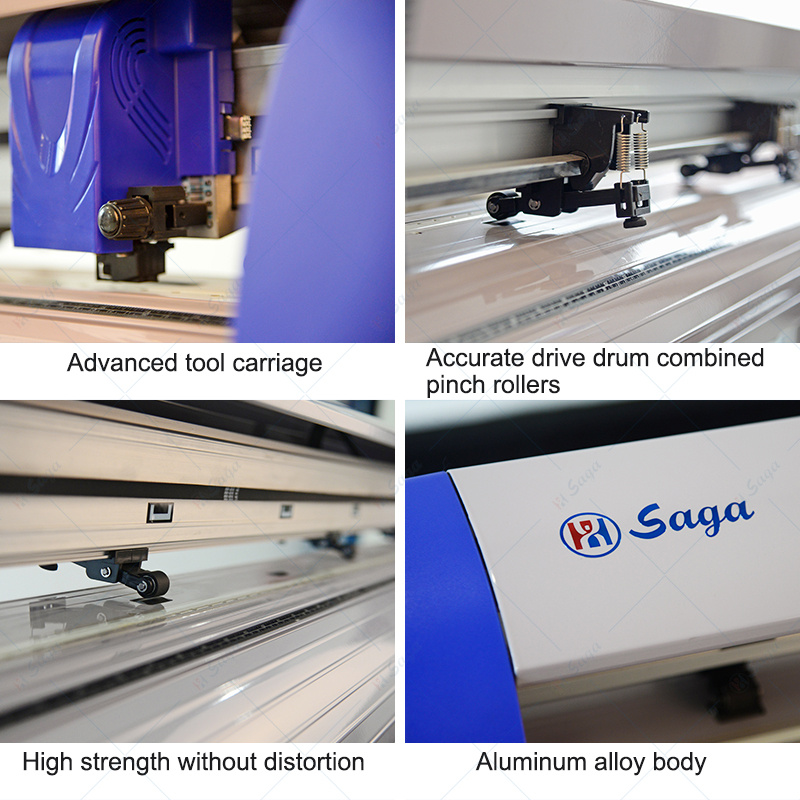

- Aluminum metal frame, ABS end caps, welded steel stand, all metal moving parts.
- True USB: No need to install USB driver, send files directly to the cutter, easy and reliable

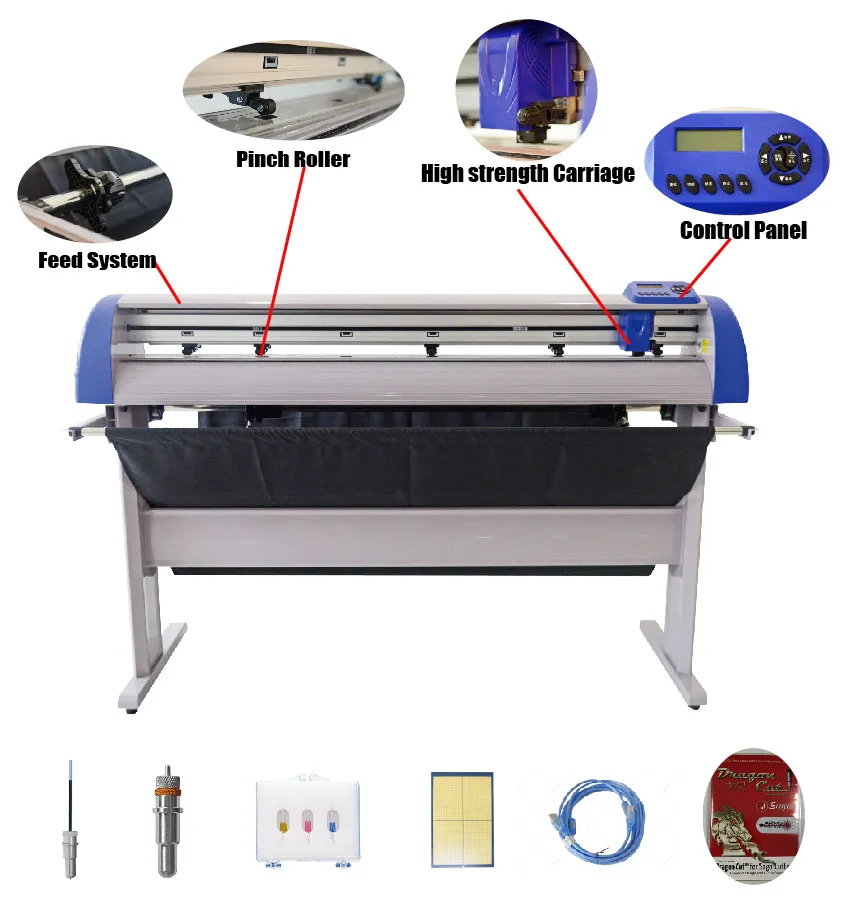

- Carriage with 4 wheels, Long length tracking: Strong structure and high-quality girt rollers to keep long length tracking
- Laser registration for contour cutting function, Advanced registration mark sensing system allows the cutter continually adjusts itself for any skew or stretch within the artwork which results in the most accurate contour cutting possible-even over very long distance.
- World most advanced "barcode register mark" for contour cutting registration, ensure high accuracy so that running 5-10 meters without error (up to 0.15mm).
- PROTECT YOUR CUT JOBS with free included media catch basket. Free stand included.
- FREE TECHNICAL SUPPORT. Lifetime phone support and web-based resources.
- FREE INCLUDED VECTORIZING AND CUT SOFTWARE.
Applications:
Filed: Packaging proofing, clothing plate, vechile wrap industry, Make Signs for shop windows, cars and vans., cutting labels, heat pressing logos and slogans onto T-Shirts.
Material: vinyl adhesive, reflective film, craft paper, heat transfer vinyl, cardstock, paint mask stencil, laminate, sandblast mask & low intensive reflective material
| Model Name | SG-B720II/B720IIP | SG-B1400II/B1400IIP | SG-B1800II/B1800IIP |
| Maximum Sheet Size | 720mm | 1400mm | 1800mm |
| Maximum Cutting Size | 630mm | 1260mm | 1680mm |
| Minimum Cutting Character | About 5mm2 | ||
| Mechanical Resolution | 0.02mm | ||
| Repeat Precision | 0.082mm | ||
| Maximum Liner Cutting Speed | 960mm/s | ||
| Maximum Cutting Force | 750g | ||
| Cutting Control System | DC Servo | ||
| Motor Speed | 0-3000RPM | ||
| CPU | 64-DSP | ||
| Package dimensions | 1030mm*350mm*490mm | 1710mm*350mm*490mm | 2100mm*400mm*550mm |

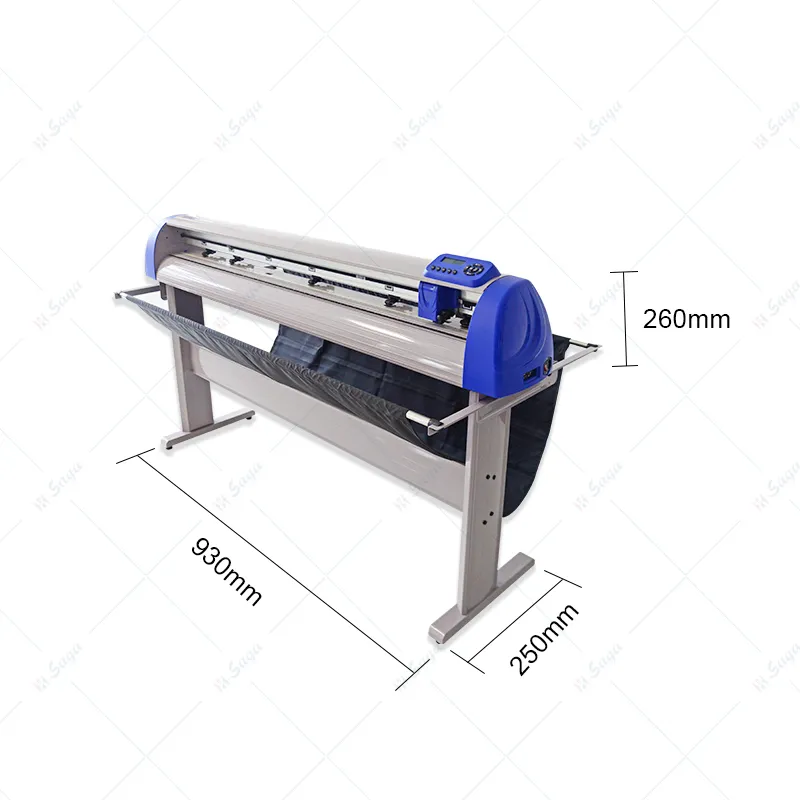

| Actual dimensions | 930mm*250mm*260mm | 1610mm*250mm*260mm | 2010mm*250mm*260mm |
| Gross/Net Weight | 27.8kg/25.0kg | 42.0kg/35.0kg | 68.0kg/47.0kg |
| Connectivity | USB/RS-232 | ||
| Software & Compatibility | DragonCut, compatible for Windows7,8,10(USB direct connection to the computer) Corel Draw/Illustrator Plug-in(SD direct connection to the computer) | ||
| Power Source | 100V~240V,50/60Hz | ||
| Power | 150W | ||
| Operation environment | Temperature: +5ºC - +35ºC/41ºF - 95ºF Humility:30%-75% | ||
| Stand & Pocket | Included | Included | Included |
This Parameter is subject to change without prior notice.The company reserves the right of the final interpretation.
