              Plastic Box Making Machine for Die Cut Waste Stripping

              Automatic Die-cut Waste Stripping Machine Sample ShowWorking FlowMain FeaturesAutomatic stripping machine is a professional equipment for automatically stripping the waste from die cut paper sheet. It replaces manual labor and greatly upgrades working efficiency of die-cutting products in paper......

              Send Inquiry

              Product Description

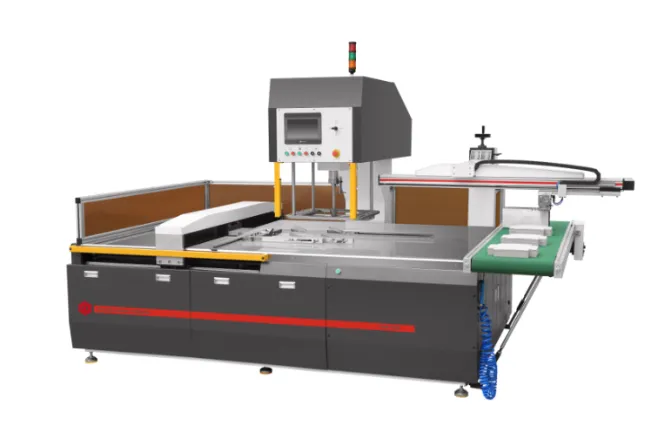

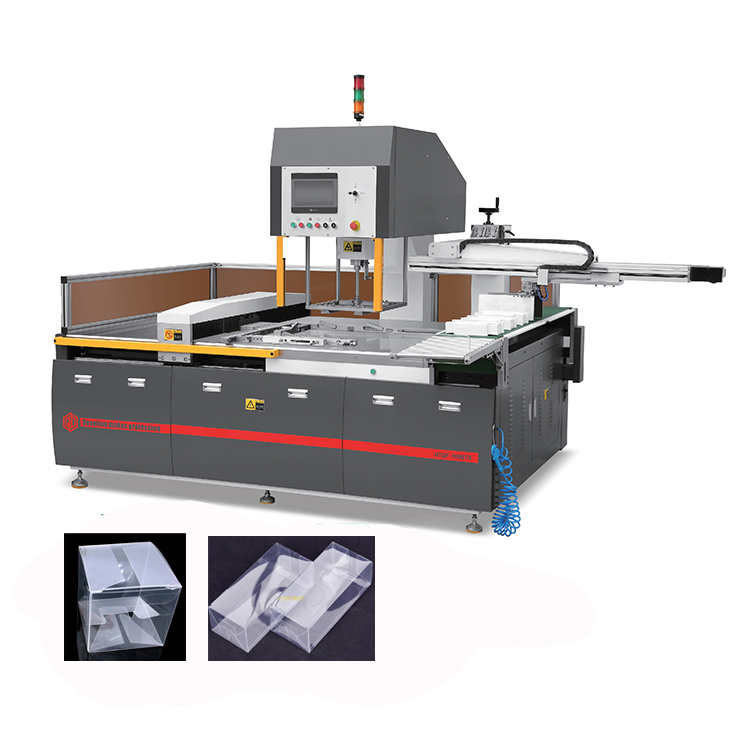

              Automatic Die-cut Waste Stripping Machine
              Plastic Box Making Machine for Die Cut Waste Stripping

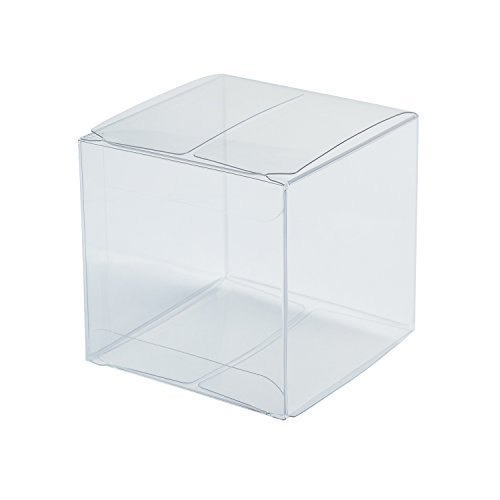

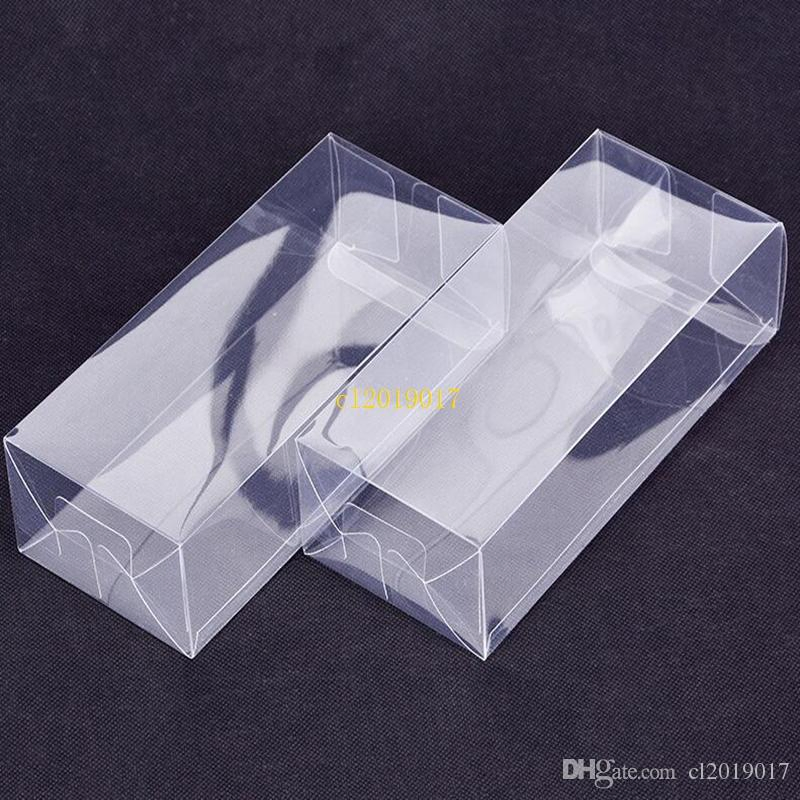

              Sample   Show
              Plastic Box Making Machine for Die Cut Waste Stripping

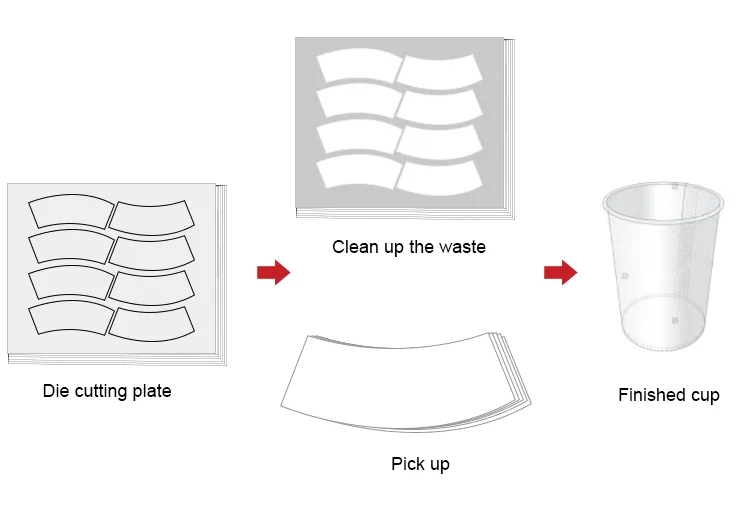

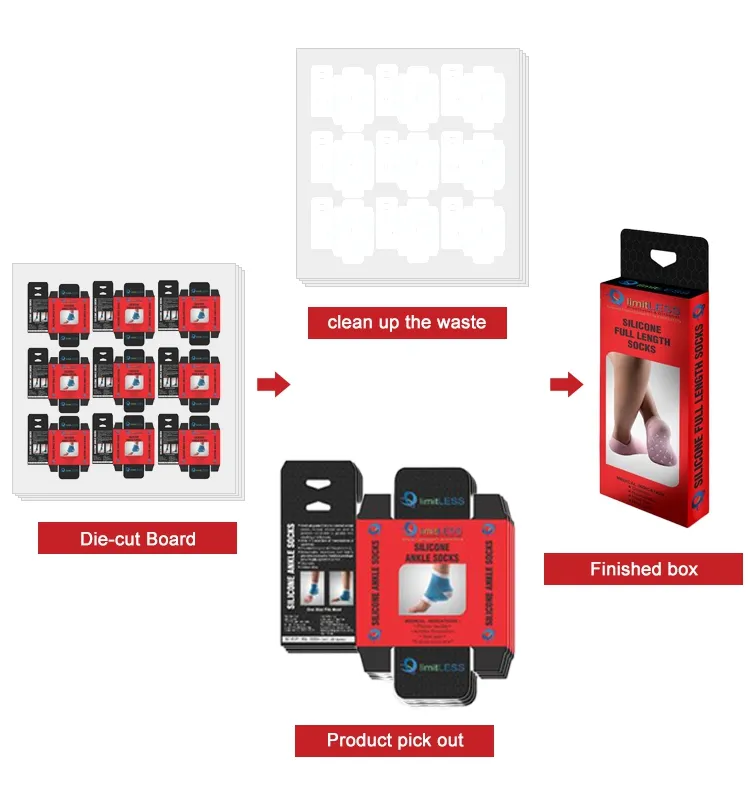

              Working   Flow
              Plastic Box Making Machine for Die Cut Waste Stripping
              Plastic Box Making Machine for Die Cut Waste Stripping
              Main  Features
              Automatic stripping machine is a professional equipment for automatically stripping the waste from die cut paper sheet. It replaces manual labor and greatly upgrades working efficiency of die-cutting products in paper or plastic materials. It applies to print & pack industrial, post-press, after paper creasing and die cutting.This stripper machine make your scrap removal efficient after the die-cutting process. The die-cut strip machine applies to the production lines of hang tags, paper box, paper cup, food box, plastic box, and so on.


              1. Taking out finished products after die cutting process.
              2. Applied for many die cut products such as labels, hang tags, business cards, gift boxes, food boxes,
                   paper cups and other die cutting products in paper or plastic, PU leather.
              3. Automatically taking out with manipulator arm to stack product onto delivery belt.
              4. PLC controlled with smart & easy operation.
              5. Automatic lubrication system for machine better maintenance.
              6. Different shapes can be custom-made as customer requirement.


              Technical   Parameter
              Model
              QDQF-680R
              QDQF-920R
              QDQF-1080R
              Machine Size
              L2600xW1400xH1950
              L3100xW1800xH1950
              L3600xW2050xH1950
              Max sheet size (X x Y) mm
              680 x 480
              920 x 680
              1080 x 780
              Min sheet size (X x Y) mm
              400 x 300
              550 x 400
              650 x 450
              Max pile height mm
              100
              100
              100
              Min pile height mm
              40
              40
              40
              Work table height mm
              850
              850
              850
              Max product size to be punched out
              230 x 230
              360 x 360
              390 x 390
              Min. product size to be punched out
              30*30
              30*30
              30*30
              Stripping speed times/min
              15-22
              15-22
              15-22
              Max. force (bar)
              70
              70
              70
              Air consumption L/min
              4
              4
              4
              Manipulator Grip Range
              30-180mm
              30-260mm
              30-300mm
              Manipulator Grip Weight
              50-1200g
              50-1500g
              50-1800g
              Max Power
              4.6kw 380V
              4.6kw 380V
              4.6kw 380V
              Net Weight
              1.7T
              2.1T
              2.5T
              Package Size
              2100x1500x2200
              2700x1950x2250
              3100x2250x2250
              Gross Weight
              2.0T
              2.45T
              2.9T
              Company   Information
              Plastic Box Making Machine for Die Cut Waste StrippingWenzhou Qian Ding machinery Co., Ltd is a professional manufacturer of waste stripping machine,paper hole drilling machine, we provide perfect solution for the die-cutting product waste removing, save the labor cost very much and make your die-cut product in higher quality. Our machines are widely used for the production lines of box making, gift box making, hang tag making, label making, paper cup making, and other products need to be die-cut.

              As a innovation company, we value the technology,and quality very much. We pay attention to the scientific concept of development, enhancing the corporate culture, and injecting the vitality to modern enterprise, which make our company have stronger competitiveness.
