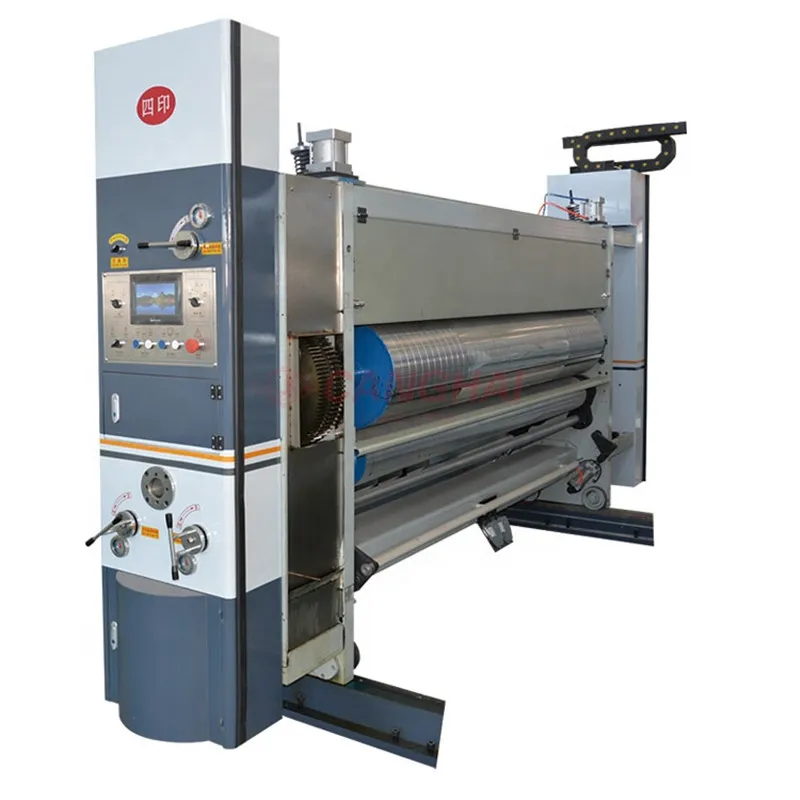

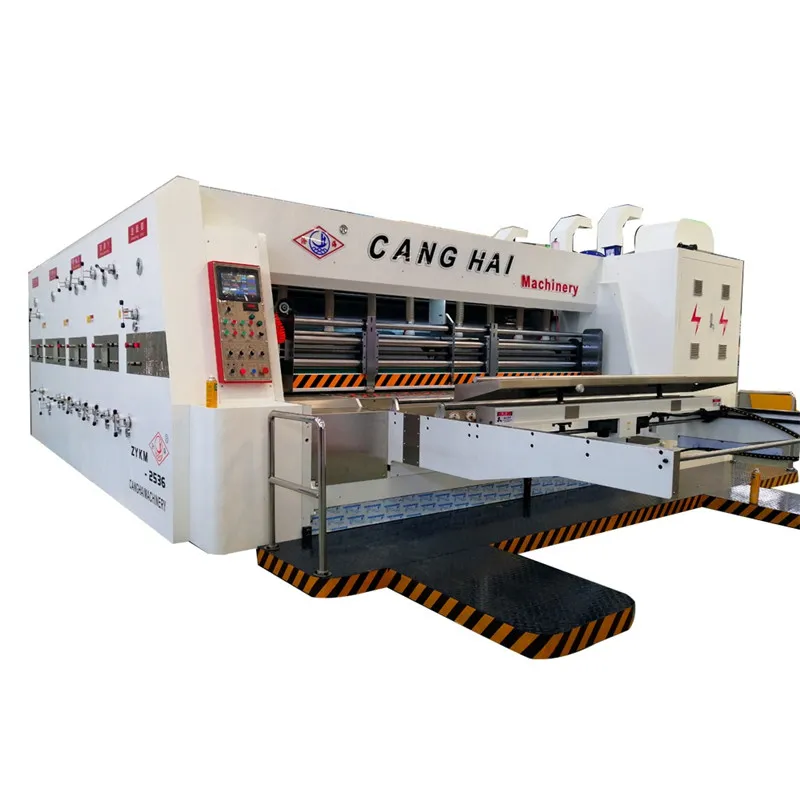

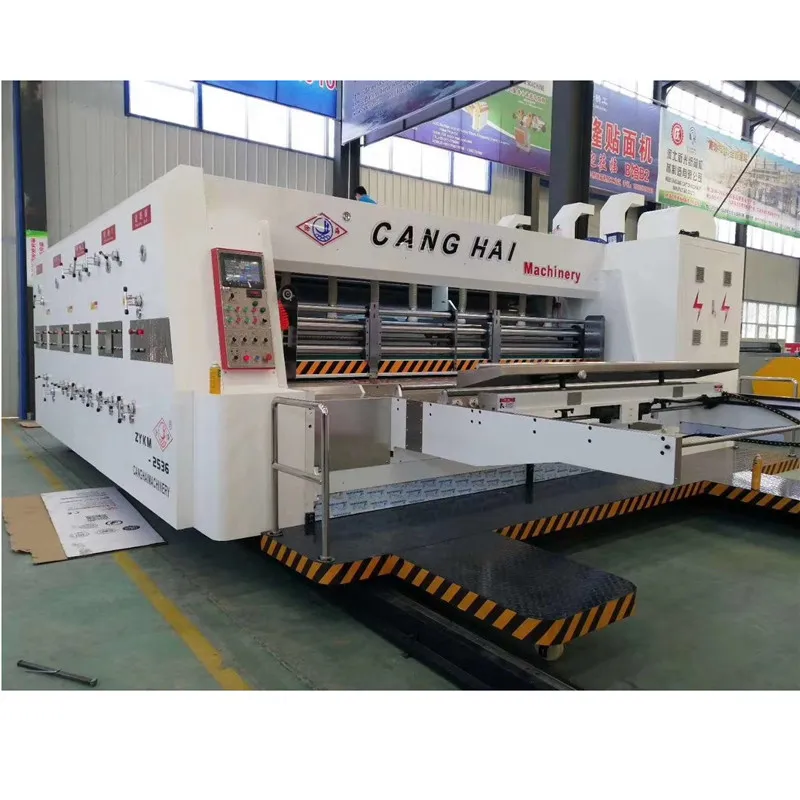

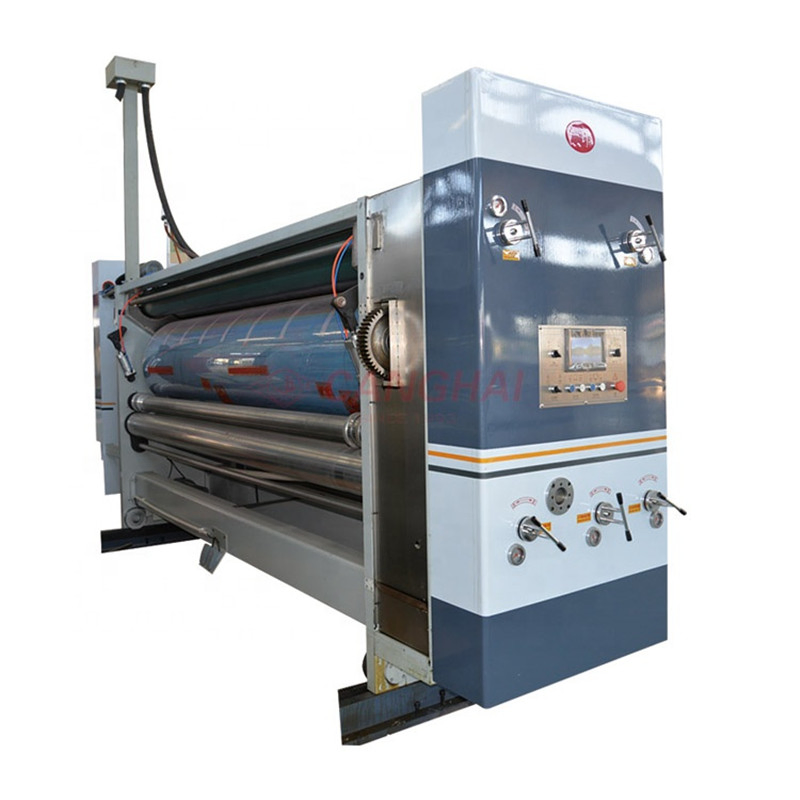

ZYKM 2536 lead edge feeding 4-color printing slotting die cutting machine
Product introduction:
1. The whole machine is designed and manufactured in accordance with high requirements, high speed, high efficiency, reliability and safety. Quick order change and easy operation.
2. Imported PLC, touch screen multi-function control. Can store frequently used orders to speed up the order change operation.
3. Choose high-quality materials and accessories.
4. All rollers are chrome-plated to enhance the hardness.
5. The transmission adopts alloy steel precision grinding gear and spray type circulating lubrication system.
Machine characteristics
1. The whole machine is designed and manufactured in accordance with high requirements, high speed, high efficiency, reliability and safety. Quick order change and easy operation.
2. Imported PLC, touch screen multi-function control. Can store frequently used orders to speed up the order change operation.
3. Choose high-quality materials and accessories.
4. All rollers are chrome-plated to enhance the hardness.
5. The transmission adopts alloy steel precision grinding gear and spray type circulating lubrication system.
6. The keyless continuous ring is used to reduce center wear, enlarge the virtual position, and maintain long-term printing registration.
7. Adopt the hanging plate structure, automatic reset and quick change of orders.
8. Each unit is equipped with emergency stop switch to protect and control safety.
9. The gap adjustment adopts self-locking adjustment device, which is easy to operate.
10. The electrical components, main bearing, pneumatic control components, etc. adopt international brands.
11. Technical front edge paper feeding system, frequency conversion to adjust the air volume, paper feeding is accurate and stable.
12. Slotting knife phase and box height adjustment mechanism, frequency converter control dynamic 360 degree adjustment.
13. The horizontal movement of the slotting tool holder is electrically controlled, which makes adjustment quick and accurate.
14. The rubber pad roller automatic displacement mechanism extends the service life of the rubber pad.
15. Imported quick-change rubber pads, rubber pad grinding correction mechanism.
16. The structure of the paper guide roller to move quickly.
17. Equipped with automatic paper stacking machine.
Paper feeding department
The leading edge paper feeding system, frequency conversion to adjust the air volume, paper feeding is accurate and stable.
Double-row paper feed roller mode, front paper feed and upper roller quick-change mechanism, covered with wear-resistant rubber, and equipped with spring adjustment function, which can prevent the cardboard from deforming and ensure accurate paper feeding.
Dust removal brush and dust suction device to remove paper debris on the cardboard surface.
The touch screen displays the production speed and production quantity.
The paper feeding gap is adjusted manually.

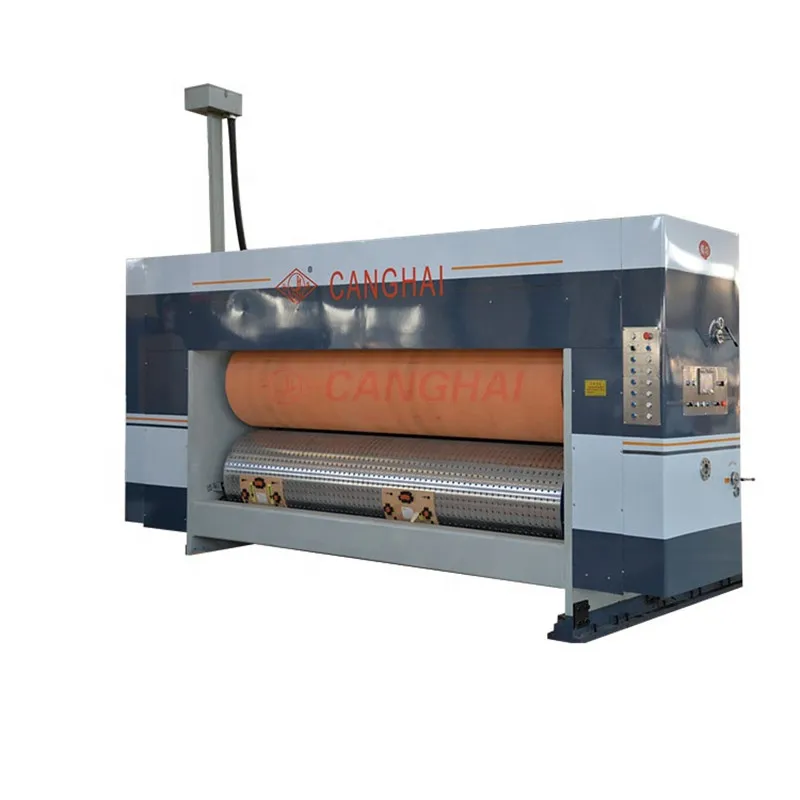

Printing Department
The printing roller and embossing roller are made of high-quality steel with ground surface and hard chrome plating. Dynamic and static balance correction, stable operation.
Adopting plate hanging mechanism, easy and fast installation.
The loading and unloading of the printing plate is equipped with a foot switch or operation surface to control the forward and reverse rotation, which is fast and convenient.
The paper feeding system is equipped with an automatic lifting anilox roller. When feeding paper, the anilox roller automatically descends to contact the printing plate. When the paper feeding stops, the anilox roller automatically rises and separates from the printing plate.
The phase adopts electromagnetic brake fixing device, with intelligent zero return, dynamic and static can be reset quickly.
The printing phase adopts PLC touch screen control and electric digital 360 degree adjustment.
The paper guide roller has a rapid lateral movement structure, and the gap self-locking adjustment device.

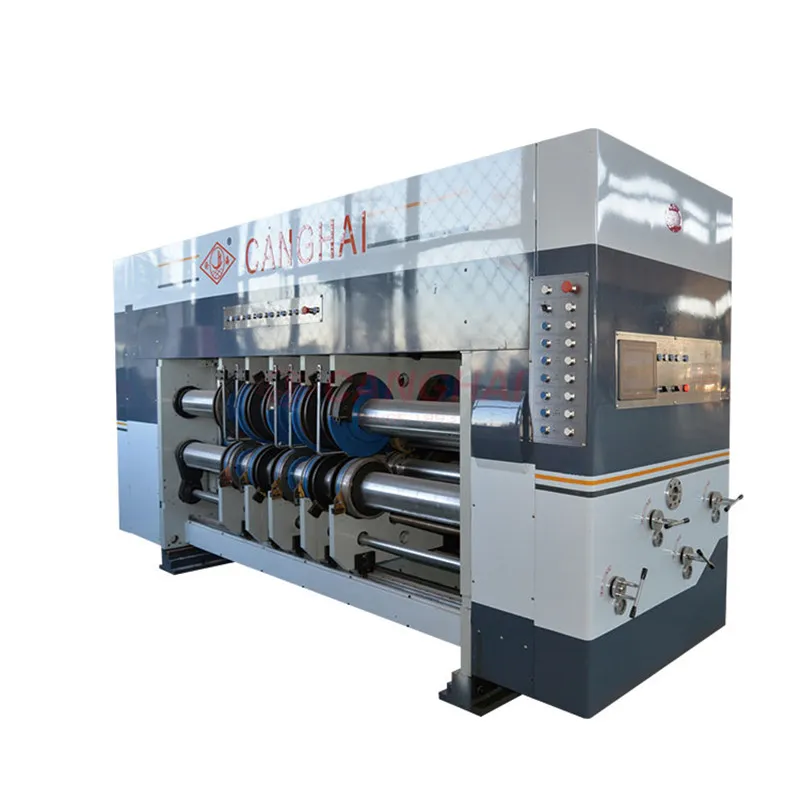

Double shaft slotted part
The unique dual-axis dual-knife slotting structure eliminates front and back collision accidents, and can process large-size cartons with high cartons.
The grooving knife is made of high-quality alloy with a thickness of 7-8 mm, with a sharp tooth-shaped blade and high wear resistance.
Slotting knife phase, box height adjustment mechanism, frequency converter control dynamic 360 degree adjustment.
Precise linear guide system, accurate horizontal movement, smooth slotting.
It can be equipped with punching device according to user needs.
Pre-pressing wheel, crimping wheel, slotting cutter head, gap self-locking adjustment device
Snap-fit single-blade trimming knife, trimming smooth and clean, saving cost.
The electric displacement mechanism of the middle knife has strong production adaptability.
Die cutting department
The rubber cushion roller and die-cutting roller are made of high-quality steel materials, and the surface is ground and plated with hard chromium. Dynamic and static balance correction, stable operation.
The stencil roller and the rubber roller are automatically disengaged by the cylinder eccentric device without die cutting, which can reduce the no-load load of the machine and extend the life of the rubber and die.
Cooperate with the pneumatic automatic lifting device of the paper feeding system, (the rubber pad roller descends when the paper is fed) the rubber pad roller rises after the paper feeding is stopped to ensure that each cardboard is die-cut correctly.
The mechanically-driven Youli rubber roller moves 40mm left and right, and is equipped with a radial differential device, which can evenly distribute the rubber pad wear and greatly improve the service life of the rubber pad.
The die cutting phase adopts PLC, touch screen and electric digital 360 degree adjustment.
The machine is equipped with a rubber correction device, which can be used after repeated corrections to the rubber pad.
Plate-free slotting die-cutting tool holder, no need to do template when making ordinary carton slotting, saving cost and improving efficiency. (Optional)
Technical parameters
Product introduction:
1. The whole machine is designed and manufactured in accordance with high requirements, high speed, high efficiency, reliability and safety. Quick order change and easy operation.
2. Imported PLC, touch screen multi-function control. Can store frequently used orders to speed up the order change operation.
3. Choose high-quality materials and accessories.
4. All rollers are chrome-plated to enhance the hardness.
5. The transmission adopts alloy steel precision grinding gear and spray type circulating lubrication system.
Machine characteristics
1. The whole machine is designed and manufactured in accordance with high requirements, high speed, high efficiency, reliability and safety. Quick order change and easy operation.
2. Imported PLC, touch screen multi-function control. Can store frequently used orders to speed up the order change operation.
3. Choose high-quality materials and accessories.
4. All rollers are chrome-plated to enhance the hardness.
5. The transmission adopts alloy steel precision grinding gear and spray type circulating lubrication system.
6. The keyless continuous ring is used to reduce center wear, enlarge the virtual position, and maintain long-term printing registration.
7. Adopt the hanging plate structure, automatic reset and quick change of orders.
8. Each unit is equipped with emergency stop switch to protect and control safety.
9. The gap adjustment adopts self-locking adjustment device, which is easy to operate.
10. The electrical components, main bearing, pneumatic control components, etc. adopt international brands.
11. Technical front edge paper feeding system, frequency conversion to adjust the air volume, paper feeding is accurate and stable.
12. Slotting knife phase and box height adjustment mechanism, frequency converter control dynamic 360 degree adjustment.
13. The horizontal movement of the slotting tool holder is electrically controlled, which makes adjustment quick and accurate.
14. The rubber pad roller automatic displacement mechanism extends the service life of the rubber pad.
15. Imported quick-change rubber pads, rubber pad grinding correction mechanism.
16. The structure of the paper guide roller to move quickly.
17. Equipped with automatic paper stacking machine.
Paper feeding department
The leading edge paper feeding system, frequency conversion to adjust the air volume, paper feeding is accurate and stable.
Double-row paper feed roller mode, front paper feed and upper roller quick-change mechanism, covered with wear-resistant rubber, and equipped with spring adjustment function, which can prevent the cardboard from deforming and ensure accurate paper feeding.
Dust removal brush and dust suction device to remove paper debris on the cardboard surface.
The touch screen displays the production speed and production quantity.
The paper feeding gap is adjusted manually.
Printing Department
The printing roller and embossing roller are made of high-quality steel with ground surface and hard chrome plating. Dynamic and static balance correction, stable operation.
Adopting plate hanging mechanism, easy and fast installation.
The loading and unloading of the printing plate is equipped with a foot switch or operation surface to control the forward and reverse rotation, which is fast and convenient.
The paper feeding system is equipped with an automatic lifting anilox roller. When feeding paper, the anilox roller automatically descends to contact the printing plate. When the paper feeding stops, the anilox roller automatically rises and separates from the printing plate.
The phase adopts electromagnetic brake fixing device, with intelligent zero return, dynamic and static can be reset quickly.
The printing phase adopts PLC touch screen control and electric digital 360 degree adjustment.
The paper guide roller has a rapid lateral movement structure, and the gap self-locking adjustment device.
Double shaft slotted part
The unique dual-axis dual-knife slotting structure eliminates front and back collision accidents, and can process large-size cartons with high cartons.
The grooving knife is made of high-quality alloy with a thickness of 7-8 mm, with a sharp tooth-shaped blade and high wear resistance.
Slotting knife phase, box height adjustment mechanism, frequency converter control dynamic 360 degree adjustment.
Precise linear guide system, accurate horizontal movement, smooth slotting.
It can be equipped with punching device according to user needs.
Pre-pressing wheel, crimping wheel, slotting cutter head, gap self-locking adjustment device
Snap-fit single-blade trimming knife, trimming smooth and clean, saving cost.
The electric displacement mechanism of the middle knife has strong production adaptability.
Die cutting department
The rubber cushion roller and die-cutting roller are made of high-quality steel materials, and the surface is ground and plated with hard chromium. Dynamic and static balance correction, stable operation.
The stencil roller and the rubber roller are automatically disengaged by the cylinder eccentric device without die cutting, which can reduce the no-load load of the machine and extend the life of the rubber and die.
Cooperate with the pneumatic automatic lifting device of the paper feeding system, (the rubber pad roller descends when the paper is fed) the rubber pad roller rises after the paper feeding is stopped to ensure that each cardboard is die-cut correctly.
The mechanically-driven Youli rubber roller moves 40mm left and right, and is equipped with a radial differential device, which can evenly distribute the rubber pad wear and greatly improve the service life of the rubber pad.
The die cutting phase adopts PLC, touch screen and electric digital 360 degree adjustment.
The machine is equipped with a rubber correction device, which can be used after repeated corrections to the rubber pad.
Plate-free slotting die-cutting tool holder, no need to do template when making ordinary carton slotting, saving cost and improving efficiency. (Optional)
Technical parameters
| Model | 1832 | 2234 | 2536 | |
| Max.machine speed(pcs/min) | 120 | 100 | 100 | |
| Max.feeding size (mm) | 1880×3200 | 2260×3400 | 2570×3600 | |
| Skip feeding size (mm) | 2200×3200 | 2700×3400 | 3100×3600 | |
| Max printing area (mm) | 1800×3200 | 2200×3400 | 2500×3600 | |
| Min.feeding size (mm) | 500×890 | 550×890 | 600×890 | |
| Max.Depth of slotting (mm) | 490 | 580 | 660 | |
| Registration precision (mm) | ≤±0.6(4 colors) | |||
| Printing plate thickness (mm) | 6 | |||
| Thickness of paper (mm) | 2.5-12 | |||
| Min.slotting interval(mm) | Normal | 190×190×190×190 | ||
| Reverse | 310×110×310×110 | |||
