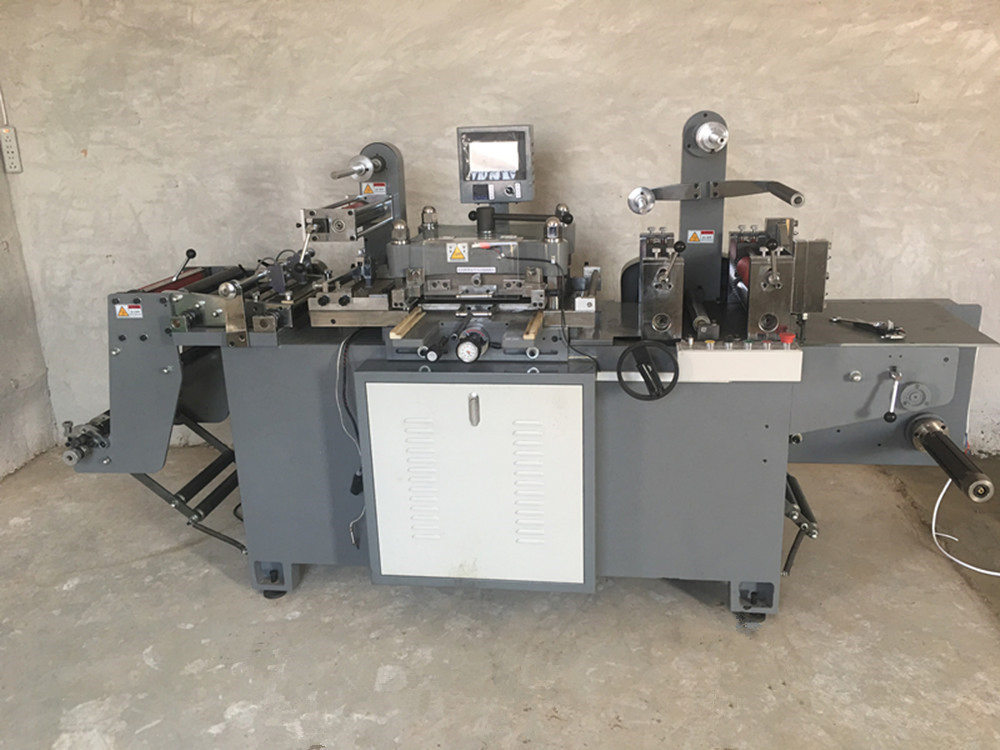

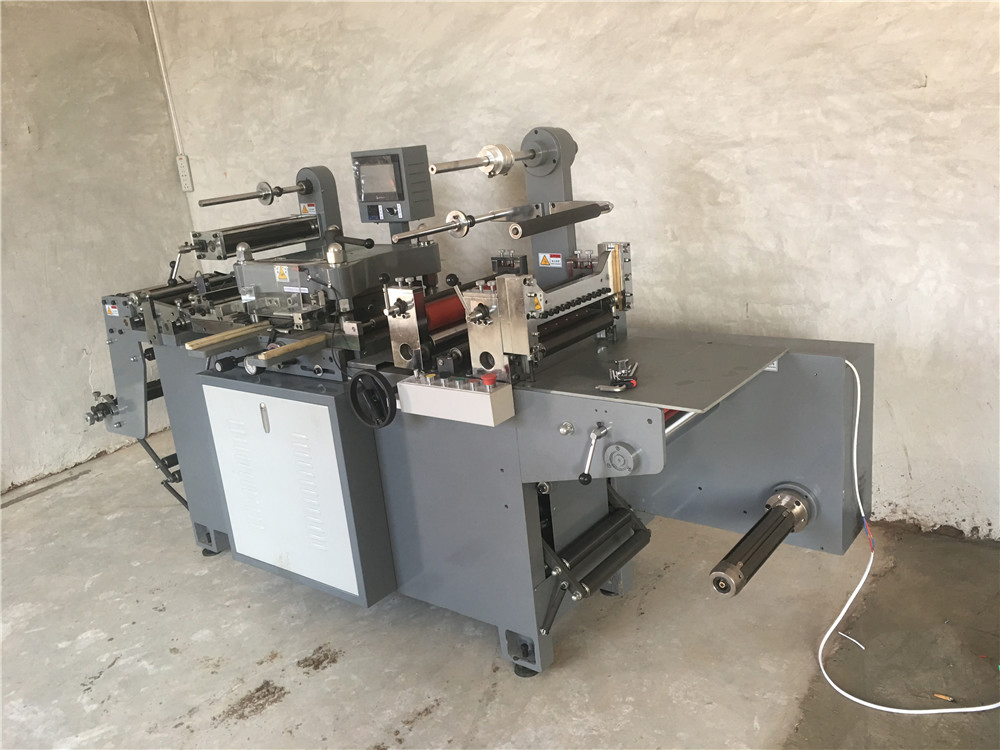

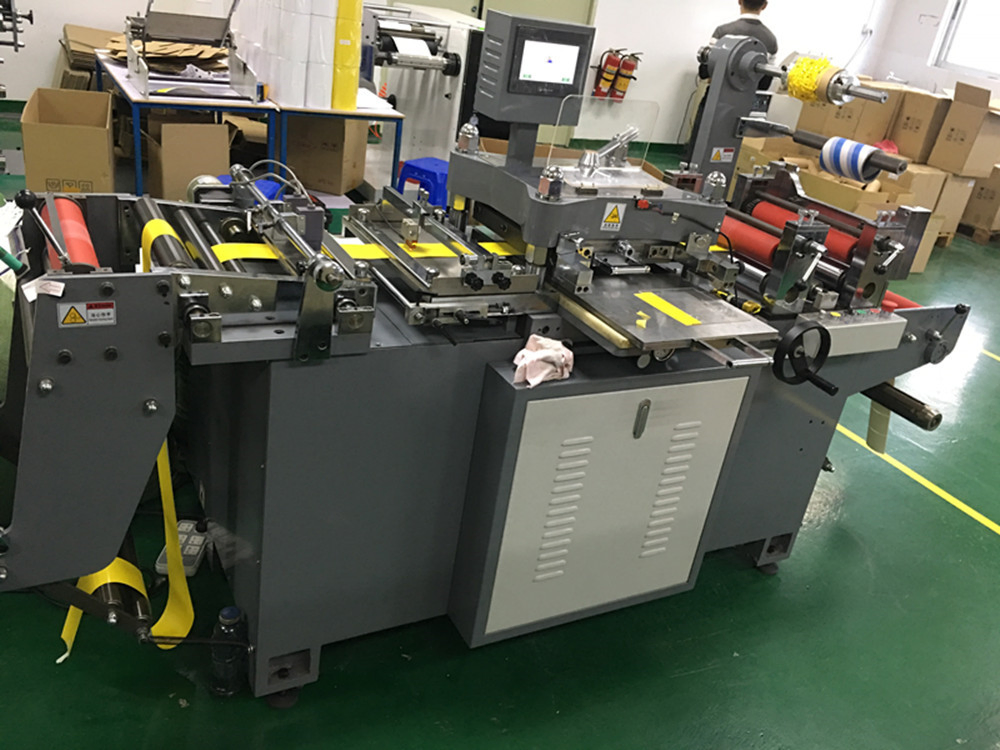

Kiss Cutter Die Cutting Machine
High precision dacron film label die cutting machine Application: This die-cut machinery is applied in die cutting for adhesive sticker,protective film,electronic shielding material, PVC, Mylar, double sided adhesive, aluminum f......
Send Inquiry
Product Description
High precision dacron film label die cutting machine
Application:
This die-cut machinery is applied in die cutting for adhesive sticker,protective film,electronic shielding material, PVC, Mylar, double sided adhesive, aluminum foil/copper foil, foam and all kinds of LCD diffuser, reflector plate, buffer plate, film, silicon adhesive tape .......
Main technical parameters:
Machine Features:
1.Multi-function in ONE machine: Laminating / partial laminating+unwinding+laminating+die cutting +discharging sheet cutting/rewinding
2.Photo Cell if necessary
3.Sucking device during material feeding process
4.Waste discharge shaft
5.Sheet cutting station
6.Rewinding station
7.Safety curtain device
8.Optional function: Conveyor belt device for full-cut use
After-sales Service
1. Warranty:1 year after you get the machine.
2. Promptly response within 24 hours in working days.
3. Free training before machine delivery and on-site training engineers available.
Application:
This die-cut machinery is applied in die cutting for adhesive sticker,protective film,electronic shielding material, PVC, Mylar, double sided adhesive, aluminum foil/copper foil, foam and all kinds of LCD diffuser, reflector plate, buffer plate, film, silicon adhesive tape .......
Main technical parameters:
| Model | LT-350B | LT-420B |
| Die Cutting speed | 20-300 cuts/min. | 20-300 cuts/min. |
| Max. unwinding diameter | 450mm | 450mm |
| Max. web width | 350mm | 420mm |
| Max. die cutting size | 330x330mm | 420x420mm |
| Precision | ±0.10mm | ±0.10mm |
| Power | 3kw | 4kw |
| Voltage | 380v | 380v |
| Machine weight | 2200kg | 2800kg |
| Machine size | 2600x950x1400mm | 2600x1050x1800mm |
Machine Features:
1.Multi-function in ONE machine: Laminating / partial laminating+unwinding+laminating+die cutting +discharging sheet cutting/rewinding
2.Photo Cell if necessary
3.Sucking device during material feeding process
4.Waste discharge shaft
5.Sheet cutting station
6.Rewinding station
7.Safety curtain device
8.Optional function: Conveyor belt device for full-cut use
After-sales Service
1. Warranty:1 year after you get the machine.
2. Promptly response within 24 hours in working days.
3. Free training before machine delivery and on-site training engineers available.
