Hot Sale Automatic Auto Paper Embossing Emboss Plastic Die Cutting Creasing Punch Kiss Machine
Detail Product Description______________________________________1.Automatic Deep Embossing Die Cutting Machine is designed for die cutting,embossing and creasing.It suits for 60-2000 g/m2cardboard, and thickness below 4mm corrugated paper , pasting paper, laminating paper and so on.2.The machine inc......
Send Inquiry
Product Description
Detail Product Description
______________________________________

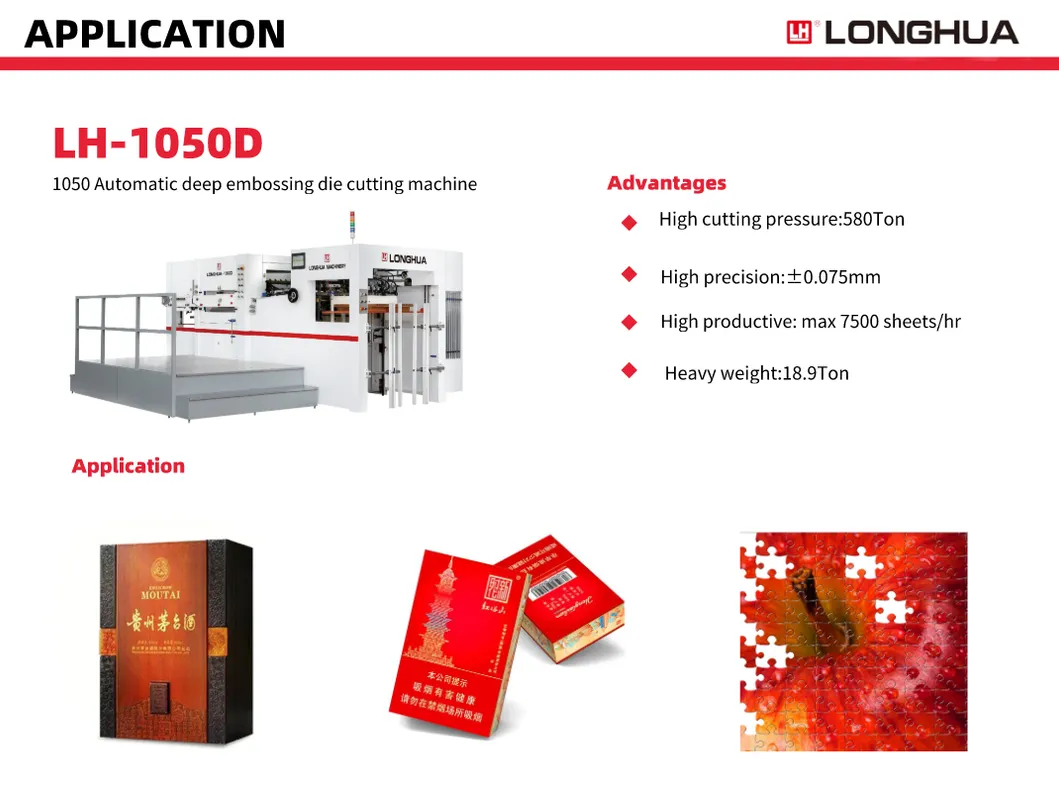

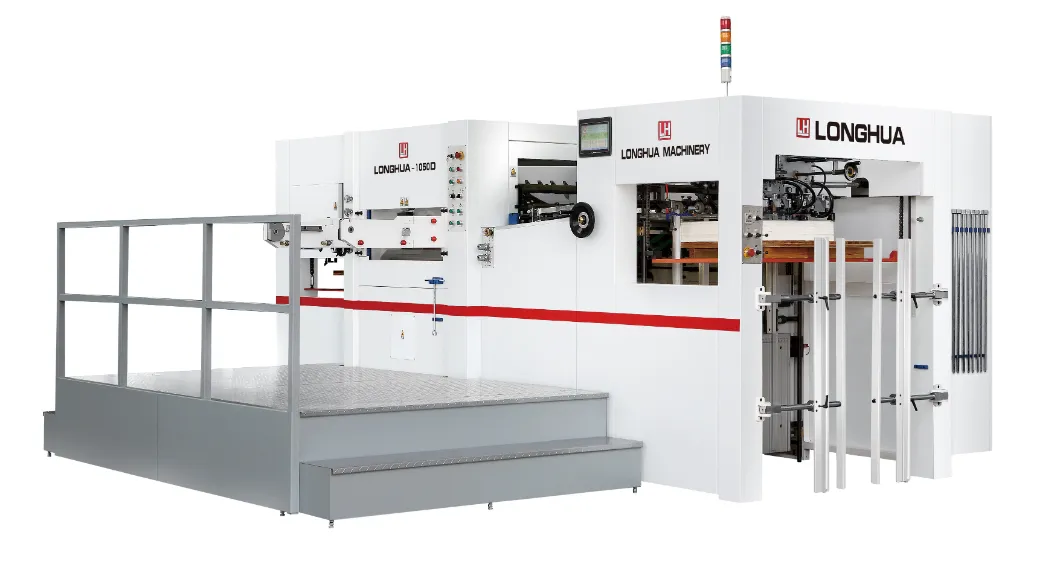

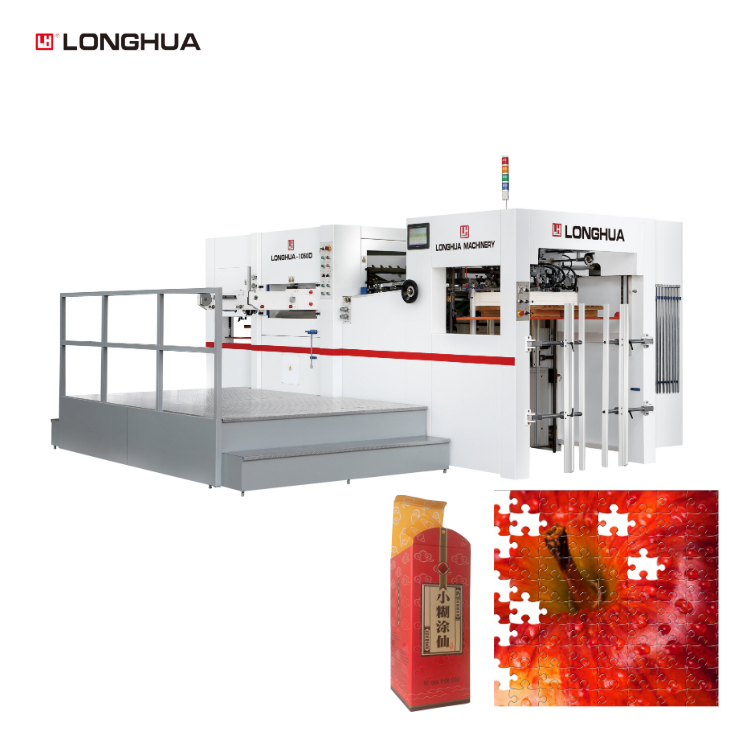

1.Automatic Deep Embossing Die Cutting Machine is designed for die cutting,embossing and creasing.It suits for 60-2000 g/m2cardboard, and thickness below 4mm corrugated paper , pasting paper, laminating paper and so on.
2.The machine includes 4 parts:feeder,paper feed section,main motor and delivery section. And it finishs feeding,die cutting,embossing and collecting work cycle automatically.
3.The thicken wall has1000Ton stress-tolerant ,makes embossing work more clear,and effect more better.12 independent heated zones provide 0-200°C temperature,make embossing pattern more variable and higher quality. 580Ton cutting pressure makes the pattern more stereoscopic.

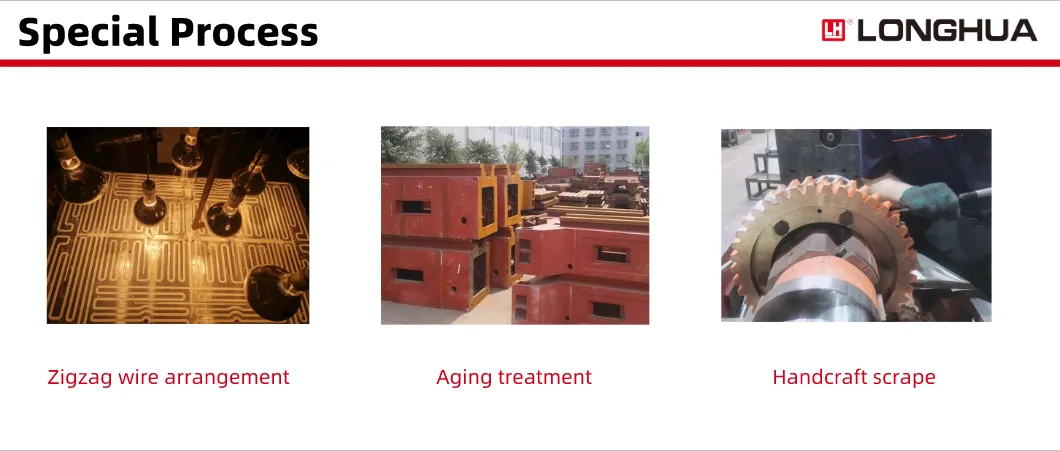

4.The machine is equipped with automatic lubrication system.And the swing rod and copper tile are all reworked by hand .we scrape the surface and make it full of criss-cross scrath. the groove hold more oil so that machine runs more smoothly , and maintain a higher and longer precision working.
Machine Parameters
__________________________________
| Model number | LH-1050D |
| Max.sheet size | 1050X750mm |
| Min.sheet size | 400X360mm |
| Max.cutting size | 1040X720mm |
| Inner chase size | 1080X745mm |
| Die cutting steel plate size | 1080X736mm |
| Feed material | 80~2000g/m 2 cardboard,corrugated board thickness ≤4mm |
| Plastic range | 0.1-2.0mm |
| Cutting pressure | 580Ton |
| Min.grabbing-sheet width | 9.0mm |
| Max.cutting speed | 7500Sheets/hr |
| Total power | 20KW |
| Number of heating zones | 12 heating zon es, 40°C-180°Cadjustable |
| Full load wattage | 42KW |
| Machine weight | 18.9Ton |
| Machine dimension(L x W x H) | 7400X4200X2100mm |
Company Information
__________________________________
Packaging & Shopping
__________________________________
Why choice us
______________________________________
1.About the company
Wenzhou Longhua Machinery Co.,Ltd has a excellent reputation domestic and oversea, has exported to Europe,Africa ,America and Southeast Asia ,and so on, due to our high level quality and intimate service.
The staffes of Longhua are creative,innovate,goodness,laborious,and capable,all of these excellent personalities make Longhua develop and expend maket rapidly.
2.About the machine
Die cutting machine,foil stamping machine and embossing machine ,the classics of Longhua,which are in the industry leading level .
we have product these machines for tens of thousands times,so we have a skillful technology ,and 100% ensure the quality of machines.
3.About the sevice
We provide one year after-sales sevice, including install,debug and the training. We are alway ready whenever customers need us,and so pleasant to make friends with our clients.
FAQ
______________________________________
Q1: Do you have stock products to sell?
We manufacture machines in batch. So most of machines have in stock, please check with us before ordering.
Q2: How about installation and training?
Installation and training: If purchaser's engineer travels at own cost to China, free training session. If engineer sent to
purchaser's factory, all travel cost paid by purchaser.
Q3: How about warranty?
Warranty period: 12 months from the shipping date of machine. Warranty will be not valid if machine subject to misuse or
accidental damage or operator's error. During the valid time, we will supply spare parts. If you have any other questions, please
contact us and we will reply you through product's photos and videos to make every detail clear.
Q4:What is your payment?
T/T.30% deposit, 70% balance before delivery.
L/C. 100% at sight.
