High Speed Lead Edge Auto Feeding Two Color Printing Slotting Die Cutting Box Make Machine
Product DescriptionColor groupTo be configured according to user's needsPrinting paperA,B,C,A/B,B/C and A/B/C type corrugated paperboard (the maximum interval 11mm)Width of machine inside2200mm2600mm2800mmMax.paper size900x2000mm1200x 2400mm1400 x2600mmMax.pinting size900x 1800mm1200x 2200mm1400......
Send Inquiry
Product Description
| Product Description |
| Color group | To be configured according to user's needs | ||
| Printing paper | A,B,C,A/B,B/C and A/B/C type corrugated paperboard (the maximum interval 11mm) | ||
| Width of machine inside | 2200mm | 2600mm | 2800mm |
| Max.paper size | 900x2000mm | 1200x 2400mm | 1400 x2600mm |
| Max.pinting size | 900x 1800mm | 1200x 2200mm | 1400 x2400mm |
| Skip feeding paper | 1100x 2000mm | 1400x 2400mm | 1600 x2600mm |
| Min.paper size (positive knife) (negative knife) | 300 x 640mm 300x 720mm | 350x 720mm 350x740mm | 400 x 720mm 400 x 740mm |
| Printing plate thickness | 7.2mm | 7.2mm | 7.2mm |
| Design speed ( piece/min) | 200pcs/min | 180pcs/min | 150pcs/min |
| Economic speed(piece/ min) | 80-180pcs/min | 80-160pcs/min | 80-130pcs/min |
| Tinted precision | 4 (color)±0.5mm | 4 (color)±0.5mm | 4 (color)±0.5mm |
| Slotting precision | ±1.5mm | ±1.5mm | ±1.5mm |
| increase the blade, increase the slot depth | |||
| Max.slotting depth | 7 x220mm | 7 x300mm | 7x 350mm |
| Min.Slotting distance (positive knife) (negative knife) | 150x150x150x150mm 250 x 90 x 250 x90mm | 170x170x170x170mm 260x 90 x 260x 90mm | 170x170x170x170mm 260x 90 x 260x 90mm |
| Max.die-cutting size | 900 x 1900mm | 1200 x 2300mm | 1 400x 2500mm |
| Printing plate diameter(contain plate thickness | ∅300mm | ∅405mmd | ∅480mm |

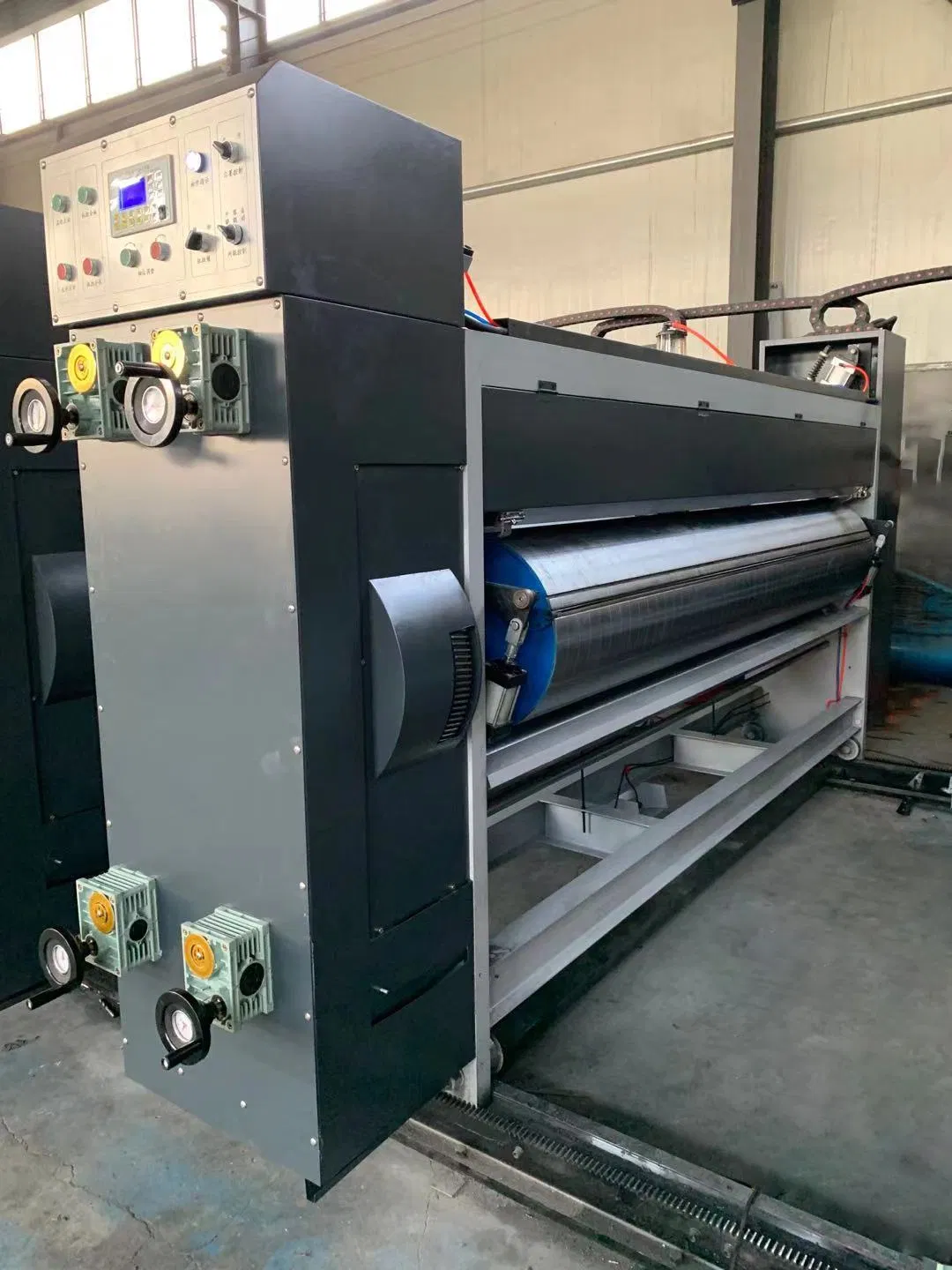

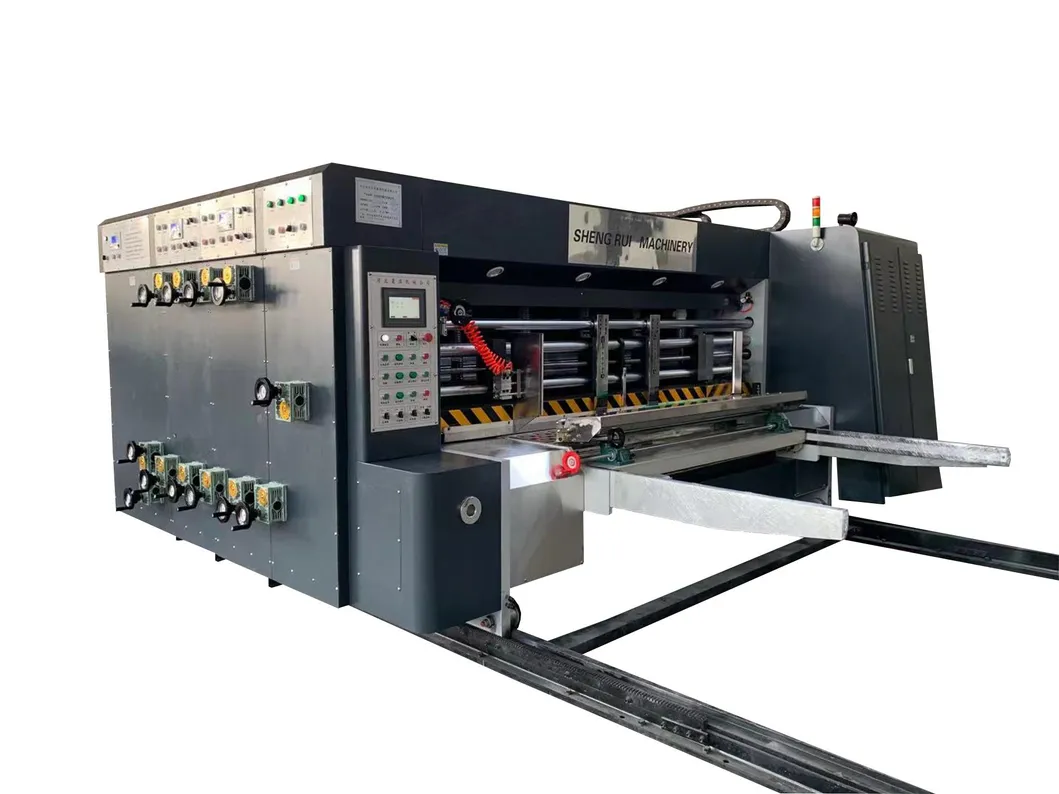

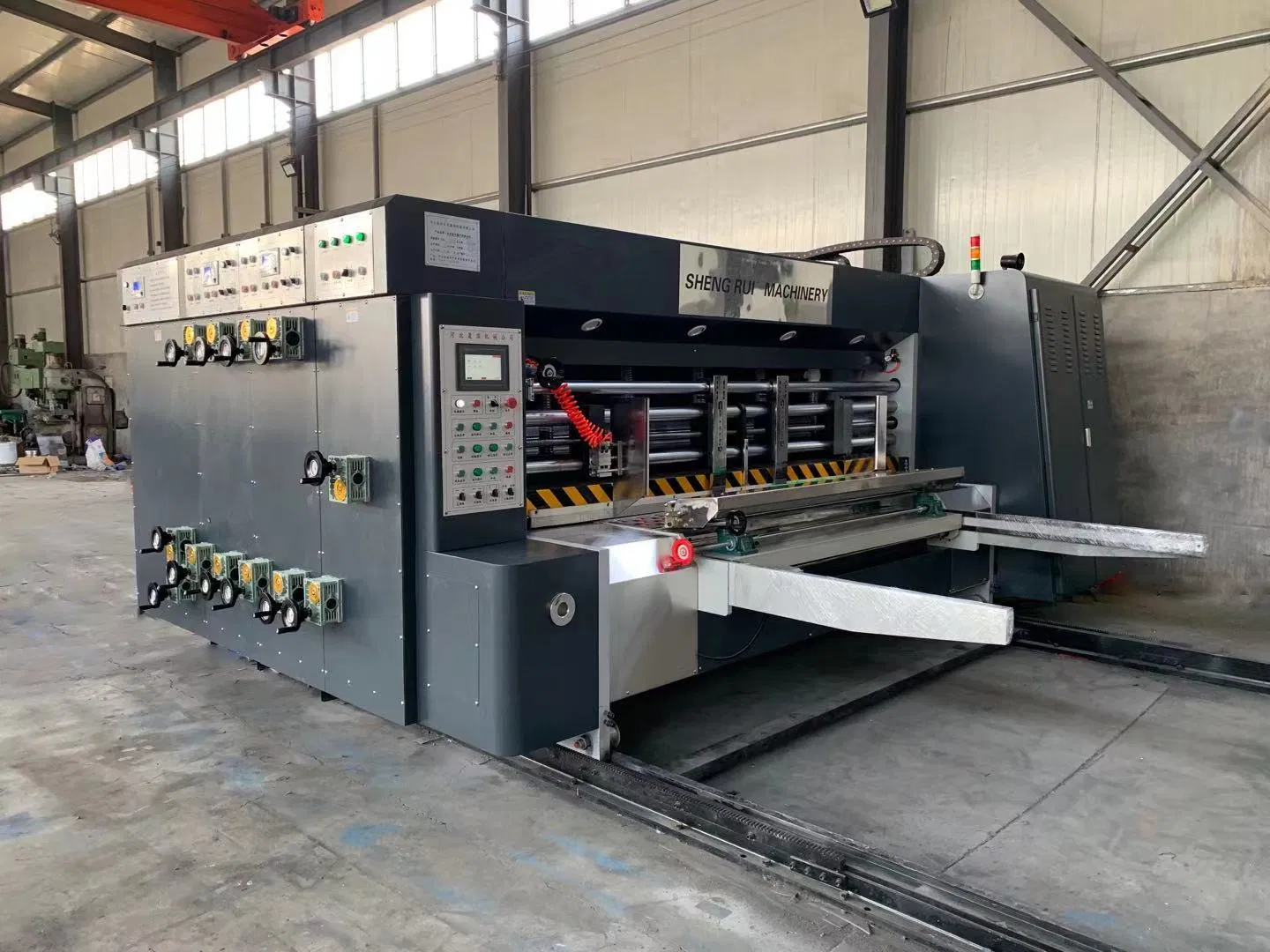

| Product display |
| Features |
2.Whole wallboard and important components are adopted aging treatment, eliminate the metal interal stress;Adopt high precision machining centers, CNC grinding machine for grinding processing.
3.The machine shaft, roller are adopted high quality steel, grinding processing, high precision computer dynamic balancing correction and surface hard chromium plating.
4.The engine drive gear is adopted 20crmnti aploy steel carburizing,quenching treatment, hardness HRC58-62 and gear grinding processing precision level 6, and ensured the long-term use of tinted with high precision
5.Machine transmission parts (shaf, gear joint) are adopted free key connection (LOCK-ALX), the connection eliminate clearance. lt is suitable for long-term high speed with high torque.
6.The machine drive bearing, important driving parts adopt eavy-duty self-aligning bearing simple maintenance,long service life. (three big domestic famous brand:Havalos)
7.The engine lubrication system is adopted automatic spray type lubrication, Equipped with automatic balancing device, keep the oil in every units at the same level.
8.The machine is adopted adjustment preset functions, feeding , printing, slotting, die-cutting,automatic zero resetting ,Separate and combine memory automatic feset lt adopts Working gap adjustment,rapid adjustment without wrench, quick performance and convenient adjustment.
9.The main motor is adopted frequency conversion control.lt makes start, running more steadily and saves more energy.
10.Optional: ceramic anilox roller doctor blade and set ink system, stacking machine.

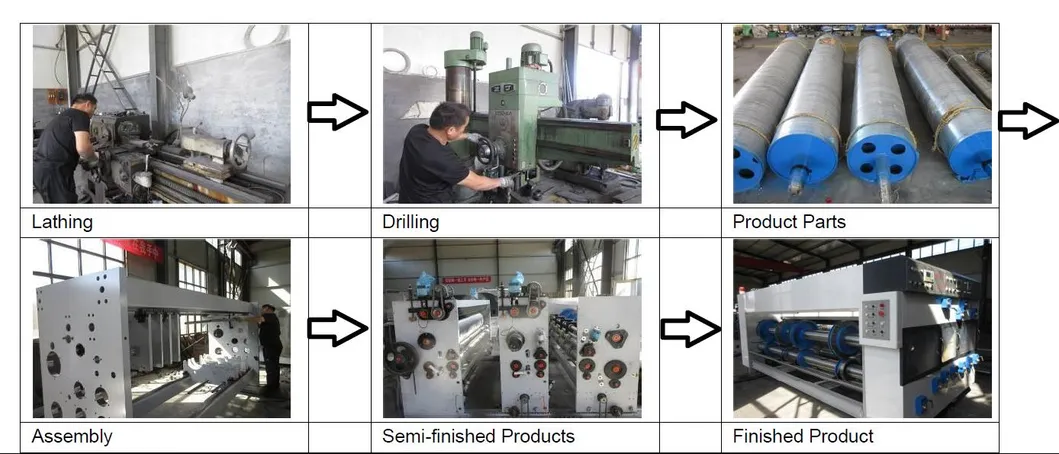

| Company Profile |
| Main Products |
| printing quality |
| FAQ |
A: We are a manufacturer, located in Dongguang county, Hebei province, China. Warmly welcome to visit our company.
2. Q: What is your minimum order quantity, can you send me samples?
A: Our minimum quantity is 1 set, as our product is machinery equipment, it's difficult to send you samples, if you have any questions about the products, please feel free to contact us for more detail, we are glad to provide you more information such as specifications, video, etc.
3. Q: How about the after-sale service?
1) TM online for 24 hours, also contact by email, skype, MSN, whatsapp, etc.
2) To solve the problems with videos/pictures.
3) One year warranty for spare parts change.
