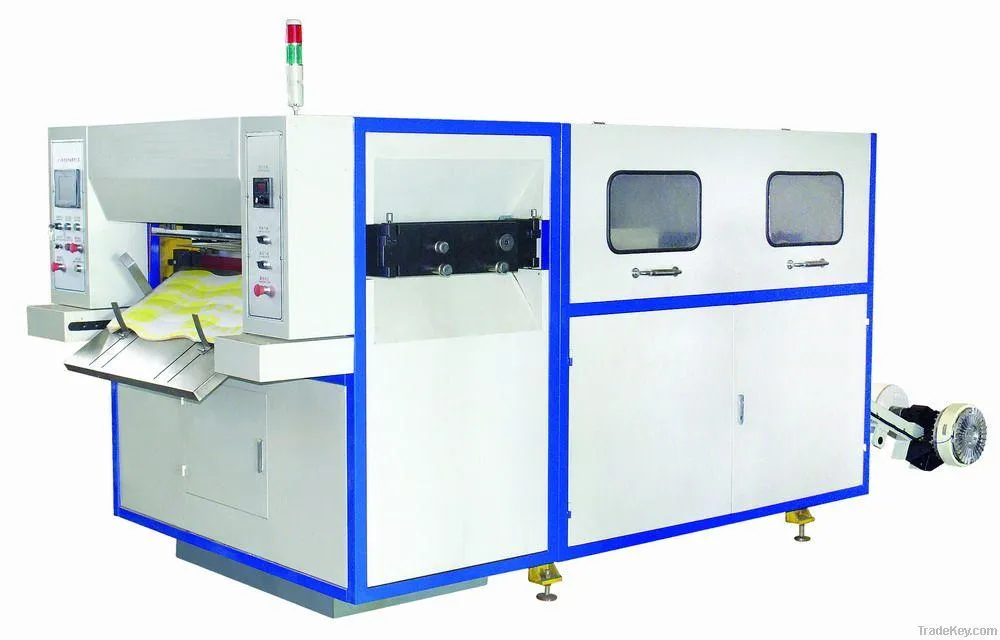

High Speed Creasing and Die Cutting Machine for Paper Cup
Product DescriptionIt adopts micro-computer, human-computer control interface, servo positioning, alternating current frequency converter, automatic counting, manual pneumatic lock plate, photoelectric correcting deviation system, electromagnetic clutch, centralized oil lubrication, overload protect......
Send Inquiry
Product Description
Product Description
It adopts micro-computer, human-computer control interface, servo positioning, alternating current frequency converter, automatic counting, manual pneumatic lock plate, photoelectric correcting deviation system, electromagnetic clutch, centralized oil lubrication, overload protection and distinctive gearing. So it guarantees smooth operations of returning paper and feeding paper, precise positioning and orderly withdrawing. All the key parts and controls of the machine are imported products and finish machining. Such installation can realize the machine in steady pressure, precise positioning, smooth moving, safety and reliability during the machine's operation.
It adopts micro-computer, human-computer control interface, servo positioning, alternating current frequency converter, automatic counting, manual pneumatic lock plate, photoelectric correcting deviation system, electromagnetic clutch, centralized oil lubrication, overload protection and distinctive gearing. So it guarantees smooth operations of returning paper and feeding paper, precise positioning and orderly withdrawing. All the key parts and controls of the machine are imported products and finish machining. Such installation can realize the machine in steady pressure, precise positioning, smooth moving, safety and reliability during the machine's operation.
| Die-cutting precision | ±0.10mm |
| Rated die- cutting rate | 60-100times/min |
| Maximum die-cutting rate | 110 times/minute 5400times/hour |
| Maximum die-cutting pressure | 120T(250N/cm3) |
| Maximum die-cutting size | 900*500mm/1000*500mm |
| Air supply requirement(provided by customer) | Working pressure:0.5-0.6Mpa gas volume: 0.1m3/min |
| Applicable paper type | 135-500g/m2 |
| Total power of electric machinery | 11kw |
| Power of mainframe | 7.5kw |
| Overall dimensions(L*W*H) | 4000*1700*1700mm |
| Weight | 6000kg |
| Conditions for using | draft, dry suggested temperature for using: 10-25 |
| Roll paper size | Diameter≤1400 Width≤1000mm |
