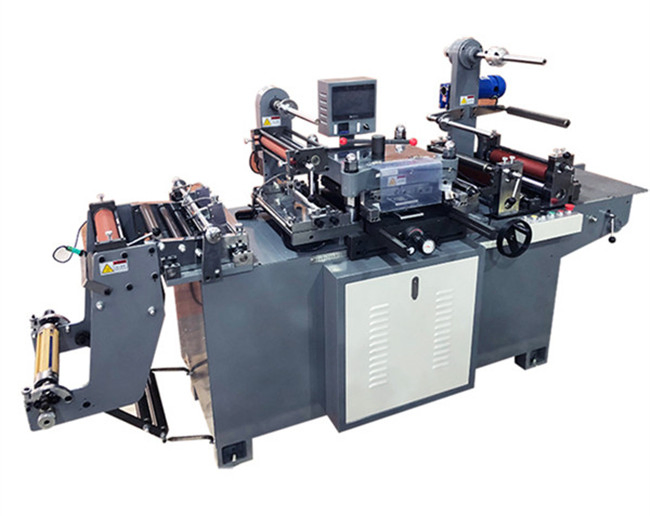

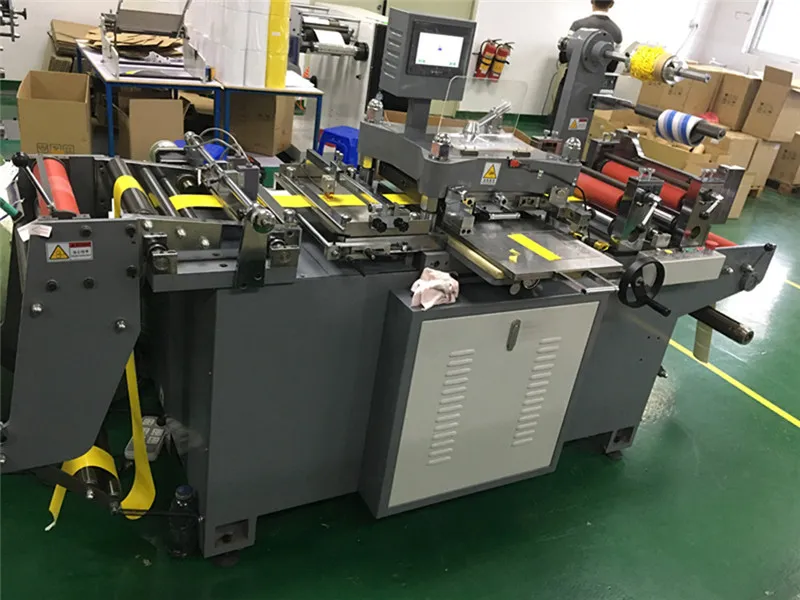

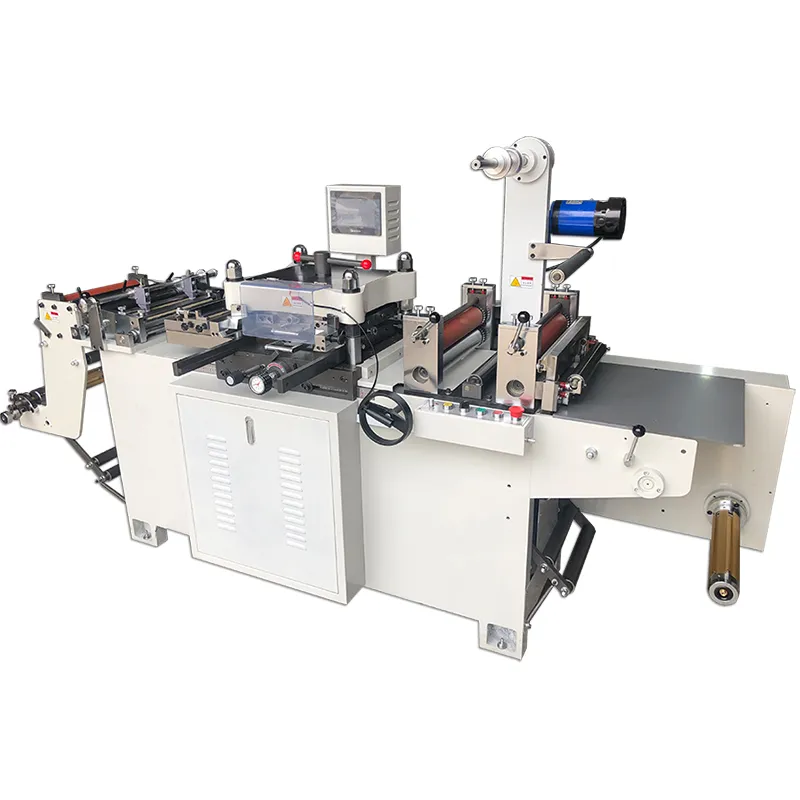

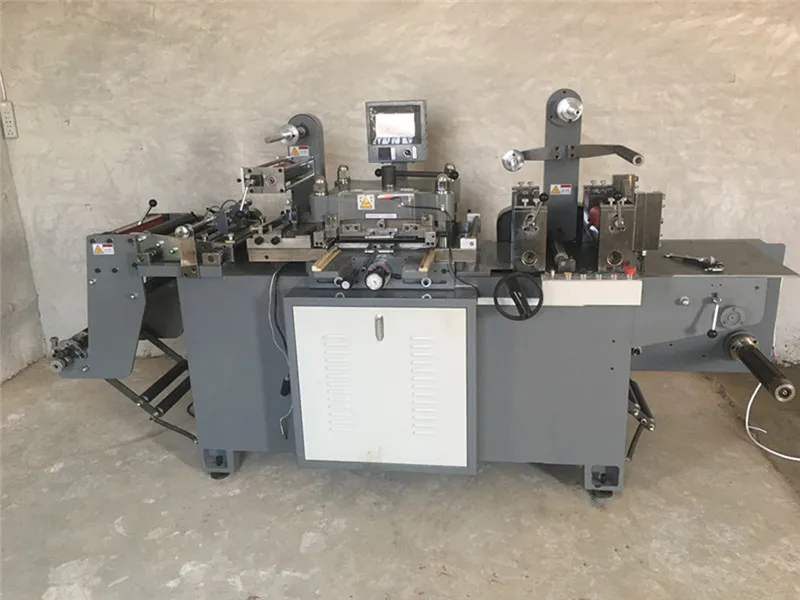

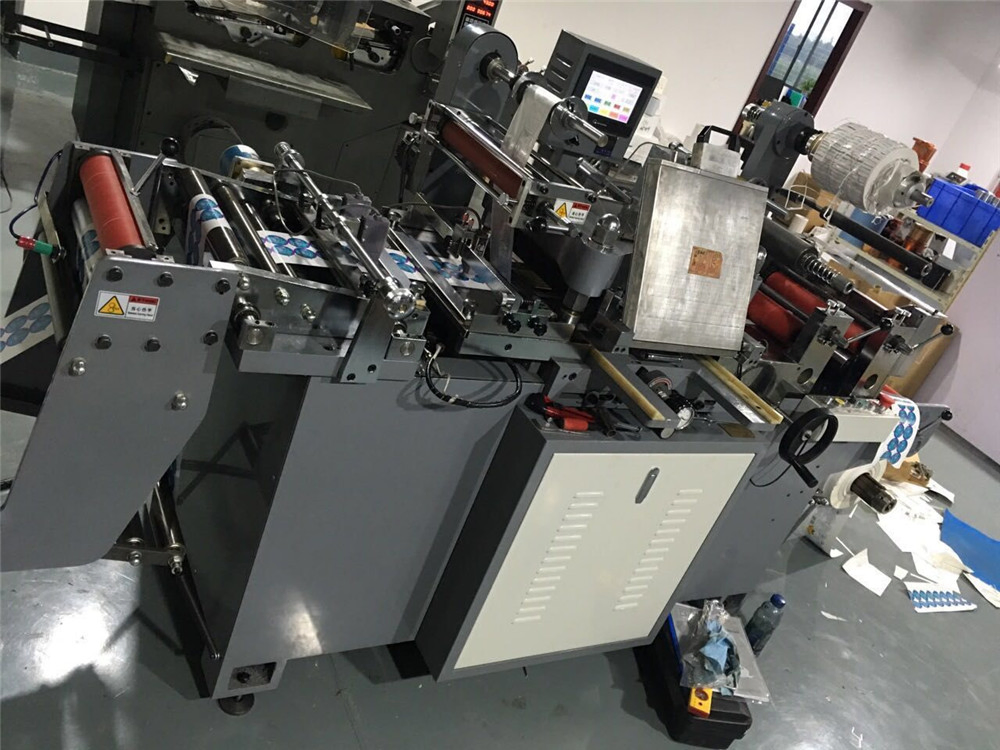

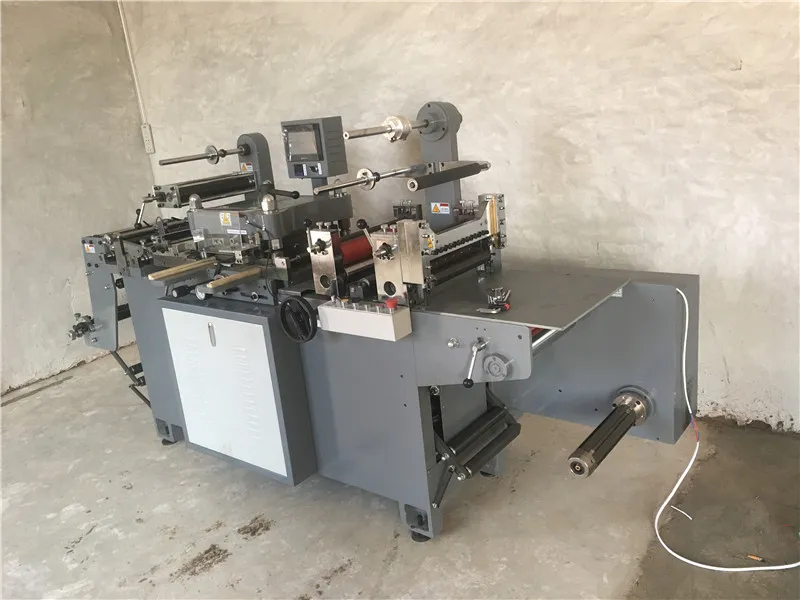

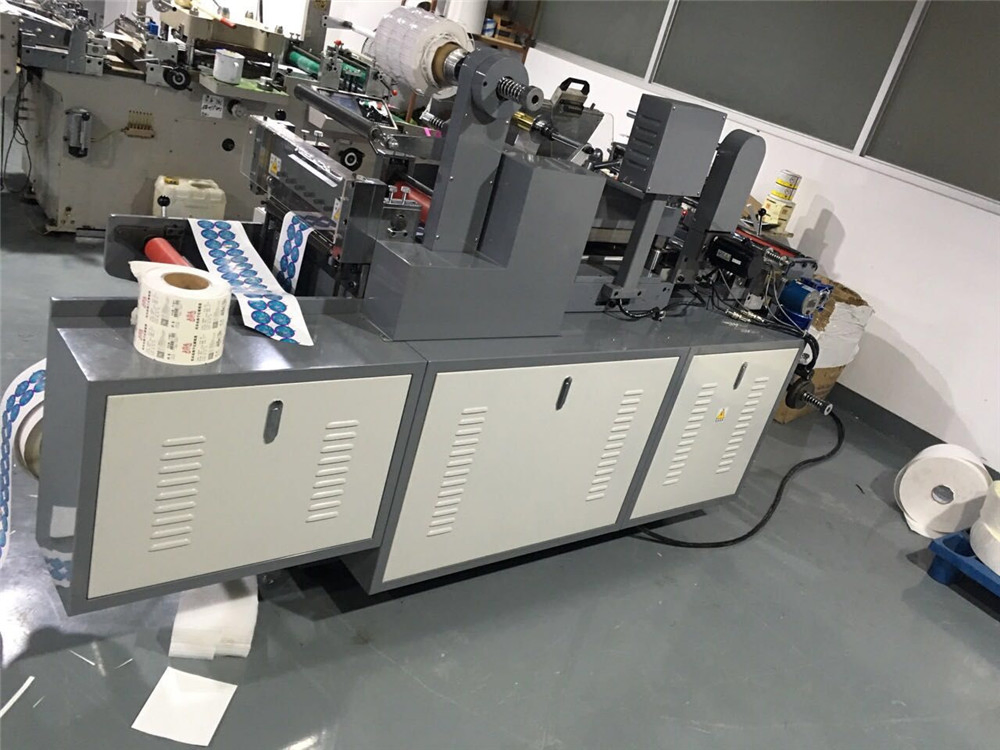

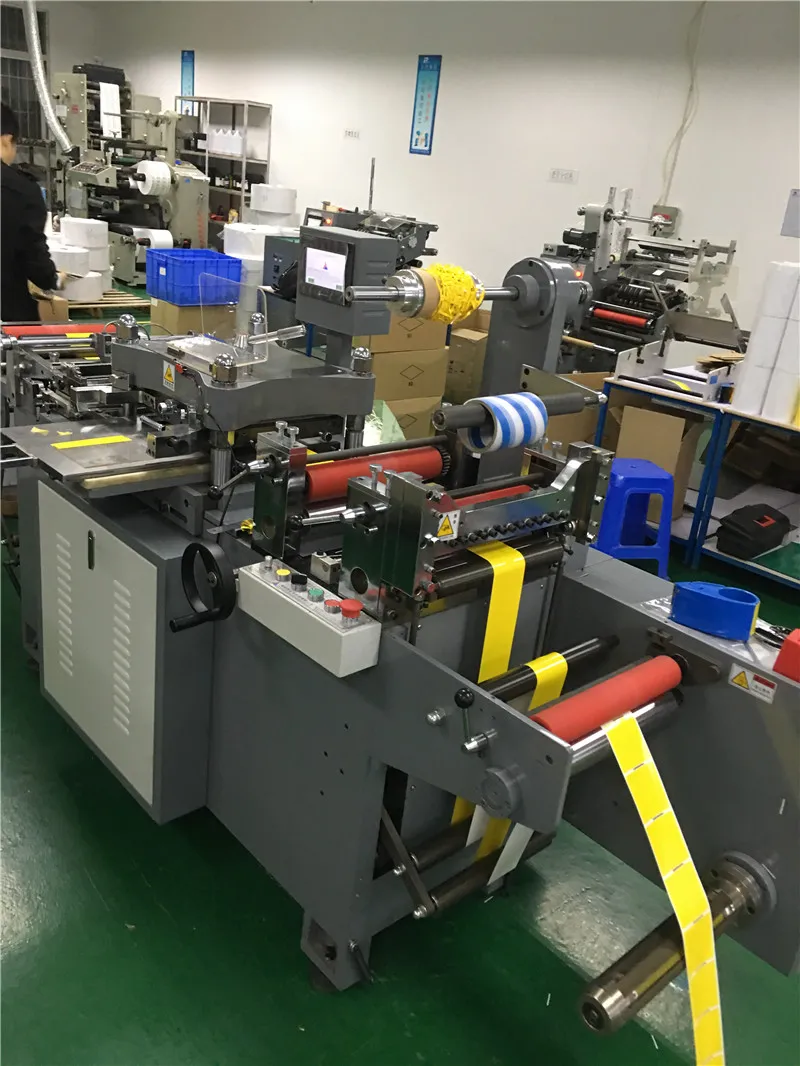

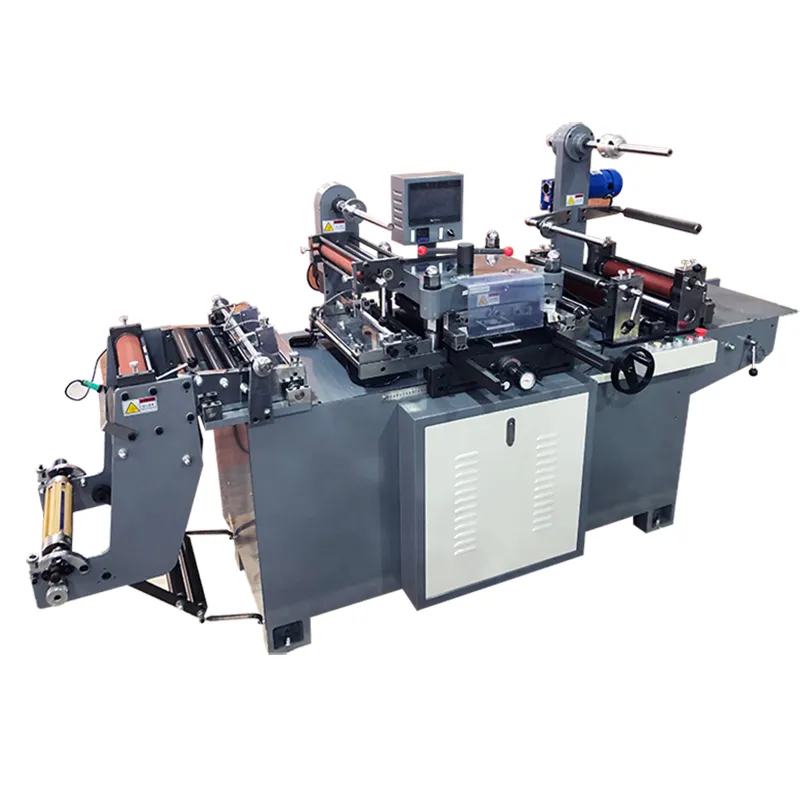

High Quality Automatic Platen Die Cutting Machine
High precision dacron film label die cutting machine Application: This die-cut machinery is applied in die cutting for adhesive sticker,protective film,electronic shielding material, PVC, Mylar, double sided adhesive, aluminum foil/copper foil, foam and all kinds of LCD diffuser, reflector plate,......
Send Inquiry
Product Description
High precision dacron film label die cutting machine
Application:

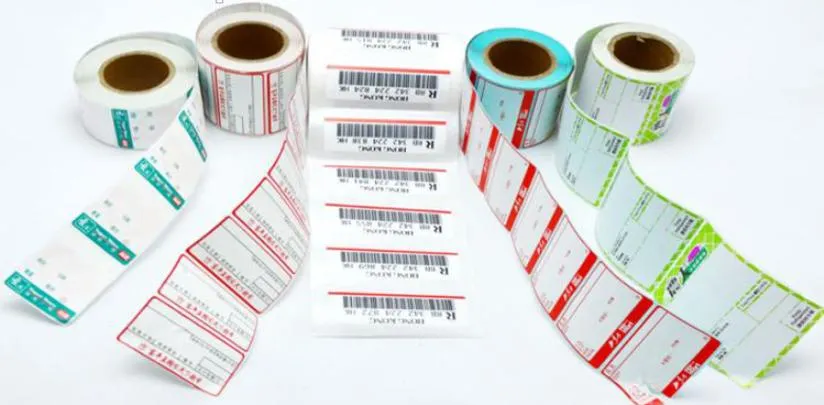

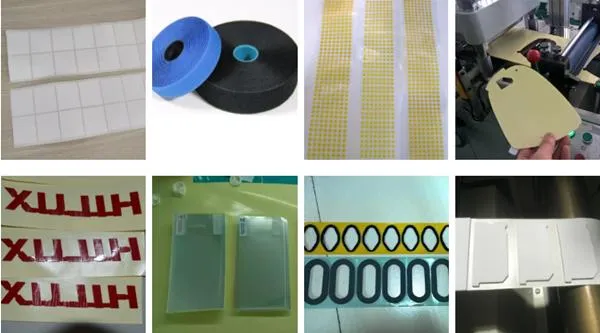

This die-cut machinery is applied in die cutting for adhesive sticker,protective film,electronic shielding material, PVC, Mylar, double sided adhesive, aluminum foil/copper foil, foam and all kinds of LCD diffuser, reflector plate, buffer plate, film, silicon adhesive tape .......
Main technical parameters:

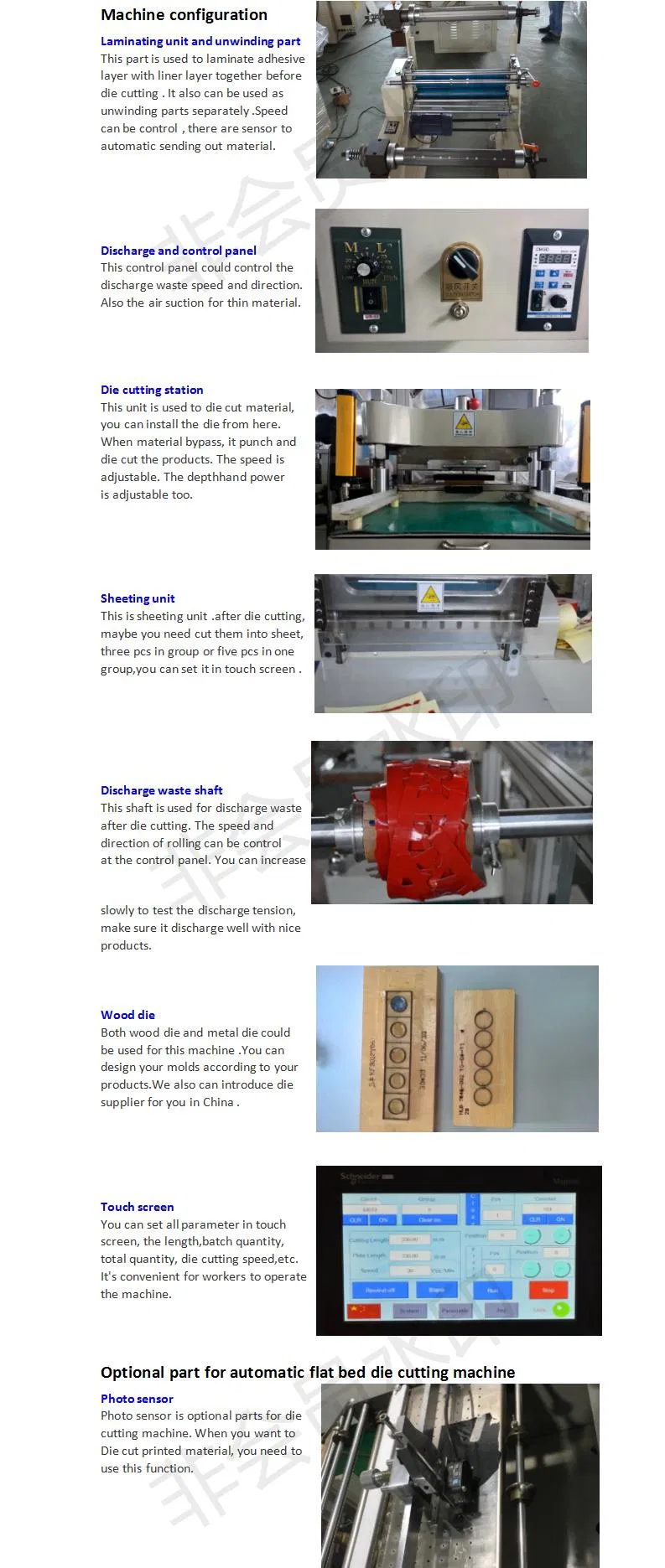

Machine Features:
1.Multi-function in ONE machine: Laminating / partial laminating+unwinding+laminating+die cutting +discharging sheet cutting/rewinding
2.Photo Cell if necessary
3.Sucking device during material feeding process
4.Waste discharge shaft
5.Sheet cutting station
6.Rewinding station
7.Safety curtain device
8.Optional function: Conveyor belt device for full-cut use
After-sales Service
1. Warranty:1 year after you get the machine.
2. Promptly response within 24 hours in working days.
3. Free training before machine delivery and on-site training engineers available.
Application:
This die-cut machinery is applied in die cutting for adhesive sticker,protective film,electronic shielding material, PVC, Mylar, double sided adhesive, aluminum foil/copper foil, foam and all kinds of LCD diffuser, reflector plate, buffer plate, film, silicon adhesive tape .......
Main technical parameters:
| Model | LT-350B | LT-420B |
| Die Cutting speed | 20-300 cuts/min. | 20-300 cuts/min. |
| Max. unwinding diameter | 450mm | 450mm |
| Max. web width | 350mm | 420mm |
| Max. die cutting size | 330x330mm | 420x420mm |
| Precision | ±0.10mm | ±0.10mm |
| Power | 3kw | 4kw |
| Voltage | 380v | 380v |
| Machine weight | 2200kg | 2800kg |
| Machine size | 2600x950x1400mm | 2600x1050x1800mm |
Machine Features:
1.Multi-function in ONE machine: Laminating / partial laminating+unwinding+laminating+die cutting +discharging sheet cutting/rewinding
2.Photo Cell if necessary
3.Sucking device during material feeding process
4.Waste discharge shaft
5.Sheet cutting station
6.Rewinding station
7.Safety curtain device
8.Optional function: Conveyor belt device for full-cut use
After-sales Service
1. Warranty:1 year after you get the machine.
2. Promptly response within 24 hours in working days.
3. Free training before machine delivery and on-site training engineers available.
