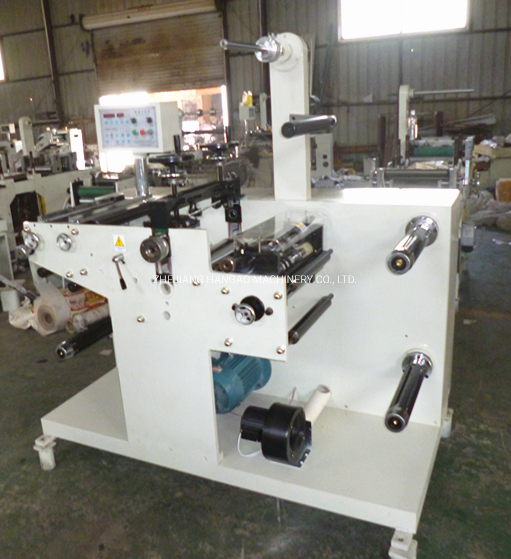

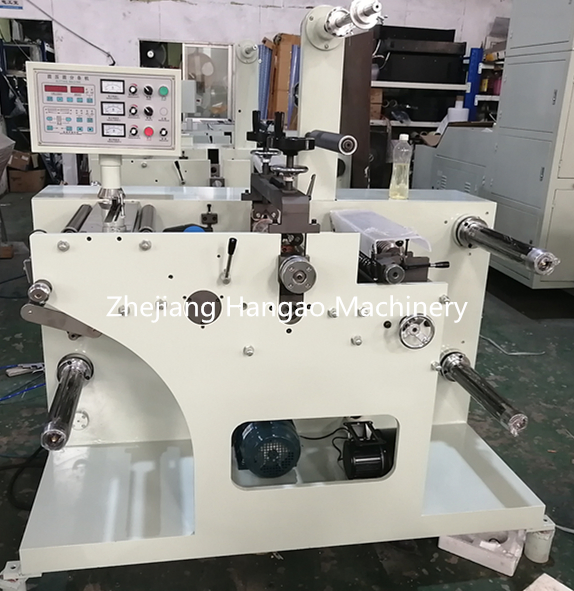

Fq- 320y Automatic Printing Paper Label Rotary Die Cutting Machine
CHARACTERISTIC:FQ-320Y auto slitting machine with rotary die-cutting station is used for small size reel material die-cutting and slitting of adhesive labels. Die-cutting, lamination (option), slitting can be finished in one process. It has the function of automatic meter counting , automatic stoppi......
Send Inquiry
Product Description

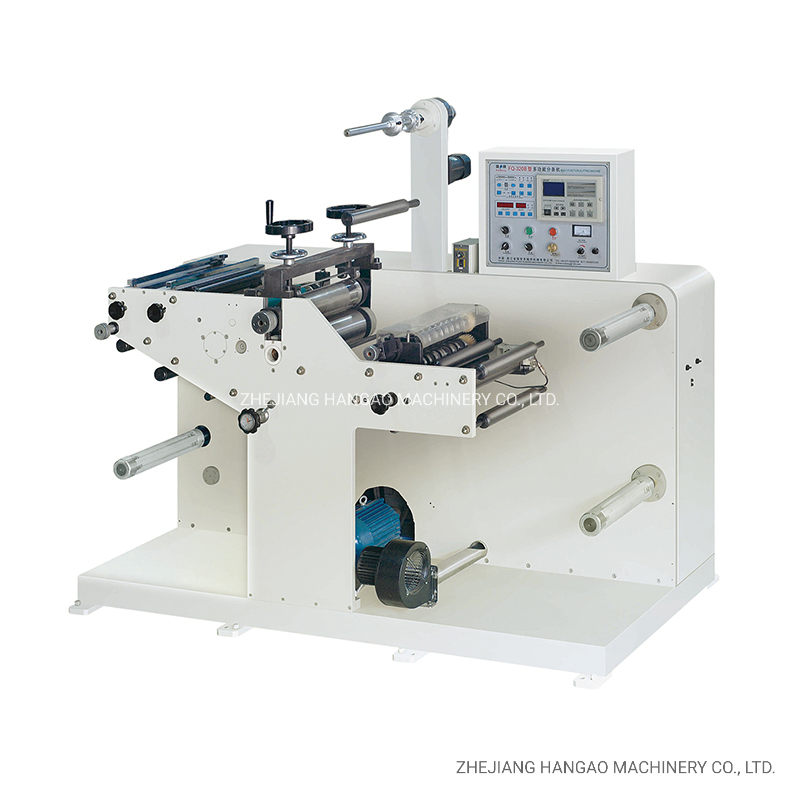

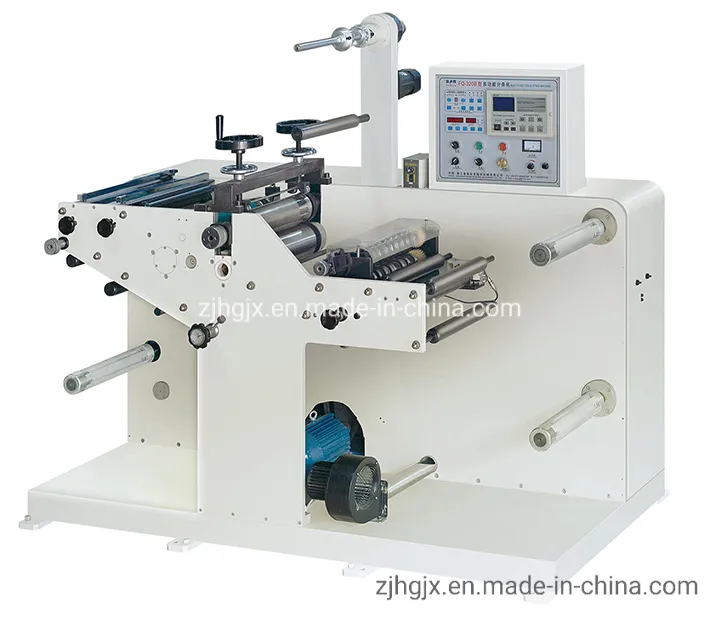

CHARACTERISTIC:FQ-320Y auto slitting machine with rotary die-cutting station is used for small size reel material die-cutting and slitting of adhesive labels. Die-cutting, lamination (option), slitting can be finished in one process. It has the function of automatic meter counting , automatic stopping, web guiding by photoelectric eye. The machine has the characteristics of compact structure, fast speed (inverter is Omron, Japan), high efficiency, easy operation, accurate slitting, steady running etc.
MAIN TECHNICAL PARAMETER:
| Model | FQ-320Y | FQ-450Y |
| Slitting Speed | 100m/min | 100m/min |
| Max.Web Width | 320mm | 450mm |
| Max.Feeding Diameter | 600mm | 600mm |
| Max. Rewinder Diameter | 600mm | 600mm |
| Voltage | 220v | 220v |
| Dimension | 2000*1100*1500mm | 2000*1300*1500mm |
| Total Power | 3.2kw | 3.2kw |
| Weight of Machine | About 950kg | About 1150kg |

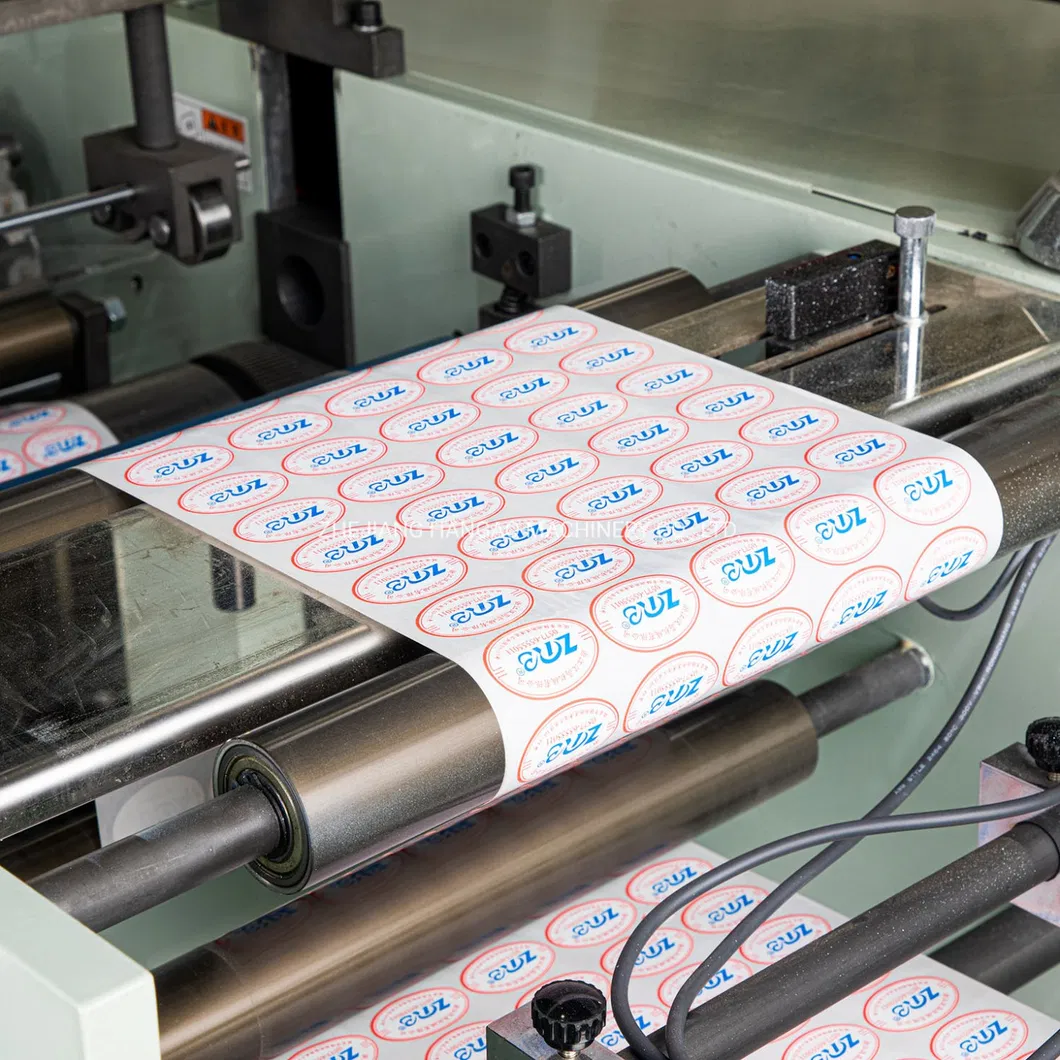

SAMPLES

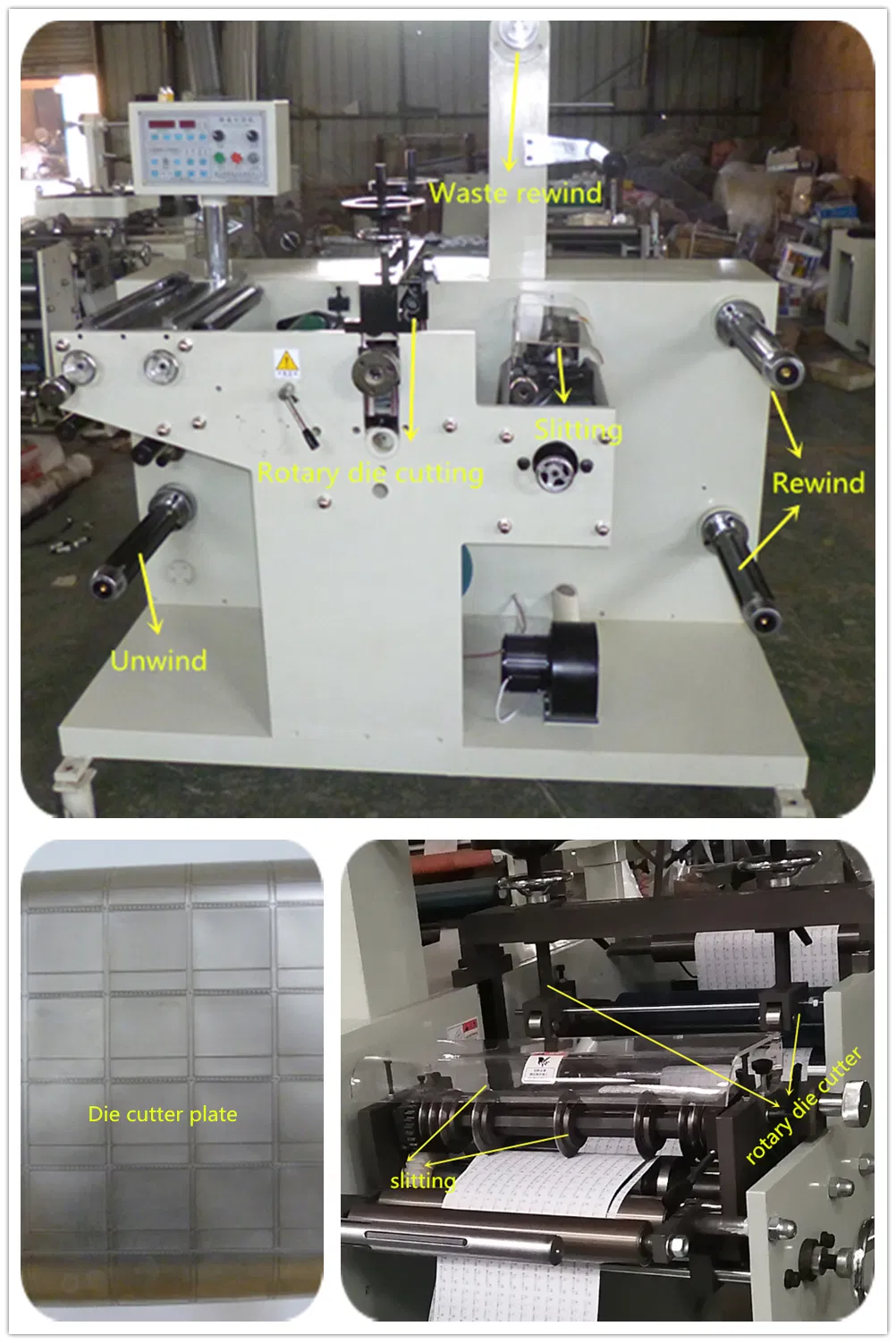

DETAILS
1pc unwind pneumatic core shaft 76mm

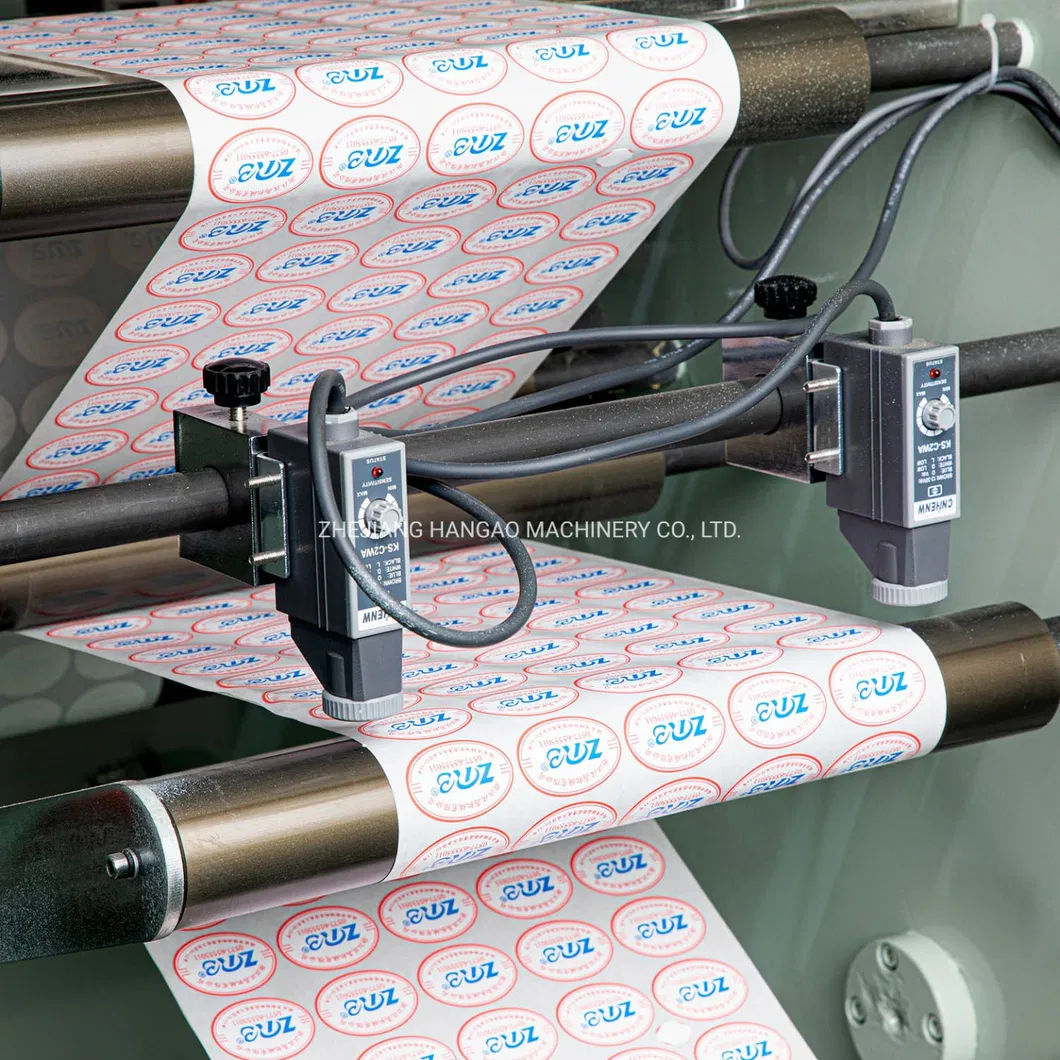

2pcs photoelectric senor for web guide
Counter
Unwind tension control adjustable / automatic
Rotary die cutting station (quote not include magnetic cylinder & die cutter plate)
Slitting station

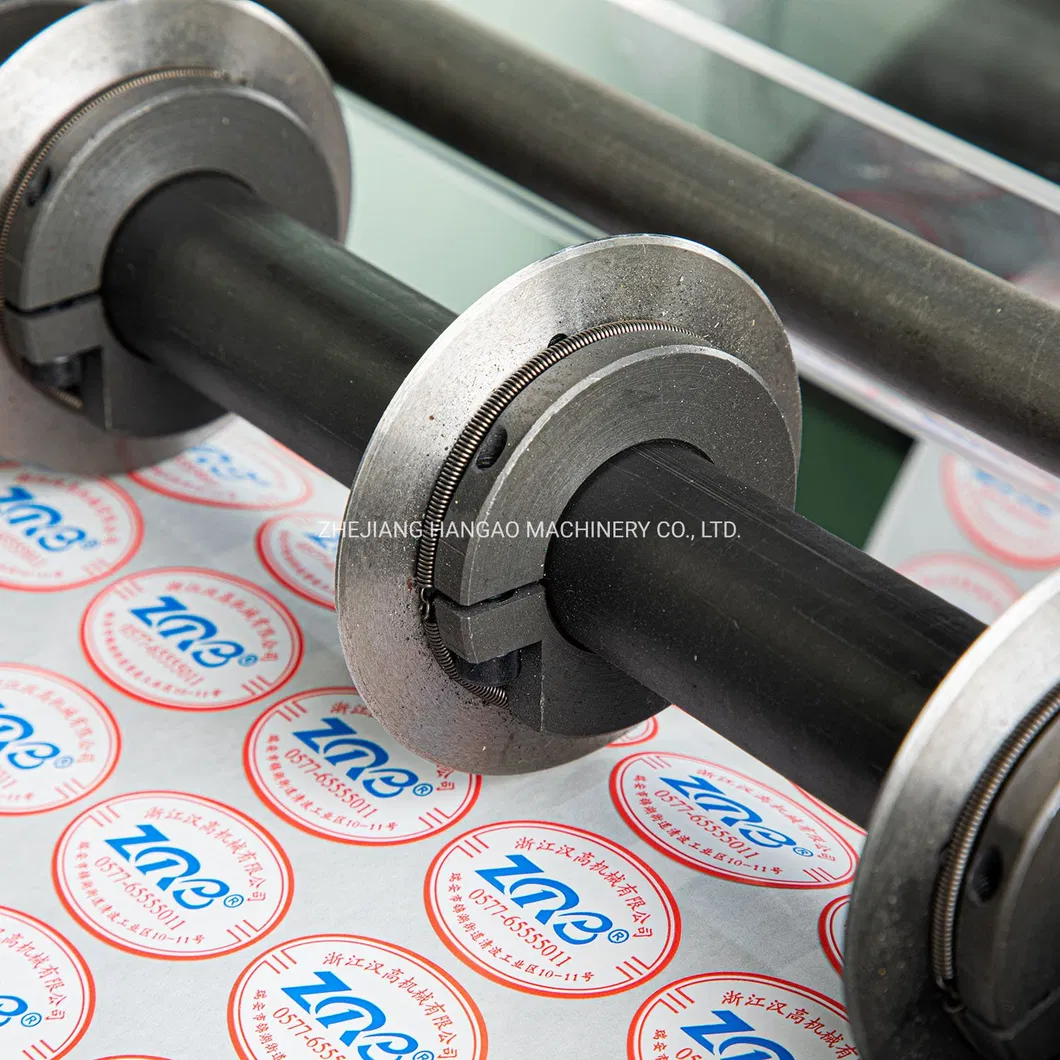

8 sets slitter knife
2pcs rewind pneumatic core shaft 76mm
Rewind tension control adjustable / automatic
PACKING
EXHIBITION

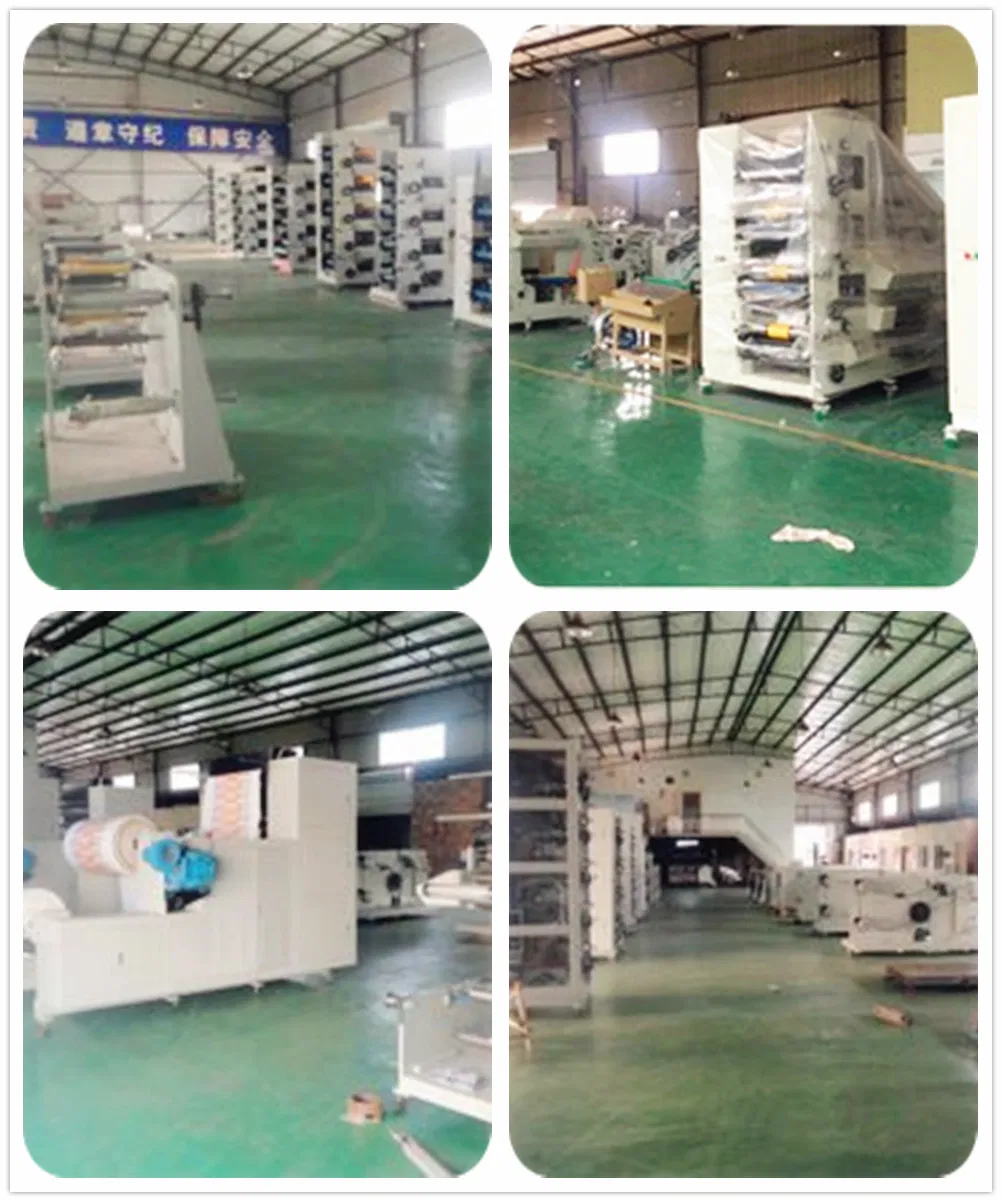

WORKSHOP
RFQ
1.Q:What is the machine warranty?
A:one year.
2.Q:Does your machine with CE certificate?
A:Yes.
3.Q:What is the production time while placing order?
A:About 30 days
4.Q:What is the delivery time?
A:Within 30 days after get the payment.
5.Q:Can your company handle shipping for customers?
A:Yes.(Please provide us your requested seaport and we can check the shipping charge and arrange shipping for your order)
6.Q:Does the packing strong?
A:Yes, of course! All of our export packing is with strong export standard wooden case.
7.Q:How about after-sales service process?
A:When your machine has problem, contact your sales and we will solve your problem ASAP.
8.Q:Are you manufacturer?
A:Yes, we are manufacturer with 13-year experience and profession.
9.Q:Do you have stock product to sell?
A:Actually our machine need 20-30 days to manufacture, and there are many orders from China and foreign countries, and your order will be highly attention to manufacture.
10.Q:Do you inspect the finished products?
A:Yes, we have QC department, they will inspect the machine before shipping, to ensure there is nothing problem of the machine .
11.Q:What's the payment term?
A:T/T 30% in advance, the balance paid before delivery. We also accept payment via West Union and L/C.
A:one year.
2.Q:Does your machine with CE certificate?
A:Yes.
3.Q:What is the production time while placing order?
A:About 30 days
4.Q:What is the delivery time?
A:Within 30 days after get the payment.
5.Q:Can your company handle shipping for customers?
A:Yes.(Please provide us your requested seaport and we can check the shipping charge and arrange shipping for your order)
6.Q:Does the packing strong?
A:Yes, of course! All of our export packing is with strong export standard wooden case.
7.Q:How about after-sales service process?
A:When your machine has problem, contact your sales and we will solve your problem ASAP.
8.Q:Are you manufacturer?
A:Yes, we are manufacturer with 13-year experience and profession.
9.Q:Do you have stock product to sell?
A:Actually our machine need 20-30 days to manufacture, and there are many orders from China and foreign countries, and your order will be highly attention to manufacture.
10.Q:Do you inspect the finished products?
A:Yes, we have QC department, they will inspect the machine before shipping, to ensure there is nothing problem of the machine .
11.Q:What's the payment term?
A:T/T 30% in advance, the balance paid before delivery. We also accept payment via West Union and L/C.
