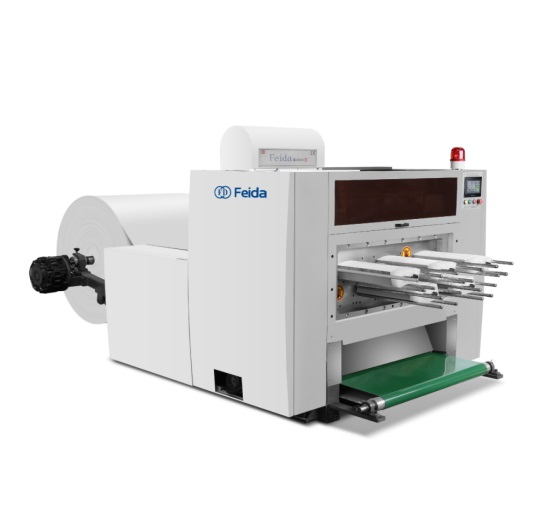

Fdc-1000 Automatic High Speed Platen Cutting Machine Metal Die Punching Machine
Technical SpecificationModel FDC-1000*400Max cutting width 1000Cutting precision ±0.20mmPaper gram weight150-350gsmProduction capacity 260-300times/minAir pressure requirement 0.5MpaAir pressure consumption 0.25m³/minTotal power 10kwWeight 4.5TMax roller diameter 1500mmDimension ......
Send Inquiry
Product Description
| Model | FDC-1000*400 |
| Max cutting width | 1000 |
| Cutting precision | ±0.20mm |
| Paper gram weight | 150-350gsm |
| Production capacity | 260-300times/min |
| Air pressure requirement | 0.5Mpa |
| Air pressure consumption | 0.25m³/min |
| Total power | 10kw |
| Weight | 4.5T |
| Max roller diameter | 1500mm |
| Dimension | 3500x1700x1800mm |
Introduction:
FD series automatic roll punching machine based on international advanced technology, it's widely used in printing, packaging and paper products industries. It adopts micro-computer, human-computer control interface, servo positioning, alternating current frequency converter, manual pneumatic lock plate, photoelectric correcting deviation system, centralized oil lubrication. All the key parts and controls of the machine are imported from international top brand.

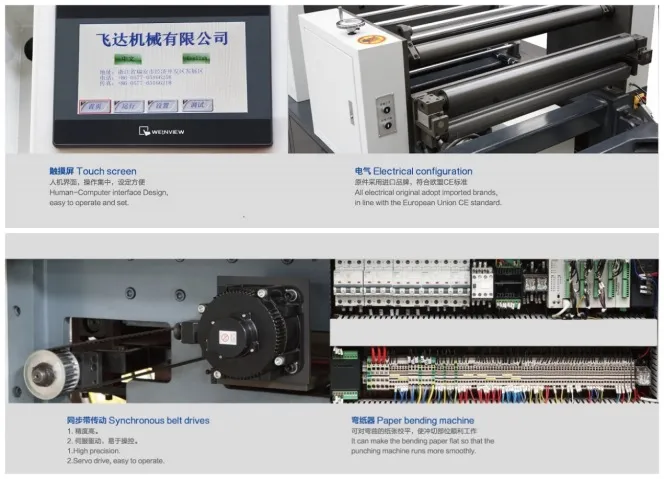

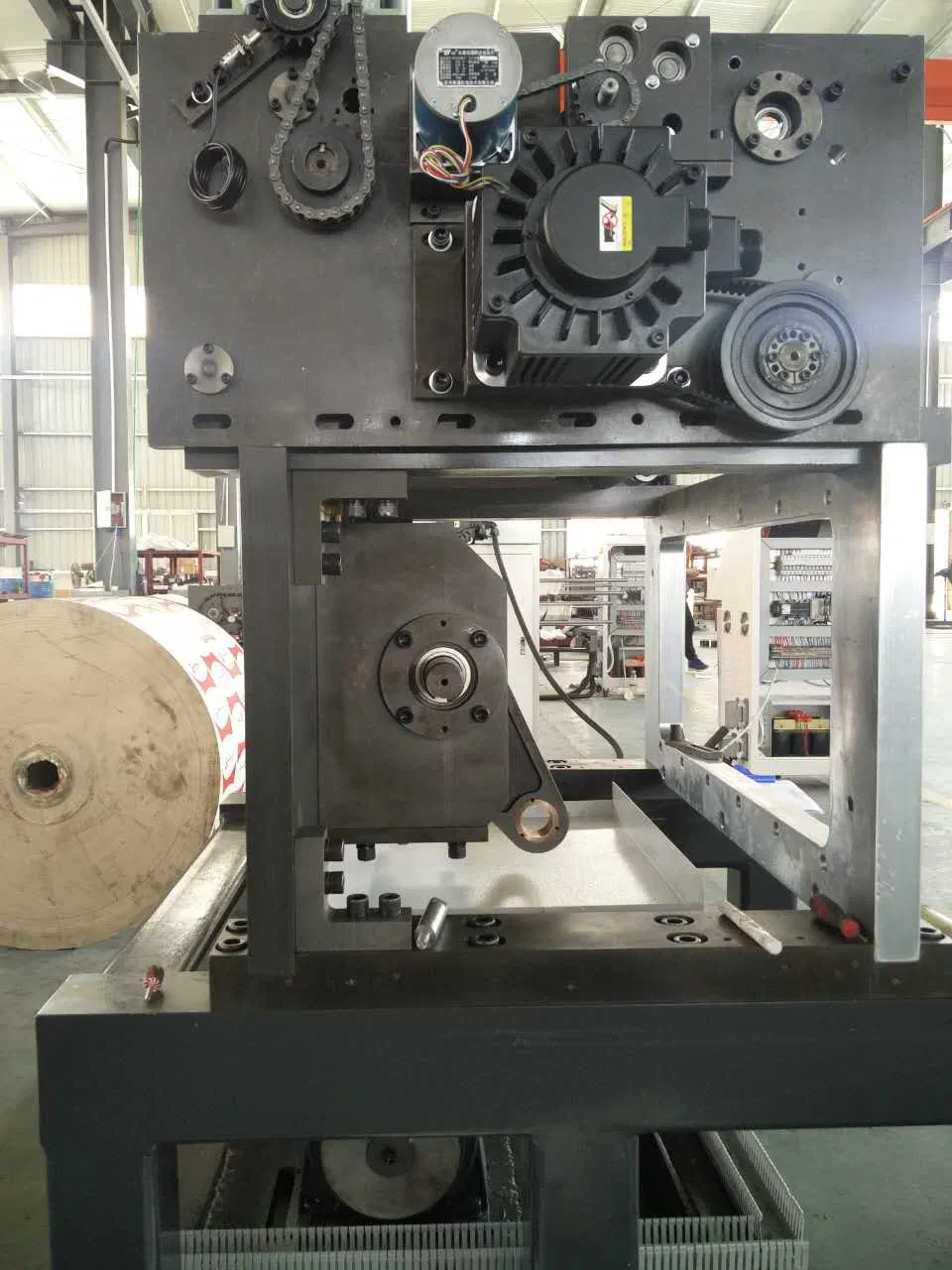

Main structure
FAQ
Q1. What Kinds Of products Can Be Made On Feida die cutting Machine ?
Feida roll die cutting machine is suitable for creasing,die cutting,embossing paper cup,paper plate,paper box,square box,etc paper packaging
Q2. What Is The Packing Way Of The Machine for delivery?
Usual , flexible packaging with iron underframe
Q3. What Is The Machine Delivery Time ?
As Generally speaking, 20--40 days shippment after confirming layout.
Q4. How About The Machine Guarantee?
One year. During this period, any parts damaged caused by machineself, the seller will repair/replace the spare parts for free. After one year, the seller will supply the spare parts to buyers as the cost. The machine service is all around the machine life.
Q5. What About The Machine Installation And Training ?
If customer request, we will send our technician to install and train operation.Buyer bears 100USD allowance per day,tickets,accomadation,food
Q6.What Is The Terms Of Payment ?
By 100%T/T , 30% of deposits should be paid in advanced , then 70% of balance should be paid before shippment . or L/C at sight , both are ok .
