Dp- 520 PC Decal Die Cutting Machine
DP-520 PC Decal Die Cutting MachineVarious insulating materials such as self-adhesive material, protective film, electronic shield materials, PVC, film, Mylar,Copper foil, aluminum foil, foam, etc. And LCD module parks: Reflector, diffuser, gaskets, silicon tape.DP-520 PC Decal Die Cutting MachineTh......
Send Inquiry
Product Description

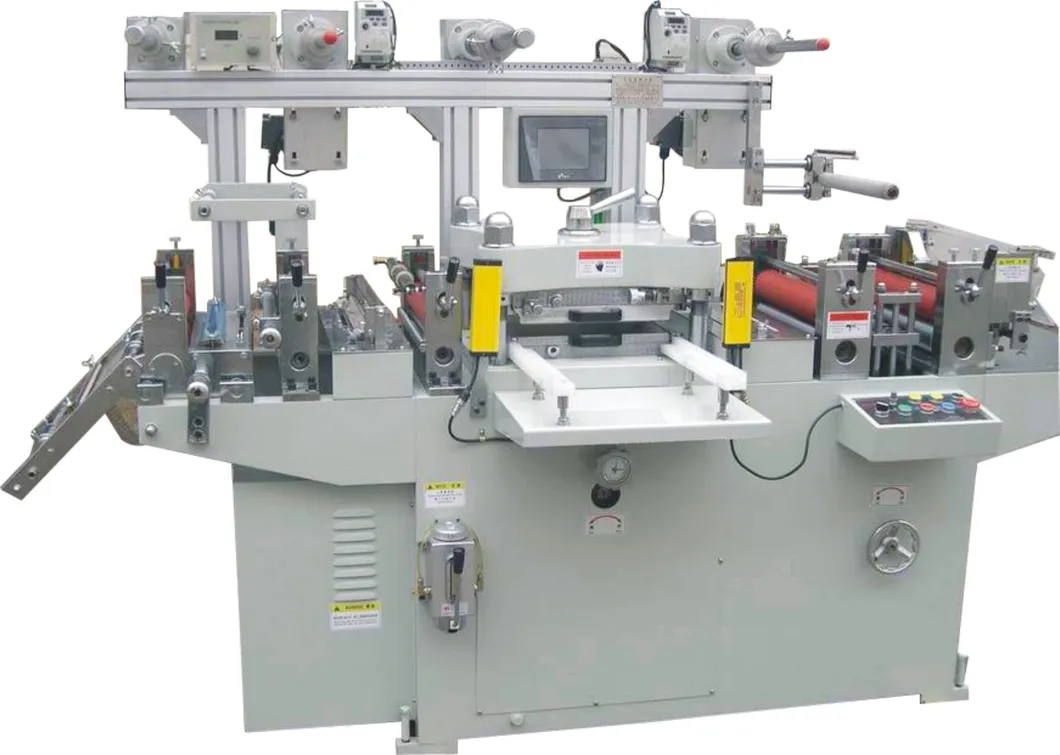

DP-520 PC Decal Die Cutting Machine
Various insulating materials such as self-adhesive material, protective film, electronic shield materials, PVC, film, Mylar,
Copper foil, aluminum foil, foam, etc. And LCD module parks: Reflector, diffuser, gaskets, silicon tape.
DP-520 PC Decal Die Cutting Machine
The mahcine is equipped with an independent material feeding machine (material feeding mahcine with function of Laminating ).
Imported electric motor is adopted to discharge waste. Materials can be fed with a conveyer belt, and die cut to cut fully.
DP-520 PC Decal Die Cutting Machine
Standard Function: Material feeding ---Binding ---Die cutting --Waste Discharge --- cutting or withdraw(rewinding) material
Standard Configuration: One host, 1 automatic feeding device, 1 slicer, 1 thin upper board, 1 thicker upper board
1 low thicker board, 1 safety equipment, 1 material detecting infra red device
Optional Accessories:
1. Laminating protection film device added between mold base and labor wheel
2. Heating equipment
3. Roller being wrapped with rubber
4. Waste discharging equipment with ejection pin
5. Collecting equipment
6. Metal mold equipment
Various insulating materials such as self-adhesive material, protective film, electronic shield materials, PVC, film, Mylar,
Copper foil, aluminum foil, foam, etc. And LCD module parks: Reflector, diffuser, gaskets, silicon tape.
DP-520 PC Decal Die Cutting Machine
The mahcine is equipped with an independent material feeding machine (material feeding mahcine with function of Laminating ).
Imported electric motor is adopted to discharge waste. Materials can be fed with a conveyer belt, and die cut to cut fully.
DP-520 PC Decal Die Cutting Machine
| Model: DP-520 Max Feeding Width ( mm ): 520 Cutting Area (mm): 500*500 Cutting Speed (T/M): 20-100 Position Accuracy ( mm ): ± 0.1 Power of Main Engine ( kw ): 4 Height of Knife Mold(mm): 23.8 Pneumatic Pressure(MPA): 0.3 Weight(KG): 2800 Size ( mm ): 2400*2000*1850 Voltage(V )380 |
Standard Function: Material feeding ---Binding ---Die cutting --Waste Discharge --- cutting or withdraw(rewinding) material
Standard Configuration: One host, 1 automatic feeding device, 1 slicer, 1 thin upper board, 1 thicker upper board
1 low thicker board, 1 safety equipment, 1 material detecting infra red device
Optional Accessories:
1. Laminating protection film device added between mold base and labor wheel
2. Heating equipment
3. Roller being wrapped with rubber
4. Waste discharging equipment with ejection pin
5. Collecting equipment
6. Metal mold equipment
