Product Description

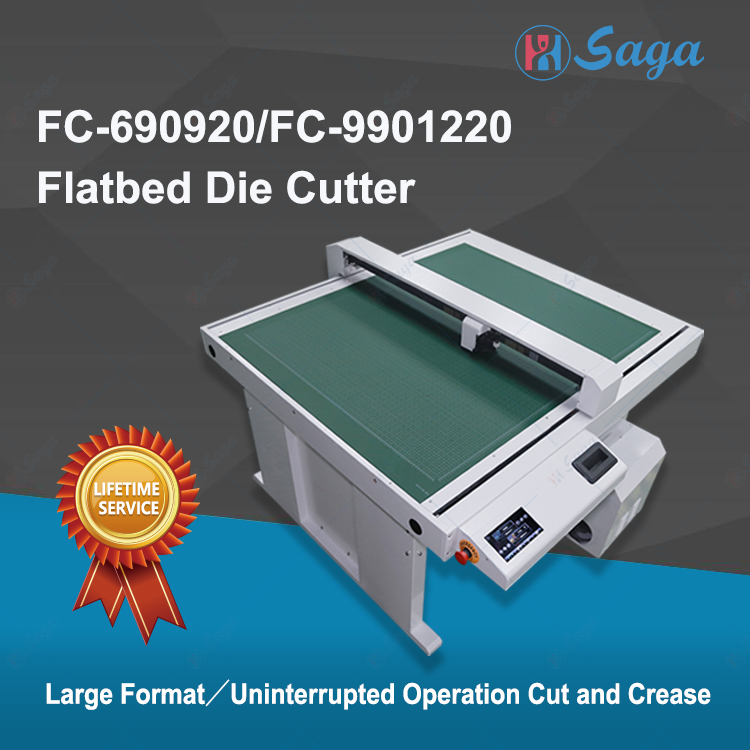

New digital camera flatbed Cutter to cut and crease stickers & cardboards
The Saga FC Series flatbed cutter including plug-in software is ideal for small and medium-sized production and samples of packaging, swing tickets and even labels. Processing material including paper, card, synthetics, films and kinds of labels, up to 500gsm.
Using advanced digital contour cutting technology, the Flatbed Cutter follows artwork cut lines drawn in Adobe® Illustrator® or CorelDRAW®, no cutting dies required, the sheets are produced to any shape, instantly and directly from the desktop. It can handle full cutting, half cutting, creasing and even drawing.
Main Features

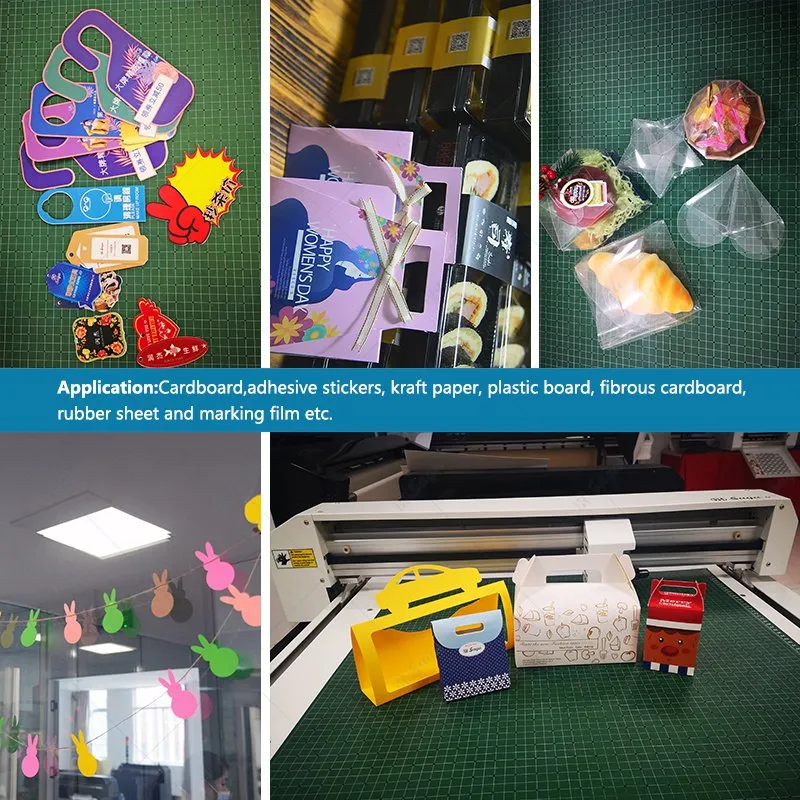

Application
Cardcoard, stickers, kraft paper, pvc, pet, plastic thin board, fibrous cardboard, rubber sheet, film etc,.
PVC: Less than 0.4mm
Reflective Film: All types
Sandblast, Hard paper: Less than 450gsm
Magnetic Sticker: Less than 600micron
PET: Less than 0.3mm, vinyl, etc.
| Model Name | FC9901220 |

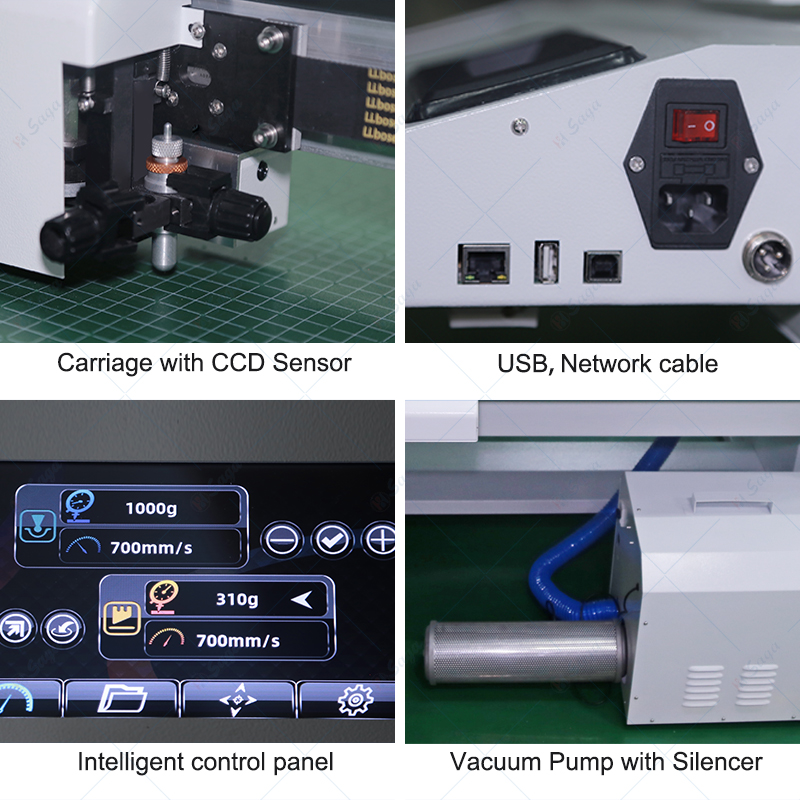

| Cutting control system | X-High-power brushless servo motor Y-High-power brushless servo motor |
| Positioning sensor type | Digital camera(CCD) or infrared sensor/optional |
| Control panel | 7 inch graphic touch screen |

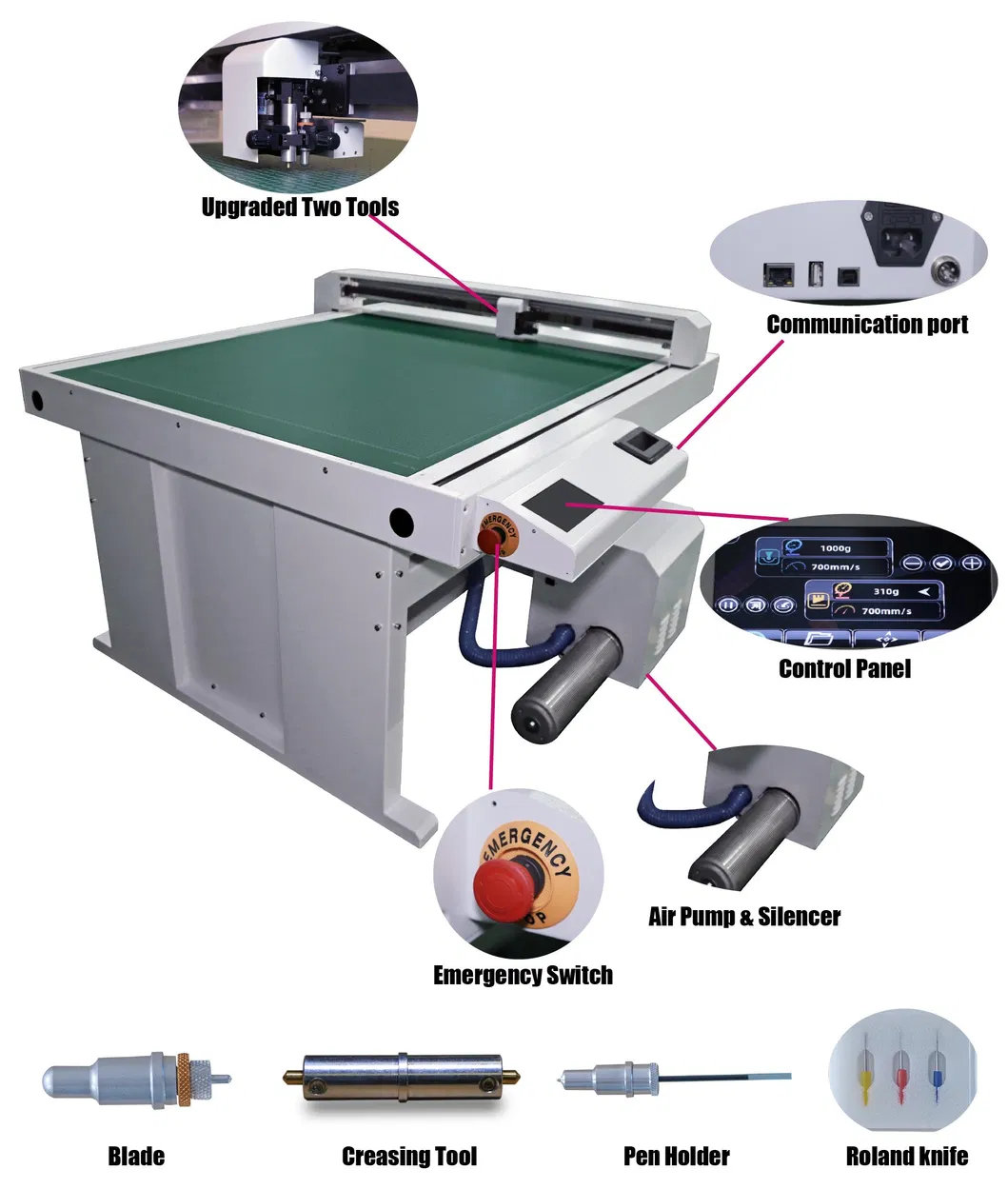

| Number of knife clips | Double knife clip |
| Blade types | Blade,creasing tool and pen |
| Machine performance | |
| Media hold method | Vacuum suction |
| Positioning sensor type | Digital camera(CCD) |
| Maximum cutting size | 1000mm×1290mm |
| Maximum ARMS Contour Cutting Size | 990mm×1220mm |
| Scanning speed | 5-10s |
| Maximum actual cutting speed | 10mm/s-700mm/s 10mm/s Step |
| Maximum cutting force | Creasing:0-1500gf(10gf Step) Blade:0-1000gf(10gf Step) |
| Maximum Paper Weight | 600g |
| Mechanical resolution | 0.02mm |
| Programmable resolution | HGPL 0.025mm |
| Repeat precision | ≤0.05mm |
| Cutting media types | Kraft paper,plastic board,cardboard,PVC etc |
| Software and compatibility | |
| Connectvity | USB,network cable |
| Software and compatibility | DragonCut PC only,compatiable for Windows7,8,10 Corel Draw/Illustrator Plug-in.PC only(SD interfaces) |
| Power and working envionment requirements | |
| Voltage and current | 100VAC-120VAC.50/60Hz,Maximum current 6.8A 200VAC-240VAC,50/60Hz,Maximum current 3.4A |
| Power | 350W |
| Voltage and current(Vacuum Pump) | 110VAC, 50Hz, Rated current 12.4A, 60Hz, Rated current 17.2A 220VAC, 50Hz, Rated current 6.2A,60Hz, Rated current 8.6A |
| Power(Vacuum Pump) | 50Hz, 1.1KW;60Hz,1.3KW |
| Stand | Included |
| Operation environment | Temperature+5ºC to +35ºC(Fahrenheit 41-95),Humility 30%-75%(Non-condensing) |
| Dimensions and weights | |

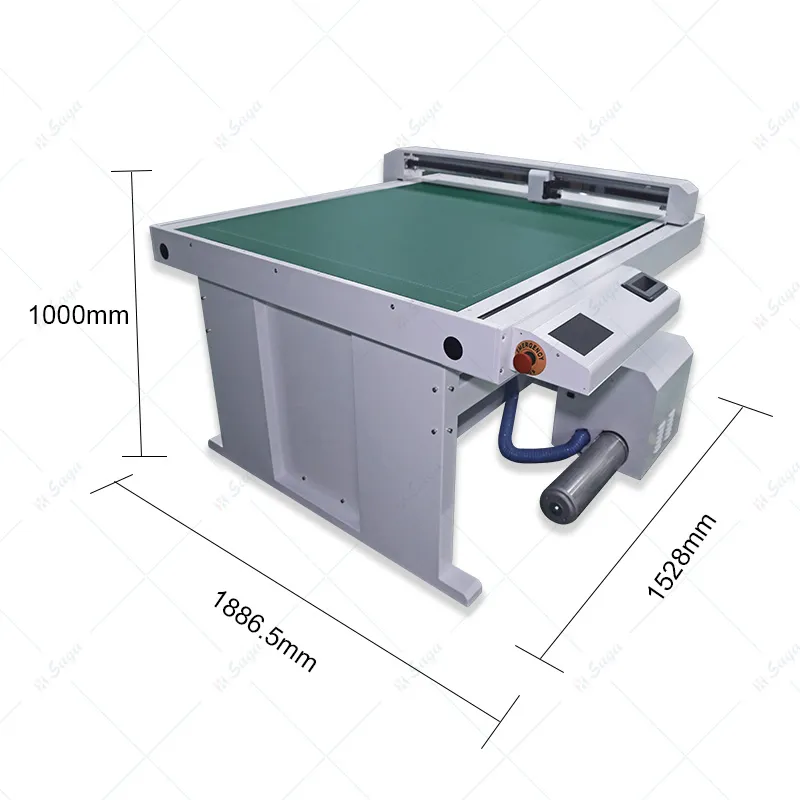

| Actual dimensions | 1886.5mm×1528mm×1000mm |
| Package dimensions | 1954mm×1656mm×620mm |
| GW | 275kg |
This parameter is subject to change without prior notice. The company reserves the right of final interpretation
