Digital CCD Camera Servo Motor Paper Die Cutter Plotter Machine for Both Creasing and Cutting
New digital camera flatbed Cutter to cut and crease stickers & cardboardsThe Saga FC Series flatbed cutter including plug-in software is ideal for small and medium-sized production and samples of packaging, swing tickets and even labels. Processing material including paper, card, synthetics, fil......
Send Inquiry
Product Description
New digital camera flatbed Cutter to cut and crease stickers & cardboards
The Saga FC Series flatbed cutter including plug-in software is ideal for small and medium-sized production and samples of packaging, swing tickets and even labels. Processing material including paper, card, synthetics, films and kinds of labels, up to 500gsm.
Using advanced digital contour cutting technology, the Flatbed Cutter follows artwork cut lines drawn in Adobe® Illustrator® or CorelDRAW®, no cutting dies required, the sheets are produced to any shape, instantly and directly from the desktop. It can handle full cutting, half cutting, creasing and even drawing.
Main Features
The Saga FC Series flatbed cutter including plug-in software is ideal for small and medium-sized production and samples of packaging, swing tickets and even labels. Processing material including paper, card, synthetics, films and kinds of labels, up to 500gsm.
Using advanced digital contour cutting technology, the Flatbed Cutter follows artwork cut lines drawn in Adobe® Illustrator® or CorelDRAW®, no cutting dies required, the sheets are produced to any shape, instantly and directly from the desktop. It can handle full cutting, half cutting, creasing and even drawing.
Main Features
1.Direct USB makes the flatbed cutter reliable and convenient.
2.Advanced digital contour cutting technology- high resolution optical sensor read barcode on the printing files automatically.
3.Plug and play, simple installation, no additional drivers needed.
4.No cutting dies required.
5.Contour cutter cuts thin films and card up to 500gsm / 600micron.
6.Pneumatic vacuum suction of media.
7.Dual cutting head, cutting and creasing in one compact unit.
8.Cuts typical SRA3 sheet in 30-60 seconds.
9.Servo drivers control. Silent, precise and powerful servo drives for best cutting results.
Application
Cardcoard, stickers, kraft paper, pvc, pet, plastic thin board, fibrous cardboard, rubber sheet, film etc,.
PVC: Less than 0.4mm
Reflective Film: All types
Sandblast, Hard paper: Less than 450gsm
Magnetic Sticker: Less than 600micron
PET: Less than 0.3mm, vinyl, etc.
Technical Parameter
Application
Cardcoard, stickers, kraft paper, pvc, pet, plastic thin board, fibrous cardboard, rubber sheet, film etc,.
PVC: Less than 0.4mm
Reflective Film: All types
Sandblast, Hard paper: Less than 450gsm
Magnetic Sticker: Less than 600micron
PET: Less than 0.3mm, vinyl, etc.
Technical Parameter
| Model Name | FC9901220 |
| Cutting control system | X-High-power brushless servo motor Y-High-power brushless servo motor |

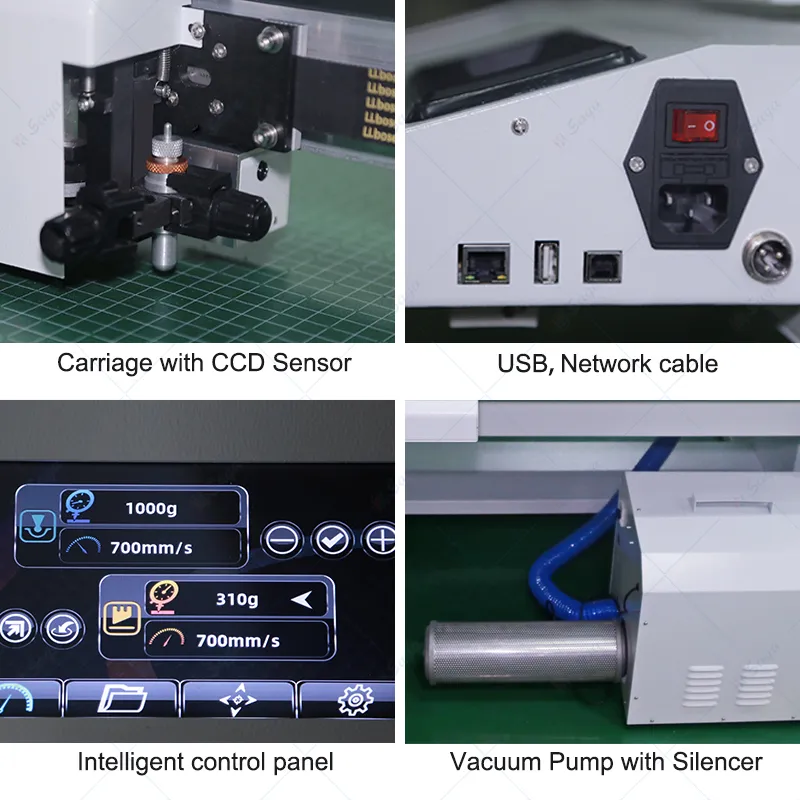

| Positioning sensor type | Digital camera(CCD) or infrared sensor/optional |
| Control panel | 7 inch graphic touch screen |

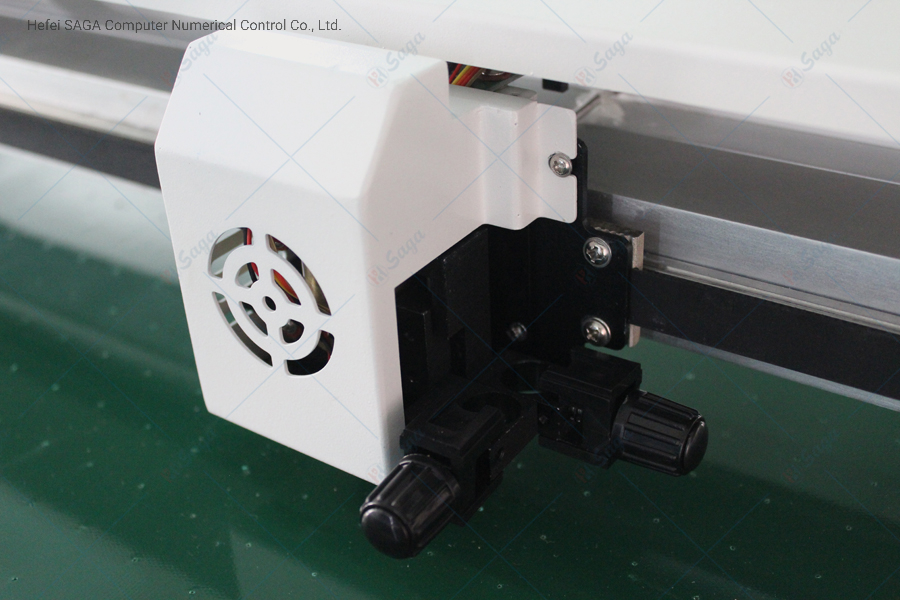

| Number of knife clips | Double knife clip |
| Blade types | Blade,creasing tool and pen |
| Machine performance | |
| Media hold method | Vacuum suction |
| Positioning sensor type | Digital camera(CCD) |
| Maximum cutting size | 1000mm×1290mm |
| Maximum ARMS Contour Cutting Size | 990mm×1220mm |
| Scanning speed | 5-10s |
| Maximum actual cutting speed | 10mm/s-700mm/s 10mm/s Step |
| Maximum cutting force | Creasing:0-1500gf(10gf Step) Blade:0-1000gf(10gf Step) |
| Maximum Paper Weight | 600g |
| Mechanical resolution | 0.02mm |
| Programmable resolution | HGPL 0.025mm |
| Repeat precision | ≤0.05mm |
| Cutting media types | Kraft paper,plastic board,cardboard,PVC etc |
| Software and compatibility | |
| Connectvity | USB,network cable |
| Software and compatibility | DragonCut PC only,compatiable for Windows7,8,10 Corel Draw/Illustrator Plug-in.PC only(SD interfaces) |
| Power and working envionment requirements | |
| Voltage and current | 100VAC-120VAC.50/60Hz,Maximum current 6.8A 200VAC-240VAC,50/60Hz,Maximum current 3.4A |
| Power | 350W |
| Voltage and current(Vacuum Pump) | 110VAC, 50Hz, Rated current 12.4A, 60Hz, Rated current 17.2A 220VAC, 50Hz, Rated current 6.2A,60Hz, Rated current 8.6A |
| Power(Vacuum Pump) | 50Hz, 1.1KW;60Hz,1.3KW |
| Stand | Included |
| Operation environment | Temperature+5ºC to +35ºC(Fahrenheit 41-95),Humility 30%-75%(Non-condensing) |
| Dimensions and weights | |

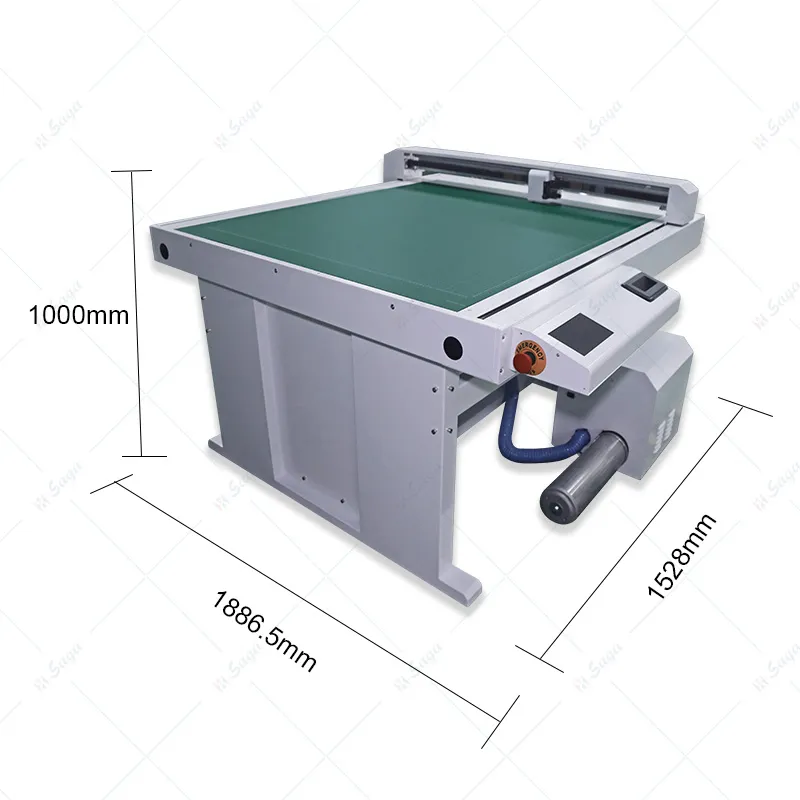

| Actual dimensions | 1886.5mm×1528mm×1000mm |
| Package dimensions | 1954mm*1656mm*620mm |
| GW | 275kg |
