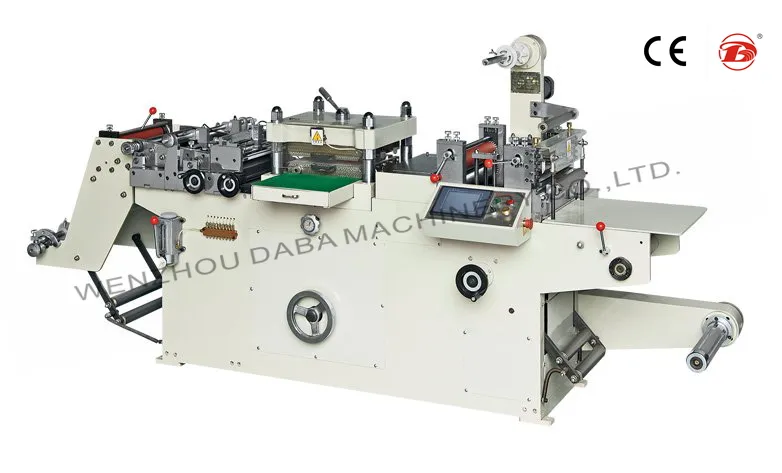

Dbmq- 320A Automatic Sticker Adhesive Label Die Cutting Machine
DBMQ-320A Automatic Sticker Adhesive label die cutting machineThe machine with flat to flat high-accuracy mould cut, tow aterial and cut into slices controlled by the computer, both sides of printing mark and its vertical is accurate to follow and make a reservation by three photoelectric eyes, moul......
Send Inquiry
Product Description
DBMQ-320A Automatic Sticker Adhesive label die cutting machine
The machine with flat to flat high-accuracy mould cut, tow aterial and cut into slices controlled by the computer, both sides of printing mark and its vertical is accurate to follow and make a reservation by three photoelectric eyes, mould cut, charge and abolish, cuts into slices or winding using for auto-sticking machine completed by once. It's very suitable for paper adhesive label,silk screen label,and so on.
The machine with flat to flat high-accuracy mould cut, tow aterial and cut into slices controlled by the computer, both sides of printing mark and its vertical is accurate to follow and make a reservation by three photoelectric eyes, mould cut, charge and abolish, cuts into slices or winding using for auto-sticking machine completed by once. It's very suitable for paper adhesive label,silk screen label,and so on.
1.Feature
The machine is splitted style flat to flat high precision die cutting .
Pulling materials and cutting is controlled by computer.
Two sides and a line are tracked by three photoelectric sensors.
High configuration:
-PLC from Japan Mitsubishi/France Schneider
-Servo motor and servo driver from Japan Yaskawa/France Schneider
-Convector from France Schneider
High automation:
-Automatic webguide system
-Oil circulation lubricating system
-Tracking sensor
-Automatic waste discharge
-Fault automatic shutdown alarm and display in the computer
Video:https://youtu.be/Y2HTLIPyn50

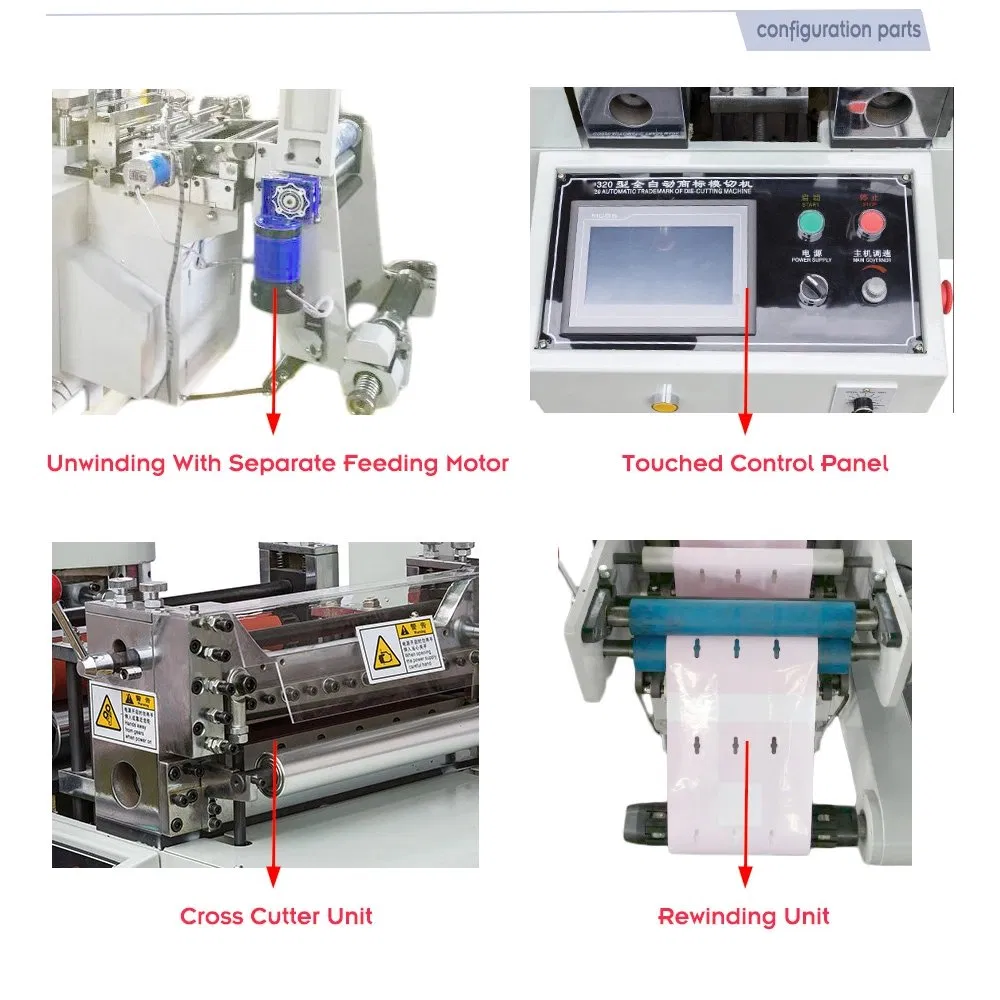

2.Details
3.Technical Parameters
The machine is splitted style flat to flat high precision die cutting .
Pulling materials and cutting is controlled by computer.
Two sides and a line are tracked by three photoelectric sensors.
High configuration:
-PLC from Japan Mitsubishi/France Schneider
-Servo motor and servo driver from Japan Yaskawa/France Schneider
-Convector from France Schneider
High automation:
-Automatic webguide system
-Oil circulation lubricating system
-Tracking sensor
-Automatic waste discharge
-Fault automatic shutdown alarm and display in the computer
Video:https://youtu.be/Y2HTLIPyn50
2.Details
3.Technical Parameters
| Machine Model | DBMQ-320A |
| Cutting Speed | 200pcs/min |
| Max. Unwinding Dia. | 600mm |
| Max. Web Width | 320mm |
| Max. Die Cutting Width | 310mm |
| Max. Die Cutting Length | 350mm |
| Max. Rewinding Dia. | 600mm |
| Orientation Accuracy | ±0.1mm |
| Total Power | 2.2kw |
| Power Voltage | 220V±10% |
| Machine Weight | 1700kg |
| Dimension (L*W*H) | 2600x950x1400mm |
