Product Description
| Product Description |
| Model | unit | 1425 | 1628 |
| Printing plate diameter | mm | ¢ 480 | ¢ 530 |
| Printing plate length | mm | 2500 | 2800 |
| Width of machine inside | mm | 2800 | 3100 |
| Design speed | pcs/min | 80 | 80 |
| Work speed | pcs/min | 30-60 | 30-60 |
| Max printing area | mm | 1400×2500 | 1600×2800 |
| Max size of paperboard | mm | 1400×2700 | 1600×3000 |
| Min size of paperboard | mm | 350 | 350 |

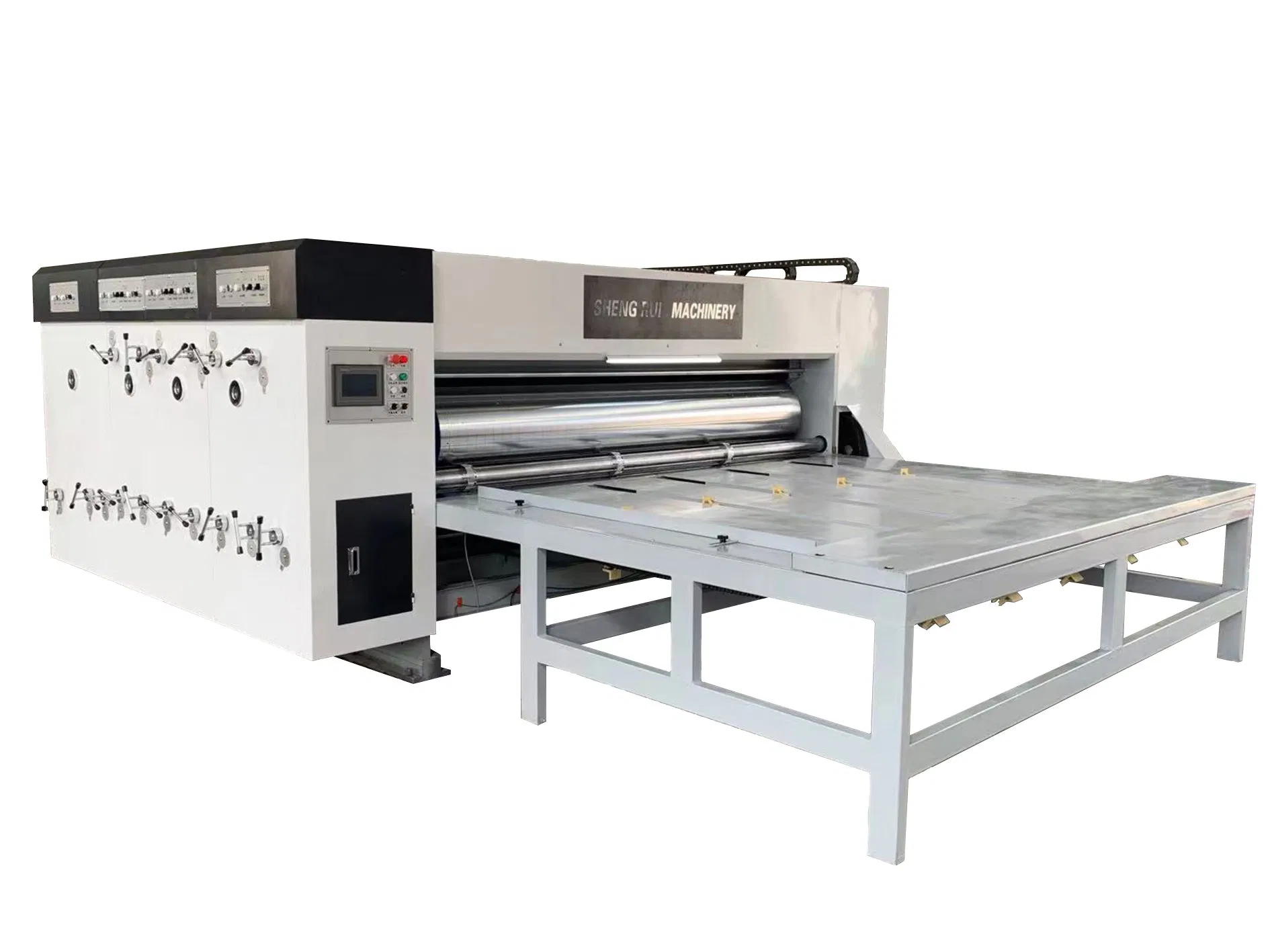

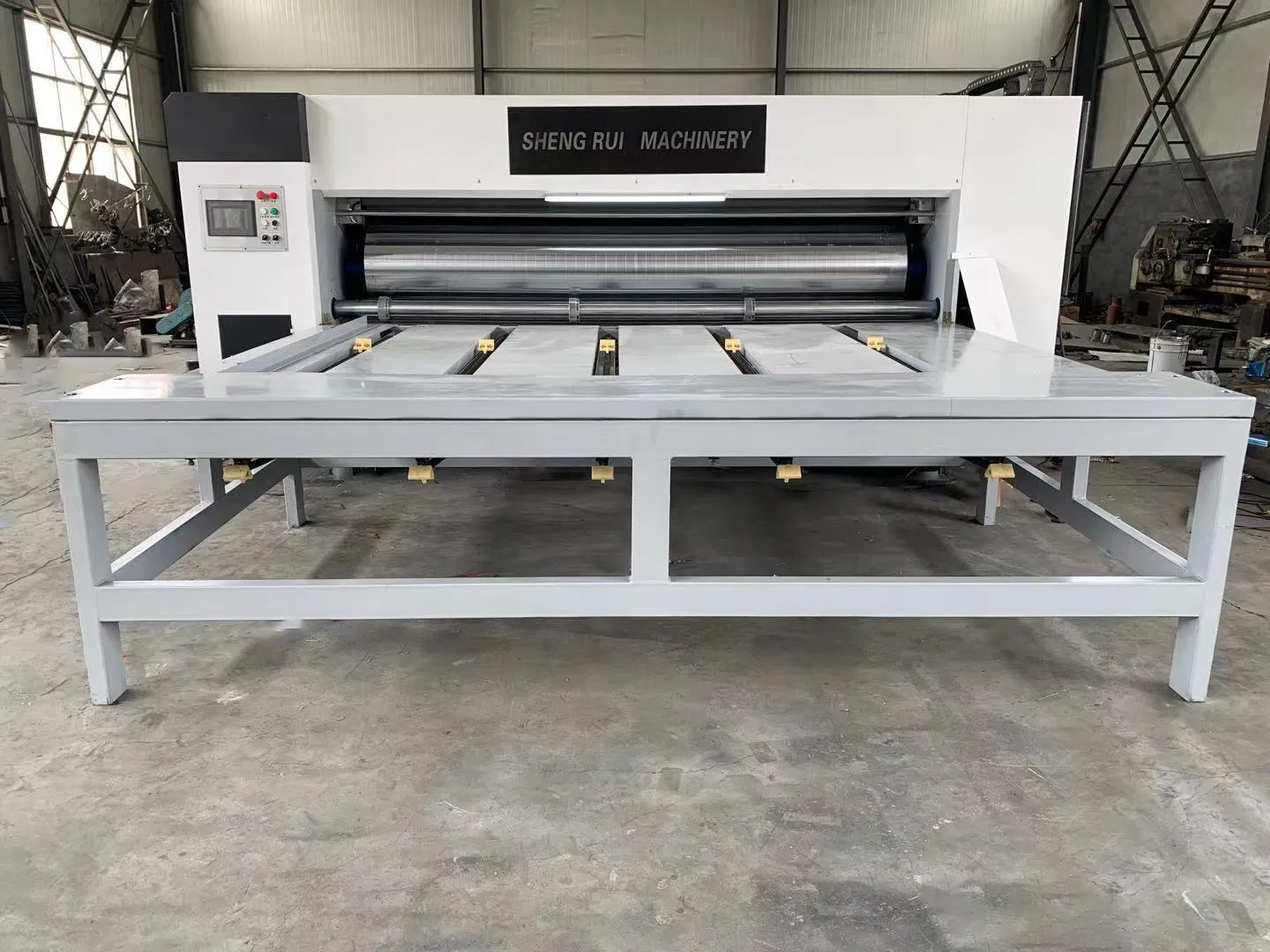

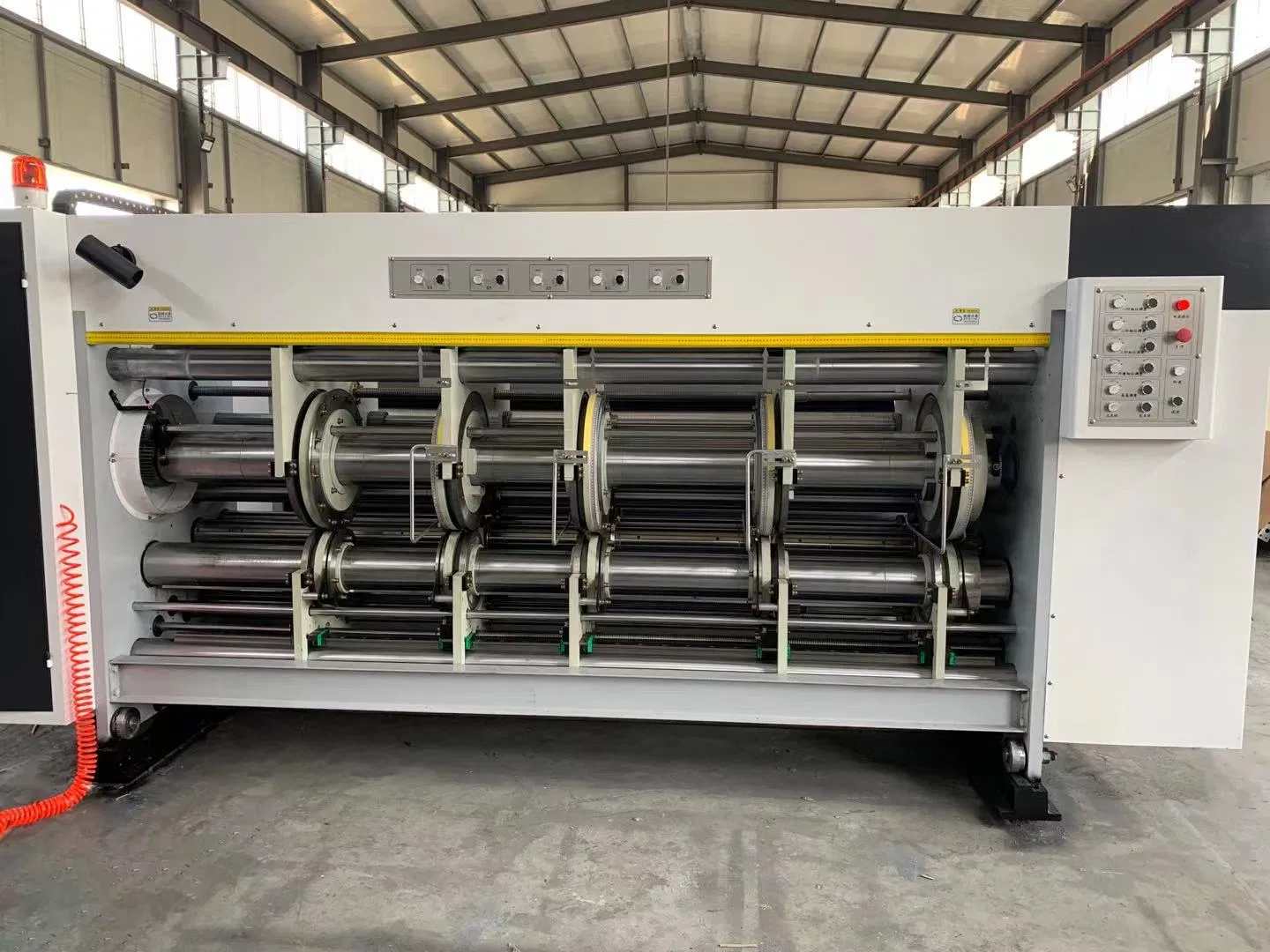

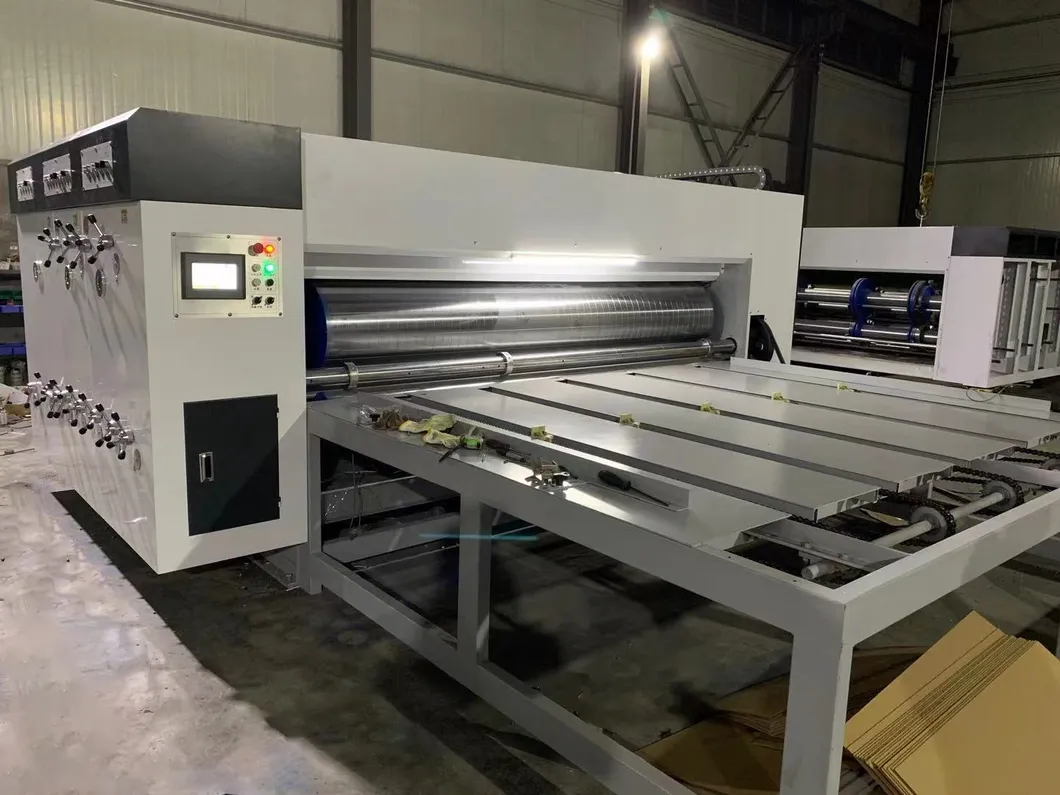

| Product display |
| Features |
1.Circulating oil supply lubrication system and other printing machine structures.
2.The wallboard is made of 40mm thick cast iron.
3.All transmission rollers and shafts are finely ground and plated with hard chromium.
4.The whole machine is adjusted by zero spanner, slotted phase preloading line and one key adjustment.
5.Automatic circulation ink supply system, pneumatic diaphragm pump, stable ink supply, simple operation and maintenance. Ink filter screen, filter impurities, ink separation. The operation is simple and clean, and the ink amount can be adjusted slightly. The ink roller part can be pneumatically raised and rotated separately to prevent the ink from drying up during shutdown, and it is convenient to clean the ink roller.
6.The gear gap free adjustment device ensures that the paperboard runs more smoothly, the printing pattern is clearer and does not duplicate.
7.The printing phase adopts planetary gear structure, and the electric digital phase controller adjusts 360 degrees(both operation and stop can be adjusted). The adjustment position can be set in advance. The design has long service life and convenient and accurate adjustment.
8.The transmission gear adopts 45#, shaving, high-frequency quenching heat treatment (high hardness, good wear resistance) and is processed and manufactured according to the requirements of high precision. The cross slider is connected, and the spray lubrication mechanism is adopted. It has long service life, low noise and stable operation to ensure the chromatic accuracy.
9.The front and rear of the equipment are respectively equipped with emergency stop switches to control the emergency stop paper feeding.
10.CAD module design can arbitrarily combine multi - color printing units
11.Phase fixing device. Cylinder type automatic brake, when the machine is separated or the phase is adjusted, the brake mechanism restricts the rotation of the machine and maintains the fixed point of the original gear position.

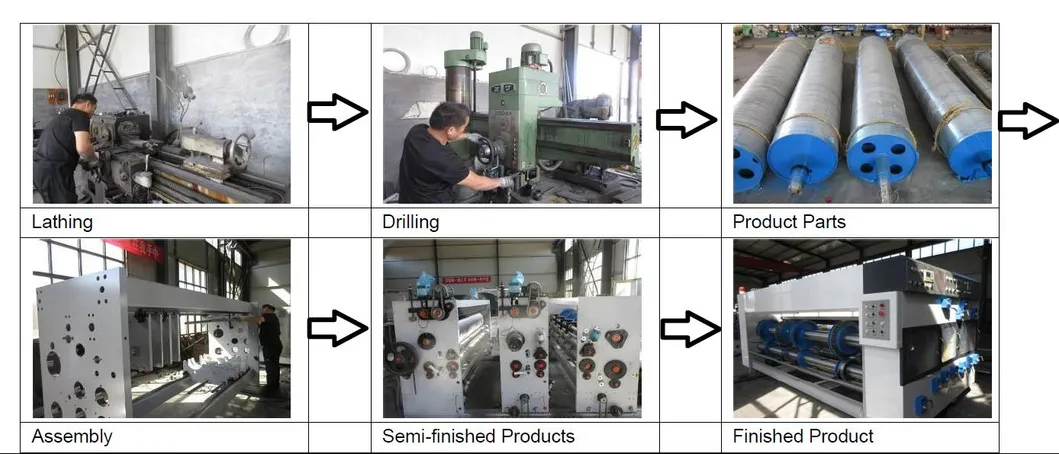

| Company Profile |
| Main Products |
| printing quality |
| FAQ |
1. Q: Are you a manufacturer or trading company?
A: We are a manufacturer, located in Dongguang county, Hebei province, China. Warmly welcome to visit our company.
2. Q: What is your minimum order quantity, can you send me samples?
A: Our minimum quantity is 1 set, as our product is machinery equipment, it's difficult to send you samples, if you have any questions about the products, please feel free to contact us for more detail, we are glad to provide you more information such as specifications, video, etc.
3. Q: How about the after-sale service?
1) TM online for 24 hours, also contact by email, skype, MSN, whatsapp, etc.
2) To solve the problems with videos/pictures.
3) One year warranty for spare parts change.
