              Product Description

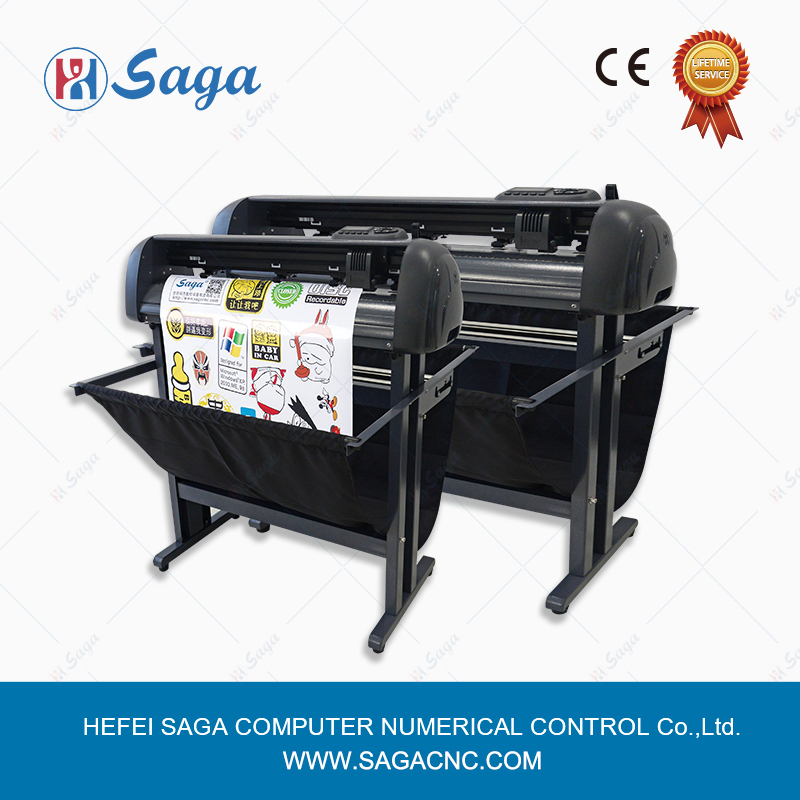

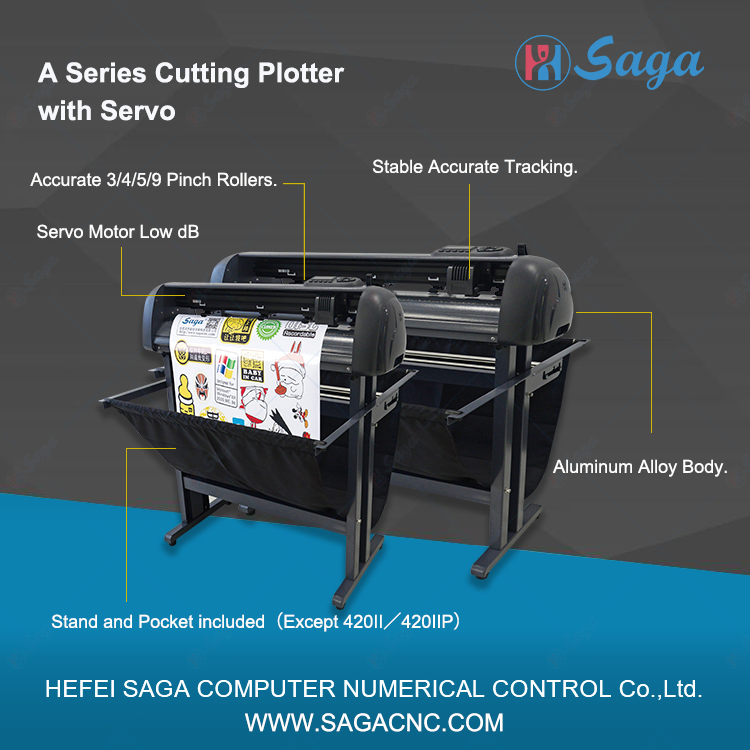

                                         ARMS Servo Cutting Plotter-A series
              Main Features:
              The SG-A series cutting plotter was special designed for users who requires working with large plots and processing large quantities in professional quality. With a SAGA Vinyl plotter and DragonCut software you have a formidable combination of sign design and layout tools; Utilizing the strength of the Advanced Registration Mark Sensing system, the cutter can continually adjust itself to allow for any skew or stretch within the artwork, to achieve long distance tracking. With 750g cutting force and unique mechanical structure, it can cleanly cut even the most challenging medias such as high intensity reflective films.
              1. Compatible with various computer system, like WinXP, Win7,Win8,Win10.
              2. Aluminum alloy construction, ABS end caps, welded steel stand.
              3. True USB: No need to install USB driver, easy and reliable
              4. Long length tracking: Strong structure and high-quality girt rollers to keep long length tracking
              5. Advanced registration mark sensing system allows the cutter continually adjusts itself for any skew or stretch within the artwork which results in the most accurate contour cutting possible-even over very long distance.
              6. World most advanced "barcode register mark" for contour cutting registration, ensure high accuracy so that running 5-10 meters without error (up to 0.15mm).
              7. Fault Rate: 1.5% for 12 months.
              Applications:
              Filed: packaging proofing, clothing plate, making car beauty industry, Make Signs for shop windows, cars and vans., cutting labels, heat pressing logos and slogans onto T-Shirts.
              Material: vinyl adhesive, reflective film, craft paper, sandblast membrane, PET, PP, PVC, PC, wall paper, etc.

              Technical Parameters:
              Model NameSG-420II/420IIPSG-720II/720IIPSG-1350II/1350IIPSG-1800II/1800IIP
              Maximum Sheet Size420mm720mm1350mm1800mm
              Maximum Cutting Size315mm610mm1240mm1695mm
              Minimum Cutting CharacterAbout 5mm2
              Mechanical Resolution0.02mm
              Repeat Precision0.082mm
              Maximum Liner Cutting Speed960mm/s
              Maximum Cutting Force750g
              Cutting Control SystemDC Servo
              Motor Speed0-3000RPM
              CPU64-DSP
              Package dimensions660mm*330mm*320mm970mm*340mm*430mm1600mm*340mm*410mm2100mm*400mm*550mm

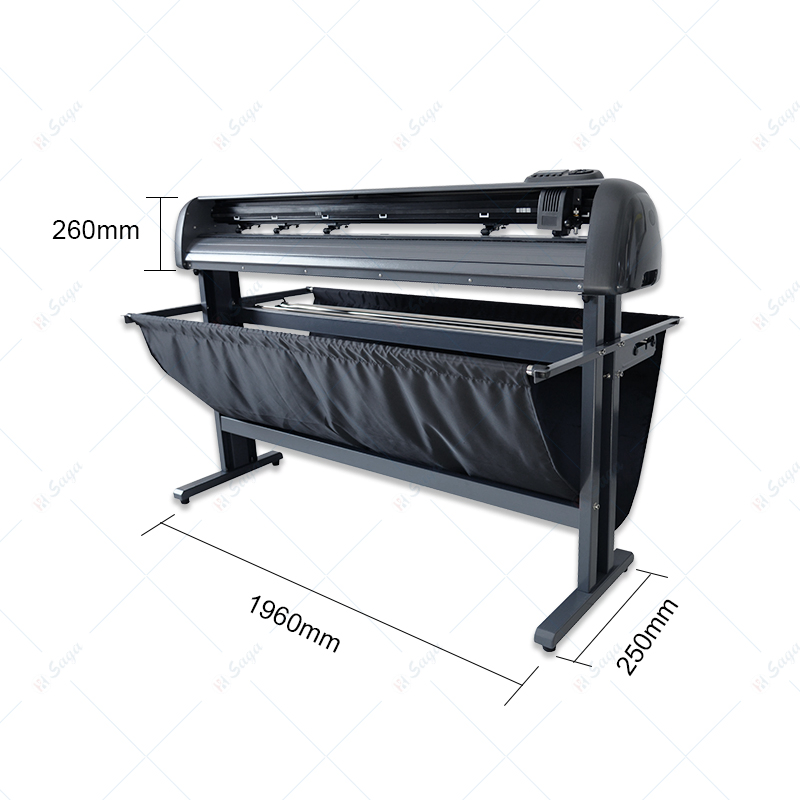

              Actual dimensions580mm*250mm*260mm880mm*250mm*260mm1510mm*250mm*260mm1960mm*250mm*260mm
              Gross/Net Weight11.5kg/9.0kg27.5kg/25.0kg39.8kg/35.0kg68.0kg/47.0kg
              ConnectivityUSB/RS-232
              Software & CompatibilityDragonCut, compatible for Windows7,8,10(USB direct connection to the computer)
              Corel Draw/Illustrator Plug-in(SD direct connection to the computer)
              Power Source100V~240V,50/60Hz
              Power150W
              Operation environmentTemperature: +5ºC - +35ºC/41ºF - 95ºF Humility:30%-75%
              Stand & Pocket--IncludedIncludedIncluded
