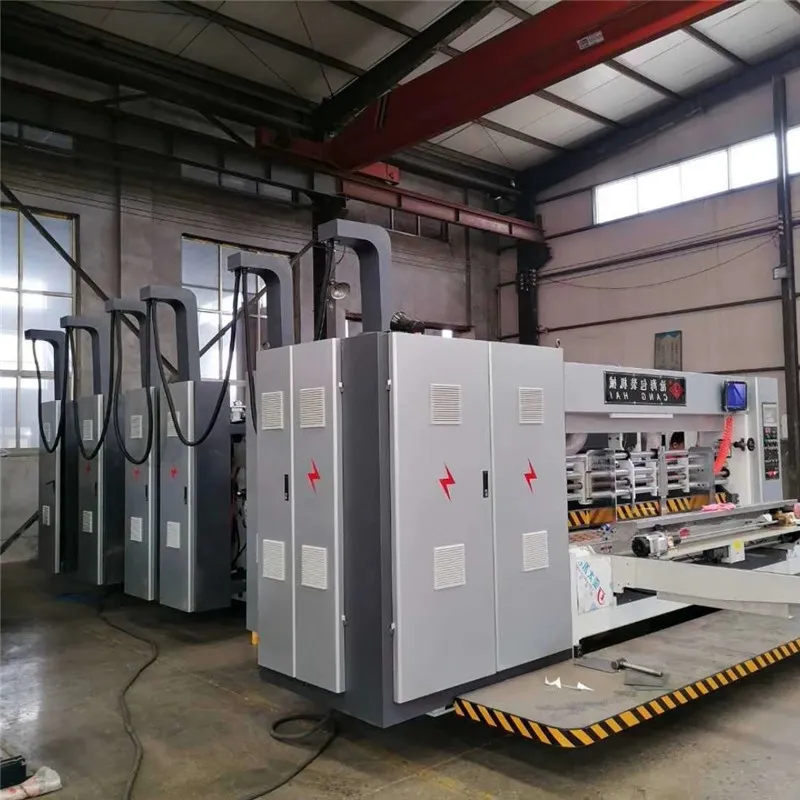

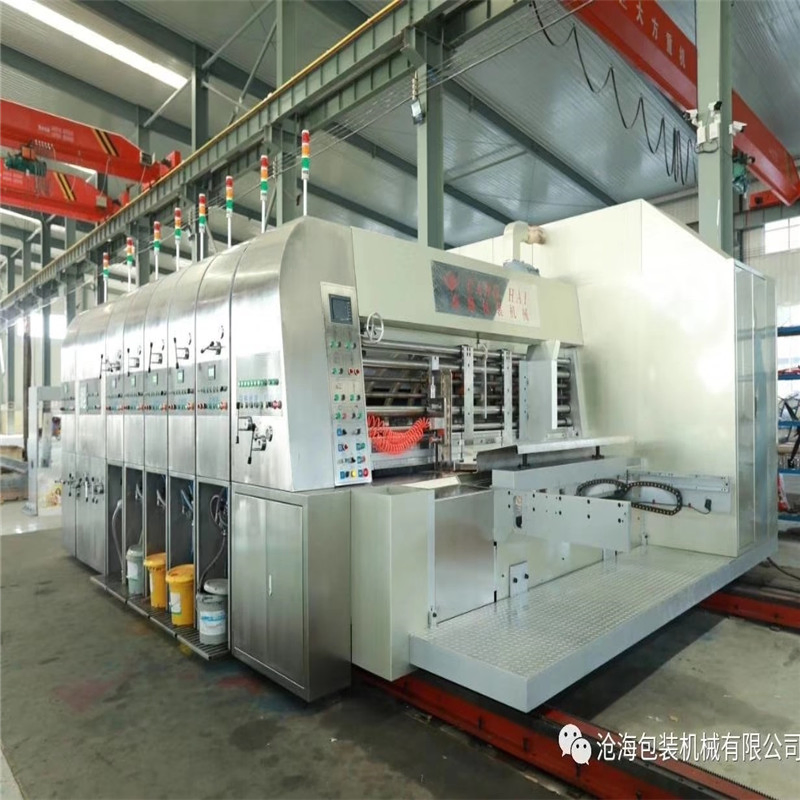

Automatic High Speed 5 Colors Flexo Printing/Slotting/Die-Cutting Machine
Description:Features of the whole machine:1. The electrical appliances and computer PLC software of the ink-wash printing machine adopt domestic well-known brands such as Qingdao TECO and Taiwan Hitech, with stable and reliable quality.2. The bearings are selected from high-quality brands such as Ja......
Send Inquiry
Product Description
Description:
Features of the whole machine:

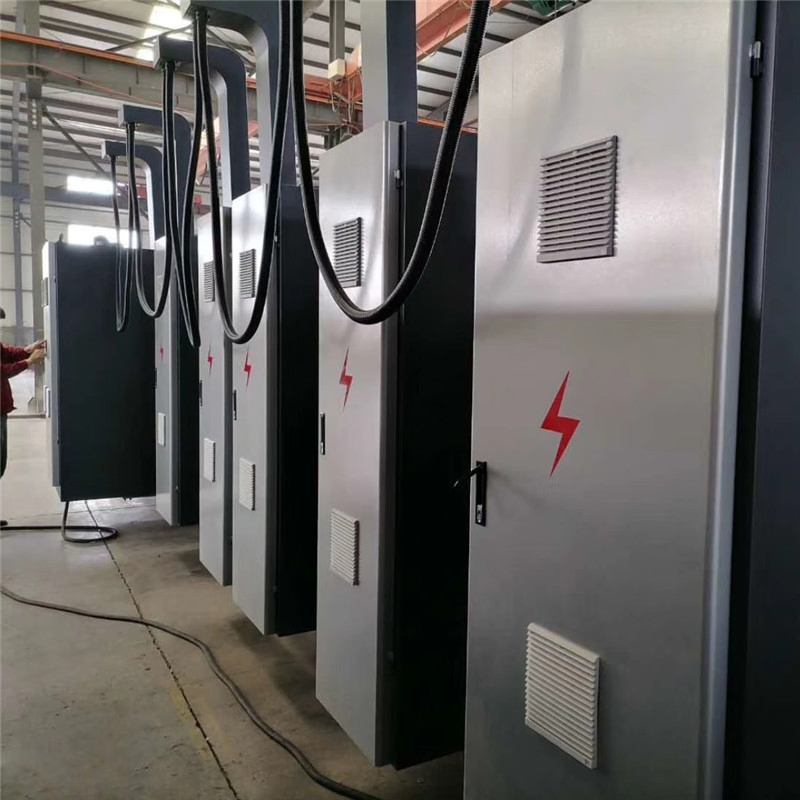

1. The electrical appliances and computer PLC software of the ink-wash printing machine adopt domestic well-known brands such as Qingdao TECO and Taiwan Hitech, with stable and reliable quality.
2. The bearings are selected from high-quality brands such as Japan's NSK and Humanistic.
3. Gears and other transmission parts are made of precision ground alloy steel. The strength, hardness, plasticity, impact strength and fatigue strength of the gear are improved through heat treatment process, and the quality of the gear is guaranteed by Vickers hardness standards.

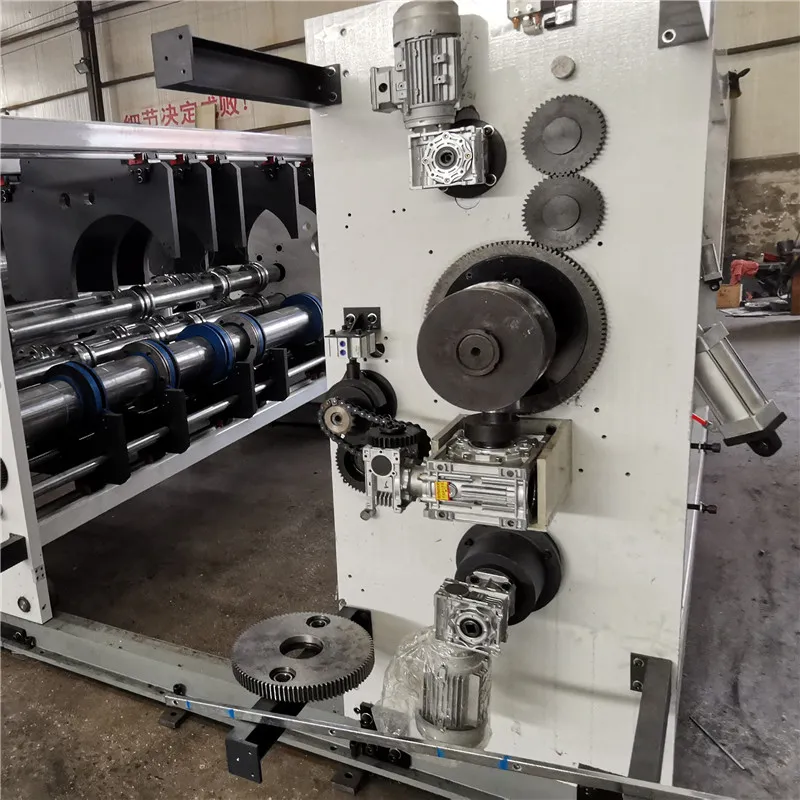

4. The transmission gear is made of alloy steel material, formed by gear grinding process, and adopts helical gear design to enhance the gear tooth width and enlarge the gear contact area to minimize the overall damage caused by the mechanical instantaneous acceleration torque.
5. The oil supply system of each unit adopts a dual system of spray gear oil supply and manual centralized oil supply. (Guaranteed to minimize mechanical wear)
6. The gear oil tanks of each unit are connected with oil levelers, so that the oil storage of each group of the machinery is kept the same, and the overall observation through the display table.
8. The phase of the whole machine, the horizontal movement of the plate roller and the imprinting gap are all electrically adjusted (reduce debugging time and improve work efficiency)
9. The integrated air duct exhaust system reduces dust and impurities around the machine and improves printing quality.
10. The compound slotting is equipped with an independent pressure line (outer-circle rubber scraping process), which can effectively prevent the problems of improper pressure line and line explosion.
11. Semi-open electric control pneumatic squeegee, squeegee ink evenly and improve printing quality.
12. The upper suction dust removal system cleans the cardboard impurities.

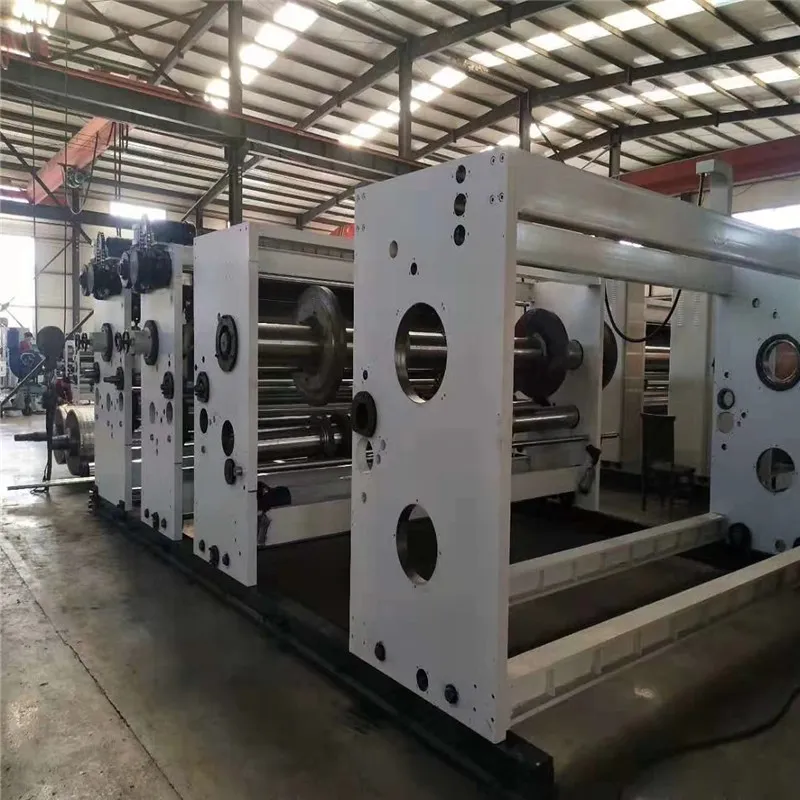

13. The wallboard is 65mm thick, with aging treatment, tempering to eliminate the internal stress of the metal, so that it will not be deformed after long-term use.
14. The working gap adjustment of the whole machine adopts quick adjustment without wrench, which is fast and convenient to perform adjustment, and has a disc observation table.
15. The host adopts frequency conversion control, with automatic protection function (stop working in emergency), starting and running are safer, more stable and energy-saving.
16. Pneumatic plate lifting device (manual and pneumatic switch can be switched independently) to prevent the ink from drying out when the machine stops.
Features of the whole machine:
1. The electrical appliances and computer PLC software of the ink-wash printing machine adopt domestic well-known brands such as Qingdao TECO and Taiwan Hitech, with stable and reliable quality.
2. The bearings are selected from high-quality brands such as Japan's NSK and Humanistic.
3. Gears and other transmission parts are made of precision ground alloy steel. The strength, hardness, plasticity, impact strength and fatigue strength of the gear are improved through heat treatment process, and the quality of the gear is guaranteed by Vickers hardness standards.
4. The transmission gear is made of alloy steel material, formed by gear grinding process, and adopts helical gear design to enhance the gear tooth width and enlarge the gear contact area to minimize the overall damage caused by the mechanical instantaneous acceleration torque.
5. The oil supply system of each unit adopts a dual system of spray gear oil supply and manual centralized oil supply. (Guaranteed to minimize mechanical wear)
6. The gear oil tanks of each unit are connected with oil levelers, so that the oil storage of each group of the machinery is kept the same, and the overall observation through the display table.
7. Vacuum adsorption leading edge paper feeding system, equipped with double gripper shafts (the lower shaft is embossing process to increase friction, the upper shaft is scraping process, and the grid design improves the compression resistance of the cardboard) to ensure accurate paper feeding. Reduce the error. All shafts are dynamically balanced. With the function of sheet feeding, increase the scope of receiving orders.
8. The phase of the whole machine, the horizontal movement of the plate roller and the imprinting gap are all electrically adjusted (reduce debugging time and improve work efficiency)
9. The integrated air duct exhaust system reduces dust and impurities around the machine and improves printing quality.
10. The compound slotting is equipped with an independent pressure line (outer-circle rubber scraping process), which can effectively prevent the problems of improper pressure line and line explosion.
11. Semi-open electric control pneumatic squeegee, squeegee ink evenly and improve printing quality.
12. The upper suction dust removal system cleans the cardboard impurities.
13. The wallboard is 65mm thick, with aging treatment, tempering to eliminate the internal stress of the metal, so that it will not be deformed after long-term use.
14. The working gap adjustment of the whole machine adopts quick adjustment without wrench, which is fast and convenient to perform adjustment, and has a disc observation table.
15. The host adopts frequency conversion control, with automatic protection function (stop working in emergency), starting and running are safer, more stable and energy-saving.
16. Pneumatic plate lifting device (manual and pneumatic switch can be switched independently) to prevent the ink from drying out when the machine stops.
17. The independent drying system effectively solves the problems of printing deinking and full-page printing.
Specification | |
item | value |
Brand Name | CANGHAI |
Condition | New |
Warranty | 1 Year |
Applicable Industries | Manufacturing Plant, Printing Shops, Advertising Company, CARTON AND BOX MANUFACTURER |
After Warranty Service | Video technical support, Online support, Spare parts, Field maintenance and repair service |
Local Service Location | Viet Nam, Mexico, Russia, Romania |
Showroom Location | Viet Nam, Mexico, Russia, Romania |
Video outgoing-inspection | Provided |
Machinery Test Report | Provided |
Marketing Type | New Product 2020 |
Warranty of core components | 1 Year |
Core Components | Gearbox, Pressure vessel, Pump, Gear, Bearing, Engine, PLC |
Type | new |
After-sales Service Provided | Free spare parts, Field maintenance and repair service, Field installation, commissioning and training, Video technical support, Online support |
Key Selling Points | Multi Color |
Application | Corrugated Carton Box Making Machine |
Product name | High Speed Flexo Multi Colors Printing Slotting Machine |
Keyword | Die Cuttig |
Feeding way | Front lead edge feeding |
Speed | 280pcs/min |
Max .feeding size | 1600*2900mm |
Min.feeding siz | 260*600mm |
Color | 1-6 Customized |
Max slotting deepth | 400mm |
Max print area | 1580*2760mm |
