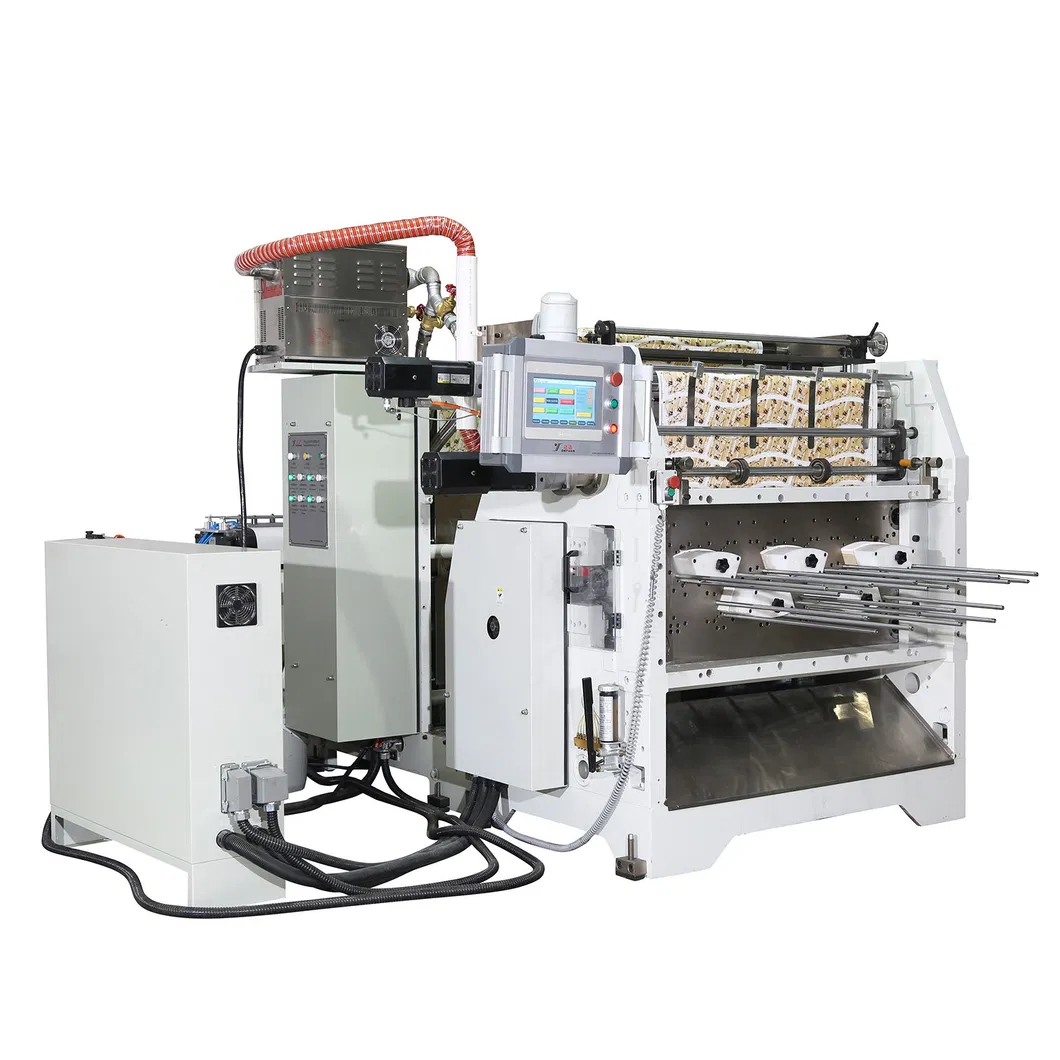

Automatic Die-Cutting with Flexographic Printing Machine for Paper Cup
Automatic Die-Cutting with Flexographic Printing Machine for Paper CupProduct Description Machine Nameflexographic printing and die-cutting machineMachine ModelCCY1080/4-AVoltage380V/50HZTotal power18KWRoller Maximum Diameter1500mmRoller Maximum width1080mmRoller Maximum Thickness80-400gsmPunching t......
Send Inquiry
Product Description
Automatic Die-Cutting with Flexographic Printing Machine for Paper Cup
| Machine Name | flexographic printing and die-cutting machine |
| Machine Model | CCY1080/4-A |
| Voltage | 380V/50HZ |
| Total power | 18KW |
| Roller Maximum Diameter | 1500mm |
| Roller Maximum width | 1080mm |
| Roller Maximum Thickness | 80-400gsm |
| Punching tolerance | ±0.25mm |
| Maximum punching area | 1060mm x 520mm |
| Maximum punching speed | up to 250 stroke/min |
| The minimum quantity of cylinder gear | Z=110 |
| The Maximum quantity of cylinder gear | Z160 |
| Metric cylinder perimeter | 345.5752-502.6548mm(CP= π) |
| British cylinder perimeter | 349.25-508mm(CP=3.175) |
| The maximum printing width | 1050mm |
| The size of the machine | 6m x 1.5m x 2m |
| The weight of the machine | 8T |
| Running speed | 60m/min |
| Standard configuration | 1.automatic web guiding system; 2.Tension control system; 3.Hydraulic Lifting devices; 4.De-culing system; 5.Color mark tracking system. |

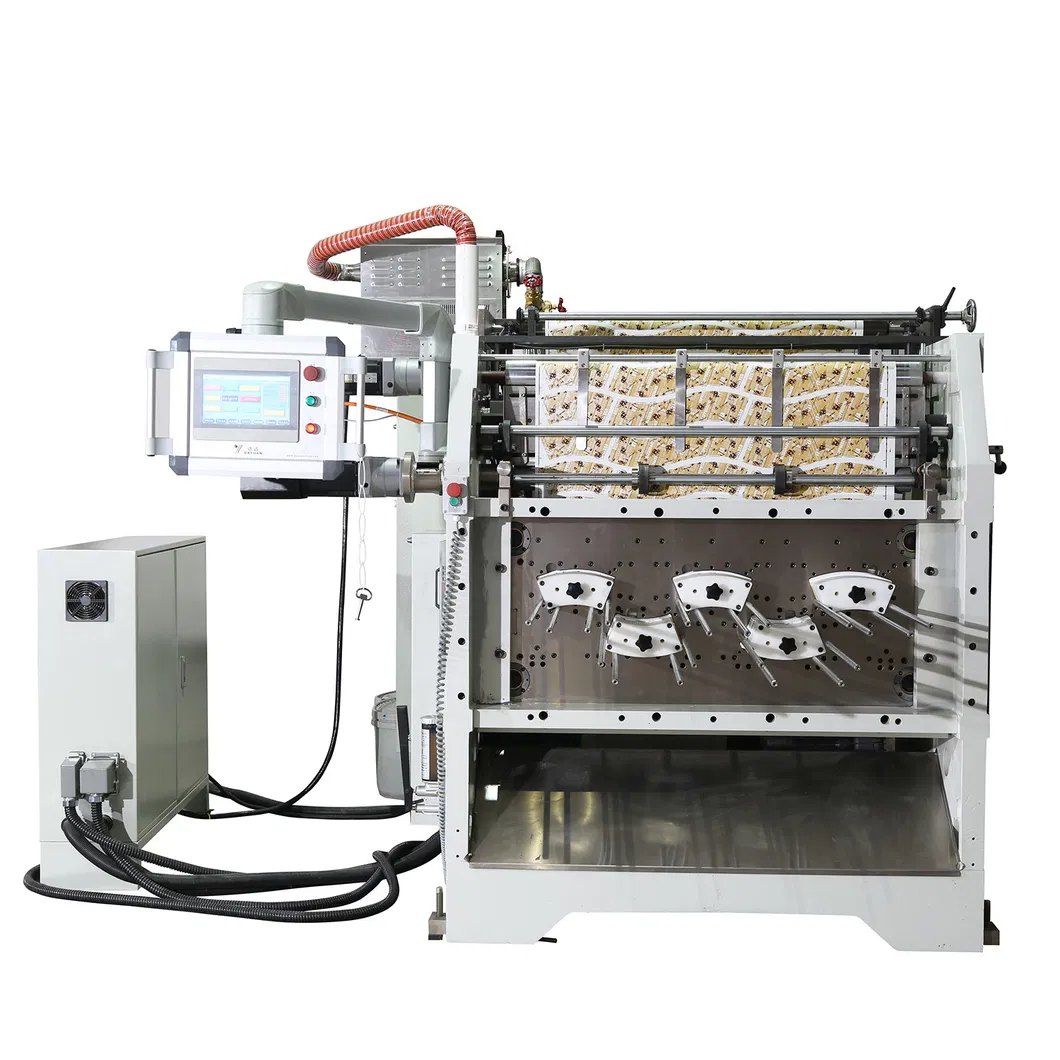

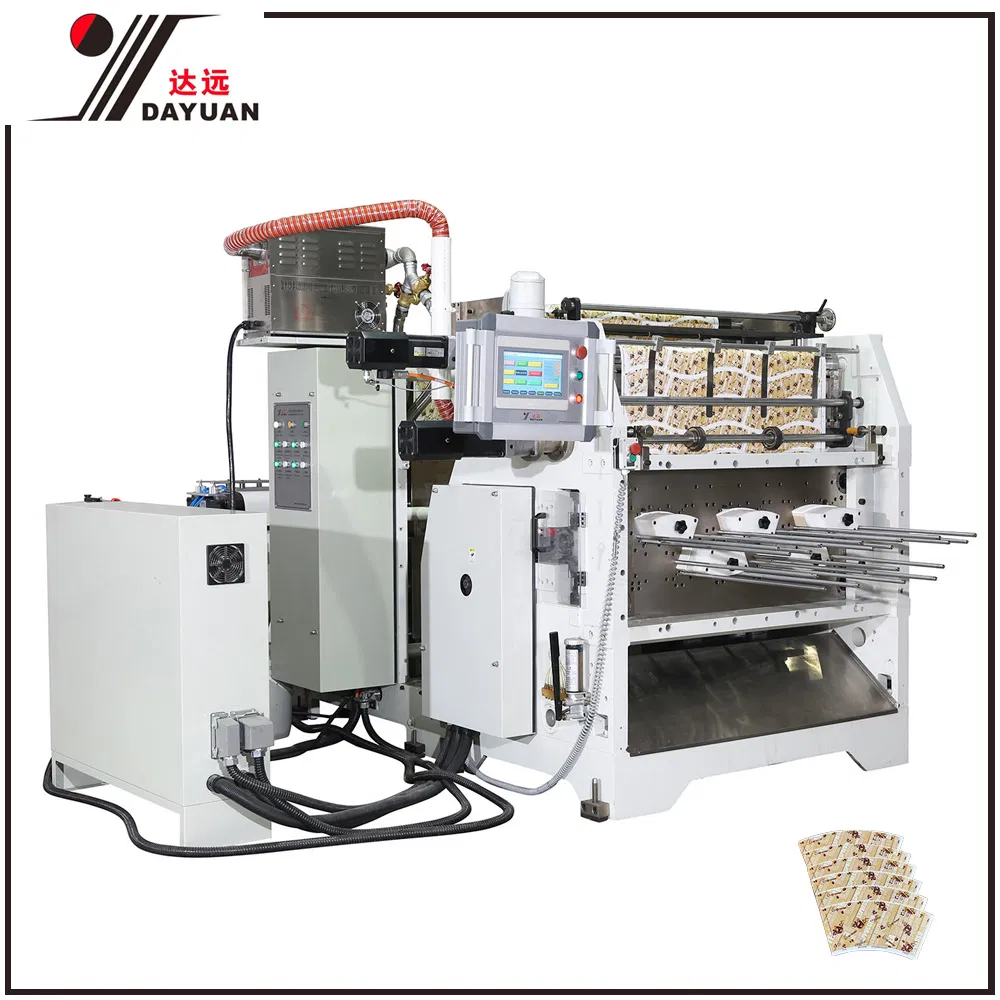

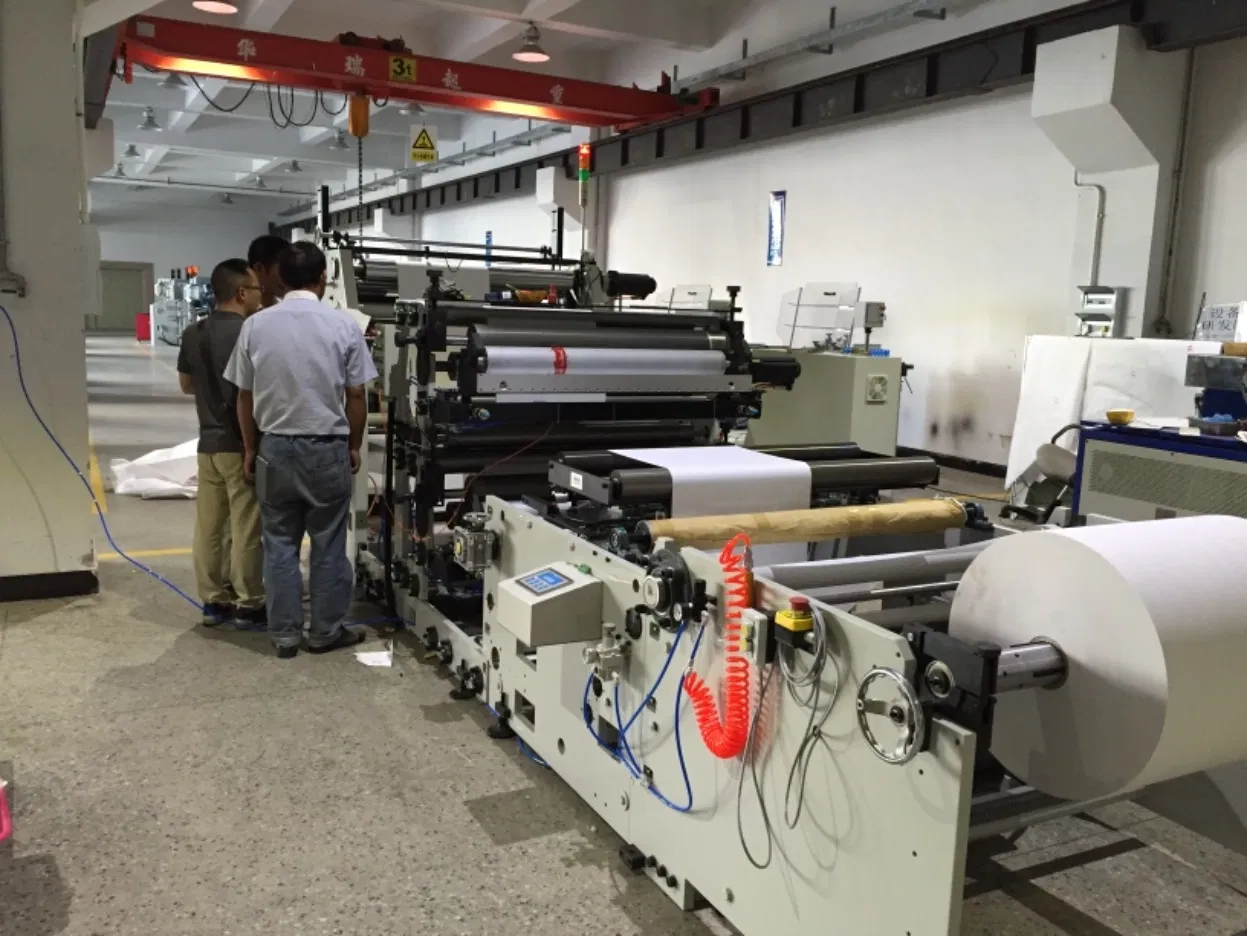

DAYUAN CCY1080/4-A flexographic printing and die-cutting machine is specially designed for the paper cup manufacturer,this machine includes 4 colors flexographic printing unit and die-cutting unit,higher printing accuracy,high speed of die-cutting,automatic waste cleaning, human cost saving, all these advantages would become the prior choice for the paper cup manufacturer.
The machine adopted Rexroth servo control system and frequency converter,Siemens PLC, the main electrical components are all adopted from the top brand, which determined the machine runs in stable performance and high efficiency.
1)Feeding Unit
Roller type front feeding structure,rounds,multipoint suction feeding,high friction,high speed,paper feeding smoothly and accurate.Left and right side baffle (computer touch screen control),the block box adopt electric adjustment,front baffle gap manual synchronous adjustment ,said baffle equipped with pneumatic line device,make the paperboard transverse positioning more accurate.The main engine adopts frequency conversion control,start and operation smoothly,saving energy can reach 30%.
2)Printing Unit
With the pedal switch electrically control the printing roller to run clockwise or anticlockwise, we can have the printing plate quickly changed. .Each unit uses electric to separate and combine,pneumatic locking,pneumatic lift plate,automatic ink distributing,pneumatic brake fission positioning. When the printing unit iS open and being washed, the cylinder will brake all the gears and keep them in the original location.The machine transmission uses cross slide block structure,adopts free key connection,remove the link clearance,operate smoothly.
3)Die cutting Unit
die cutting roller:centrifugal casting steel cylinder,computer dynamic balancing correction,surface grinding,hard chrome plating.(Optional:free plate die cutting slotting steel knife mold,do regular box slotting,the use of the corner cutting has box height synchronous adjustment function)
Die cutting roller phase and axial adjustment,the phase adjustment adopt planetary gear type structure,PLC touch screen control and electric digital 360° adjustment,the axial transverse adopt PLC touch screen and electric digital adjustment.,the total adjusting range is ±15mm.
Mould And Sample( We can free provide if needs)
| Packaging | The normal package is wooden Case(Size: L*W*H). We will pack it according to customer's special request.If export to Europe countries, the wooden box will be fumigated. | ||
| Packaging Dimension | Case 1 | Case 2 | |
| Szie | 2250mm* 1760mm* 1960mm | 1250mm* 1200mm* 1060mm | |
| Net Weight | 1800 KG | 250 KG | |
| Gross Weight | 1850 KG | 300 KG | |
| Shipping | By Sea,or as arranged | ||
Q:Are you a factory or a trading company?
A: Our company is specialized in manufacturing machinery more than 20 years.
Q. Can your product be customized?
A: Yes,we can design and customize according to the requirements of customers.
Q: How does your factory control product quality?
A: we always adhere to the "integrity-based, integrity-based" business purposes,adhering to the "pioneering spirit, strives for realism the innovation, enterprising,strives for perfection" spirit of enterprise, the production of the product specification is complete, the appearance is beautiful and easy, the machine type to be complete,can satisfy the requirements of different customers.
Q: Does it easy to operate and what can i do if it doesn't work?
A: First ,our machine is stable and easy to operate by one man ,what you do is just learn some basic thing like loading the jumbo roll paper,start the machine and cutting the paper.And we will sent you manual and video ,we suggest you to come to visit our factory to learn more thing by yourself , and if there is something goes wrong , you can call us ,video-chat ,email us .And we will give solutions within 24 hrs .Our engineer also can be distributed to overseas as you required.
Q: If the machine's spare parts broken,where can I get ?
A: We will give you the spare parts which is vulnerable,and some criticalbparts,in case it broken within one year,we will send you for free.
Q: What payment term ?
A: T/T 30% down payment ,balance before delivery ,or LC at sight .
