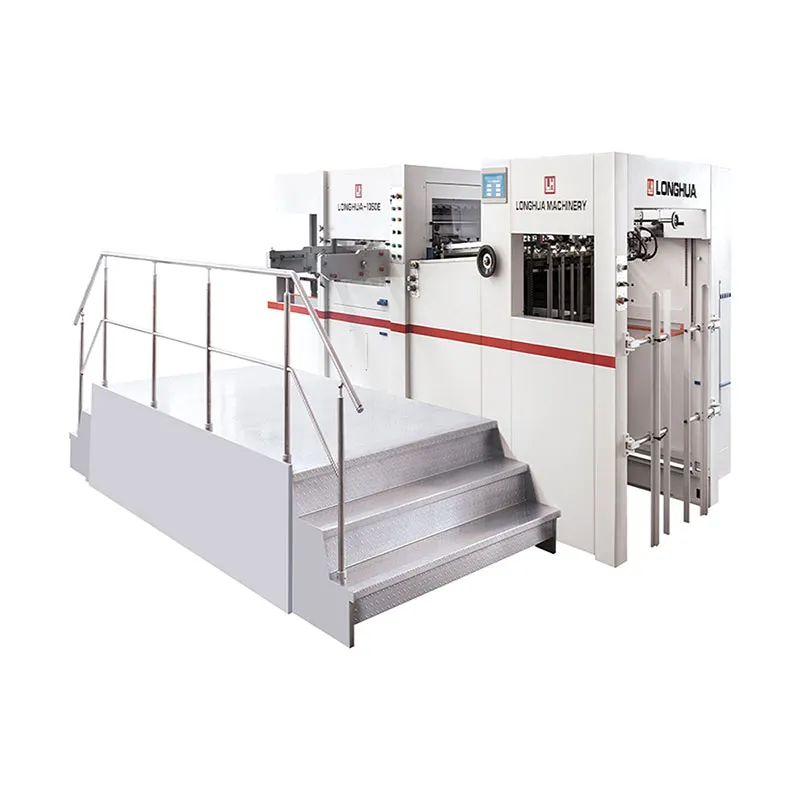

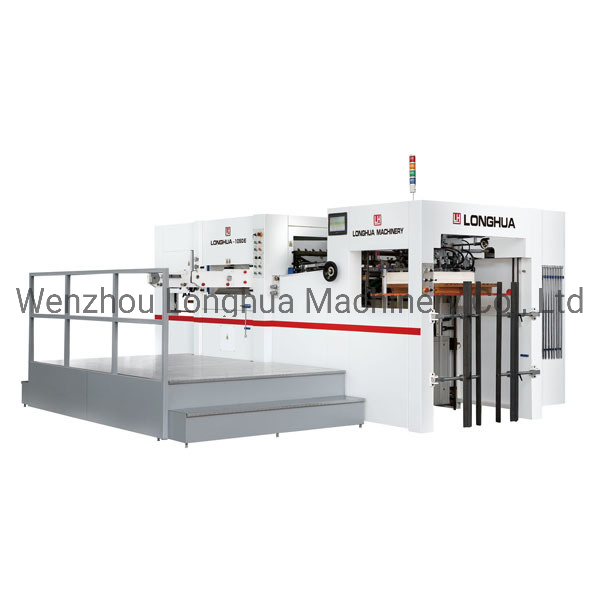

Automatic Die Cutting Machine

1) Sheet Feed Section
1.3 measures prevent feeder from crash.
2. Left-right manual fine adjustment device is applied for paper file.
3. The powerful feeder is equipped with 4 lifting suction cups and 4 carrier suction cups; The directions of suction cups are adjustable according to the paper deformation.
4. Blowers on both sides of the feed system separate the papers for smooth feeding process.

2) Feeder
1. The high-speed feeder is made of lightweight aluminum alloy with anode treatment on the surface.
2. The forward, backward, high and low positions can be adjusted according to the stock: For smooth feeding of thin paper, arge gram cardboard, corrugated paper, ect.
3. The feeder can realize to make a change in the breadth frequently, fast and easily.

3) Ponching Section
1. The driving gear ensures high speed of die cutting together.
2. The pneumatic locking mechanism and air clutch are fast and stable.

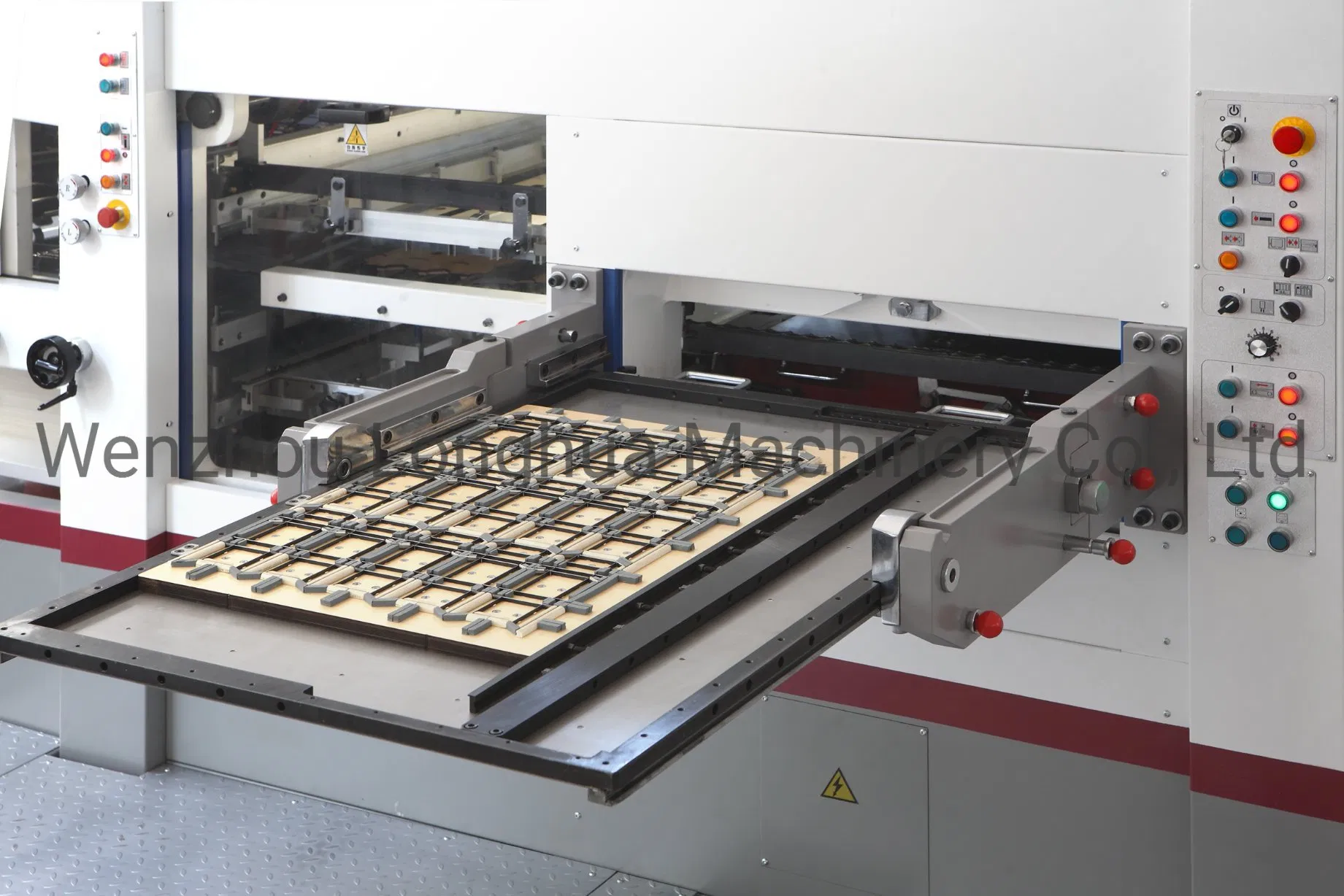

3. The die cutting frame can prevent the die from droopingor separating effectively.
