2PT, 3PT, 4PT Rotary Cutting Die Rule, Perforation Cut- Crease
* Perforating Rule Usage:- Perforating Rule is developed for Die Cutting for printing, packing industries, etc, and it can be formed into different shapes according to user's pattern designs. Effectively eliminate burrs, faster and cleaner cutting.- Applicable to cut: tear-off labels, paper, cor......
Send Inquiry
Product Description

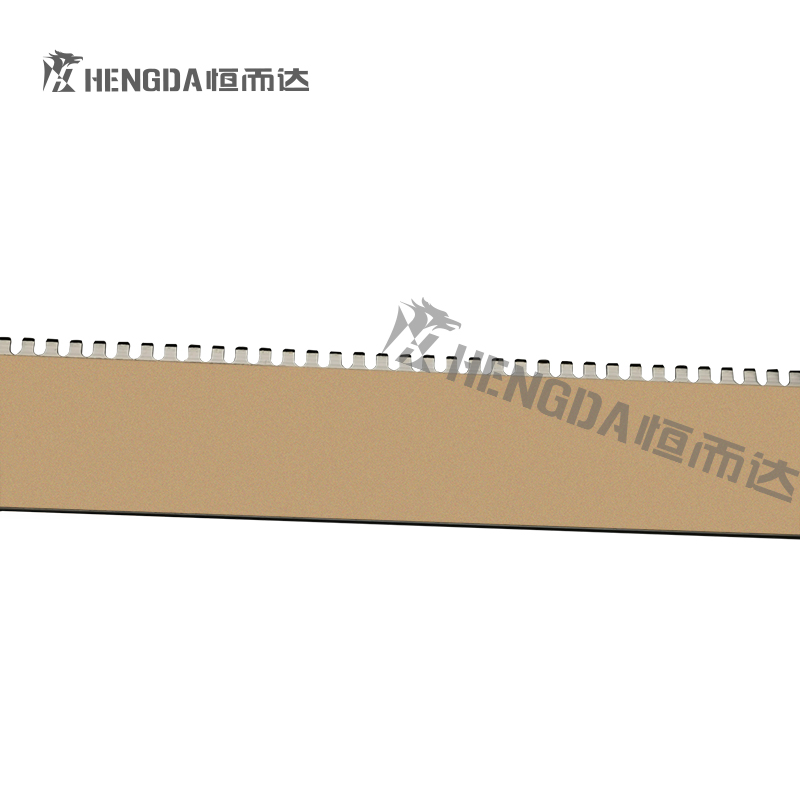

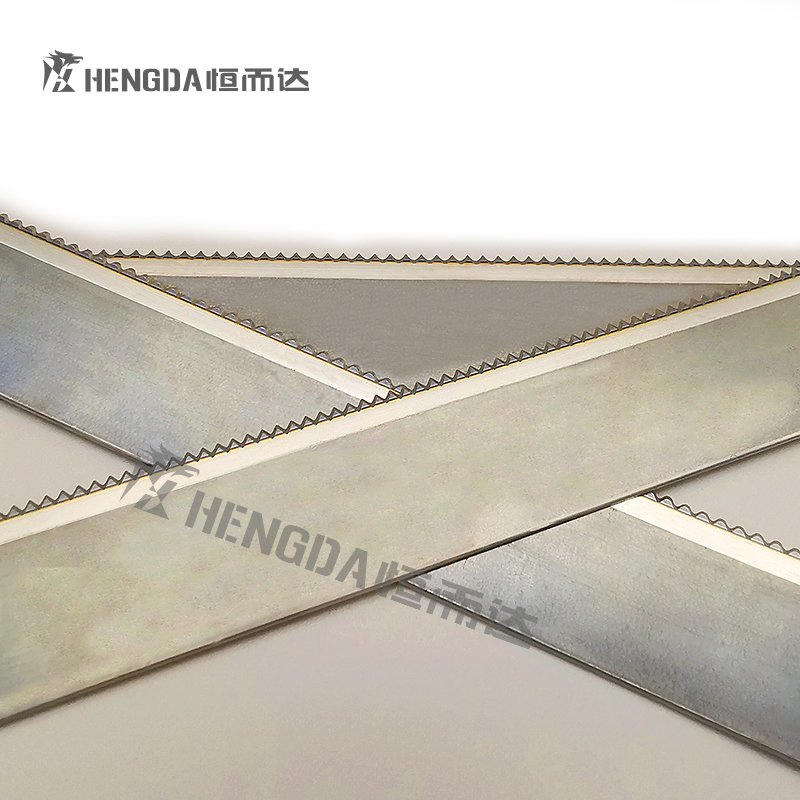

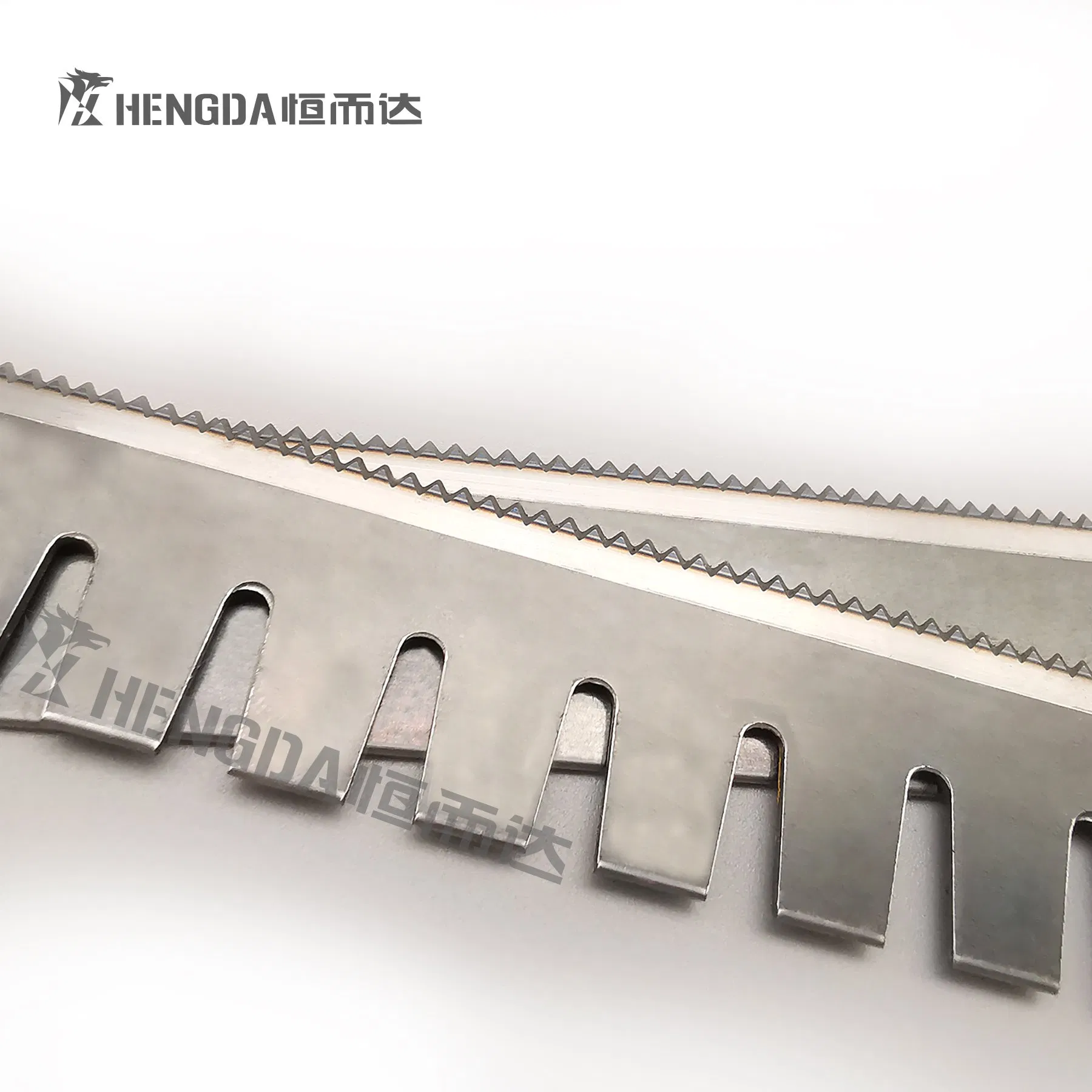

* Perforating Rule Usage:
- Perforating Rule is developed for Die Cutting for printing, packing industries, etc, and it can be formed into different shapes according to user's pattern designs. Effectively eliminate burrs, faster and cleaner cutting.
- Applicable to cut: tear-off labels, paper, corrugated board, solid board, continuous stationery, woven bag thread, etc..

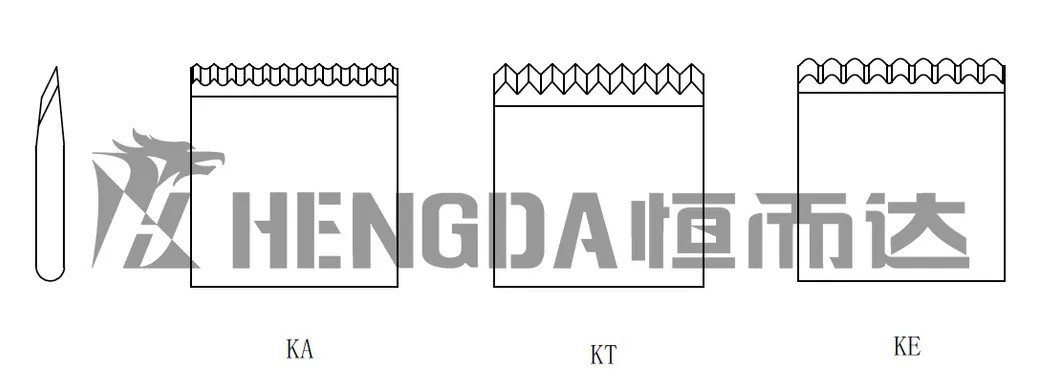

* Series: KT, KA, KE,
* SELF-OWNED BRAND: LING YING
KK series introduction:
*** Other dimension and profile available as per customers requests
COMPANY HIGHLIGHTS:

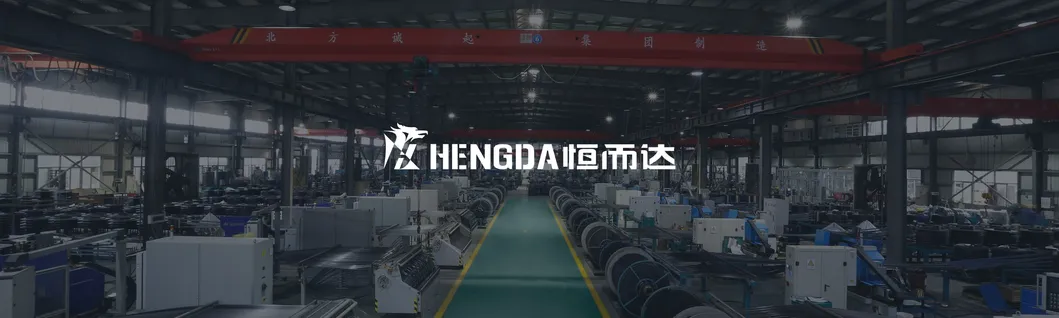

1. Hengda was established in 1995, headquartered in Fujian Province, China with two plants at present. The total occupied area is close to 1,779,504.74 sq.ft and the building area is close to 430,556 sq.ft.
2. More than 550 employees, specializing in the cutting fields of new materials.
3. The company was honored as National Hi-Tech Enterprise.
4. Hengda's main products: rule die steel, bi-metal band saw blade, steel rule, rotary cutting rules, utility knife
5. The production capacity for rule die steel is 60million meters/year, bi-metal band saw blade 10million meters/year, steel rules (flatbed) 30million meters/year, rotary cutting rules 2million meters/year at present.
6. It has the most advanced latest production facility, imported superior raw materials, imported equipment, and production lines.
7. Strong professional R & D team, leading by more than 30 senior engineers.
8. Self-innovated and self-designed products, self-owned brands.
9. 100% strict Q & A control and 100% inspection pre-delivery.
10. ISO:9001 certified company, patents owned company.
11. ON-TIME delivery.
12. Ingenious craftsmanship, sincere services.
* Product Highlight:
- Uses superior quality materials.
- The edge sharpness of shaved and ground bevels got enhanced by high-frequency quenching.
- The proper combination of edge and body hardness ensures high performance and longer lifetime of products.
- Hengda can increase body hardness while maintaining high toughness of the product according to customer' s requirements.
- SELF-OWNED BRAND: LING YING
- Perforating Rule is developed for Die Cutting for printing, packing industries, etc, and it can be formed into different shapes according to user's pattern designs. Effectively eliminate burrs, faster and cleaner cutting.
- Applicable to cut: tear-off labels, paper, corrugated board, solid board, continuous stationery, woven bag thread, etc..
* Series: KT, KA, KE,
* SELF-OWNED BRAND: LING YING
KK series introduction:
| Thickness | 0.71mm(2pt) | 1.05mm(3pt) | 1.42mm(4pt) | Corrugated boards where vertical/straight cuts needed | |||||||||
| Height | 22.0mm-50.0mm | ||||||||||||
| Tooth number | 8/10/12t/inch | ||||||||||||
| Body hardness | HRC36-38 | ||||||||||||
| Edge hardness | HV650-700(HRC58-60) | ||||||||||||

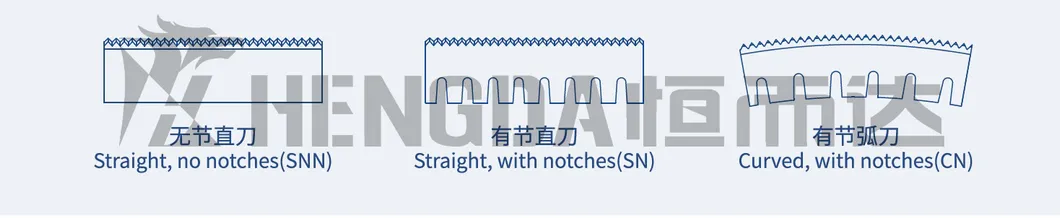

| Back execution | SNN / SN / CN | ||||||||||||
| Packaging | length 30m, diameter 180-800mm or on request | ||||||||||||
| Product Tolerance | ||
Height <35mm | ±0.02mm | |
Height ≥35mm | ±0.03mm | |
Straightness | ±0.5mm/1m rule length L | |
| Flatness | ≤1.0‰ rule height H | |
Cross camber | pieces:±5mm/1m rule length L coils:±10mm/1m rule length L | |
Twist | ±0.5mm/1m rule length L | |
| Thickness Tolerance | ||
Thickness | Tolerance | |
| mm | pt | |
| 0.45 | 1.3 | ±0.015 |
| 0.53 | 1.5 | ±0.015 |
| 0.71 | 2 | ±0.015 |
| 1.05 | 3 | ±0.020 |
| 1.42 | 4 | ±0.028 |
*** Other dimension and profile available as per customers requests
COMPANY HIGHLIGHTS:
1. Hengda was established in 1995, headquartered in Fujian Province, China with two plants at present. The total occupied area is close to 1,779,504.74 sq.ft and the building area is close to 430,556 sq.ft.
2. More than 550 employees, specializing in the cutting fields of new materials.
3. The company was honored as National Hi-Tech Enterprise.
4. Hengda's main products: rule die steel, bi-metal band saw blade, steel rule, rotary cutting rules, utility knife
5. The production capacity for rule die steel is 60million meters/year, bi-metal band saw blade 10million meters/year, steel rules (flatbed) 30million meters/year, rotary cutting rules 2million meters/year at present.
6. It has the most advanced latest production facility, imported superior raw materials, imported equipment, and production lines.
7. Strong professional R & D team, leading by more than 30 senior engineers.
8. Self-innovated and self-designed products, self-owned brands.
9. 100% strict Q & A control and 100% inspection pre-delivery.
10. ISO:9001 certified company, patents owned company.
11. ON-TIME delivery.
12. Ingenious craftsmanship, sincere services.
* Product Highlight:
- Uses superior quality materials.
- The edge sharpness of shaved and ground bevels got enhanced by high-frequency quenching.
- The proper combination of edge and body hardness ensures high performance and longer lifetime of products.
- Hengda can increase body hardness while maintaining high toughness of the product according to customer' s requirements.
- SELF-OWNED BRAND: LING YING
