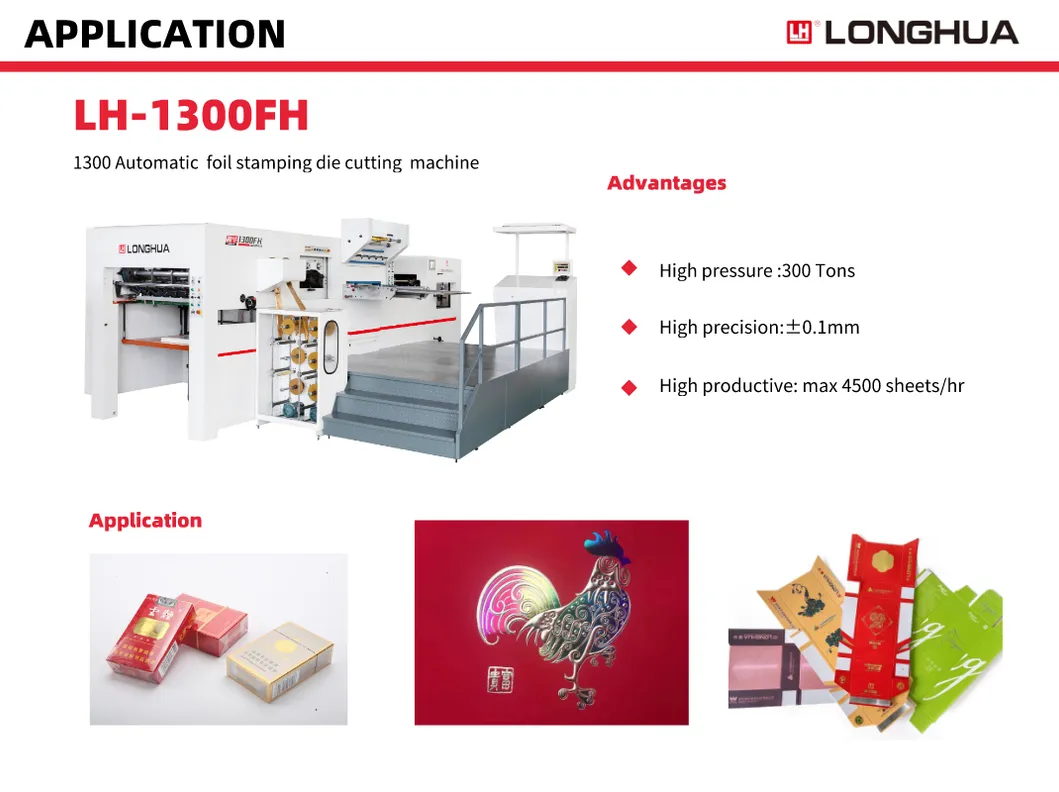

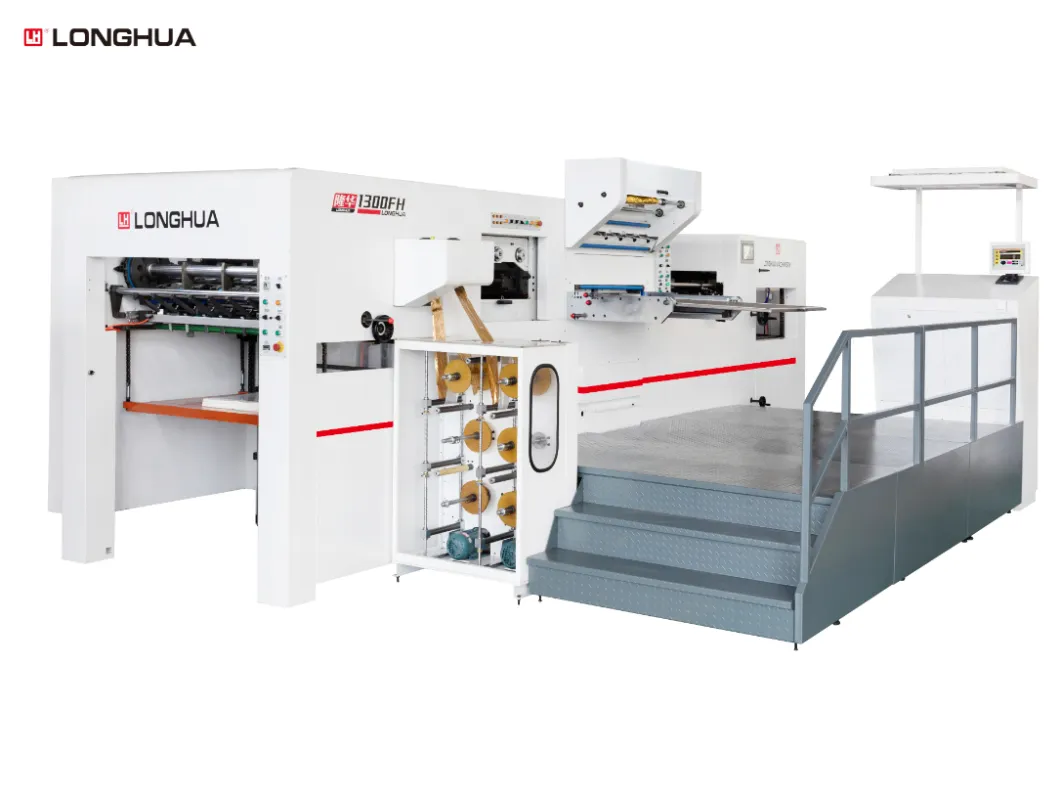

1300 Size Plastic Card Paperboard Cardboard Carton Automatic Foil Stamping Hot Die Cutting Cutter Press Creasing Machine
Detail Product Description___________________________________1.Automatic Hot Foil Stamping Die Cutting Machine is designed both for die cutting and foil stamping.It suits for 128-2000g/m2 paperboard/cardboard, and below 8mm corrugated paper/ carton,/pasting paper/laminating paper and so on.2.The mac......
Send Inquiry
Product Description
Detail Product Description
___________________________________

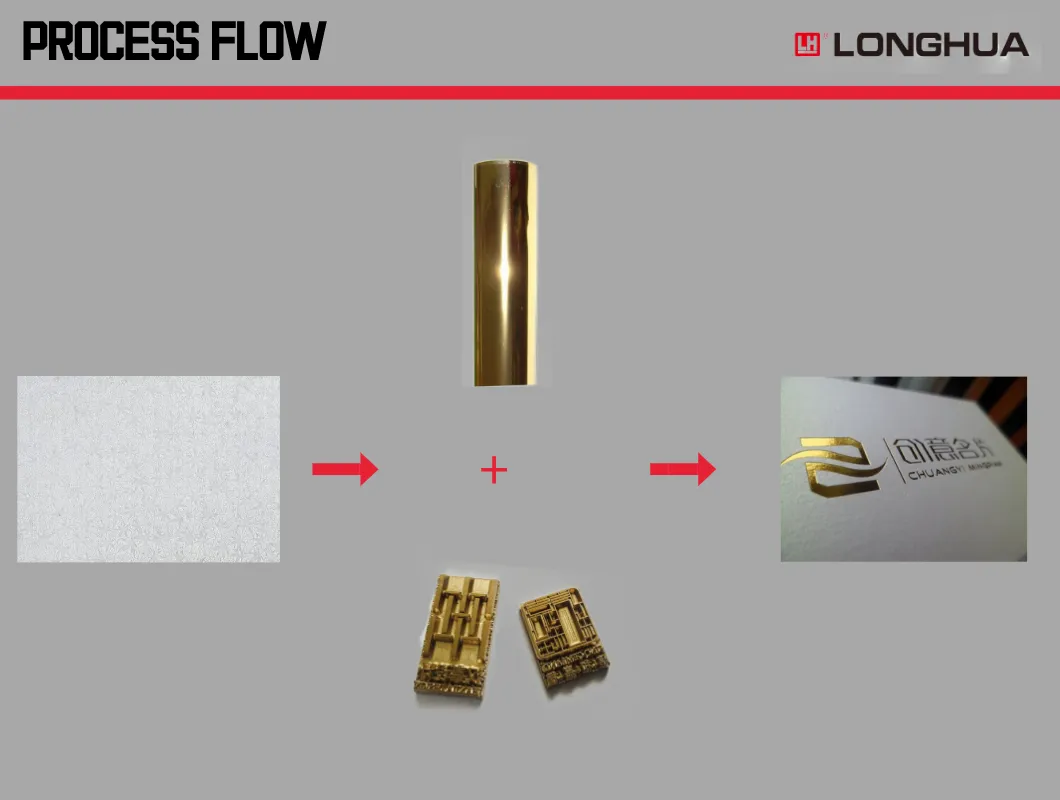

1.Automatic Hot Foil Stamping Die Cutting Machine is designed both for die cutting and foil stamping.It suits for 128-2000g/m2 paperboard/cardboard, and below 8mm corrugated paper/ carton,/pasting paper/laminating paper and so on.

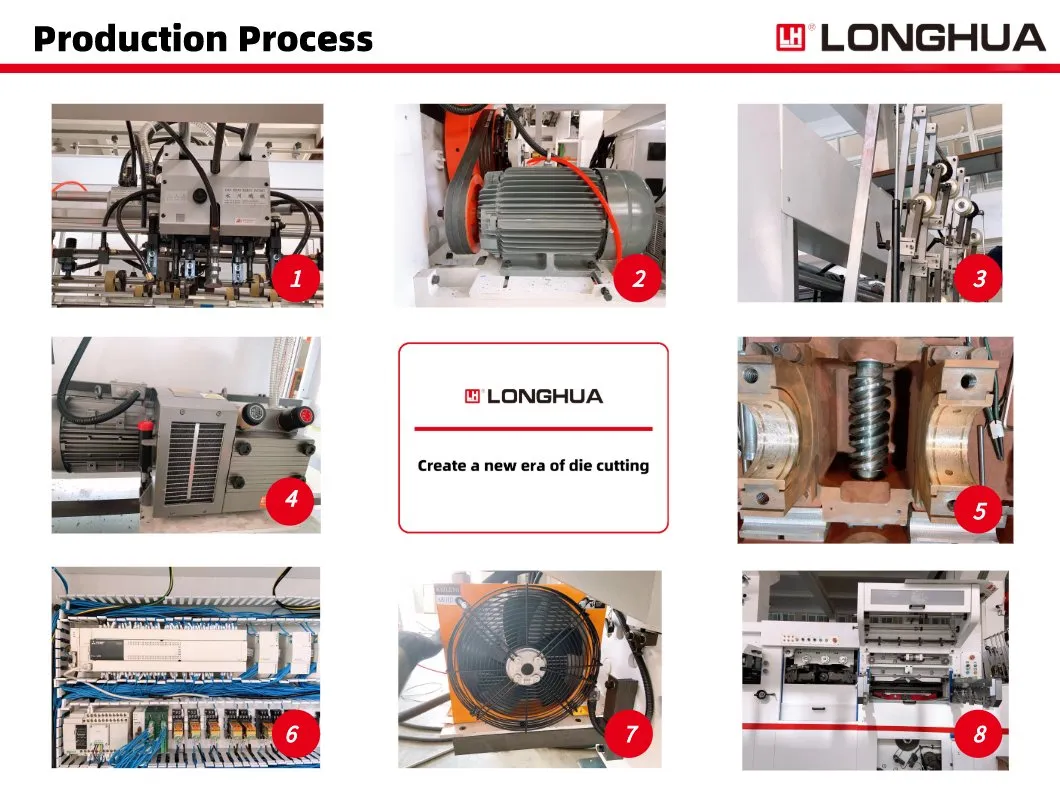

2.The machine includes 4 parts:feeder,paper feed section,main motor and delivery section.finishes feeding,hot foil stamping,die cutting and collecting work cycle automatically. 90% of the machine accessories are imported, chosed from the manufacturers which have great name.
3.The electrical part is provided by main motor,and the 7 servo motors ensure the foil stamping accuration . 12 independent heating zones provide 0-200°temperature, witch the pattern keeps high-quality,no bubble, no coking,no drape, meanwhile, maintain the precision of the stamping work be ±0.1mm, always within the top standard.
4.The machine is equipped with automatic lubrication system.And the swing rod and copper tile are all scraped by hands, make them full of criss-cross scrath and crab more oil. Let the machine last longer and run more stable.
Machine Parameters
__________________________________
max paper size 1300*960mm |
min paper size 550*500mm |
max cutting size 1280*930mm |
max foil stamping size 1280*930mm |
inner chase size 1080×745 mm |
steel plate size 1080×736 mm |
feed material cardboard:128~2000 g/m² carton:≤8mm |
max pressure 300N/cm² |
min grab width 8 mm |
max machine speed 5000sheets/hr |
machine weight 22T |
machine dimension (L×W×H) 10200*5000*2700mm |
max pile height 1400mm |
max collect height 1200mm |
foil stamping axis V3+H2 |
foil stamping system & other parament |
temperature range 0ºC~200ºC |
heating zones 24 |
main motor power 24kw |
total power 85 kw |
voltage 380V 50Hz |
air supply 0.8Mpa≥0.6m³/min |
Company Information
_________________________________
Pakaging and Shipping
_________________________________
Why choice us
______________________________________
1.About the company
Wenzhou Longhua Machinery Co.,Ltd has an excellent reputation domestic and oversea, has exported to Europe,Africa ,America and Southeast Asia ,and so on. Our high level quality and intimate service make customers sastify and trust.
The staffes of Longhua are creative,innovate,goodness,laborious,and capable,all of these excellent personalities make Longhua develop and expend market rapidly.
2.About the machine

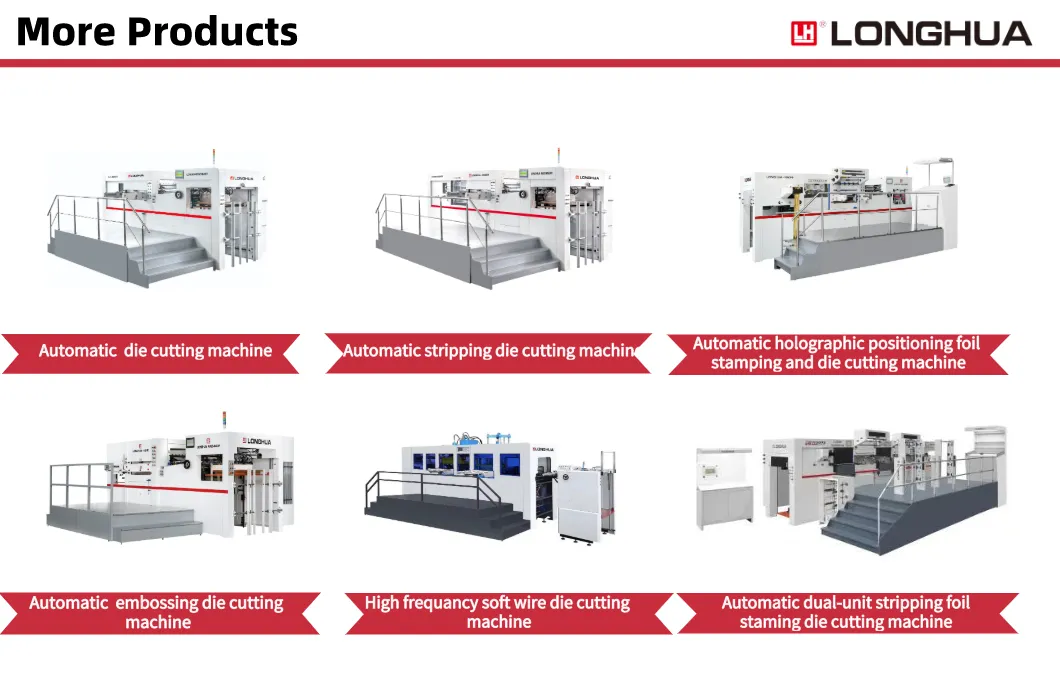

Die cutting machine,foil stamping machine and embossing machine ,our three types machine are all in the industry top level .
we have product these machines for tens of thousands times,so that we have a skillful technology ,and 100% ensure the quality of machines.
3.About the sevice
We provide one year after-sales sevice, including engineer oversea install,debug and the training. and video/online/daily maintain. Whenever customers need us, we're always there first.
FAQ
_______________________________________
Q1: Do you have stock products to sell?
We manufacture machines in batch. So most of machines have in stock, please check with us before ordering.
Q2: How about installation and training?
Installation and training: If purchaser's engineer travels at own cost to China, free training session. If engineer sent to purchaser's factory, all travel cost paid by purchaser.
Q3: How about warranty?
Warranty period: 12 months from the shipping date of machine. Warranty will be not valid if machine subject to misuse or accidental damage or operator's error. During the valid time, we will supply spare parts. If you have any other questions, please contact us and we will reply you through product's photos and videos to make every detail clear.
Q4:What is your payment?
T/T.30% deposit, 70% balance before delivery.
L/C. 100% at sight.
T/T and L/C, 30% TT deposit, 70% L/C.
