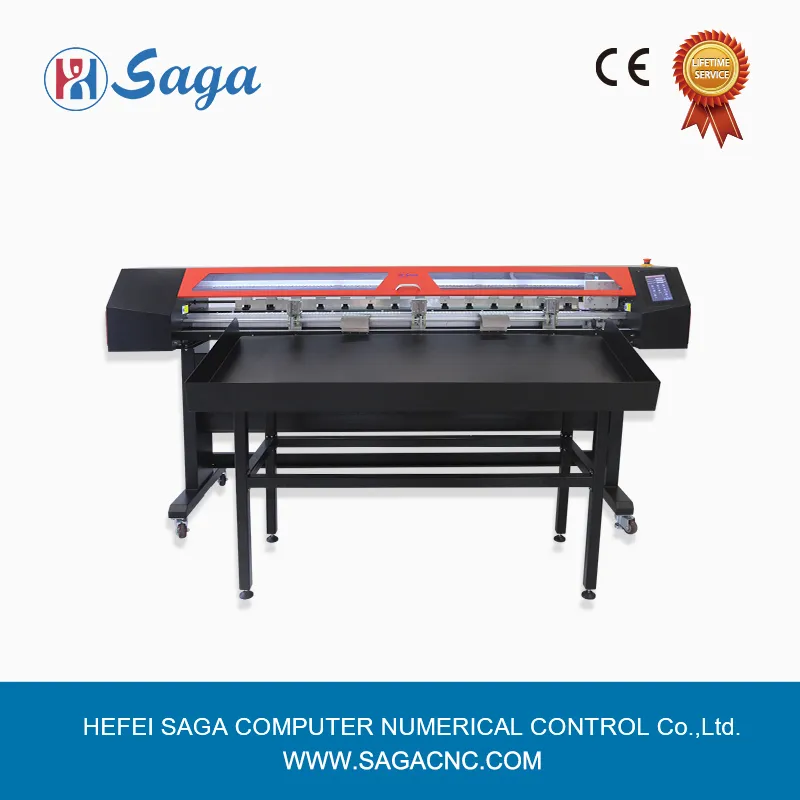

Saga Tmc1700 1.5m/S Speed Xy Automatic Roll to Sheet Slitting Machine
Saga XY Trimmer is a transverse cutting machine developed and produced by our company according to the practical needs of advertising companies, sinage and Ads, Graphic and Digital companies. It can automatic positioning registration marks,quickly cut the roll to any required size. Compatible with p......
Send Inquiry
Product Description
Servo motor;
Patent Structure with Cutting by double round blades;
Automatic recognition and correction of CCD cameras;
Cutting with fixed length and quantity ;
Can cut any soft materials within 0.6mm thickness;
Can cut flexible materials more than 100,000 times
| Model Name | TMC1700 |
Maximum cutting width | 1600mm |
Positioning sensor type | CCD |
Cutting media type | PP Paper, banner, cloth,etc. |
Cutting speed | 1500mm/s |
Control panel | LED panel |
Motor type | Servo motor |
Maximum material thickness | 0.6mm |

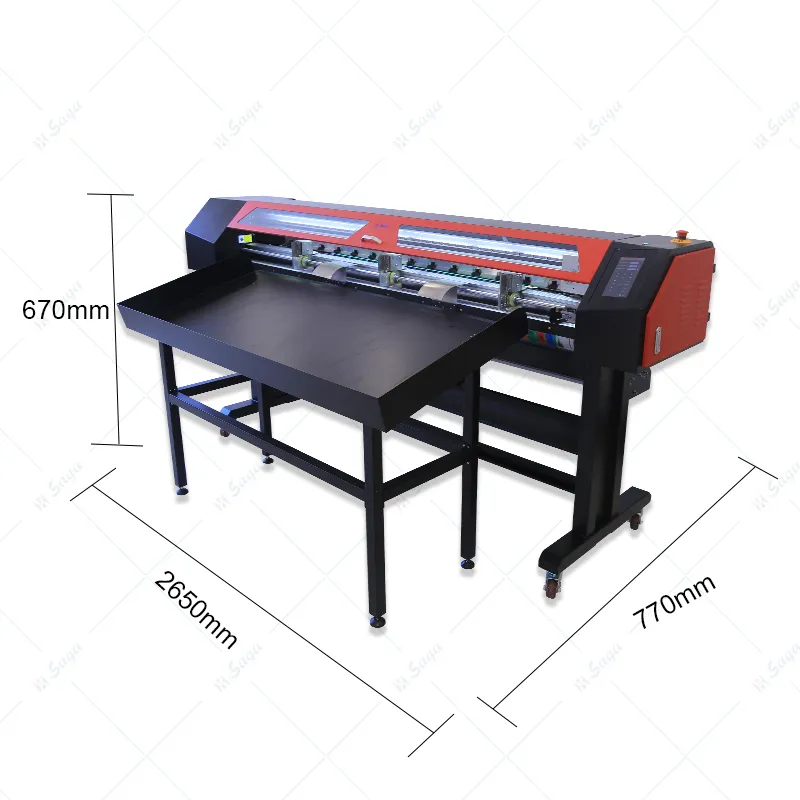

Package dimensions | 2650mmX770mmX670mm |
Gross/Net weight | 177kg/227kg±5kg |
Power | 600W |
Operation environment | Temperature +5°C to +35 °C (41ºF-95ºF), Humility 30% -75% (Non-condensing) |
