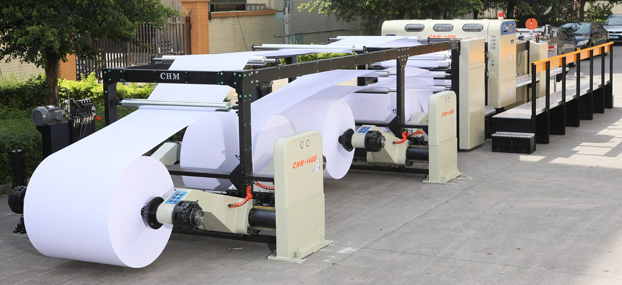

Rotary Paper Sheeting Machine (CHM- 1400 )
Paper sheetersModel CHM-14001. Type of cutting: Top blade rotary, bottom blade fixed2. Weight of paper: 60-550 GSM3. Reel diameter: Max 1800mm(71")4. Finished width: Max 1400mm(55")5. Finished sheet-Length: Min. 450-Max. 1450 mm6. Num. Of rolls cutting: 2 rolls7. Cutting accuracy: &plu......
Send Inquiry
Product Description
Paper sheeters
Model CHM-1400
1. Type of cutting: Top blade rotary, bottom blade fixed
2. Weight of paper: 60-550 GSM
3. Reel diameter: Max 1800mm(71")
4. Finished width: Max 1400mm(55")
5. Finished sheet-Length: Min. 450-Max. 1450 mm
6. Num. Of rolls cutting: 2 rolls
7. Cutting accuracy: ± 0.5mm(L<1000mm) ± 0.1% (L≥ 1000mm)
8. Max. Speed of cutting: 300cuts/min
9. Max. Cutting speed: 300m/min
10. Requirement of the air pressure: 0.8MPa
11. Voltage: AC380V/220Vx50Hz
12. Total power: : 29KW
13. Accuracy of the roller paper sheet: ± 0.5mm(L<1000mm);
± 0.1%(L≥ 1000mm);
± 0.1%(accelerate or decelerate).
This depend on machine stable and operation when cutting. (cutting one paper roll, the cutting length is right )
14. Output: The real output depend on the material, and the weight of the paper, and right operate process
Model CHM-1400
1. Type of cutting: Top blade rotary, bottom blade fixed
2. Weight of paper: 60-550 GSM
3. Reel diameter: Max 1800mm(71")
4. Finished width: Max 1400mm(55")
5. Finished sheet-Length: Min. 450-Max. 1450 mm
6. Num. Of rolls cutting: 2 rolls
7. Cutting accuracy: ± 0.5mm(L<1000mm) ± 0.1% (L≥ 1000mm)
8. Max. Speed of cutting: 300cuts/min
9. Max. Cutting speed: 300m/min
10. Requirement of the air pressure: 0.8MPa
11. Voltage: AC380V/220Vx50Hz
12. Total power: : 29KW
13. Accuracy of the roller paper sheet: ± 0.5mm(L<1000mm);
± 0.1%(L≥ 1000mm);
± 0.1%(accelerate or decelerate).
This depend on machine stable and operation when cutting. (cutting one paper roll, the cutting length is right )
14. Output: The real output depend on the material, and the weight of the paper, and right operate process
