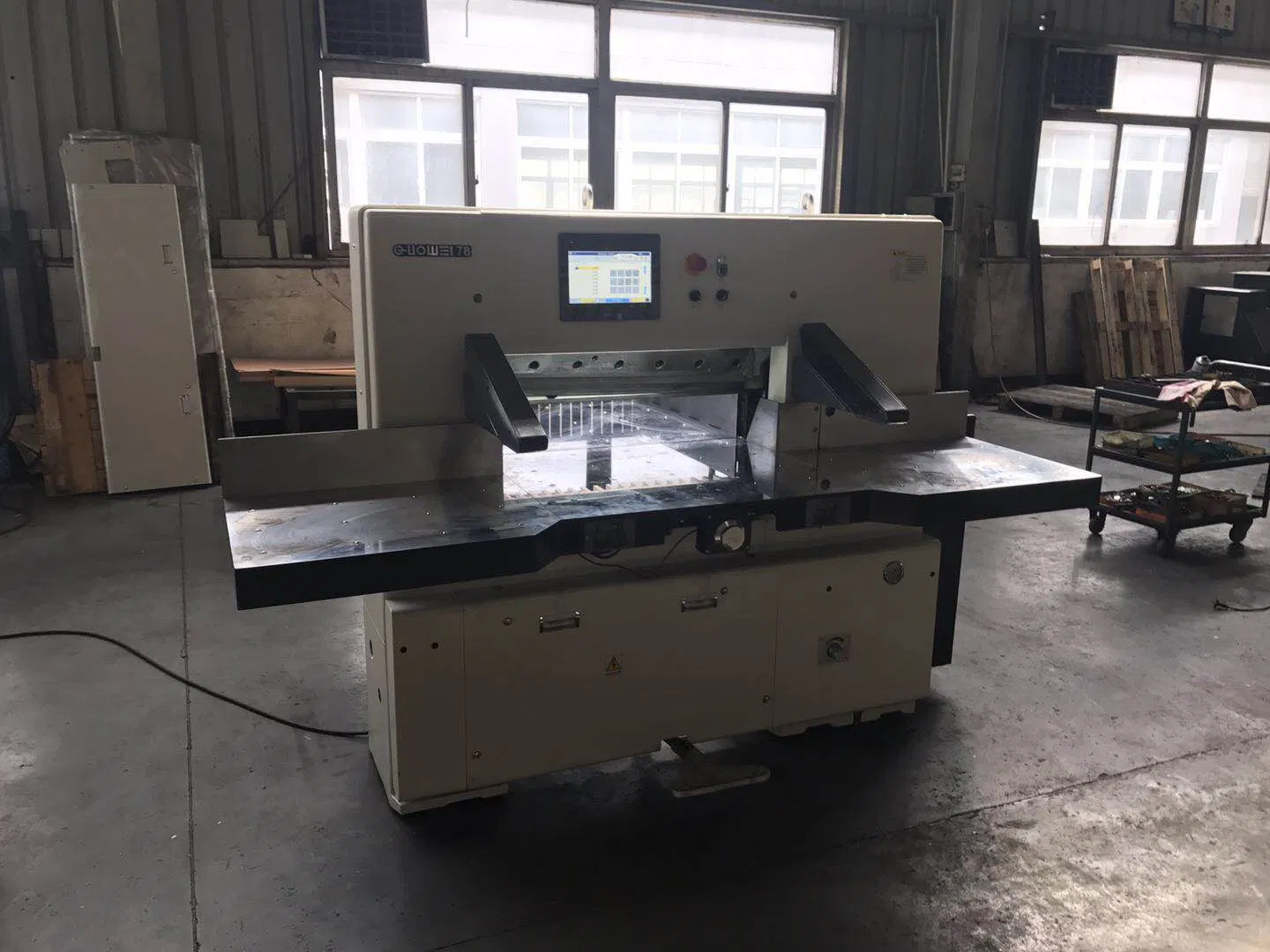

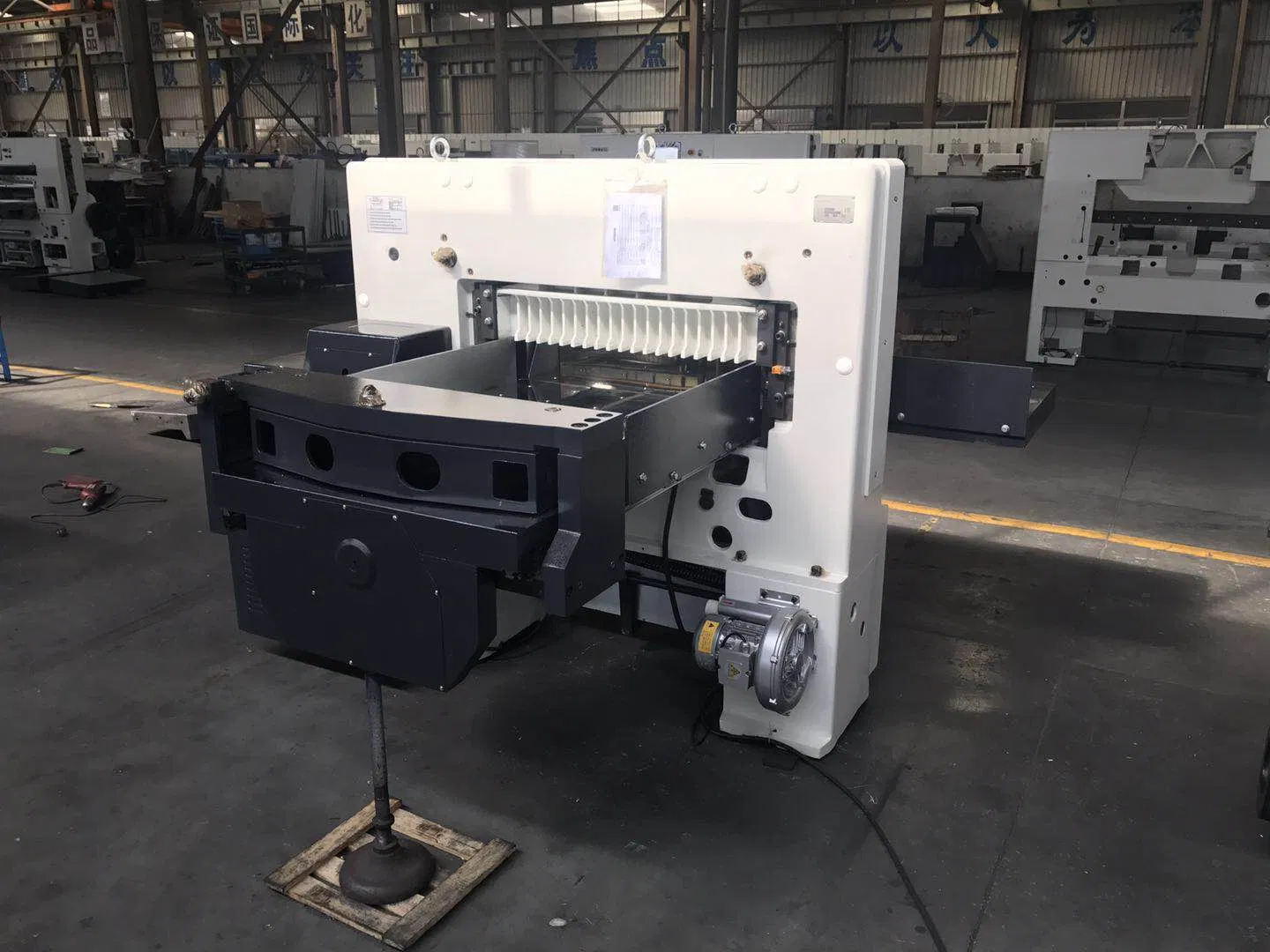

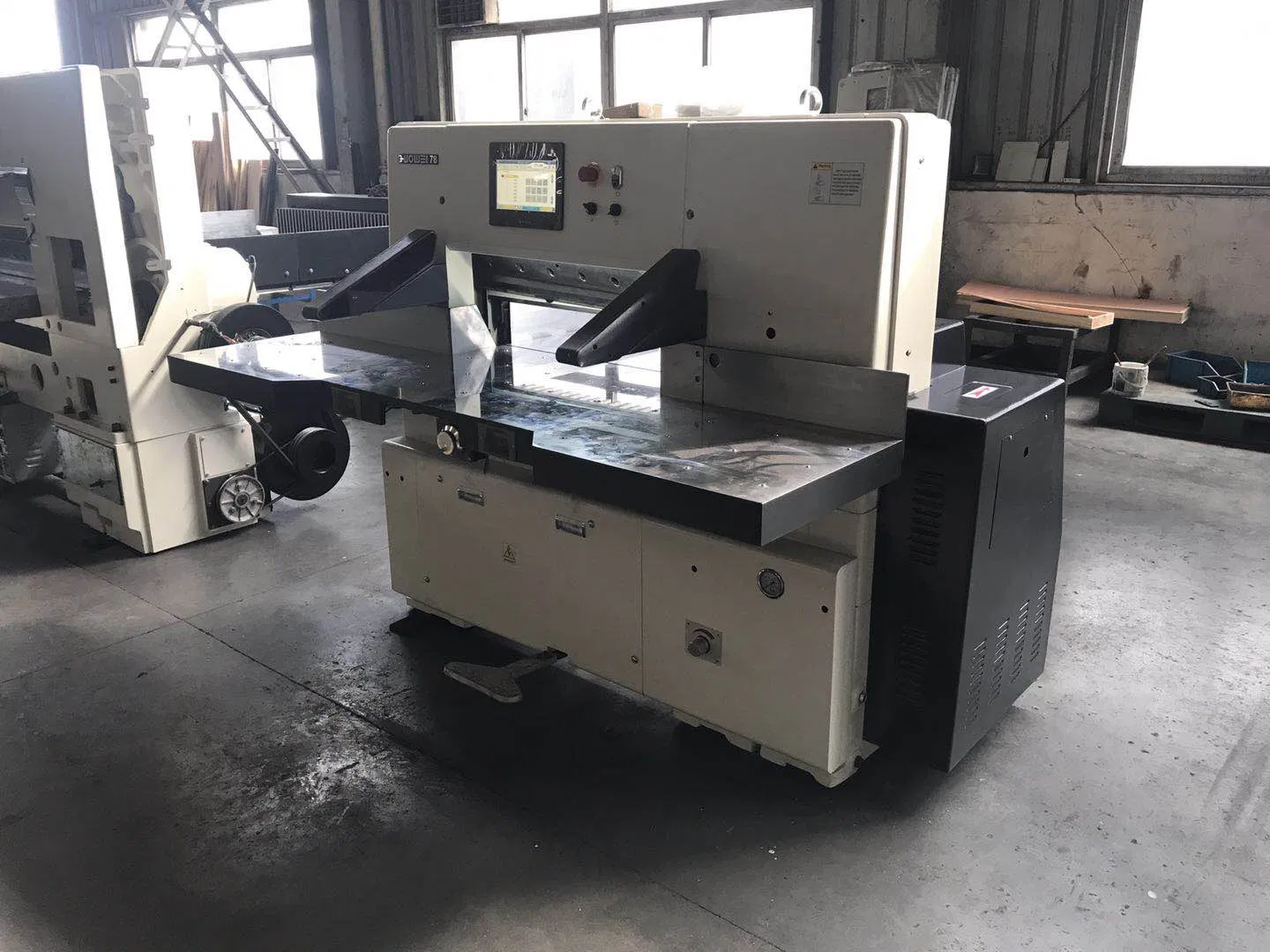

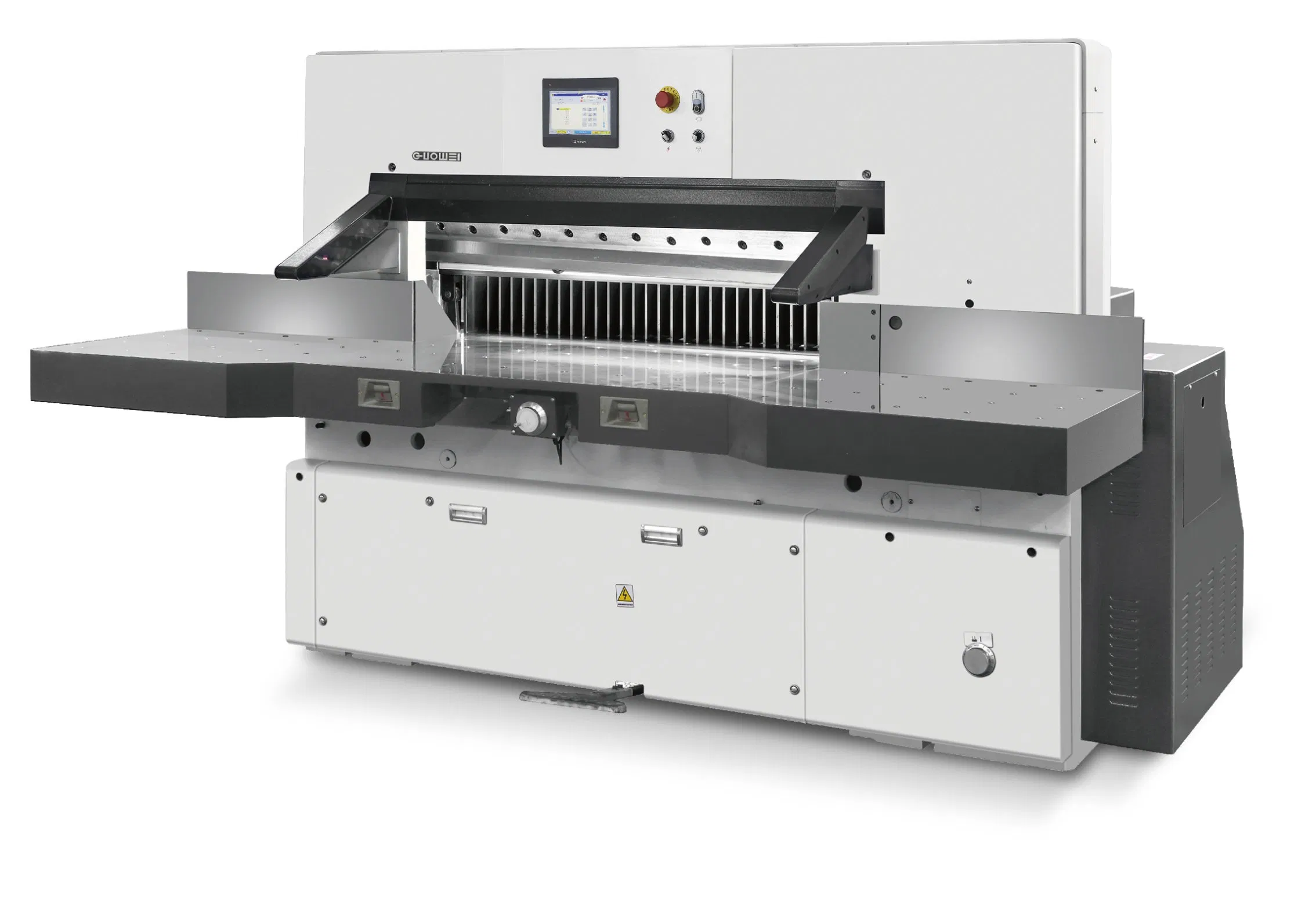

Program Control High Speed Hydraulic Heavy Duty Paper Cutter (78K)
Program Control Paper Cutter (78K)Function1 7 inches touching screen;2 Resolution rate: 0.01mm;3 100 program units;4 Over 10000different cutting position;5 Display the operating pattern;6 It can memorize,store and dynamic follow-up;7 Max paper-pushing speed: 5-15m/min;8 Self-diagnostic function of t......
Send Inquiry
Product Description
Program Control Paper Cutter (78K)
Function
1 7 inches touching screen;
2 Resolution rate: 0.01mm;
3 100 program units;
4 Over 10000different cutting position;
5 Display the operating pattern;
6 It can memorize,store and dynamic follow-up;
7 Max paper-pushing speed: 5-15m/min;
8 Self-diagnostic function of troubles.
===========================================================================
Configuration
1 Adopting Japanese hydraulic components;
2 Electric components from France,Japan and Korea;
3 Taiwan ball lead screw and linear double guide-rail;
4 PLC control system for electric configuration;
5 Its key parts adopt imported bearing of low maintenance;
6 IR ray protective device is more convenient for cutting with optical knife-line alignment;
7 Button operated by two hands;
8 Single circulation cutting device etc.
Comparation
Function
1 7 inches touching screen;
2 Resolution rate: 0.01mm;
3 100 program units;
4 Over 10000different cutting position;
5 Display the operating pattern;
6 It can memorize,store and dynamic follow-up;
7 Max paper-pushing speed: 5-15m/min;
8 Self-diagnostic function of troubles.
===========================================================================
Configuration
1 Adopting Japanese hydraulic components;
2 Electric components from France,Japan and Korea;
3 Taiwan ball lead screw and linear double guide-rail;
4 PLC control system for electric configuration;
5 Its key parts adopt imported bearing of low maintenance;
6 IR ray protective device is more convenient for cutting with optical knife-line alignment;
7 Button operated by two hands;
8 Single circulation cutting device etc.
| Model | Unit | 78 | 92 | 115 | 130 |
| Max.Cutting Width | cm | 78 | 92 | 115 | 130 |
| inch | 30.7 | 36.2 | 45.3 | 51.2 | |
Max.Cutting Height (without false clamp) | cm | 13 | 13 | 16.5 | 13 |
| inch | 5.1 | 5.1 | 6.5 | 5.1 | |
Min.Cutting Size (without false clamp) | cm | 2.5 | 2.5 | 3 | 3 |
| inch | 1 | 1 | 1.2 | 1.2 | |
| Front Table length | cm | 64 | 65 | 73 | 73 |
| inch | 25.2 | 25.6 | 28.7 | 28.7 | |
| Max.Cutting Speed | times/min | 45 | 45 | 45 | 45 |
| Max.Clamp Pressure | N | 30000 | 35000 | 40000 | 40000 |
| Power of Main Motor | Kw | 3 | 3 | 4 | 4 |
| Paper Feeding Motor | Kw | 0.75 | 0.75 | 0.75 | 0.75 |
| Air Pump | Kw | 0.55 | 0.55 | 0.75 | 0.75 |
| Net Weight | Kg | 2500 | 2700 | 4000 | 3900 |
| Packing Size(L×W×H) | cm | 210×140×195 | 225×140×195 | 255×160×215 | 260×153×195 |
Comparation

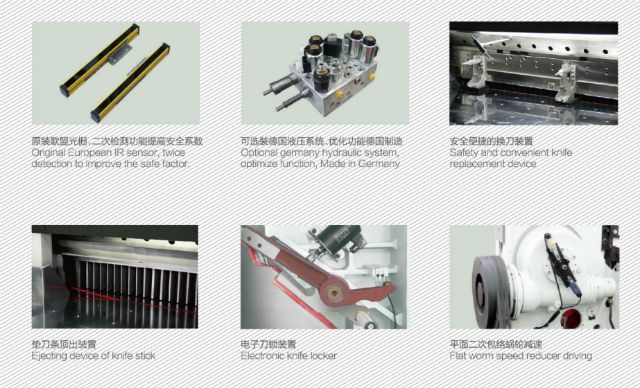

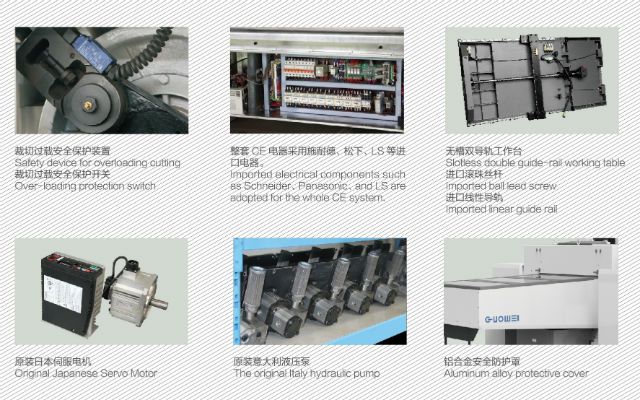

| Model | F | E | K | S | SG |
| Imported ball lead screw | YES | YES | YES | YES | YES |
| Imported double guide-rail slotless working table | YES | YES | YES | YES | YES |
| Chrome-plated main and assistance working table with air ball | YES | YES | YES | YES | YES |
| IR photoelectric protection and hands operating protection | YES | YES | YES | YES | YES |
| Ejecting device for cutting stick | YES | YES | YES | YES | YES |
| Inside electronic knife locker | YES | YES | CAN | CAN | NO |
| Safe and convenient knife replacement system | YES | YES | YES | YES | YES |
| Overloading protection device for cutting | YES | YES | YES | YES | NO |
| Flat worm speed reducer transmission | YES | YES | YES | YES | NO |
| Optical knife alignment | YES | YES | YES | YES | YES |
| PLC conrtol system | YES | YES | YES | NO | NO |
| Imported hydraulic system | YES | YES | YES | YES | NO |
| Imported electric components | YES | YES | YES | YES | YES |
| Enlarged side working table | CAN | CAN | CAN | CAN | NO |
| Soft pressure | YES | YES | CAN | CAN | NO |
| Optimize function | YES | CAN | NO | NO | NO |
| YES: Standard configuration | |||||
| CAN: Optional configuration | |||||
| NO: Without this configuration | |||||
