Product Description

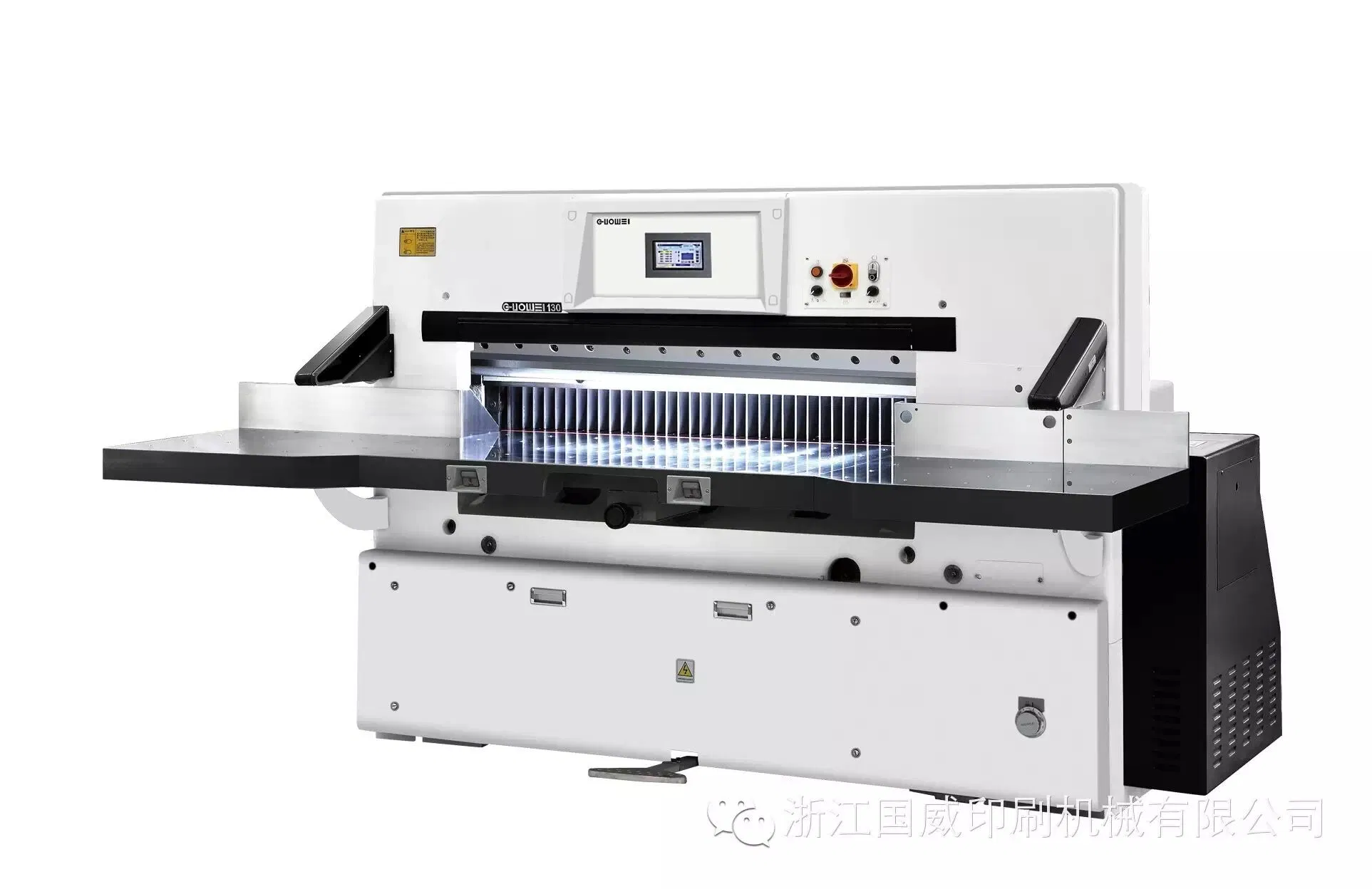

Program Control Guillotine (137S)

Function
1. 7-inch full touch LCD;
2. The resolution rate is 0.05mm;
3. 60 program units;
4. Over 6000 different cutting positions;
5. The max paper-pushing speed is 5-10m/min.
Configuration
1. It has self-diagnostic function of troubles and displays the
operating pattern with dynamic follow-up.

2. It Adopts imported hydraulic components, electric components from
France, Japan and Korea, Taiwan ball lead screw, and imported bearing
of low maintenance.

3. It has linear double guiderail and slotless working table to ensure the accuracy
for cutting and it has IR ray protective device.
4. Optical knife-line alignment, button operated by two hands and single
circulation cutting device make it convenient for cutting.
5. Flat worm speed reducer transmission for cutting.

Model	Unit	137	155	166	186	220
Max.Cutting Width	cm	137	155	166	186	220
Max.Cutting Width	inch	54	61	65.4	73.2	86.6
Max.Cutting Height (without false clamp)	cm	16.5	16.5	16.5	16.5	16.5
Max.Cutting Height (without false clamp)	inch	6.5	6.5	6.5	6.5	6.5
Min.Cutting Size (without false clamp)	cm	3	3	3	3	3
Min.Cutting Size (without false clamp)	inch	1.2	1.2	1.2	1.2	1.2
Front Table length	cm	74	75	75	75	75
Front Table length	inch	29.1	29.5	29.5	29.5	29.5
Max.Cutting Speed	times/min	45	42	42	40	33
Max.Clamp Pressure	N	45000	55000	60000	65000	70000
Power of Main Motor	Kw	4	5.5	5.5	7.5	7.5
Paper Feeding Motor	Kw	1	1	1	1	1.1
Air Pump	Kw	0.75×2	0.75×2	0.75×2	0.75×2	0.75×2
Net Weight	Kg	4500	5200	5500	6800	10200
Packing Size(L×W×H)	cm	280×160×215	296×165×215	315×160×215	340×182×230	390x190x270
