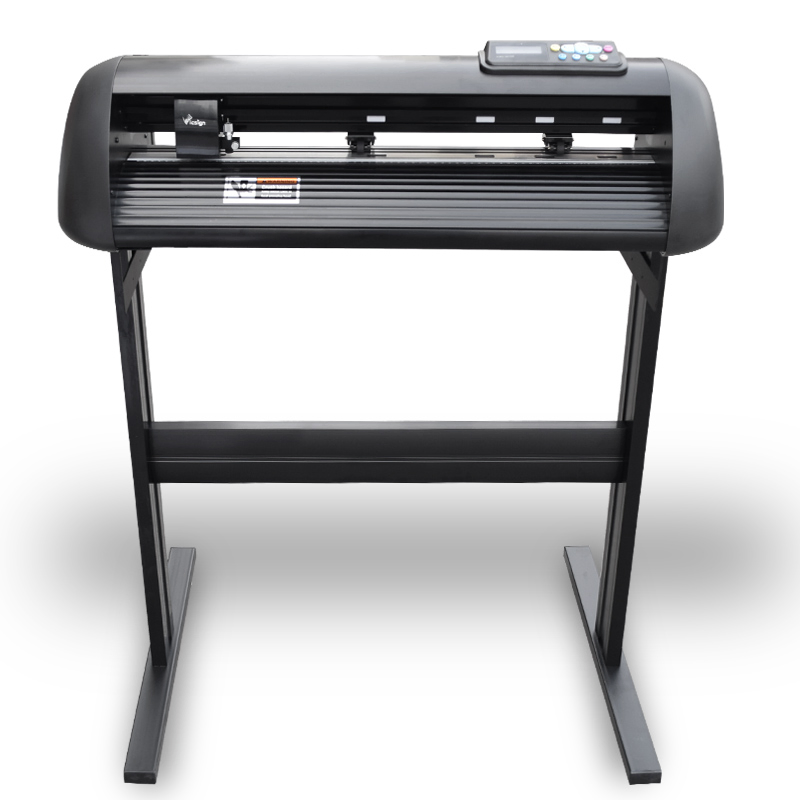

Product Description

1. Work independently without computer. Support SD card, work independently without computer

2.Paper roller and steel claw shaft. Leading high-speed curve smooth cutting operation capabilities, precision

and meticulous steel spike paper to ensure high cutting precision

3.Strong cutting force and low noise.High strong cutting force can cut high strength grade reflective film; soft landing cutting method, strong cutting force with low noise.

4.Advanced controlling system (motherboard).High performance 32-bit processor with ARM Cortex-M3, supports all PC operating systems Windows XP, Vista, Windows7 32-bit and 64-bit processor and MAC OS systems, high-precision micro-step segmentation, digital and intelligent protection driver;

5.Variety of output interface. Serial ports. USB port. SD card

6.High Capacities. 8MB Memory, which won't be random and crash when cutting large documents

7.LCD display and silica gel buttons.Blue LCD bottom screen, aesthetic red, yellow, green and blue silica gel buttons.

TECHNICAL PARAMETERS:

Model	HL630 (24 inches)
Media Way	M Brackets
Main Board	High-performance & intelligent ARM 32 CPU
Control Panel	16*4 character LCD display, 10 silica gel buttons, easy-to-use and durable
Driver	High speed stepping motor, micro-step driver
Positioning Mode	Precision electronic Bounded System, random original point setting
Maximum Paper Feed Width	730mm
Maximum Cutting Width	635mm
Maximum Cutting Speed	650mm/s
Maximum Cutting Length	20000mm
Cutting Force	0-1000g (digital adjustment)
Mechanical Precision	0.05mm
Repeatable Precision	< +-0.1mm
Type of Tool	Steel cutter blade
Type of Plot pen	All types diameter 11. 4mm plotter pen
Plotter Instruction	DM-PL/HP-GL Automatic Identification
Interfaces	USB/ SD Card / Serial port
Power Supply	AC110V /220V±10%, 50Hz/60Hz
Power	< 100W
Software	Compatible with Artcut
Noise at Work	≤75 DB
External Dimension	1100390370mm
Shipping Weight	18kg
