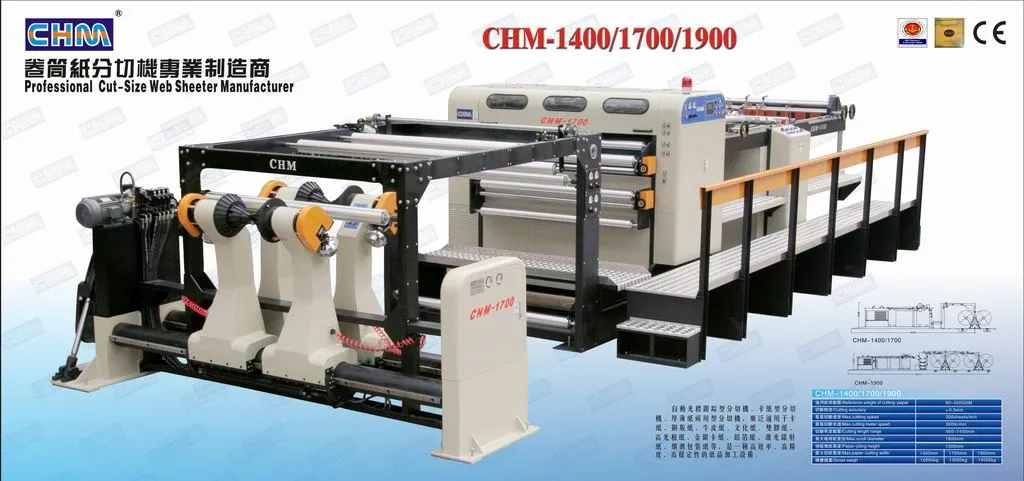

Paper Sheeting Machine (CHM1400/ 1700 /1900)

China paper sheeting machine CHM1700, It adopts advanced technology of British and it is driven by AC servo motors, the high cutting speed reaches 300 cuts /min. And it can cut 6 paper rolls at one time. It is also equipped with automatic deflection rectify and antistatic device. The paper feeding and delivering units are automatic with the hydraulic system. The human and machine interface system could make operation become much easy and more convenient.

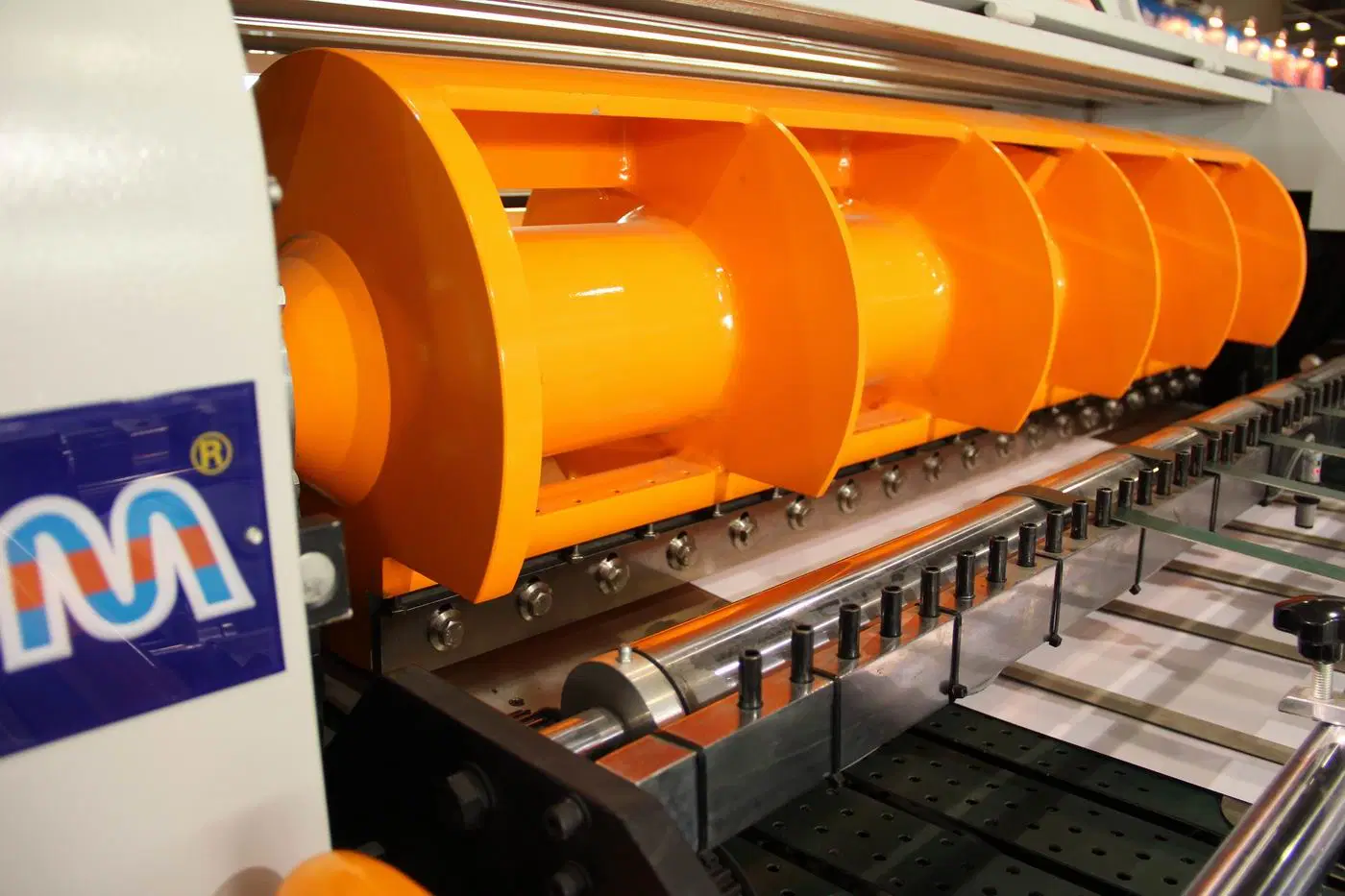

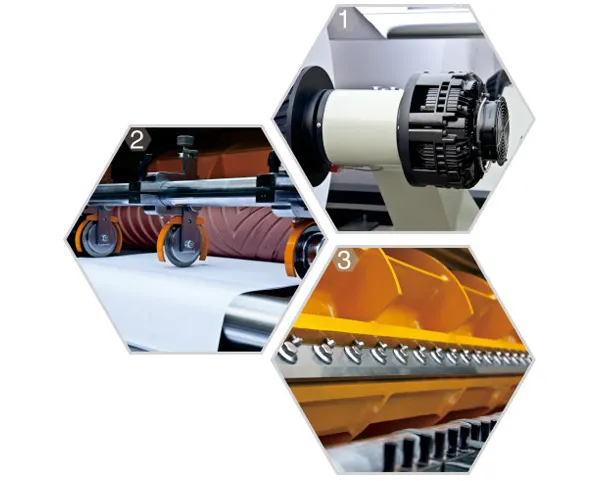

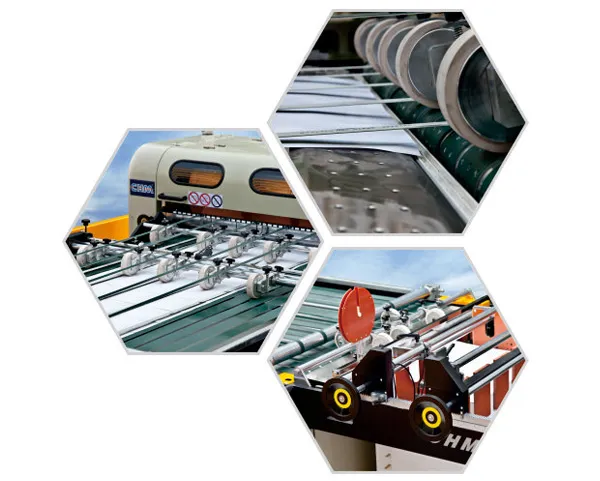

Cutting section:
1. Computer operation interface, easy to operate.
2. High precision special alloy steel knife
3. Cutting accuracy is 0.5mm tolerance


Paper feeding section:

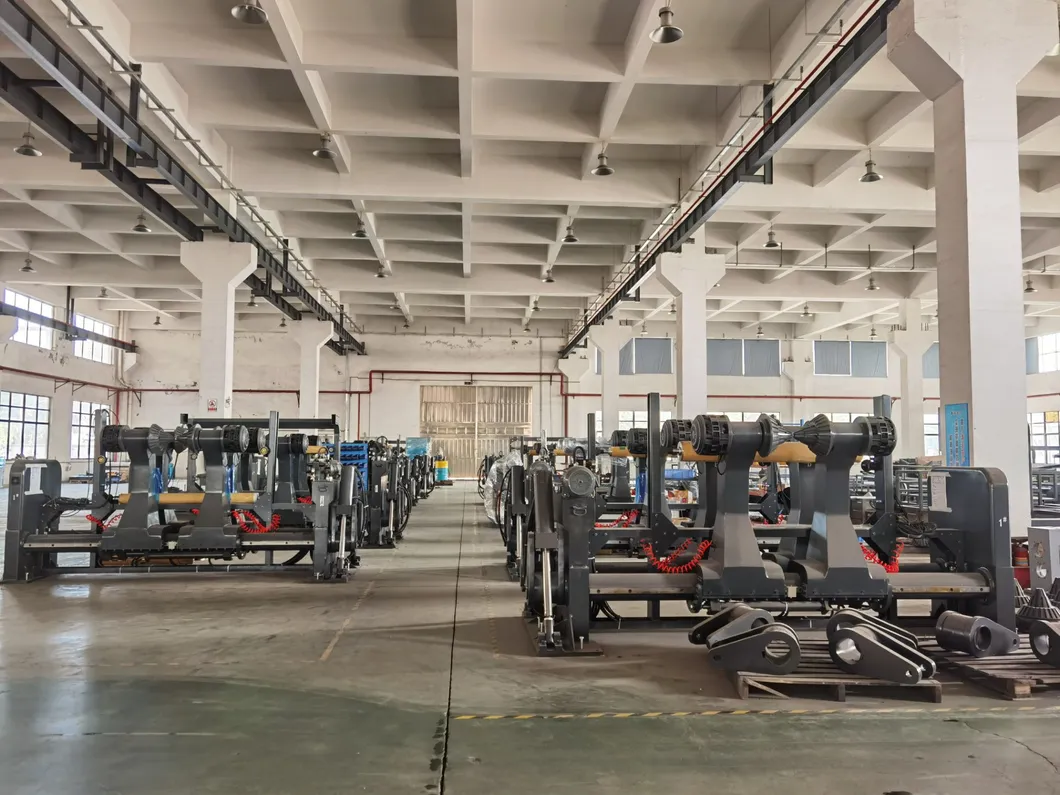

1. Double limbs oil pressure shaftless paper rack
2. Auto tension control system
3. Auto paper edge guiding system

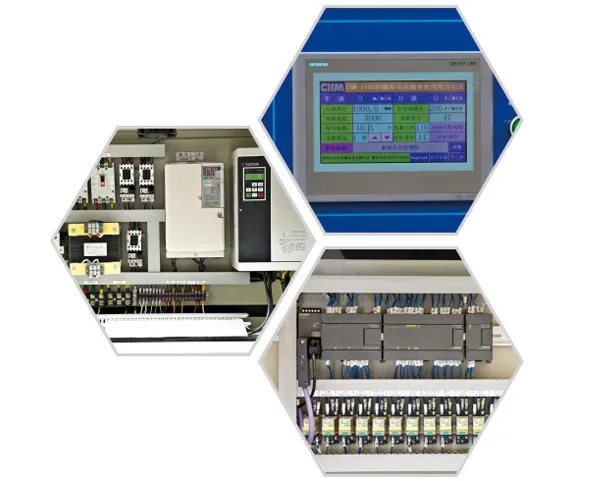

Electric control section:
1. PLC control system
2. AC servo driving motor
3. High precision
4. Long endurance

Techinical parameter:
Model: CHM-1400
1. Type of cutting: Top blade rotary, bottom blade fixed
2. Weight of paper: 60-550 GSM
3...Reel diameter: Max 1800mm(71")
4. Finished width: Max 1400mm(55")
5. Finished sheet-Length: Min. 450-Max. 1450 mm
6. Num. Of rolls cutting: 2 rolls
7. Cutting accuracy:
± 0.5mm(L<1000mm)
± 0.1% (L≥ 1000mm)
8. Max. Speed of cutting: 300cuts/min
9. Max. Cutting speed: 300m/min
10. Requirement of the air pressure: 0.8MPa
11. Voltage: AC380V/220Vx50Hz
12. Total power: : 29KW
13. Accuracy of the roller paper sheet:
± 0.5mm(Length less than 1000mm);
± 0.1%(length more than 1000mm);
± 0.1%(accelerate or decelerate).
This depend on machine stable and operation when cutting. (cutting one paper roll, the cutting length is right )

14. Output: The real output depend on the material, and the weight of the paper, and right operate process
