Paper Roll Sheeter with High Cost-Effective

Product Description

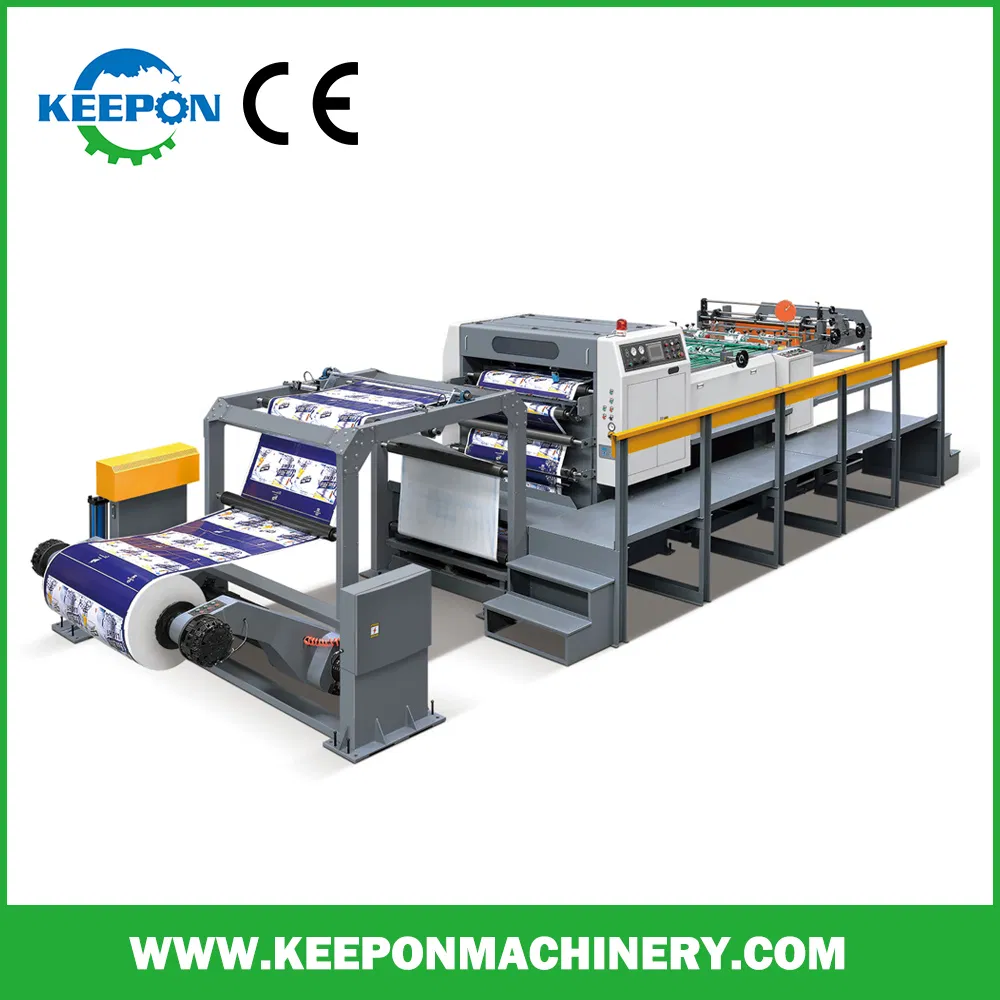

Paper Roll Sheeter

Features:
This series servo control rotary paper sheeter is fit for jumbo roll paper sheet into required size, with advanced technology from Europe, it has features of high speed, flexible unwinding unit, high production capacity and reliable working.

Technical Parameter:

Model	CM-1400 (1100,1700,1900 size for choose)
Cutting type	The up knife cut reciprocally and the down knife is fixed
Applicable range of paper	60-550GSM
Max. paper roll diameter	1800mm
Max. paper-cutting width	1400mm
Range of cutting length	450-1600mm
Cutting sheet number	2 sheet
Cutting precision	Cutting length 1000mm: ±0.5mm Cutting length>1000mm: ±0.1%
Max. cutting speed	300 cut/min
Max. cutting meter speed	300 m/min
Max. paper stacking height	1500mm
Air pressure source requirement	0.8Mpa
Design power	380V/220V*50HZ
Gross weight	11000kgs

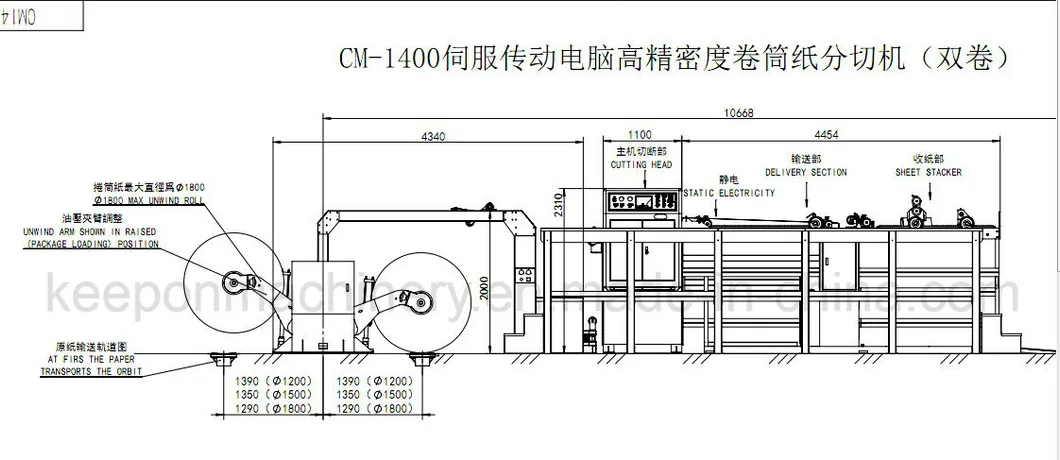

Technical Drawing:
Paper Roll Sheeter with High Cost-Effective

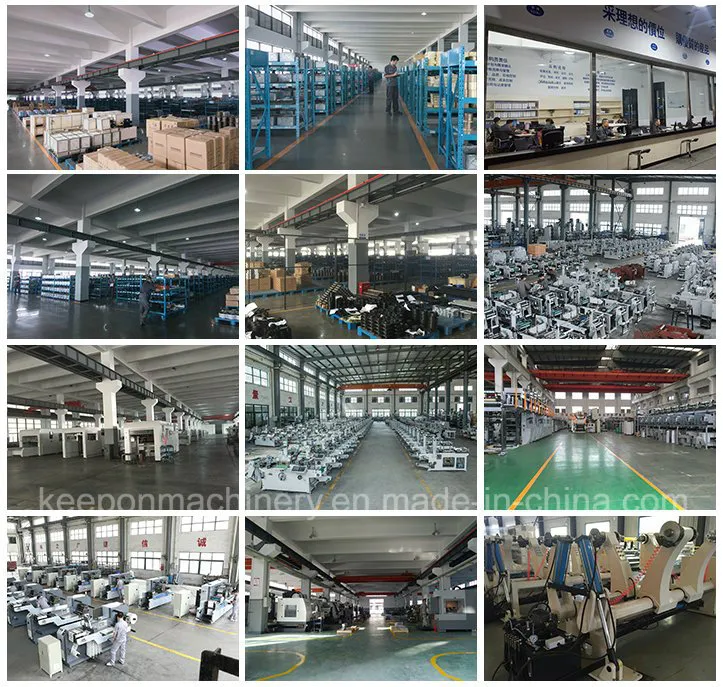

Our Plant View:

Packing And Shipping:
Paper Roll Sheeter with High Cost-Effective

Clients And Exhibition:

FAQ
1. Q: What is your delivery term?
A: FOB,CIF,CFR usually.

2.Q: What is your payment?
  A: T/T.30% deposit, 70% balance before delivery.
L/C. 100% at sight.
T/T and L/C, 30% TT deposit, 70% L/C.

3.Q: What is your delivery time?
A: 30-50 days usually

4.Q: What is your warranty and other terms?
A: One year machine warranty,and whole life technical support. Spare parts are free for customer in 1 year.
   We can send our engineer to your factory for machine installation and operator trainning if you need,
Customer pay the flight tickets,meals and hotel for our engineer.
Salary USD100.00 per day to our engineer.
