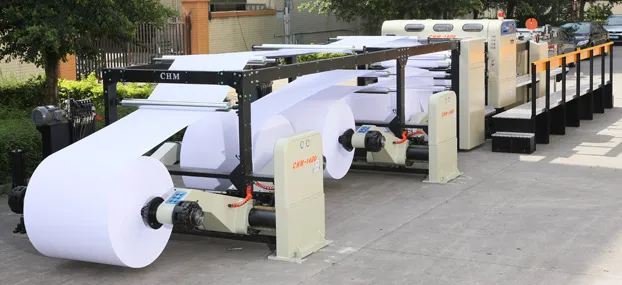

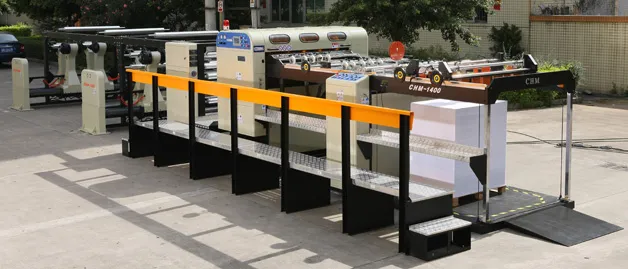

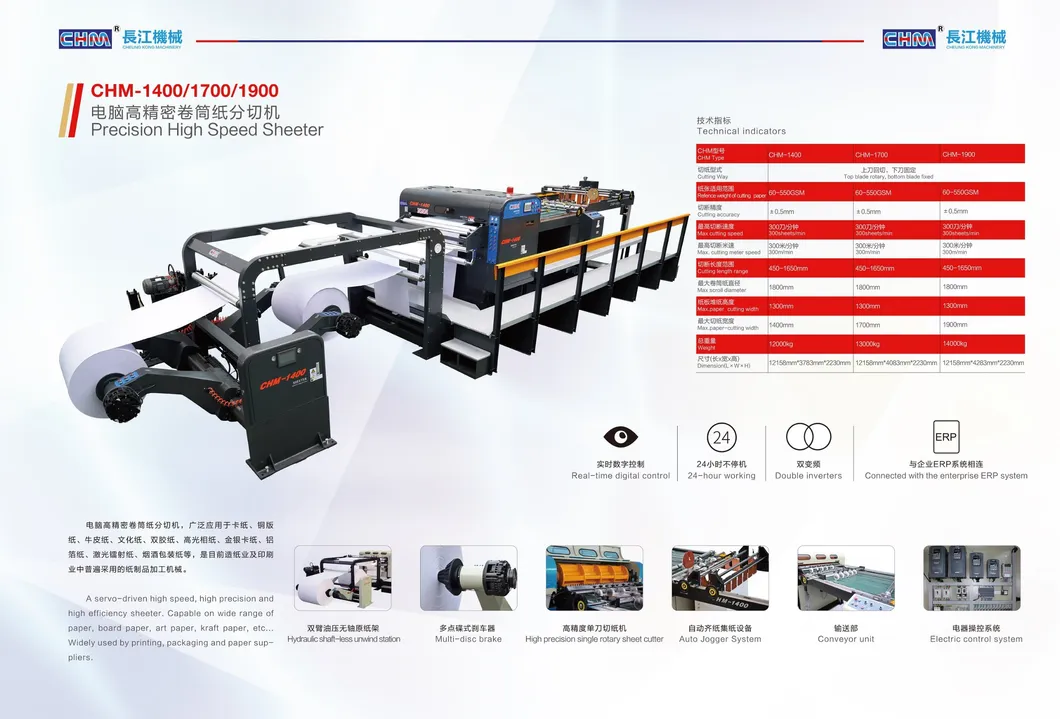

Paper Cutter (CHM- 1400 )
paper cutter is used to cut the paper roll into paper sheets. It adopts advanced technology of British and it is driven by AC servo motors, the high cutting speed reaches 300 cuts /min. And it can cut 8 paper rolls at one time. It is also equipped with automatic deflection rectify and antistatic de......
Send Inquiry
Product Description
paper cutter is used to cut the paper roll into paper sheets. It adopts advanced technology of British and it is driven by AC servo motors, the high cutting speed reaches 300 cuts /min. And it can cut 8 paper rolls at one time. It is also equipped with automatic deflection rectify and antistatic device. The paper feeding and delivering units are automatic with the hydraulic system. The human and machine interface system could make operation become much easy and more convenient.

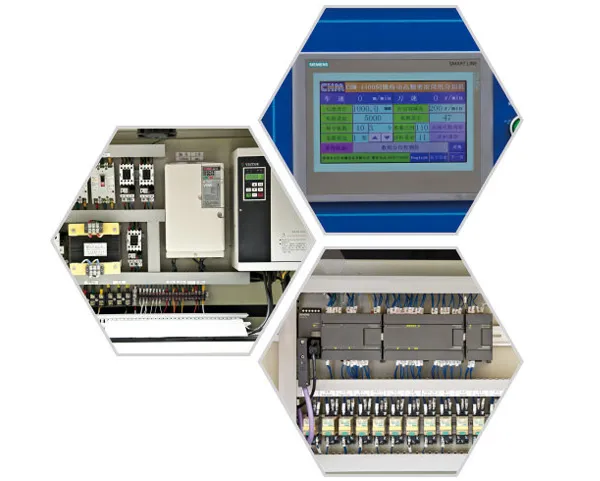

1. Simens PLC And Simens Touching Screen make machine working stable and easy maintain

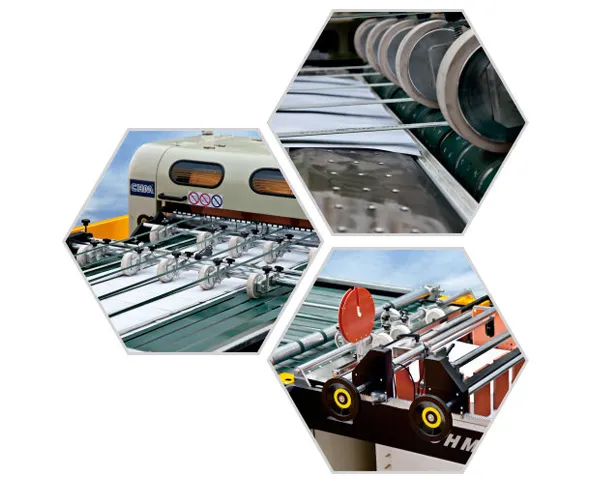

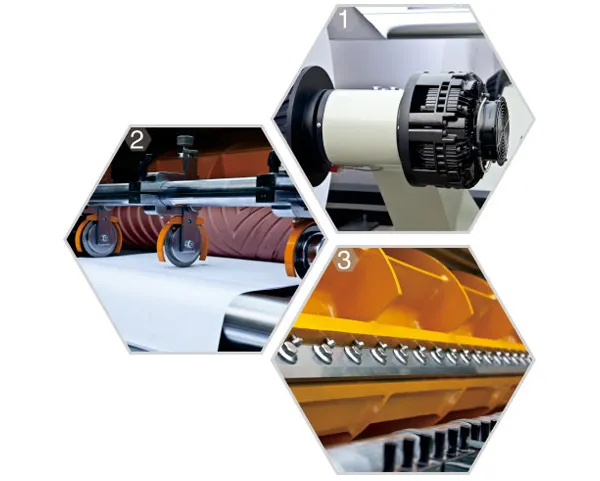

2. Multi-brake System, Slitting Knife and cross cutting knife
3. Static Eliminator, Auto counting and tag inseter , Sensor for detecting paper jam
If you are interested please send quick enquiry for more information about machine.
| Model | CHM-1400 | |
| 1. Type of cutting | : | Top blade rotary, bottom blade fixed |
| 2. weight of paper | : | 60-550 GSM |
| 3..reel diameter | : | Max 1800mm(71") |
| 4. Finished width | : | Max 1400mm(55") |
| 5. Finished sheet-Length | : | Min.450-Max.1450 mm |
| 6. Num.of rolls cutting | : | 2 rolls |
| 7. Cutting accuracy | : | ±0.5mm(L<1000mm) ±0.1% (L≥1000mm) |
| 8. Max.speed of cutting | : | 300cuts/min |
| 9. Max.cutting speed | : | 300m/min |
| 10. Requirement of the air pressure | : | 0.8MPa |
| 11. Voltage | : | AC380V/220Vx50Hz |
| 12. Total power: | : | 29KW |
| 13. Accuracy of the roller paper sheet | : | ±0.5mm(L<1000mm);±0.1% (L≥1000mm) ±0.1%(accelerate or decelerate). This depend on machine stable and operation when cutting.(cutting one paper roll, the cutting length is right ) |
| 14. Output | : | The real output depend on the material, and the weight of the paper, and right operate process |
