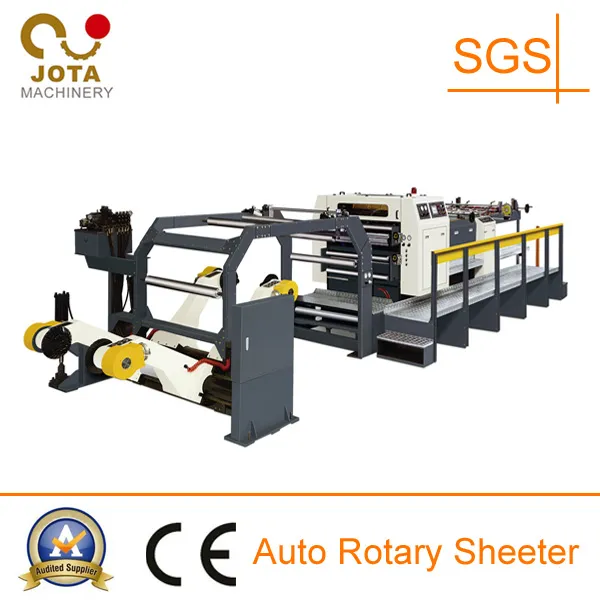

Newspaper Rotary Sheet Cutting Machine

Newspaper Rotary Sheet Cutting Machine

SPECIFICATIONS

Main
--Equipped with PLC and meter counter.
--Equipped with HITECH touch screen, all the parameters can be pre-set on the it.
--Equipped with YASKAWA double servo motor control system, one for rotary cutter control, another for material feeding control.
Both of them are synchronic, so the machine speed can reach to 300m/min.
--All transmission rollers have been dynamic/static balance treated.
--Equipped with emergency switch.

Unwinding Section
-- Equipped with shaftless unwinding stand, and hydraulic control system.
The shaftless unwinding stand is available 3", 6" and 12" unwinding core.

Unwinding Tension Control
--Equipped with pneumatic brake system for unwinding tension control.

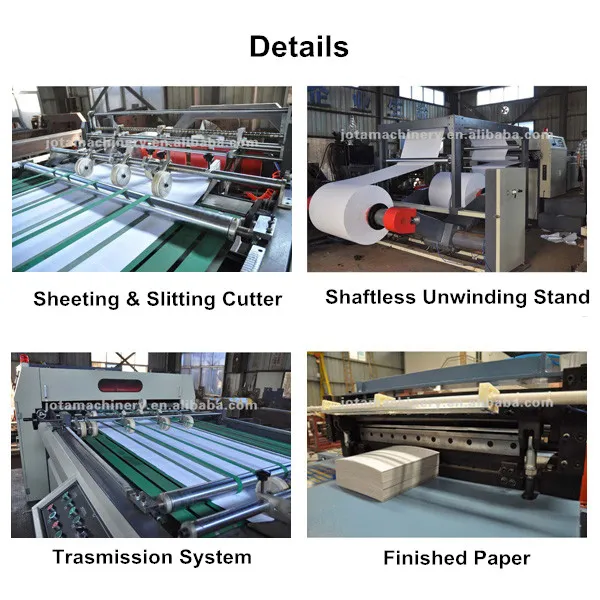

Sheeting Section
--Equipped with Germany imported cutter, which is more hard wearing.
--Equipped with Japan imported gear.
--Equipped with vacuumn dust collector for material surface dust collecting.
--Equipped with U. K. Imported dynamic activities control device to keep a stable function.

Trimmed Waste
--Equipped with air blower and expulsion tube.
