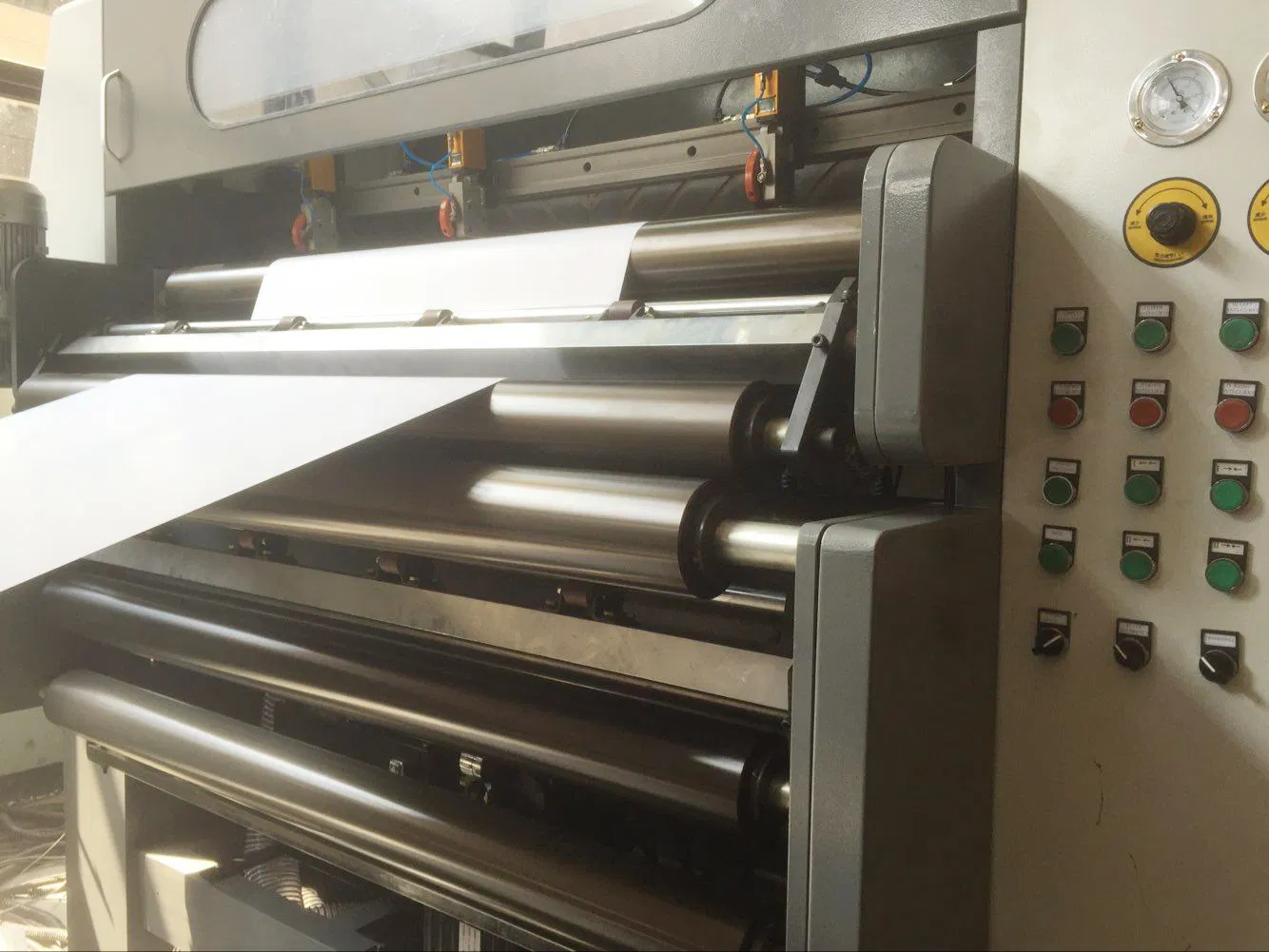

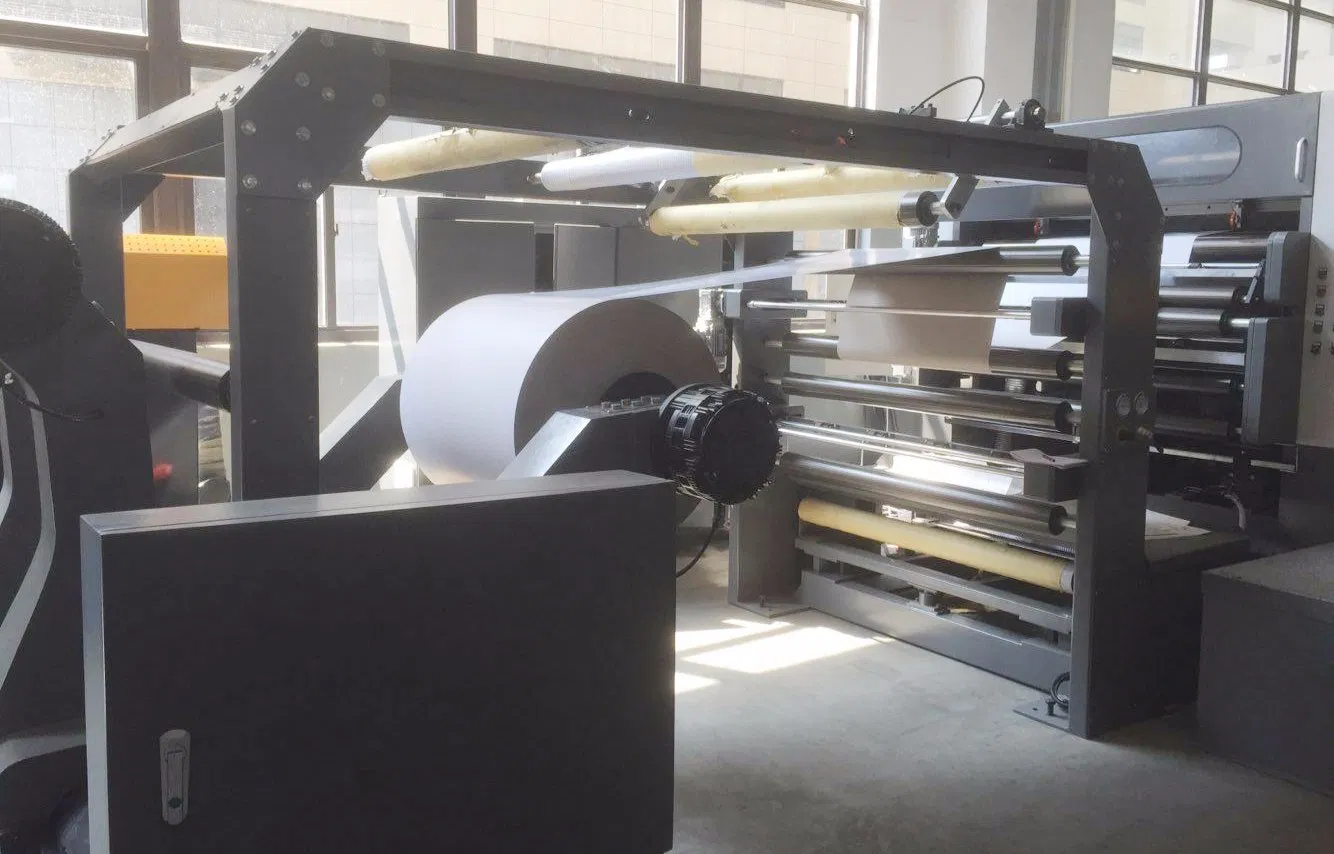

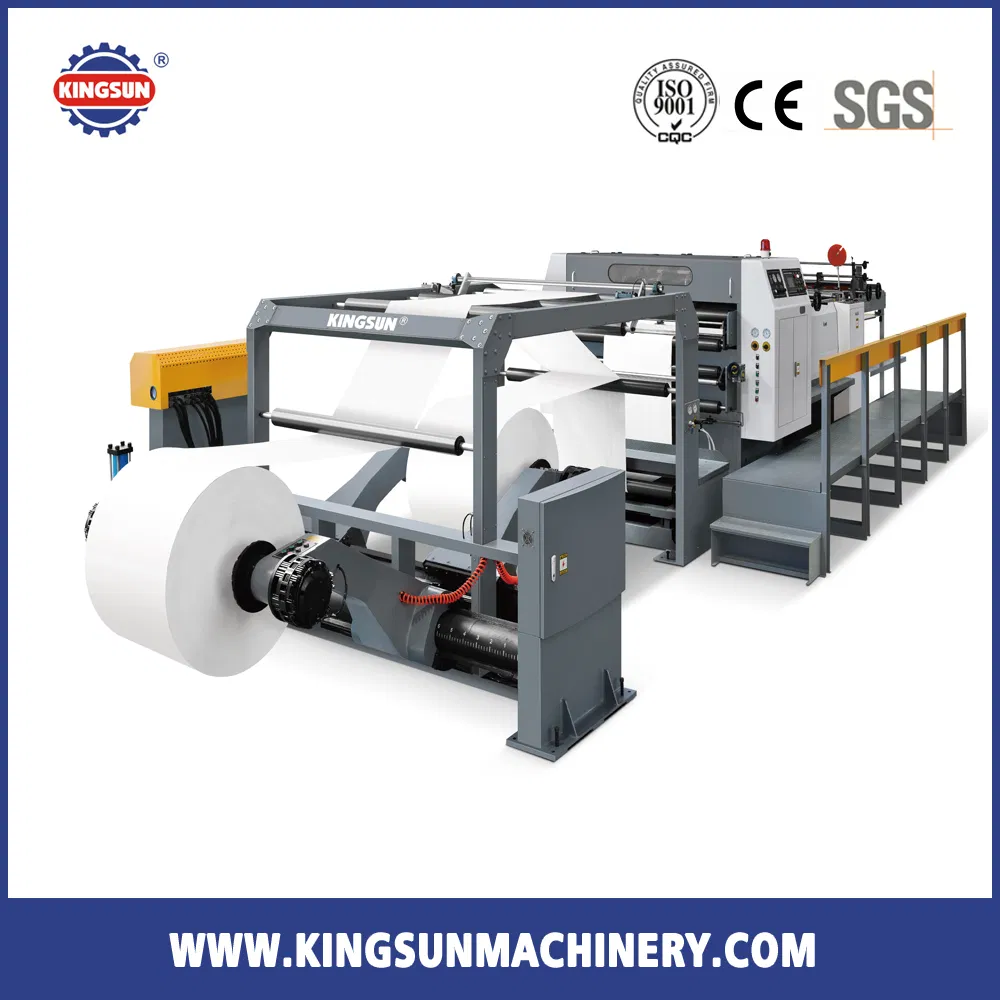

KS-M Servo Control Double Rotary Knife Paper Roll to Sheet Cutting Machine

KS-M Servo Control Double Rotary Knife Paper sheeting Machine, high speed paper roll to sheet cutting machine

KS-M series Servo Control High Speed Paper Sheeting Machine is fit for paper roll to sheet cutting into sized paper, with double rotary sheeting knife so acheive better cutting quality and precision, it is good for high required paper converting.
Features:
 (1)Adopt nodular cast iron-QT500-7, original paper frame clamp arms casting by special technology process, thus featuring by high strength, never deformation and ensure the safety of original paper frame clamp arms.
(2)Adopt steel plate-Q335, the mainframe wallboard has precision manufacturing and high strength, thus will never-deformed.
(3)The whole machine all uses SKF\NSK Original imported bearings.
(4)The whole machine uses original parts imported from France Schneider, Japanese OMRON and Japanese SMC, etc.
(5)The conveyor belt is imported from Japan.
(6)Cutting accuracy reach to ±0.2mm, the highest speed of KSM series machine reaches 300 sheets/min.
(7)The back cutter is adopt Germany Ni-Cr-Mo metal steel, with high precision and will never- deforms; the knife edge is easy to adjust and calibrate.
(8)Use the automatic angle-aligning system to realize fast angle aligning of worksheet.
(9)Equipped with anti-curve automatic regulation device, ensure fast and smooth when they adjust of anti-curved paper.
(10)Paper feeding part adopts pre-pressing device, to ensure that the paper is not wrinkled.
(11)Equipped with touch-screen operation interface in both Chinese and English, or other language.
(12)All adopt Taiwan AIRTAC's pneumatic components to ensure every pneumatic action performs accurately.

Main specifications:
