              KS-A Series Servo Control Rotary Knife Paper Roll Sheeter Machines
              • KS-A Series Servo Control Rotary Knife Paper Roll Sheeter MachinesKS-A Series Servo Control Rotary Knife Paper Roll Sheeter Machines
              • KS-A Series Servo Control Rotary Knife Paper Roll Sheeter MachinesKS-A Series Servo Control Rotary Knife Paper Roll Sheeter Machines
              • KS-A Series Servo Control Rotary Knife Paper Roll Sheeter MachinesKS-A Series Servo Control Rotary Knife Paper Roll Sheeter Machines
              • KS-A Series Servo Control Rotary Knife Paper Roll Sheeter MachinesKS-A Series Servo Control Rotary Knife Paper Roll Sheeter Machines

              KS-A Series Servo Control Rotary Knife Paper Roll Sheeter Machines

              KS-A Series Servo control high speed rotary paper roll sheeter machines, paper roll to sheet cutting machinesThis series servo control rotary paper sheeter machine is fit for jumbo roll paper sheet into required size, with advanced technology from Europe, it has features of high speed,flexible unwi......

              Send Inquiry

              Product Description

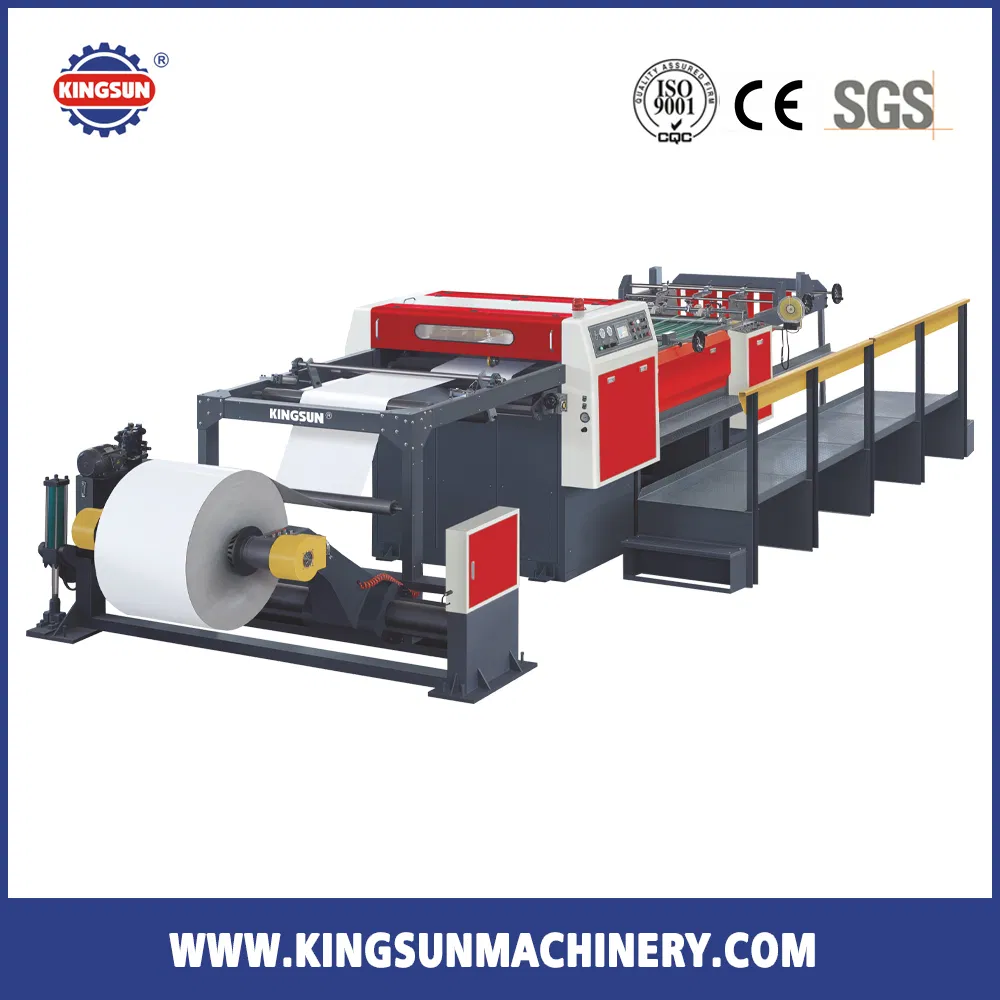

              KS-A Series Servo control high speed rotary paper roll sheeter machines, paper roll to sheet cutting machines

              This series servo control rotary paper sheeter machine is fit for jumbo roll paper sheet into required size, with  advanced technology from Europe, it has features of high speed,flexible unwinding unit,high production capacity and reliabel working.Competitive price with high quality.

              Main technical data:

              1. Paper cutting type: the up knife rotary cut, the down knife fixed

              2. Range of the paper: 60 ~ 550 GSM

              3. Max unwinding diameter: 1800mm (71 ") Max

              4. Max unwinding width: 1400 mm (55 ") Max

              5. Cutting length: 450-1450mm

              6. Paper cutting layer: 1 layer (standard)

              7. Cutting accuracy: cutting length less than 1000mm: ± 0.5mm

                                                   cutting length more than 1000mm: ± 0.1%

              8. Maximum cutting speed: 300 cuts / min

              9. Maximum cutting linear speed: 300 m / min

              10. Air source requirements: 0.8MPa

              11. Design Power: AC380V/220V × 50Hz/60Hz

              12. Cutting length accuracy: based on the density of paper web, the number of reels and materials. If the length less than 1000mm, the precision is ± 0.5mm, if cutting length more than 1000mm : ± 0.1%, when speed accelerating or decelerating ± 0.1%,  the data is based on the cutting of correct operating procedures and stable running.(When cutting paper in one roll, the cutting length is the correct length)

              13. Production output: the actual output based on the paper specific materials, paper weight, cut length, reel number, operator technique, operating conditions and so on.

              Note: This series standard model is one paper reel stand, it can be added as per request.
