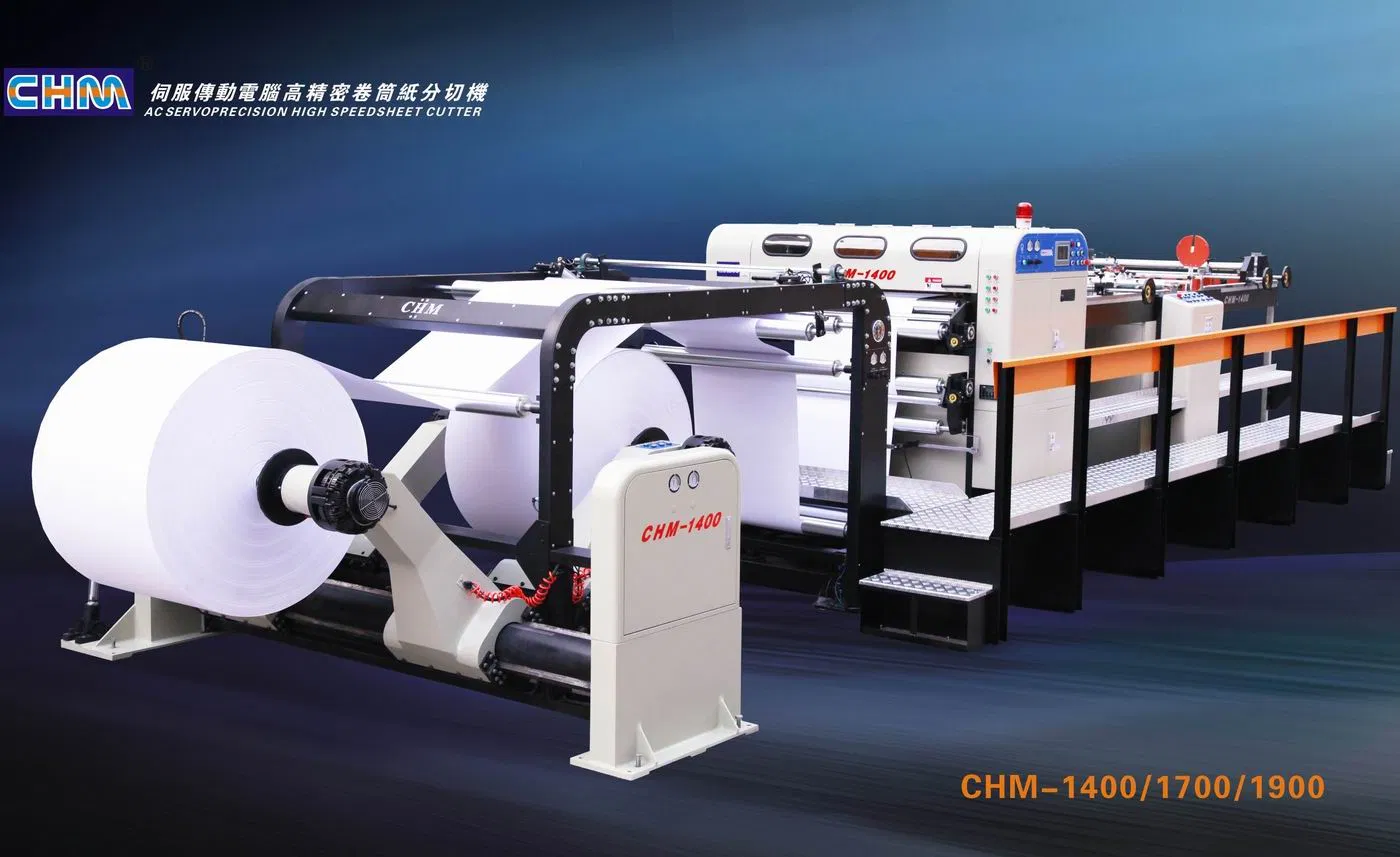

High Speed Paper Sheeting Machine (CHM-1400/ 1700 /1900)

China High speed paper sheeting machine is used to cut the paper roll into paper sheets. It adopts advanced technology of British and it is driven by AC servo motors, the high cutting speed reaches 300 cuts /min. And it can cut 8 paper rolls at one time. It is also equipped with automatic deflection rectify and antistatic device. The paper feeding and delivering units are automatic with the hydraulic system. The human and machine interface system could make operation become much easy and more convenient.

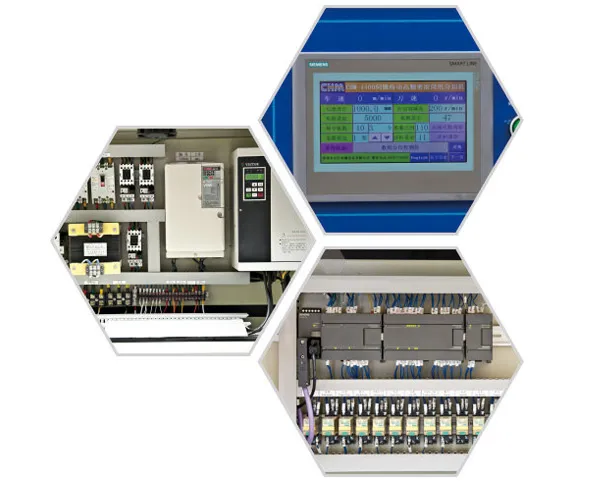

1. Simens PLC And Simens Touching Screen make machine working stable and easy maintain

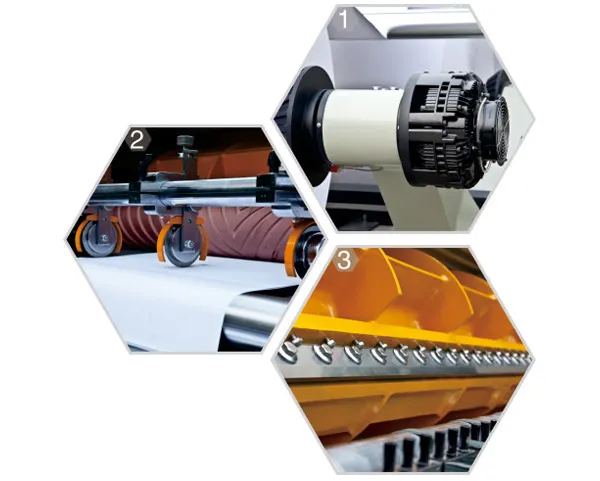

2. Multi-brake System, Slitting Knife and cross cutting knife



3. Static Eliminator, Auto counting and tag inseter , Sensor for detecting paper jam



Model: CHM-1400mm/1700mm/1900mm
MAIN SPECIFICATIONS:
Reference weight of cutting paper: 60-550GSM
Cutting accurancy: 0.5mm tolerance allowed
Max. Cutting speed: 300sheets/min
Max. Cutting meter speed: 300m/min
Cutting lenght range: 450-1450mm
Max. Diameter of reel: 1800mm
Paper stack height: 1300mm
Max. Width of cutting paper: 1400mm/1700/1900mm


If you are interested please send quick enquiry for more information about machine.
