Product Description

Technical parameter

1	Machine model	LY-C1100
2	Max unwinding diameter	φ1500mm
3	Reference weight of cutting paper	30~500g
4	Max cut width	1000mm
5	Cutting length	20-2000mm
6	Cutting speed	20-150times/min
7	Cutting precision	±0.2mm
8	Total power	6.5kw
9	Machine weight	2000kg
10	Machine dimension	4500×2000×1400mm

Use

This machine is suitable for cutting foodwrap paper, humburger paper, sandwich packing paper, etc. This machine adopts servo motor to control fixed length cutting. The transmission system adopts centralized control such as pneumatic and photoelectric sensors. This machine integrates light, electricity and gas, easy to operate, high cutting precision, mechanical stability, and low noise. (Pneumatic feeding is optional) Motor frequency control, automatic counting, alarm stop, automatic adjustment of magnetic powder taper tension function. It is currently the ideal equipment for cutting large-scale coils with high quality in China.

Characteristic

PANASONIC PLC control, Touch screen on human machine interface with high resolution colors and easy operator controls.
Automatic counting, automatic length fixing, alarm stopping, automatic tension control and other functions
Automatic loading control cylinder system
The frame adopts a 16mm steel plate structure, the cross-cutting tool holder adopts a heavy casting structure, and the guide roller adopts a dynamic balance treatment aluminum alloy guide roller
Drive positioning traction adopts a servo system. The drive shaft adopts a steel wire structure. The feeding and traction method is that the motor drives the sprocket to drive the traction rubber shaft. The receiving platform uses the front conveyor table to feed.
This machine is an ideal large-scale coil cross-cutting equipment, with high precision, fast speed and smooth material collection.

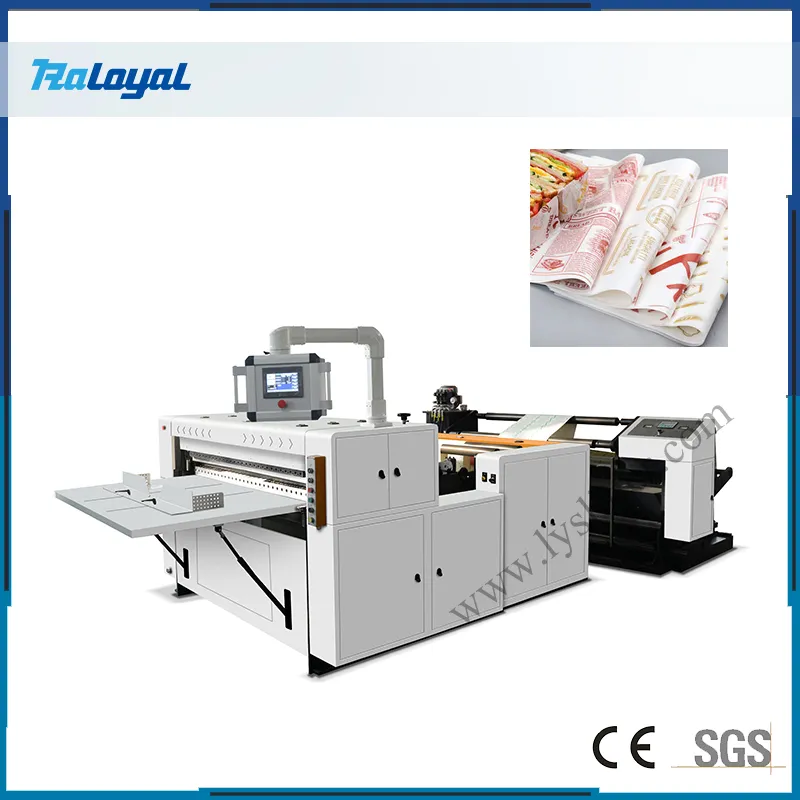

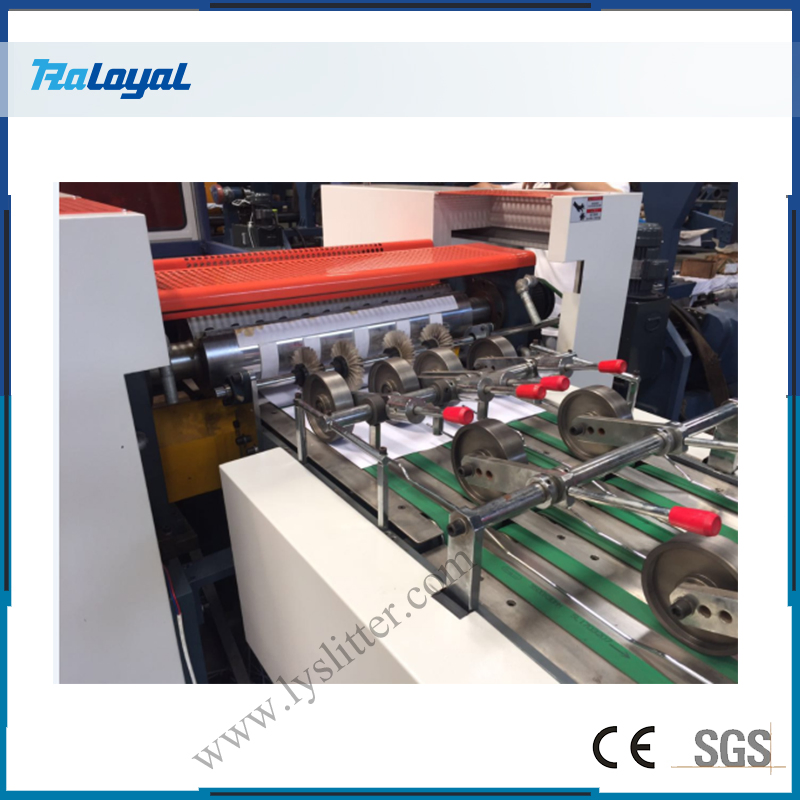

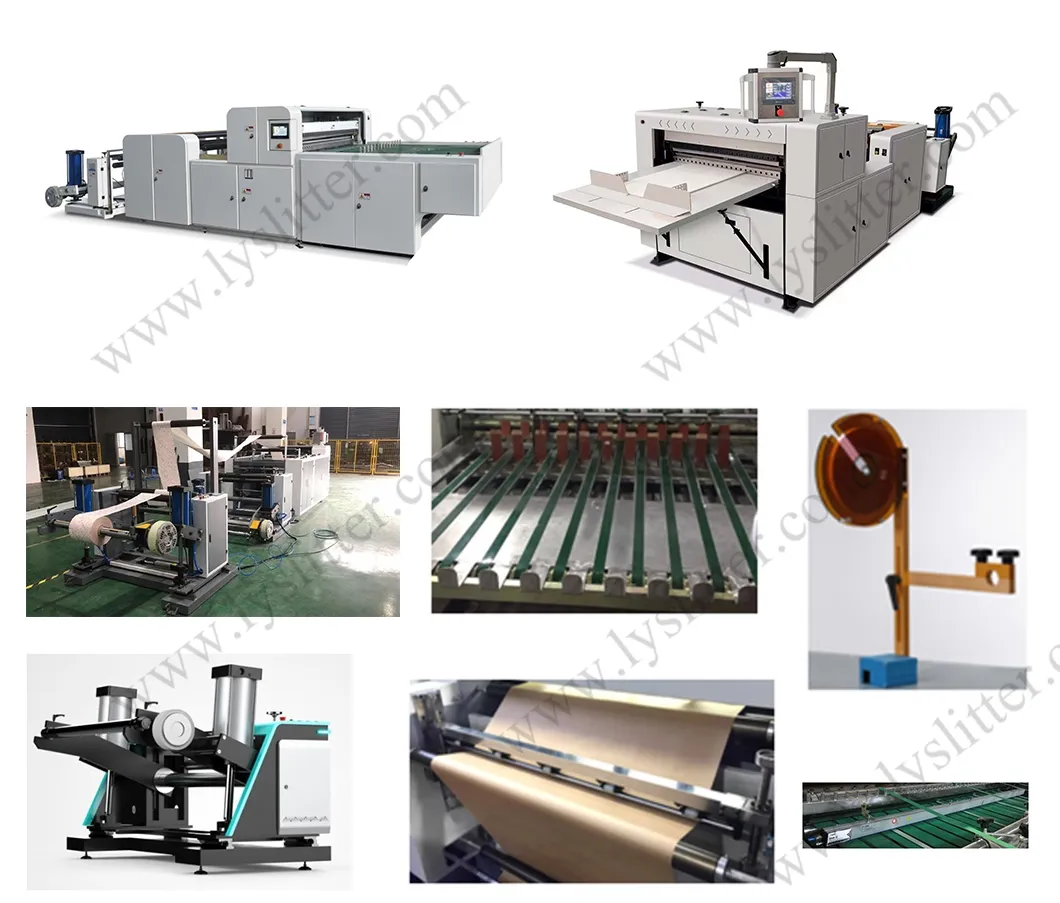

More details of automatic sandwich wrapping paper food packing paper cutting machine

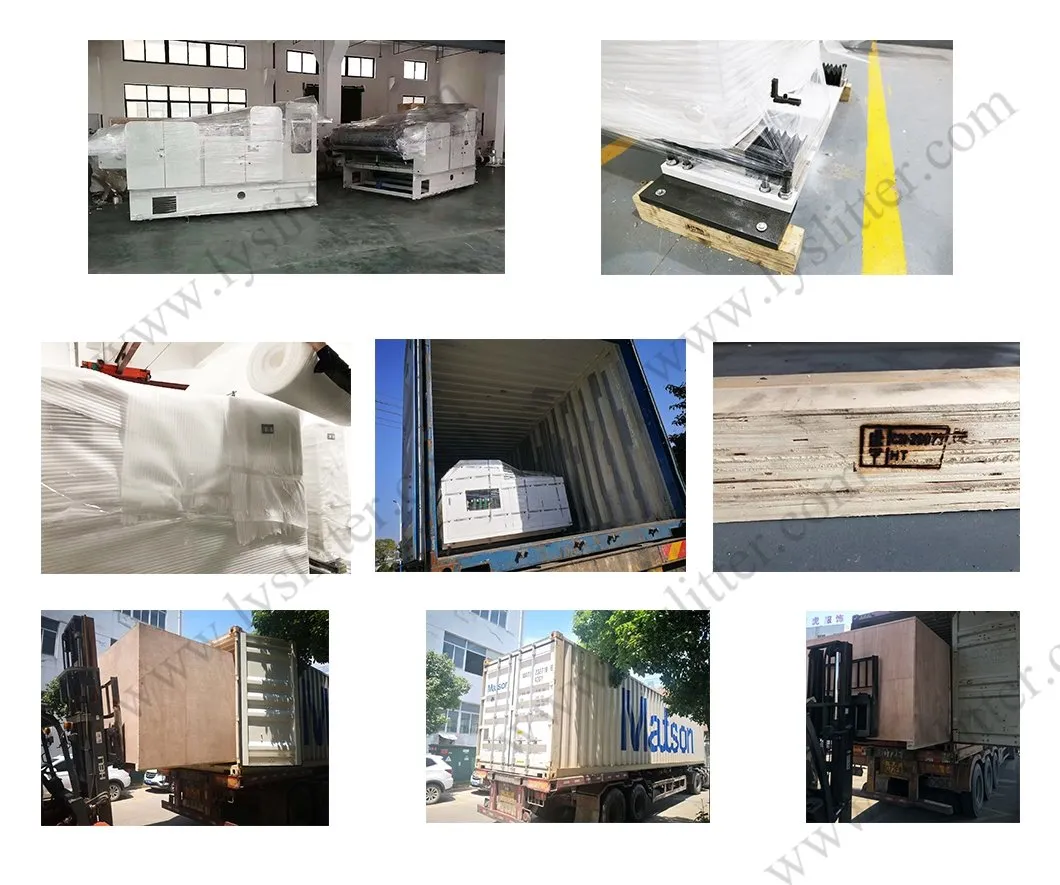

Machine delivery

Customers from all over the world

Why us

Product:

------Technology
Mature and experienced technical team.
Continuous learning, R&D and innovation meet CE and TUV.

------Quality
Using effective and high pricision slitting.
Steel plate heavy machine body. Ensure machine runs smoothly at high speed.
User-friendly control and long service life.

------Detail
High tech and quality components.
Quality is our life. From the very beginning to very end Loyal people attach great importance to quality controlling and repeated testing before deliver.
Deliver on time.

Service:

-------Time is money, we providing quick, responsive, most precise service.

-------Only when customers get success can LOYAL Company be developed, We treat every customer seriously and provide technical support for whole lifetime.

------Loyal relationship is difficult to establish,we only loyal to our customers, time will tell you we are reliable,helpful and loyal!

Contact us without hesitate! We are willing to send you in greater detail!
