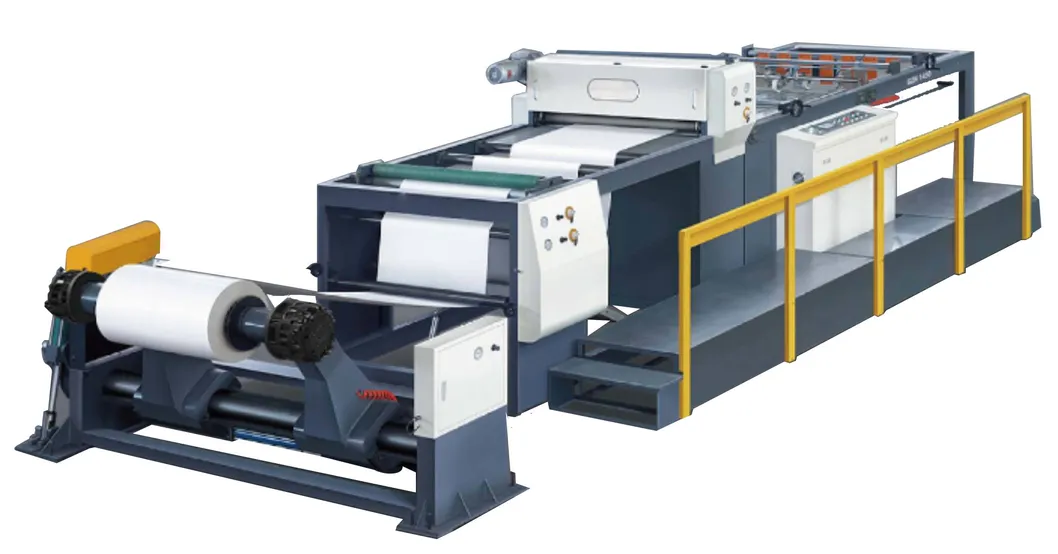

              Gzh-1100-1450- 1700 AC Servo High Speed Computer Auto Crosscutting Machine
              • Gzh-1100-1450- 1700 AC Servo High Speed Computer Auto Crosscutting MachineGzh-1100-1450- 1700 AC Servo High Speed Computer Auto Crosscutting Machine

              Gzh-1100-1450- 1700 AC Servo High Speed Computer Auto Crosscutting Machine

              GZH-1100-1450-1700 AC Servo High Speed Computer Auto Crosscutting MachineConfigurationMain Technical PerformanceThe face of operation control by computer.Simple and convenient.Double arm oil pressure shaftless mill roll stand.Tension control system.Automatic directing system.The number of overlappin......

              Send Inquiry

              Product Description

              GZH-1100-1450-1700 AC Servo High Speed Computer Auto Crosscutting Machine

              Gzh-1100-1450-1700 AC Servo High Speed Computer Auto Crosscutting Machine

              Configuration
              Gzh-1100-1450-1700 AC Servo High Speed Computer Auto Crosscutting Machine

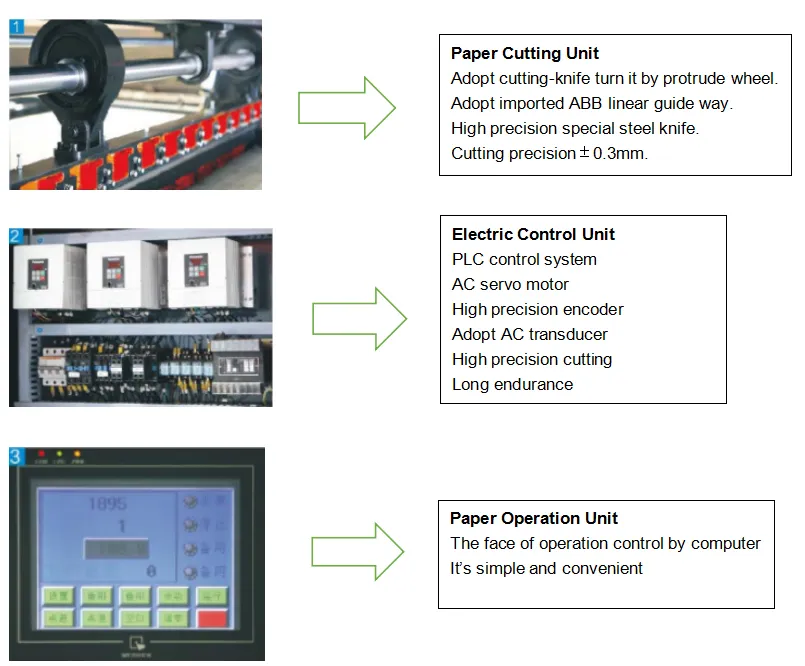

              Main Technical Performance
              1. The face of operation control by computer.
              2. Simple and convenient.
              3. Double arm oil pressure shaftless mill roll stand.
              4. Tension control system.
              5. Automatic directing system.
              6. The number of overlapping sheet can be adjusted by the overlapping unit.
              7. Single sheet outlet can be adjusted by the overlapping unit.
              8. PLC control system.
              9. AC servo motor.
              10.  High precision encoder.
              11.  High precision cutting.
              12.  Long endurance.
              13.  Adopt AC transduer.
              14.  Adopt cutting-knife turn it by protrude wheel.
              15.  Adopt imported ABB linear guide way.
              16.  High precision special steel knife.
              17.  Cutting precision±0.3mm.

              Main Technical Parameters
              ModelGZH-1100/1450/1700
              Reference Weight of Cutting Paper60-550GSM
              Cutting Precision+/-0.3mm
              Max Cutting Speed120sheets/min
              Max Cutting Meter Speed90m/min
              Cutting Length Range450-1450mm
              Max Scroll Diameter1500mm(GZH-1100)/1800mm(GZH-1450/1700)
              Paper Piling Height1200mm
              Max Paper Cutting Width1100/1450/1700mm
              Gross Weight5000/6000/7000kg
