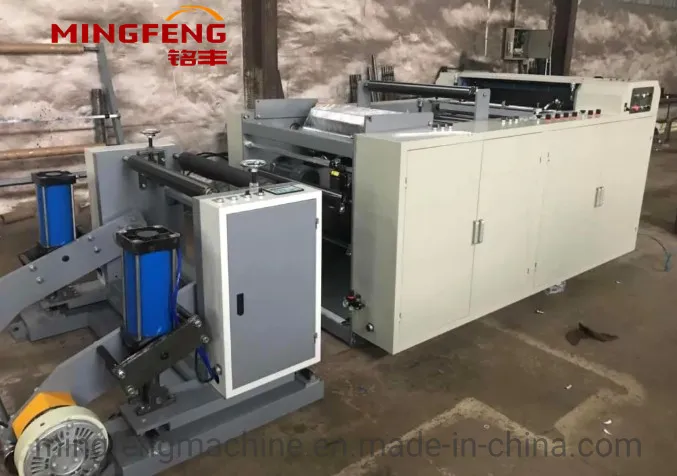

Dfj-B Model A4 Size Roll Paper Sheeting Machine
DFJ-B Model A4 Size Roll Paper Sheeting MachineApplication:This machine is suitable for common paper, adhesive paper, silver/gold laminated paper board, printed composite paper, paper-plastic composite reel material transverse cutting. It is widely used in paper process industry, printing and packag......
Send Inquiry
Product Description
DFJ-B Model A4 Size Roll Paper Sheeting Machine
Application:
This machine is suitable for common paper, adhesive paper, silver/gold laminated paper board, printed composite paper, paper-plastic composite reel material transverse cutting. It is widely used in paper process industry, printing and packaging industry, etc.
Advantage:
High speed, high accuracy, cutting edge without burr, and the cut paper sheet can be feeding to high-level printing machine directly. (Roland etc. offset printing machine)
Running stable at high speed, LCD touch screen+PLC controlling, easy to operate and convenient for maintenance.
Product Process:

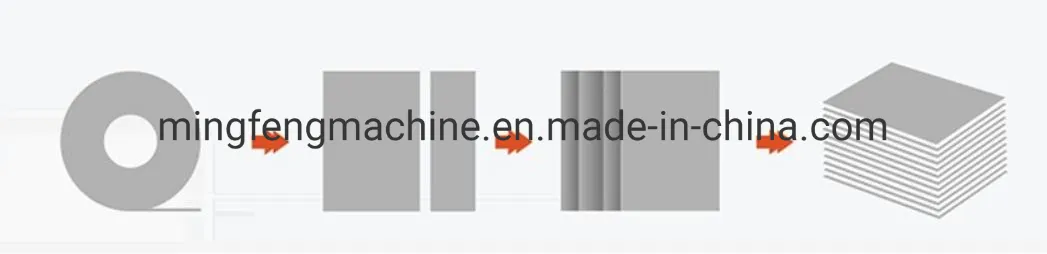

This machine is a paper cutting machine. Through this machine can let a paper roll to a single sheet paper, like below.
Equipment Parameter:
| Model | 600 | 800 | 1100 | 1300 | 1400 | 1600 |
| Max Cutting Width | 600mm | 800mm | 1100mm | 1300mm | 1400mm | 1600mm |
| Max Unwinding Diameter | 1500mm | |||||
| Thickness Range | 50~600gsm | |||||
| Max Sheetting Speed | 160cuts/min | |||||
| Max feeding Speed | 130m/min | |||||
| Cutting length range | 20~1500mm | |||||
| Cutting Precision | ±0.2mm | |||||
| Max Piling Height | 1100mm | |||||
| Gross Weight | 2.5~6.8T | |||||
| Total Power | 5.5KW | 6KW | 8KW | 10KW | 11KW | 13KW |
| The request for air source | 0.8Mpa | |||||
| Machine Size(L x W x H) | 7500x1400~2900x1600mm | |||||
| No | Items | BRAND | ORIGIN |
| 1 | Servo motor(3W) | Inovance | Sino-foreign joint venture |
| 2 | Servo driver | Inovance | Sino-foreign joint venture |
| 3 | Frequency converter 1.5KW*2 | Inovance | Sino-foreign joint venture |
| 4 | PLC | Inovance | Sino-foreign joint venture |
| 5 | Man-machine interface | KUNLUN TONG TAI | Sino-foreign joint venture |
| 6 | Relay | SCHNEIDER | FRANCE |
| 7 | Circuit breaker | SCHNEIDER | FRANCE |
| 8 | Ac contactor | SCHNEIDER | FRANCE |
| 9 | Button | OMRON | JAPAN |
| 10 | Solenoid valve | AIRTAC | Taiwan, China |
| 11 | Edge correction | ERS | Chongqing, China |
| 12 | Bearing | NSK | JAPAN |
| 13 | Static elimination equipment(optional) | SM | Hongkong, China |
| 14 | Photoelectric tracking system(optional) | SICK | Germany |
One year Guaranty Time
24 hours On Line Service
Overseas Technician Available
Cotact Girl:Ms.Amy
1.Q:Are you machinery factory or trading company
A:We are machinery factory,and also have one trading company
2.Q:Where is your factory located?
A:We are located Ruian City,Zhejiang Province,China
From SHANGHAI by air is 40 mins,by train is 4 hours.
From GUANGZHOU by air is 2 hours.
3.Q:How many years warranty?Can you teach us?
A:Usually,we given customer one year warranty time.We also have oversea technician service to help you install the machines.
4.Q:What's the payment method?
A:We can accepted T/T,L/C,Western Union,Moneygram and etc.
