CE Accreditation High Precision Automatic A4 Jumbo Roll Paper Cutting Machine
About ShengxiangRuian Shengxiang Packaging Machinery Co., Ltd. was established in 2010. It is a private economic entity integrating development, design, production, sales, and service. Mainly specializing in the manufacture of packaging equipment such as cross-cutting machines, A4 paper cutting mach......
Send Inquiry
Product Description
About Shengxiang
Ruian Shengxiang Packaging Machinery Co., Ltd. was established in 2010. It is a private economic entity integrating development, design, production, sales, and service. Mainly specializing in the manufacture of packaging equipment such as cross-cutting machines, A4 paper cutting machines, slitting machines, roll paper cutting machines, rewinding machines, printing machines, and so on.
Specification
Model | SX-B1100-4R | SX-B1400-4R |
Cutting Width | 1060 mm | 1360 mm |
Min Vertical Cutting Width | 50 mm | 50 mm |
Max Diameter of Material | φ1400 mm | φ1400 mm |
Length of Cutting | 30-400 mm | 30-400 mm |
Cutting Speed | 20-150 times/min | 20-150 times/min |
Cutting Precision | ±0.2 mm | ±0.2 mm |
Total Power | 16 kw | 19 kw |
Weight | 8000 kg | 10000 kg |
Overall Size (L x W x H) | 19000*3400*2000 mm | 19000*3700*2000 mm |

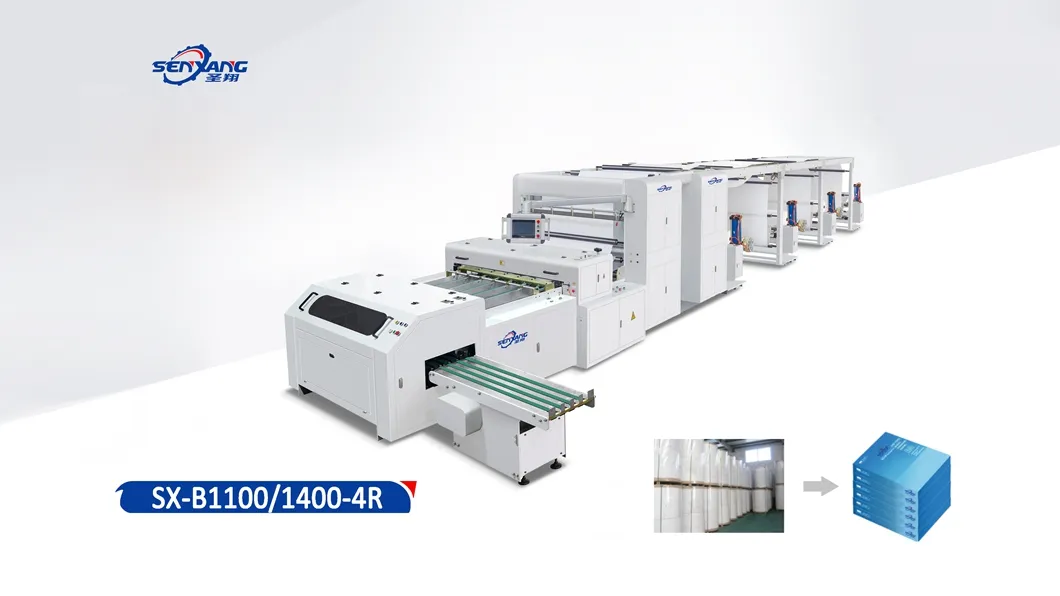

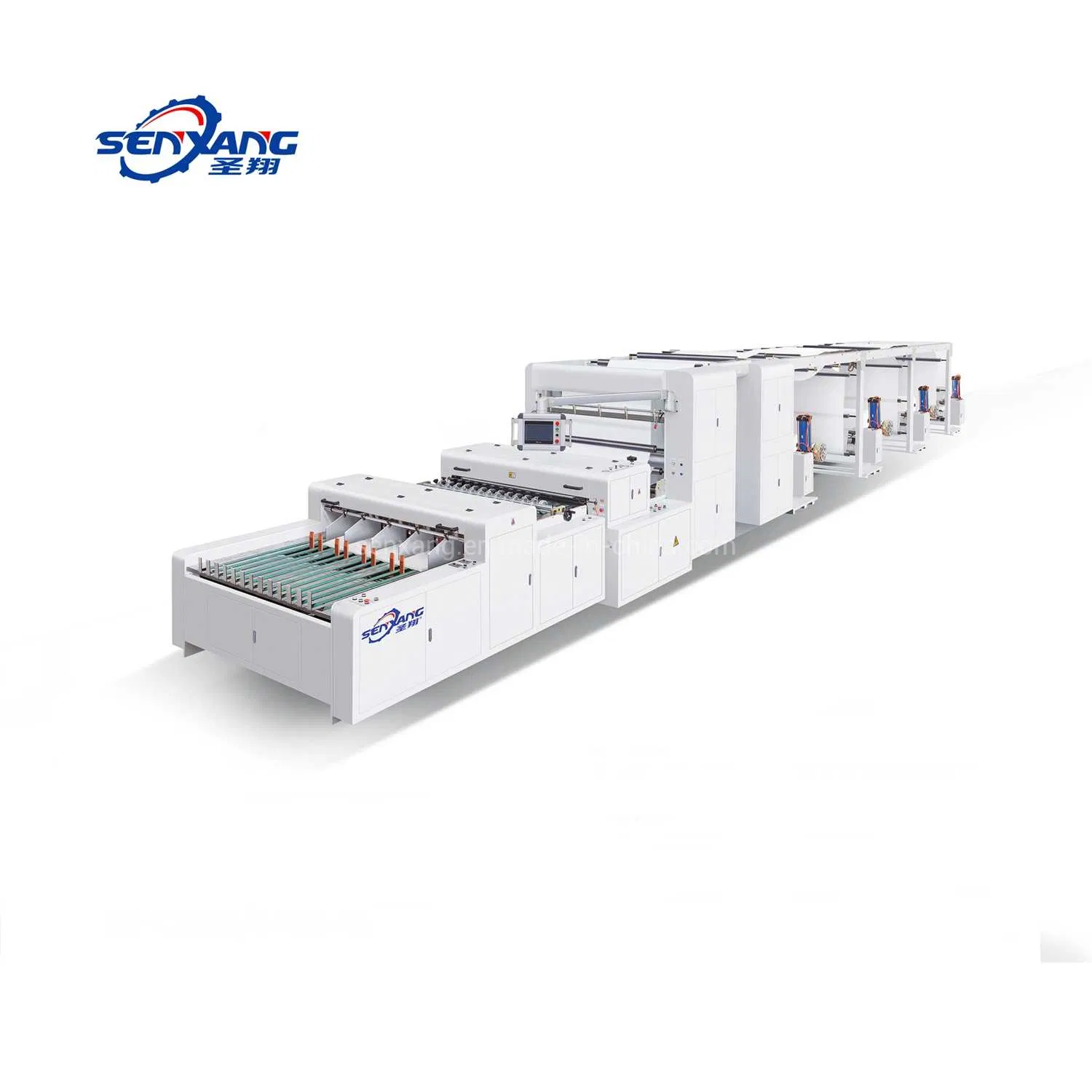

SX-B1100/1400-4R A3 A4 Size Paper Cutting Machine
Feature and Characteristic
This machine suitable for Cutting all kinds of office paper, high-gloss paper, and paper-plastic composite packaging materials such as roll cutting.
2.Transmission system using pneumatic, photoelectric sensors, and other centralized control, the machine collecting light.
Electric. Gas integration, easy operation, high cutting accuracy, mechanical stability, low noise, and other advantages.
3.Motor frequency control, automatic counting, alarm parking, magnetic powder tension control. Longitudinal multistage cut, waste edge automatically removed by the fan.
4.Multi-roll at the same time horizontal and Vertical cut.
Machine Details
 |  |

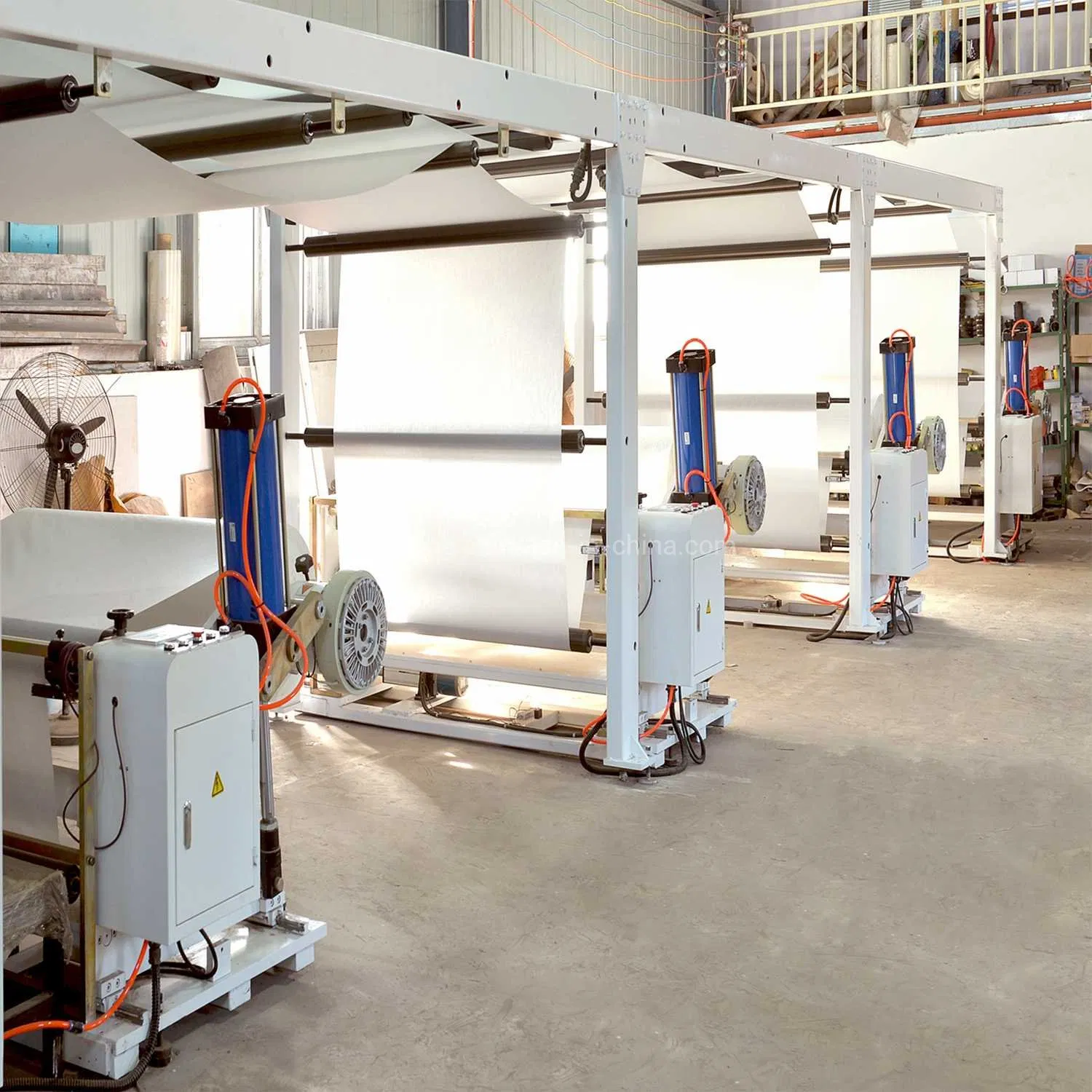

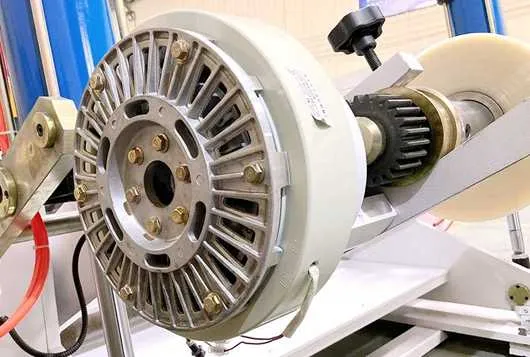

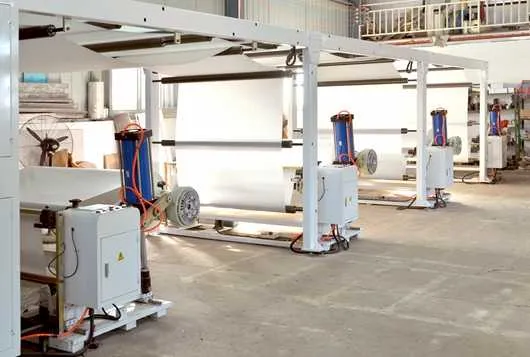

Heavy Structure Automatic Loading Unit1. Pneumatic feeding system, suitable for your large roller material 2. Automatic photocell EPC system 3. Heavy structure, running more stable. | Magnetic Tension Control1. Tension Magnet adopts 10KG/20kg controller, to keep your paper flat and double side under the same tension. (Optional shaft less lifting) |
 | |

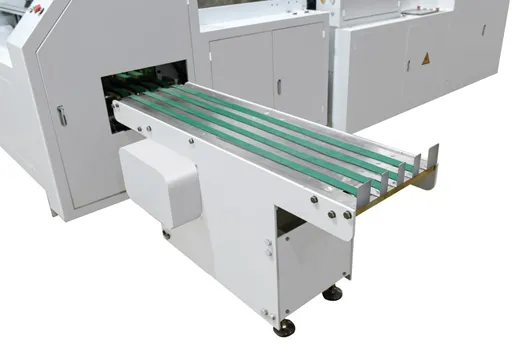

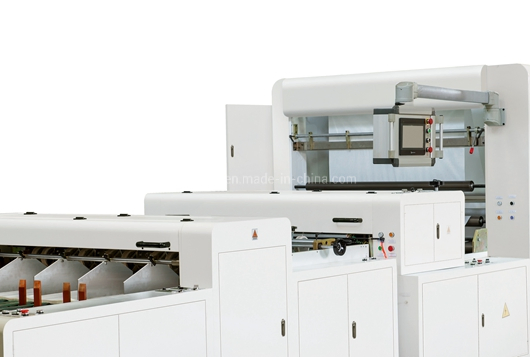

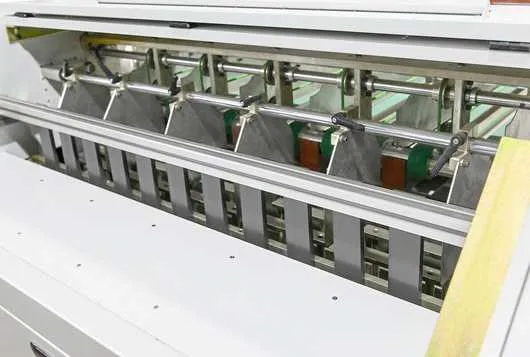

Paper Collect Part1. Round knife cutting and cross cutting the paper into A4 size. 2. Adjustable baffles to keep sheets collect neatly. | Three Stage Conveyor1. Quantity setting to convey the lower stage 2. Convey outside from right side, waiting to package by manual. |
Packaging Details
Why Choose Us - Shengxiang
1. Quality Warranty
One Year Warranty
We PromiseCommissioning services: Product arrived on site, Our Technical Staff Will Guide you to Finish installation,
commissioning, and
training How to operations Until you get it (Installation charge, buyer responsible)
2. Training Services
We will provide comprehensive technical training if necessary Training Include as following:
(1) Normal operating procedures for equipment training.
(2) Knowledge of routine maintenance on equipment training.
(3) Introduction of the equipment and service solutions for training.
3. Lifetime Service
Warranty expires, we will provide life-long service to all customers on a regular basis to provide equipment
upgrades and maintenance services.
4. Archives Service
After execution of the contract, we will establishment of archives, including the sale contract,
the technical parameters,
commissioning acceptance of a single report,
the relevant technical drawings.
Exhibition
Certification
FAQ
1. Are you a factory or trading company?
We are an actual factory and manufacturer with trading in the line of paper cutting machines, slitting machines for more than 10 years.
2. Where is your factory located? How can I visit there?
Our factory is located in Ruian City, Zhejiang Province, China,
less than one hour by air from Shanghai.
All our clients from home or abroad, are warming welcome to visit us!
3. What about your payment term?
For new customer, our payment terms are 30% T/T in advance before production, the balance of 70% should be paid before delivery.
4. Where is your main market?
Our products are sold well in 30 provinces and have a good reputation in China, we pay attention to developing the overseas market, such as Europe, Russia, Southeast Asia, Middle, and South America, Africa, and other countries all over the world.
5. How does your factory do regarding quality control?
Quality is the soul of the company. Our people always attach great importance to quality controlling from the very beginning to the very end. Our factory has passed CE certification.
3. What about your payment term?
For new customer, our payment terms are 30% T/T in advance before production, the balance of 70% should be paid before delivery.
4. Where is your main market?
Our products are sold well in 30 provinces and have a good reputation in China, we pay attention to developing the overseas market, such as Europe, Russia, Southeast Asia, Middle, and South America, Africa, and other countries all over the world.
5. How does your factory do regarding quality control?
Quality is the soul of the company. Our people always attach great importance to quality controlling from the very beginning to the very end. Our factory has passed CE certification.
6. What about a warranty and do the engineers available overseas?
One-year warranty. During this period, if some parts were a problem, we will send by courier to you.
7. What about the after-sales service?
We provide the whole life after-sales service. Even after one year warranty, we support the spare parts price without benefit.
