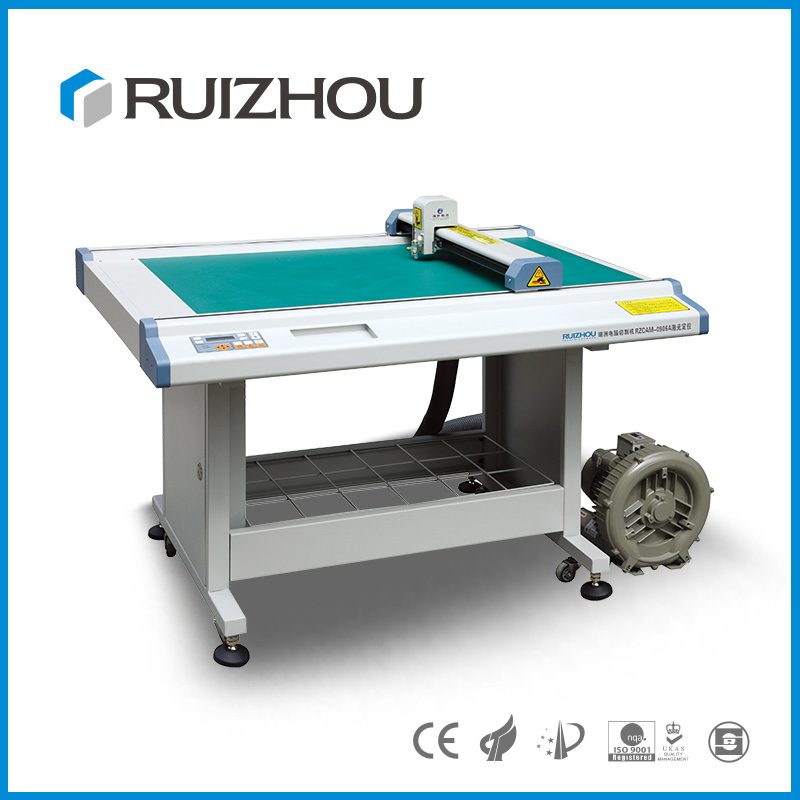

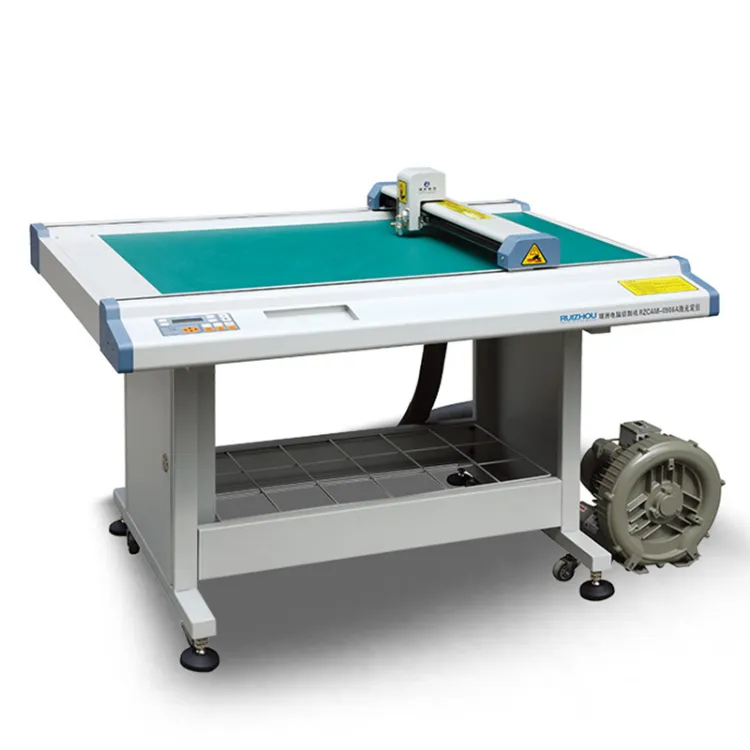

Board Cardboard Flatbed Digital Cutting Plotter Automatic CNC Machine with CE
Board Cardboard Flatbed Digital Cutting Plotter Automatic CNC Machine with CEProduct DescriptionRuizhou pattern cutting plotter is speciallized in pattern cutting. Ruizhou cutting plotter can be applied to industries as footwear, apparel, bag, decoration, etc. Generally, the material of these patter......
Send Inquiry
Product Description
Ruizhou pattern cutting plotter is speciallized in pattern cutting.
Ruizhou cutting plotter can be applied to industries as footwear, apparel, bag, decoration, etc.
Generally, the material of these patterns are cardboard, kraft, PVC film, or thin plastic sheets, etc.
| Model of patterncutting machine | RZCAM5-0906A |
| Effective working area | 900mm×600mm |
| Cutting speed | 100-800mm/s |
| Cutting thickness | 0.5-2mm |
| Method of fixing material | Vacuum absorption Electrostatic absorption Adhesive adherence |
| Cutting tools | Vector knifes |
| Types of pen | Gel pen, Mark pen, ball pen, silver pen |
| Knife property | 8 different types of cutting property, complete cutting, kiss-cutting. |
| Motor | Servo Motor, Stepper Moter |
| Cutting accuracy | ±0.1mm |
| Machine resolution | 0.01mm |
| Software resolution | 0.025mm |
| Computer connecting | RS232 serial part, LPT, RJ45 network port |
| Memory | 4MB |
| Software program | HP-GL and GP-GL compatible mode |
| Human Machine Interface (HMI) | LCD display, Touch control button, Touch screen |
Characteristics of Paper Cutting Machine
1.Computerized. The machine receives data from the computer and run. Therefore, the accuracy is high and speed is high.
2.Compatible. The plotter supports any design software which can output files in DXF or PLT formats (Such as AutoCAD, AI, CorelDraw).
3.Competitive. Easy to modify old designs and make new ones, 3-5 times faster than manual cutting, these helps you to be more competitive.
4.Userfriendly. This cutting machine was designed easy to install, set-up and operate. Within a 3-day training, a new operator can master the machine quite well.

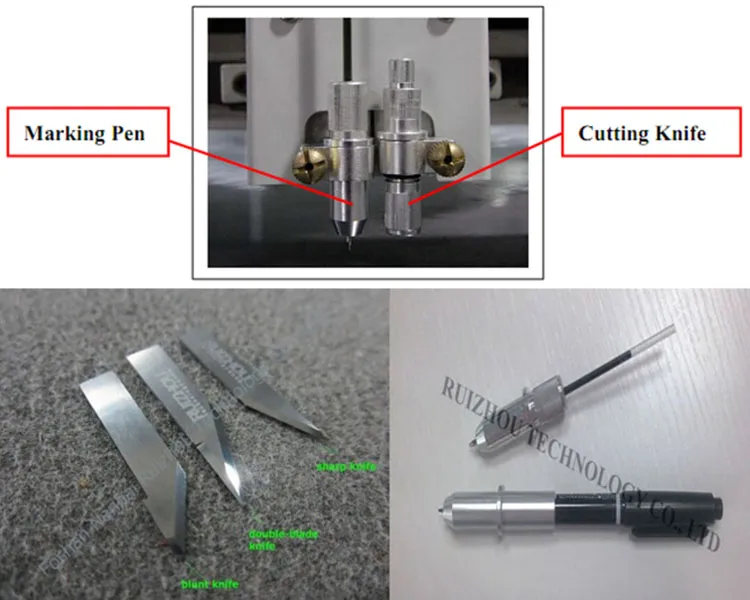

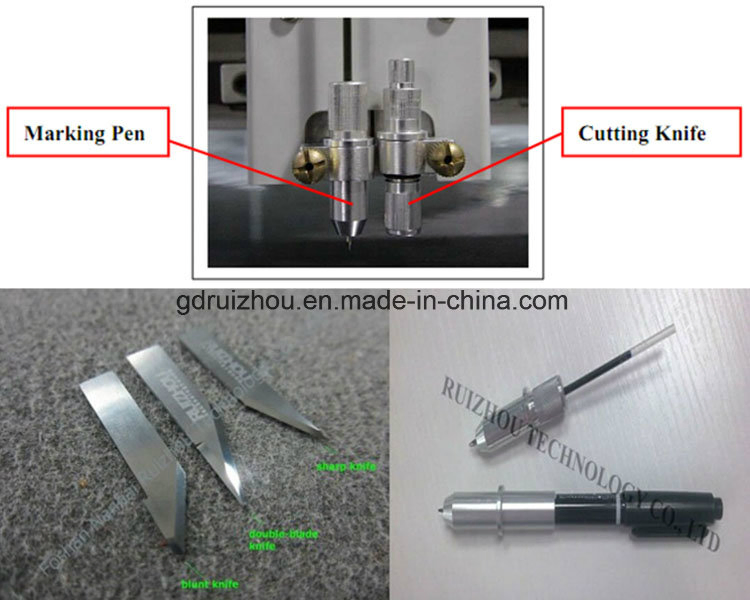

Tools and Functions of Paper Cutting Machine
Functions
1.Cutting. The machine cuts with knife.
2.Drawing. A pen holder is also installed on the machine, which can be used for marking, drawing or noting.
3.Pressing. A sapecial needle can also be optional for pressing folding lines. It is only needed when the material is thin plastic
sheet.

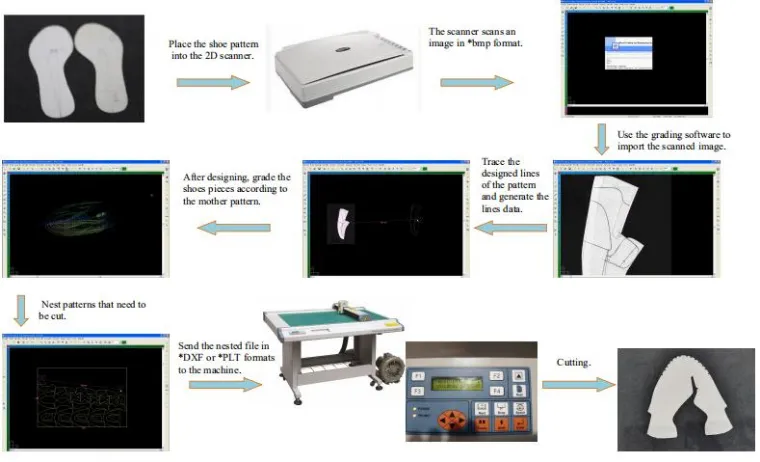

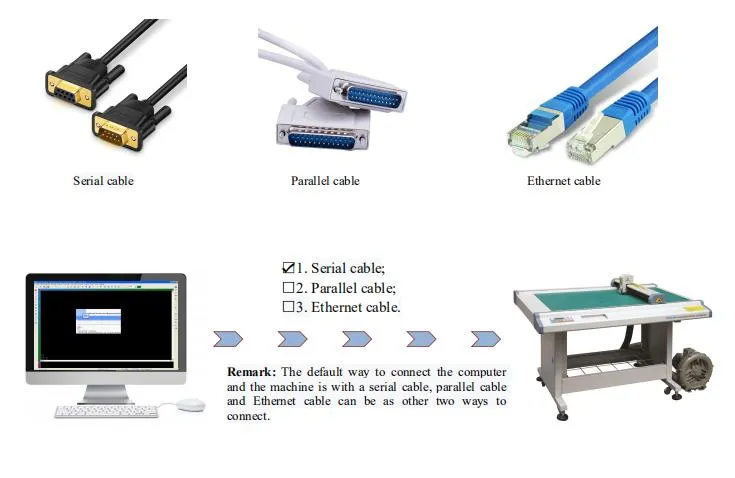

Connection between the computer and machine

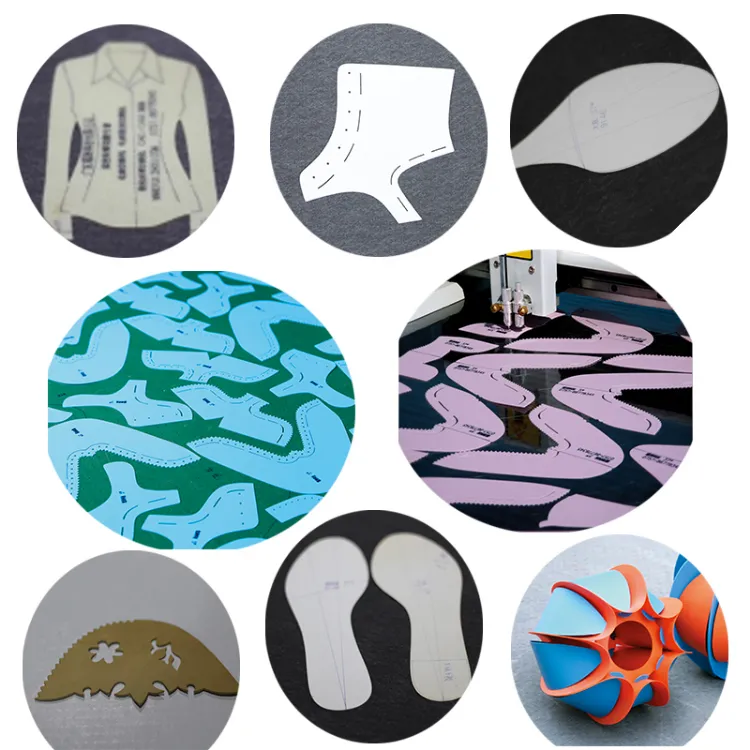

Cutting Samples of Paper Cutting Machine
Feature:
1.RUIZHOU CNC cutting machines uses imported American CPU and precise electronic components, meeting world leading level in terms of machines stability and operability.
2. Self-developed built in CNC control system with full intellectual property rights. Constant upgrade on the control system. Unique and user-friendly.
3. Ruizhou cutters is compatible with generic CAD systems. It allows cutting page by page. And the file format can be DXF, PLT and any CAD software with HPGL format.
4. Eight groups of knives and pen arrangement provide cutting solutions for different material with different thickness.
5. RUIZHOU CNC cutting machine uses imported linear guide-rail, famous driving motors.The running speed is very fast and the cutting result is accurate and smooth. It's applicable for high-precision cutting for electronic component. And the repeat-ability of cutting result can reach down to zero error.
Packaging of Our CNC Cutting Machines

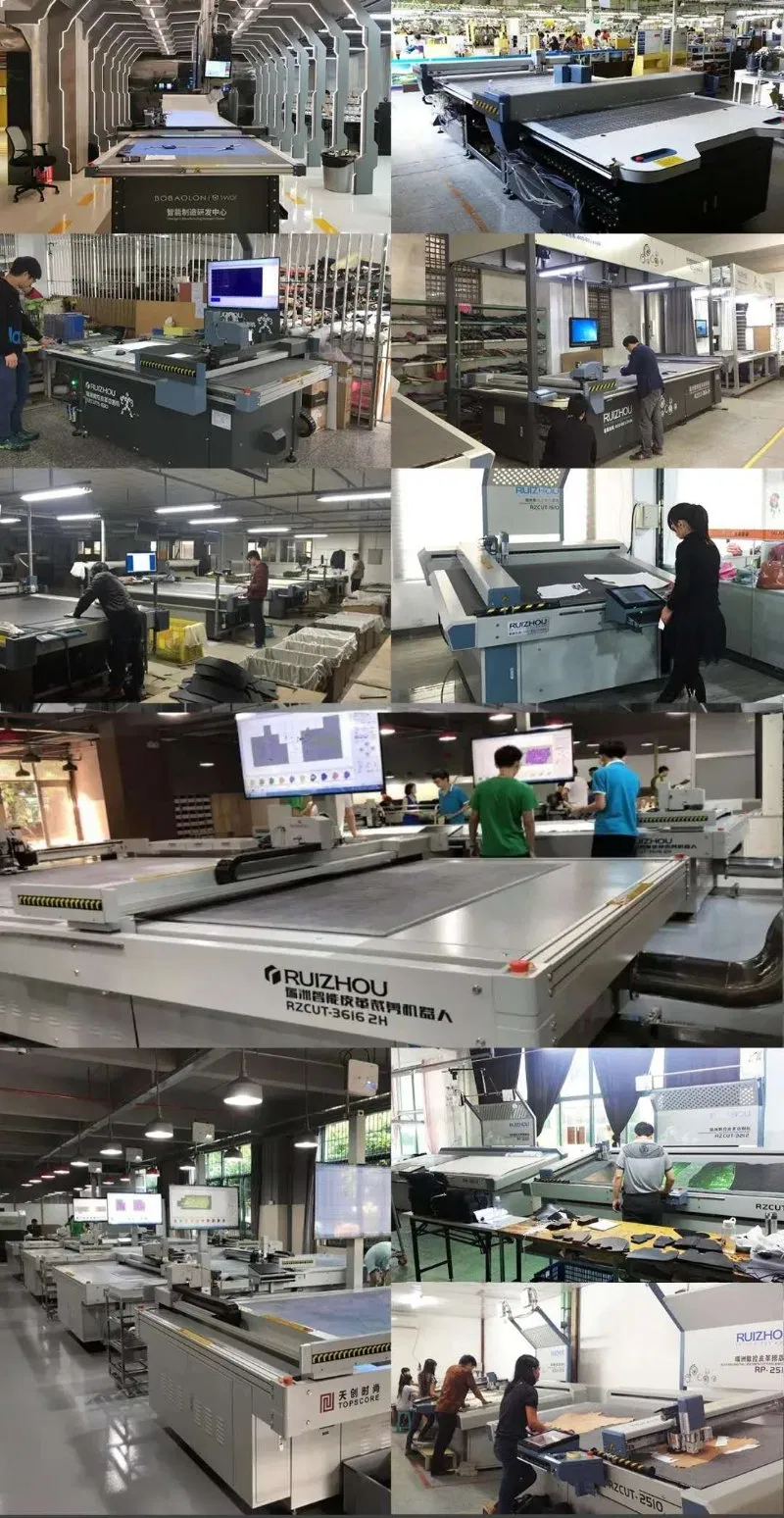

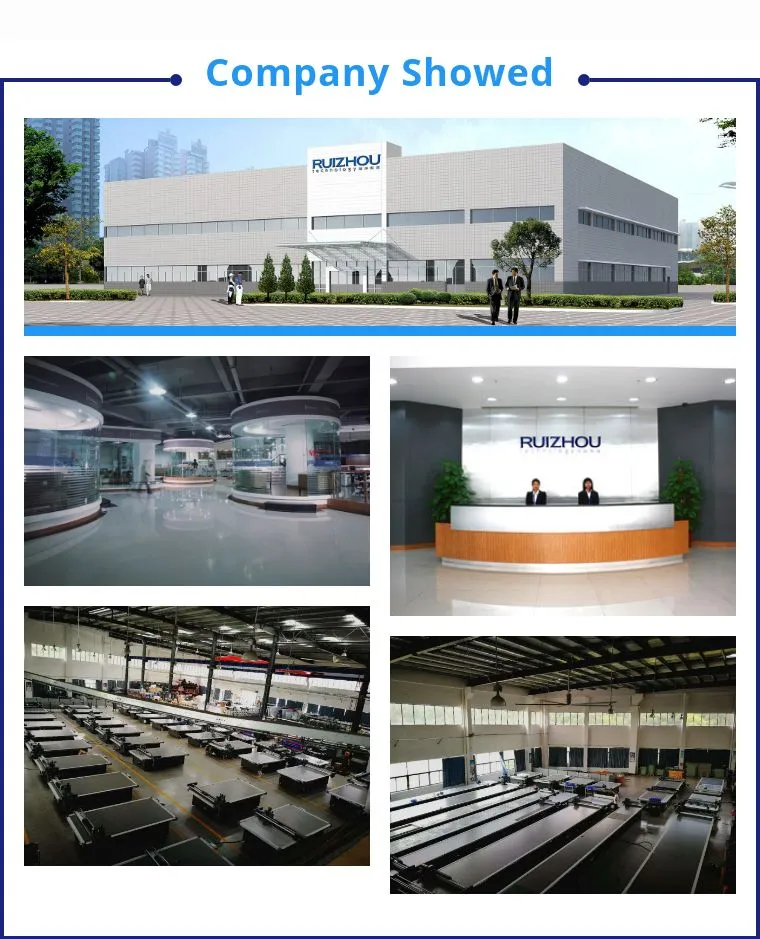

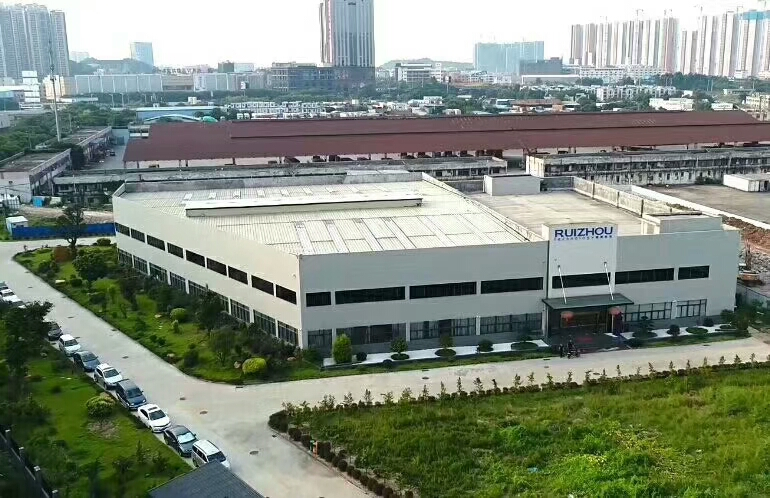

Factory Show
Guangdong RUIZHOU Technology Co., Ltd is a national Torch Plan High-tech Enterprise, specialized in the research, development, sales and technique service of soft material intelligent CNC cutting machine.
RUIZHOU Technology has been dedicated in supplying informationized and automatic design and whole solution of intelligent production for a broad community of soft material manufacturers, which achieves the realization of the confluence of informatization and industrialization.
Certifications
Fair
Related Products of Our Paper Cutting Machine
| Item Number | Working Area |
| RZCAM5-0906A | 900X600MM |
| RZCAM5-1209A | 1200X900MM |
| RZCAM5-1509A | 1500X900MM |
| RZCAM5-1512A | 1500X1200M |
Warranty & afert sale service
1.One year guarantee for whole machine except of consumables such as knife blade, mat.
2. A free training at our company
3. 24 hours technical support
4. Calling or door-to-door service
5. User friendly English software, usual manual and videos.
