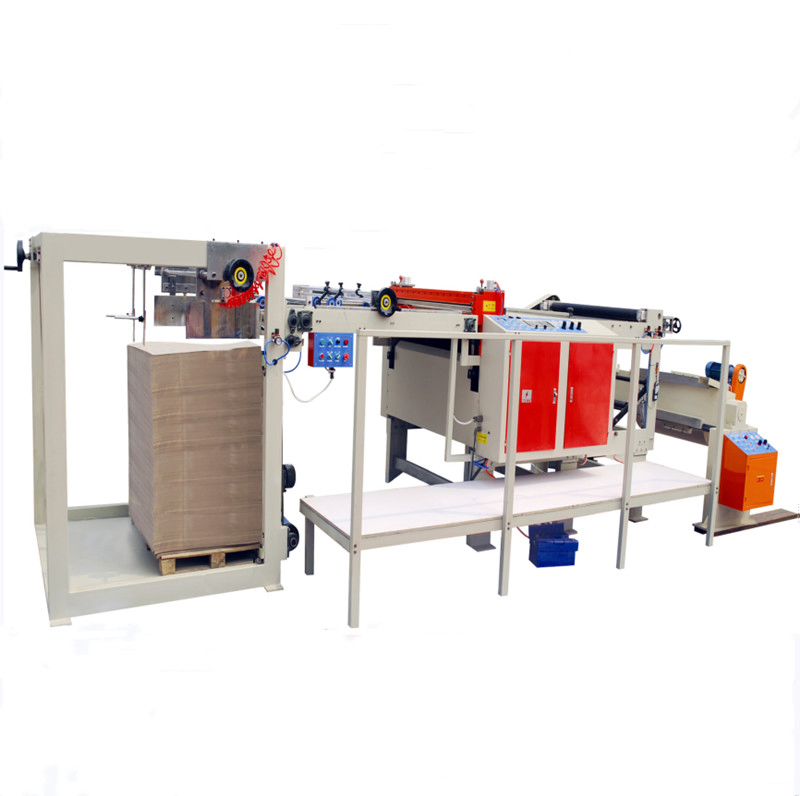

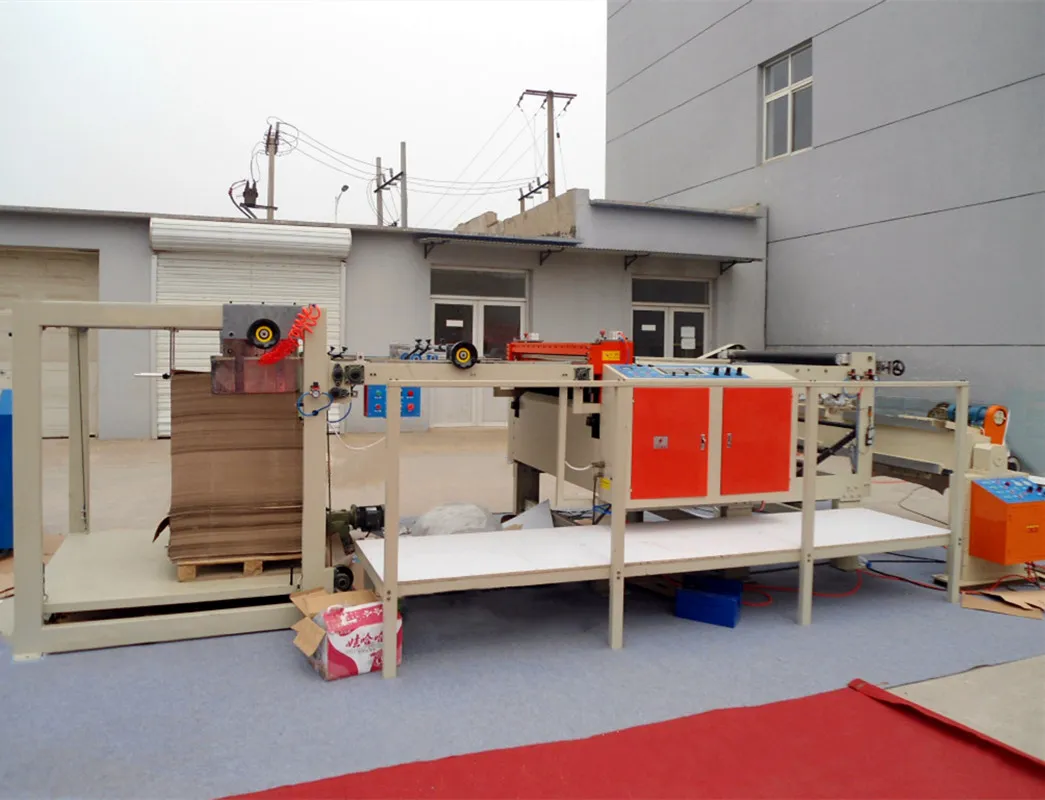

Automatic Rell Paper Sheet Cutter Stacker

Product Description

automatic paper roll to sheet cutter machine
Main description:

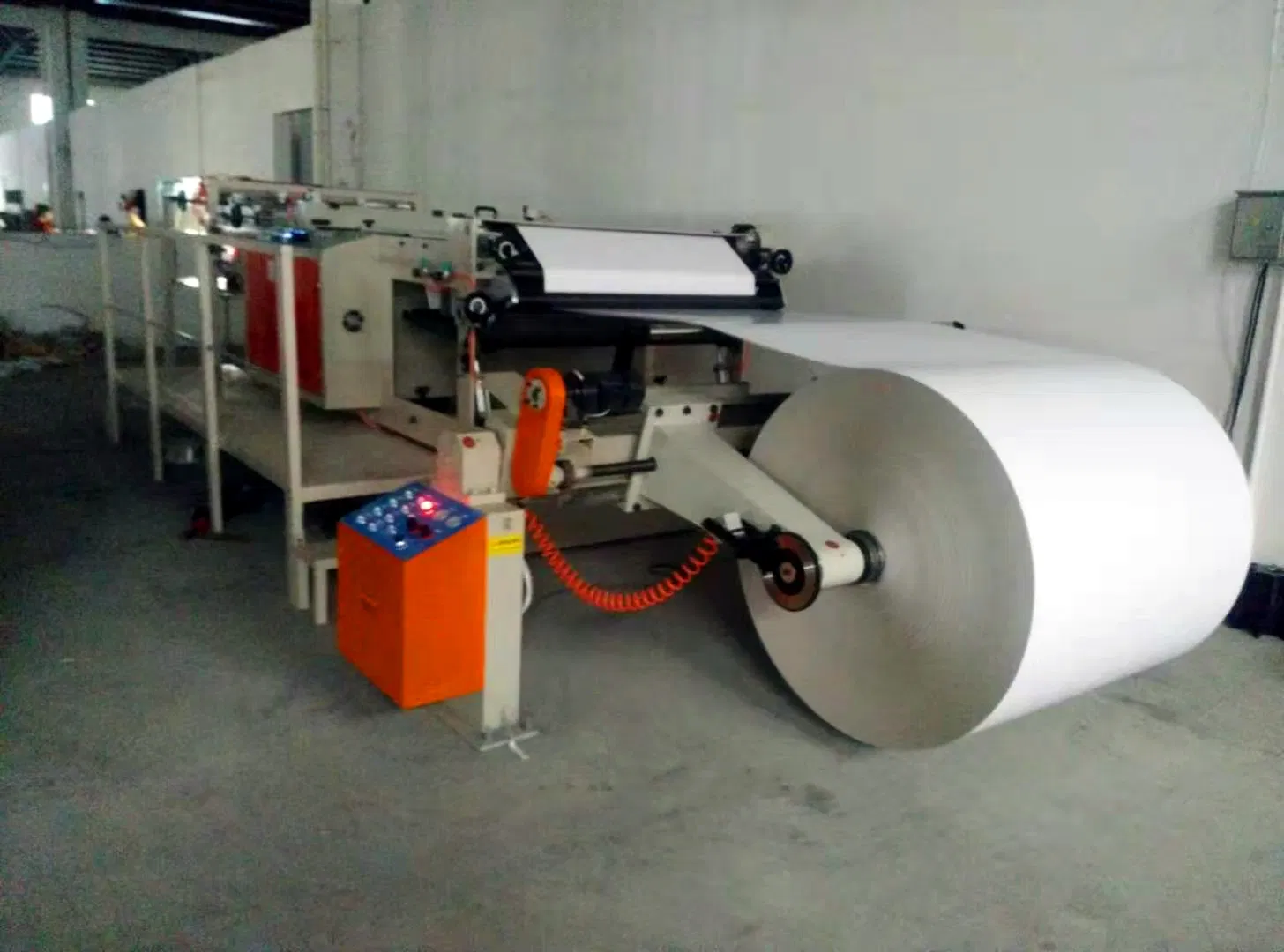

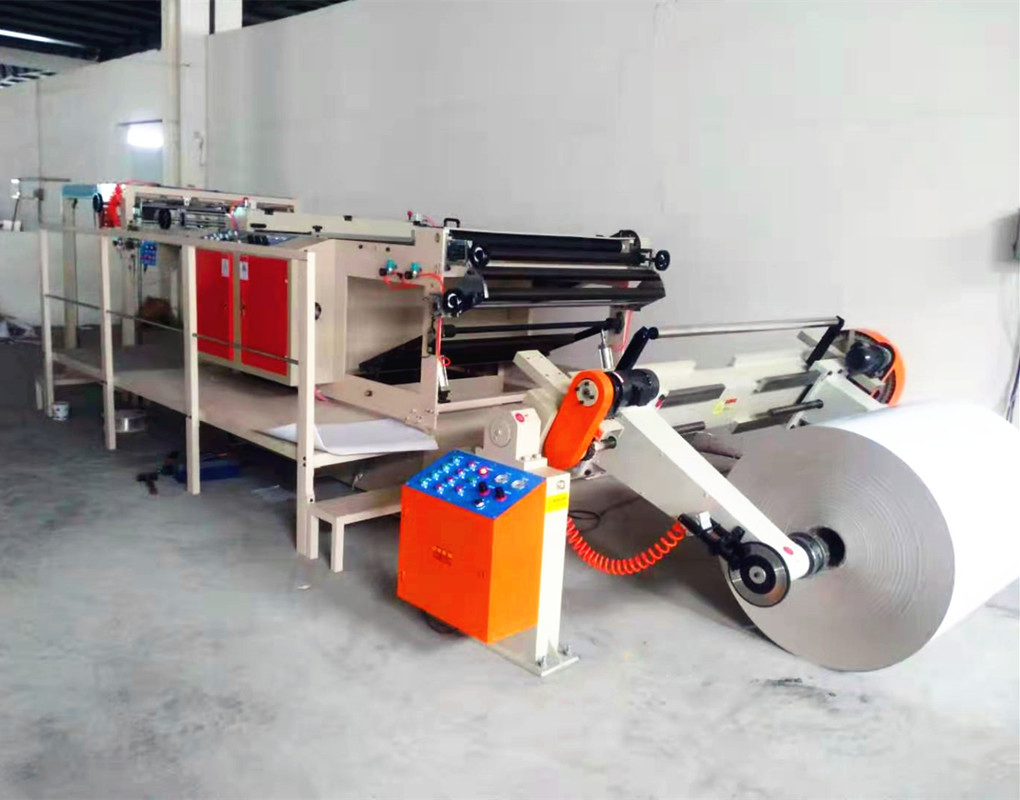

Using electric shaftless mill roll stand to support the paper roll,could support one paper roll on the loading arm,motor drive,pneumatic brake,max width of the paper 1400mm,max loading weight 1500kg.
Cutting length of 400-1300 mm;
The blade adopts imported high-speed front steel.
The main motor adopts the Japanese Yaskawa 3 kW system
The paper guide shaft is made of aluminum with surface hardening treatment.

Main specifications:

Model	1400
Max paper feeding width	1400mm
Processed paper thickness	120-400gsm
Cutting length	400-1300mm
Machine speed	78m/min
Max mill roll stand load	1500kg
Max stacking height	1200mm
Stacking width	400-1400mm
Stacking length	400-1400mm
Total power	8KW
Power supply	380v50hz/Customized
Machine occupancy	8*2.5m(mill roll stand need width3.5m)

Why choose us:
We are professional manufacturer of carton package machinery with more than 20 years production experience. In the same industry in China, we took the lead through the ISO9001 certification,we also passed SGS and BV certification,as strict product quality standard,our Products sell well in more than 20 provinces nationwide and abroad, professional technicians can accept OEM according to customer's details needs.
