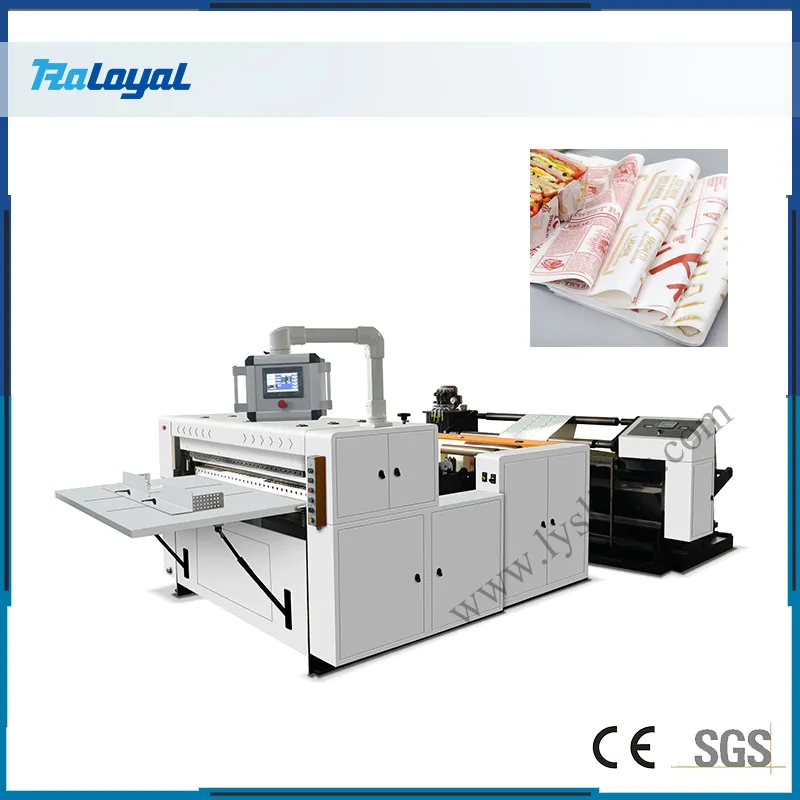

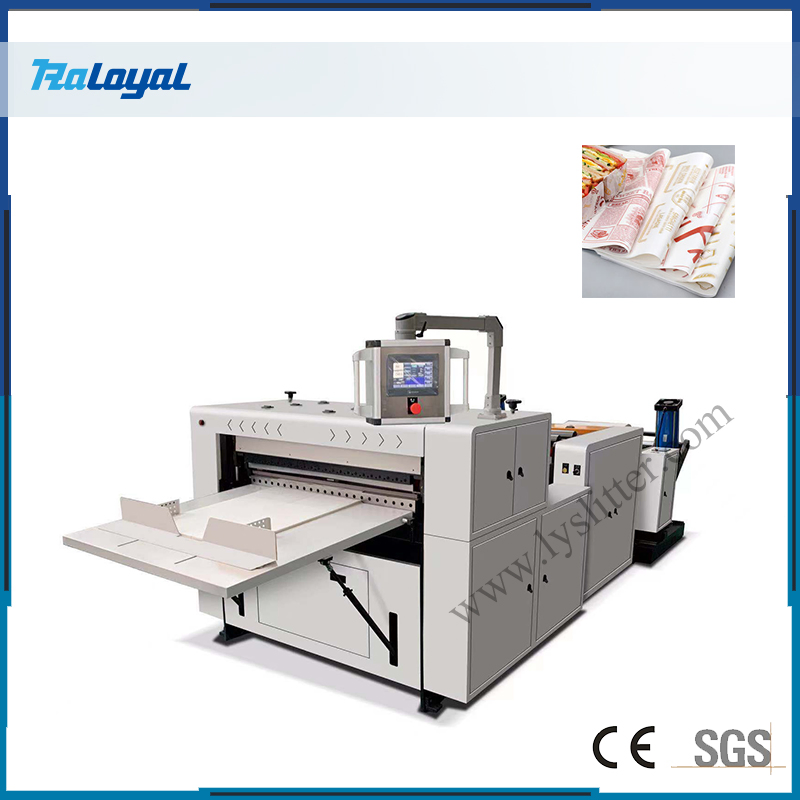

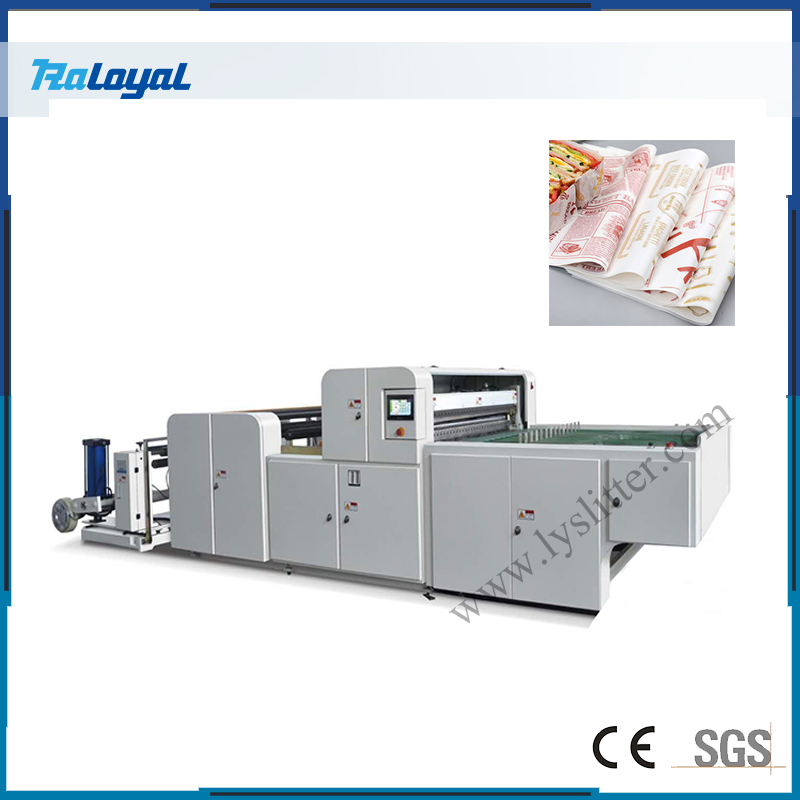

Product Description

Technical parameter

1	Machine model	LY-C1100
2	Max unwinding diameter	φ1500mm
3	Reference weight of cutting paper	30~500g
4	Max cut width	1000mm
5	Cutting length	20-2000mm
6	Cutting speed	20-150times/min
7	Cutting precision	±0.2mm
8	Total power	6.5kw
9	Machine weight	2000kg
10	Machine dimension	4500×2000×1400mm

Use

This machine is suitable for cutting foodwrap paper, humburger paper, sandwich packing paper, etc. This machine adopts servo motor to control fixed length cutting. The transmission system adopts centralized control such as pneumatic and photoelectric sensors. This machine integrates light, electricity and gas, easy to operate, high cutting precision, mechanical stability, and low noise. (Pneumatic feeding is optional) Motor frequency control, automatic counting, alarm stop, automatic adjustment of magnetic powder taper tension function. It is currently the ideal equipment for cutting large-scale coils with high quality in China.

Characteristic

PANASONIC PLC control, Touch screen on human machine interface with high resolution colors and easy operator controls.
Automatic counting, automatic length fixing, alarm stopping, automatic tension control and other functions
Automatic loading control cylinder system
The frame adopts a 16mm steel plate structure, the cross-cutting tool holder adopts a heavy casting structure, and the guide roller adopts a dynamic balance treatment aluminum alloy guide roller
Drive positioning traction adopts a servo system. The drive shaft adopts a steel wire structure. The feeding and traction method is that the motor drives the sprocket to drive the traction rubber shaft. The receiving platform uses the front conveyor table to feed.
This machine is an ideal large-scale coil cross-cutting equipment, with high precision, fast speed and smooth material collection.

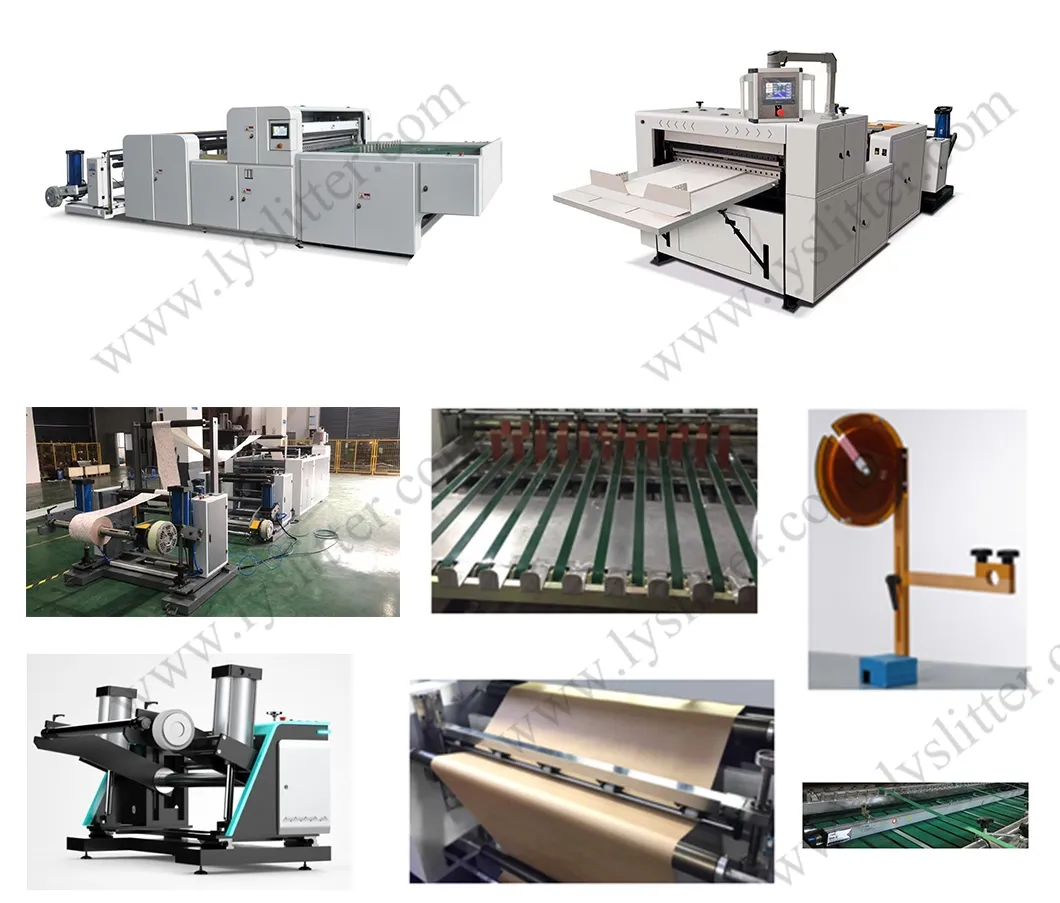

More details

Customers from all over the world

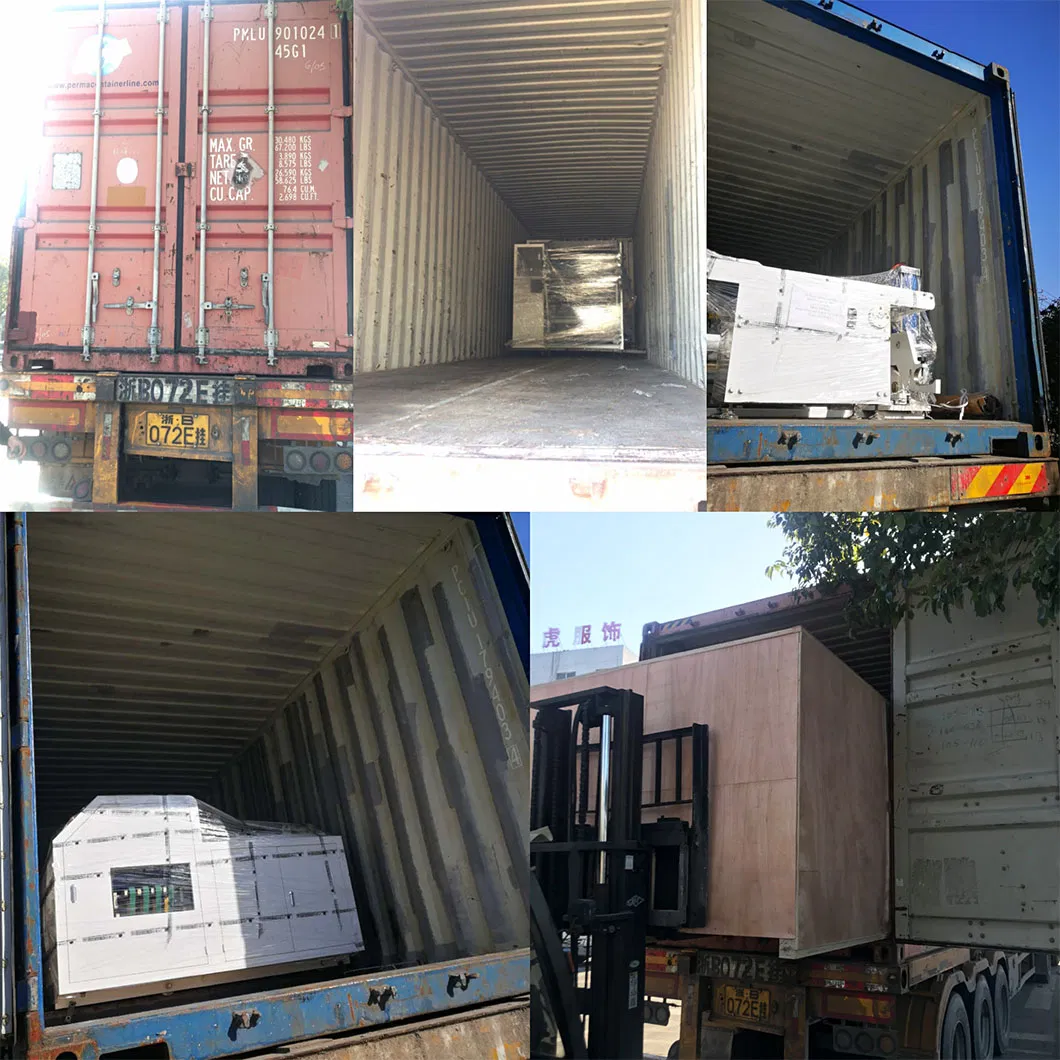

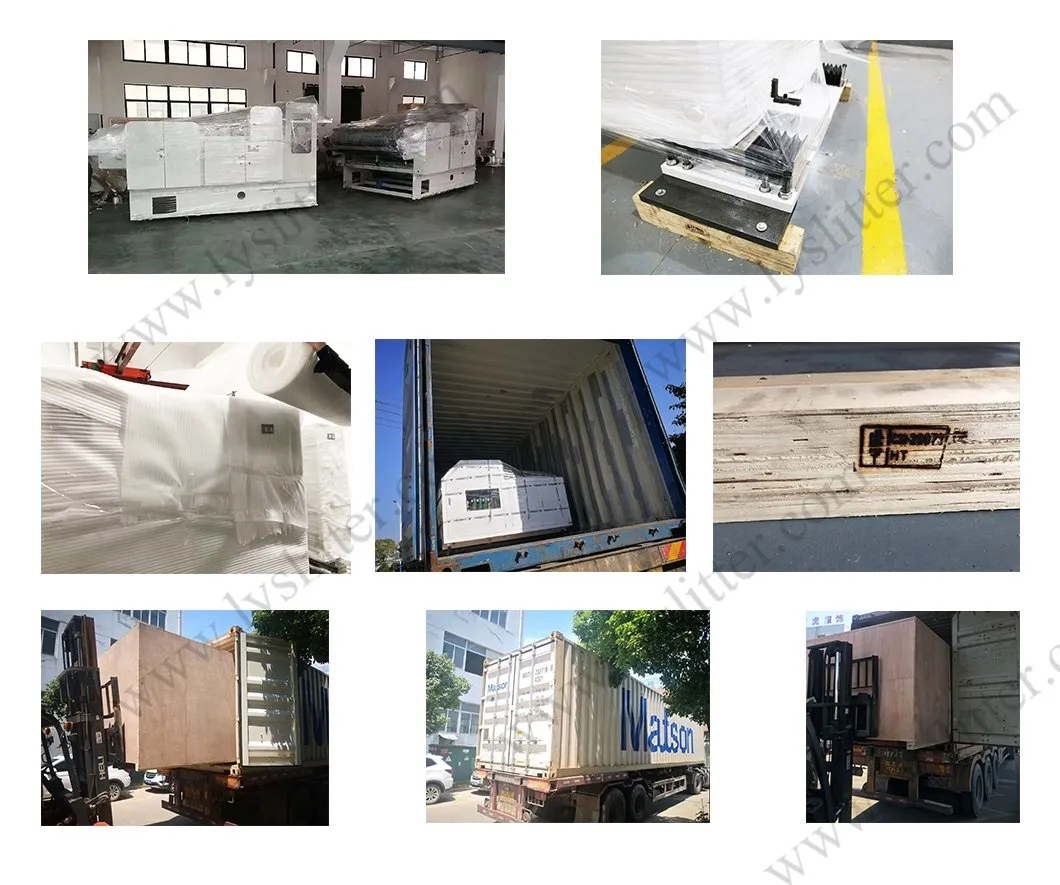

Packing and delivery
High-Speed Sandwiches Wrap Paper Hamburger Paper Roll to Sheet Cutting Machine

Certificate

Our service

How about your payment term? What kind of payment term you can accept?
As usual, the payment term is TT,30% deposit, the balance after machine testing and before delivery; also, the LC at sight is acceptable for us.

Under this hard situation, If I buy your machine, how to install and operate the machine?
Our machine designed has considered this point, so our machine sending is as the whole set, no need installs anymore.
A video will be taking for you for the power supply cable connection.
The operation video took as an English subtitle to you for clear guidance.

How about your guarantee?
12 months guarantee, lifelong time technic maintenance and support
24 hours feedback when receiving the client writing militance proposal.

How about the spare parts?
Spare parts qty is sufficient for you with machine together;
The price of spare parts exceeding the guarantee would be at the lowest ex-factory price for you.
