Automatic A4 Paper Sheet Cutting Machine
Use:This machine is adopted to vertical cut and horizontal cut of the color printing complex film and paper rolling materials.The workable paper thickness is from 50-1000gsm.Main Parameters for QZJ-1400: Model of cutting paper The up and down knife synchro-fly cutting Thickness of cutting paper 60 t......
Send Inquiry
Product Description
Use:
Paper roll to sheet cutting machine details:

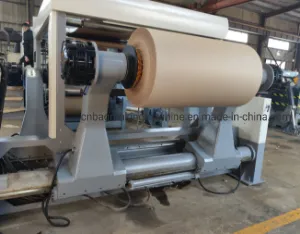

Unwinder can afford 3Tons paper roll:
This machine is adopted to vertical cut and horizontal cut of the color printing complex film and paper rolling materials.The workable paper thickness is from 50-1000gsm.
Main Parameters for QZJ-1400:
| Model of cutting paper | The up and down knife synchro-fly cutting |
| Thickness of cutting paper | 60 to 1000GSM |
| Max. scroll diameter | 1900mm (74") |
| Web width range | 400mm-1400mm |
| Cutting length Range | 400-1600mm |
| The format of slitting | 2 sheets |
| Cutting precision | ±0.2mm |
| Max. cutting speed | 300cuts/min |
| Max. cutting meter speed | 300m/min |
| Paper piling height | 1700mm |
| Power consumption | 380V/220V 50Hz/60Hz |
| Machine Dimension | 13500x4800x2100mm |
| Machine Gross Weight | 16Ton |
Paper roll to sheet cutting machine details:
Unwinder can afford 3Tons paper roll:
