Product Description

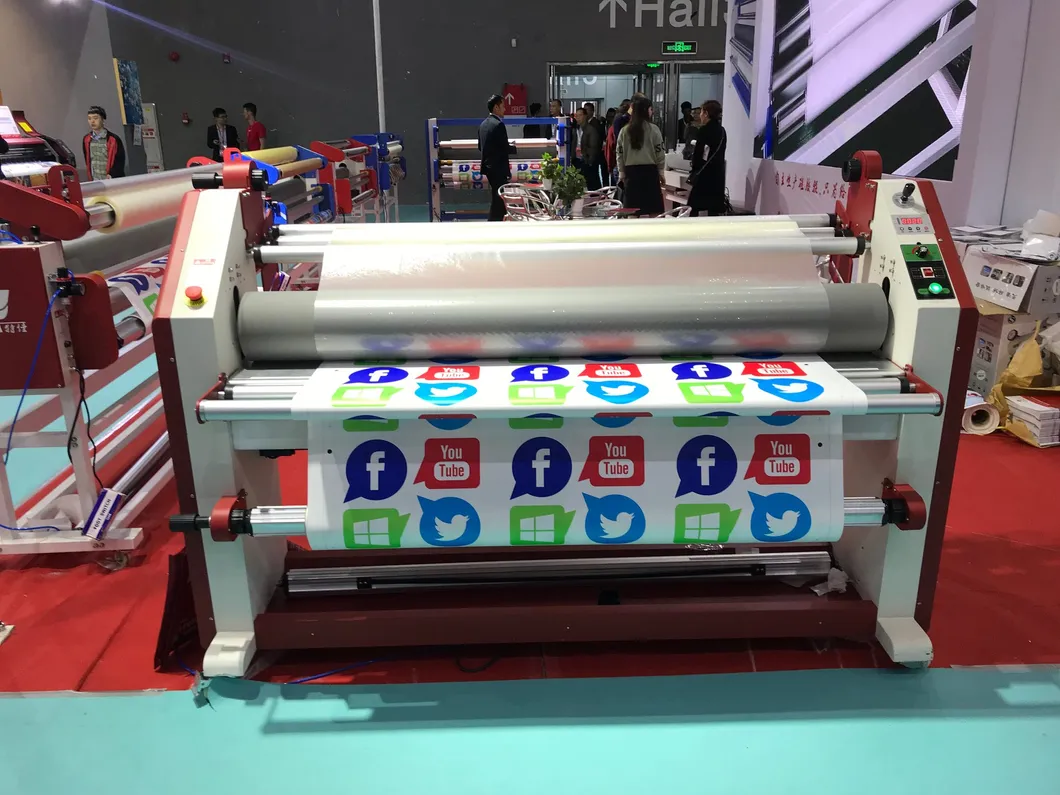

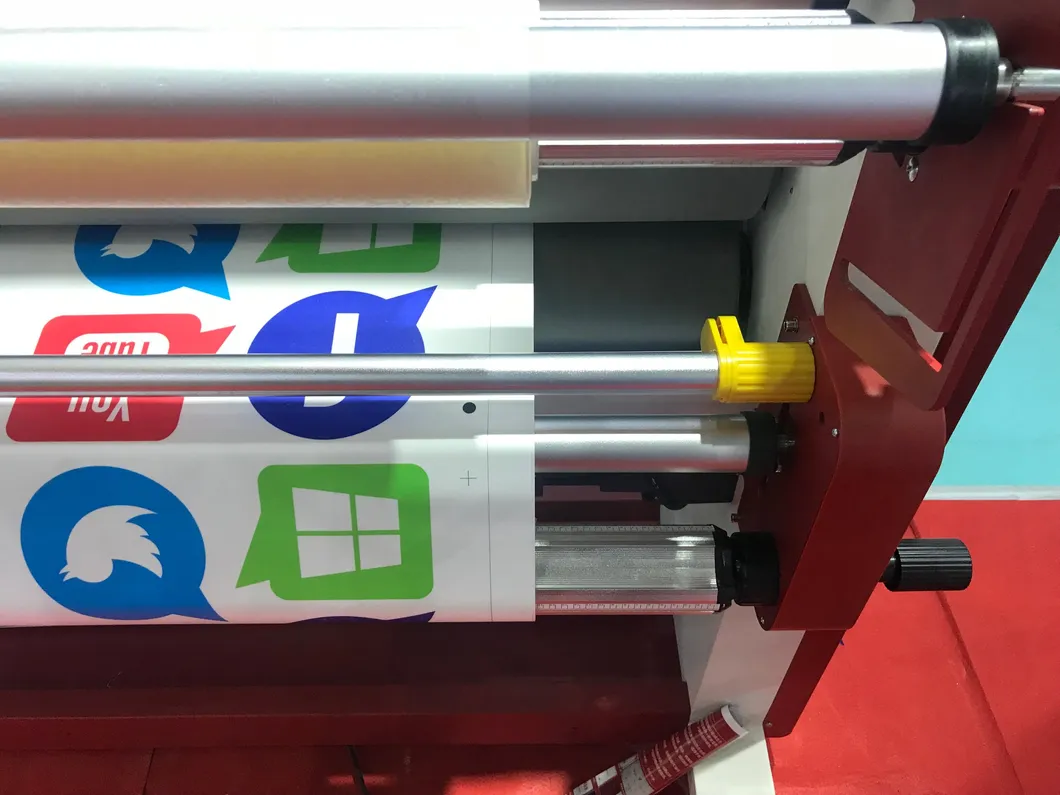

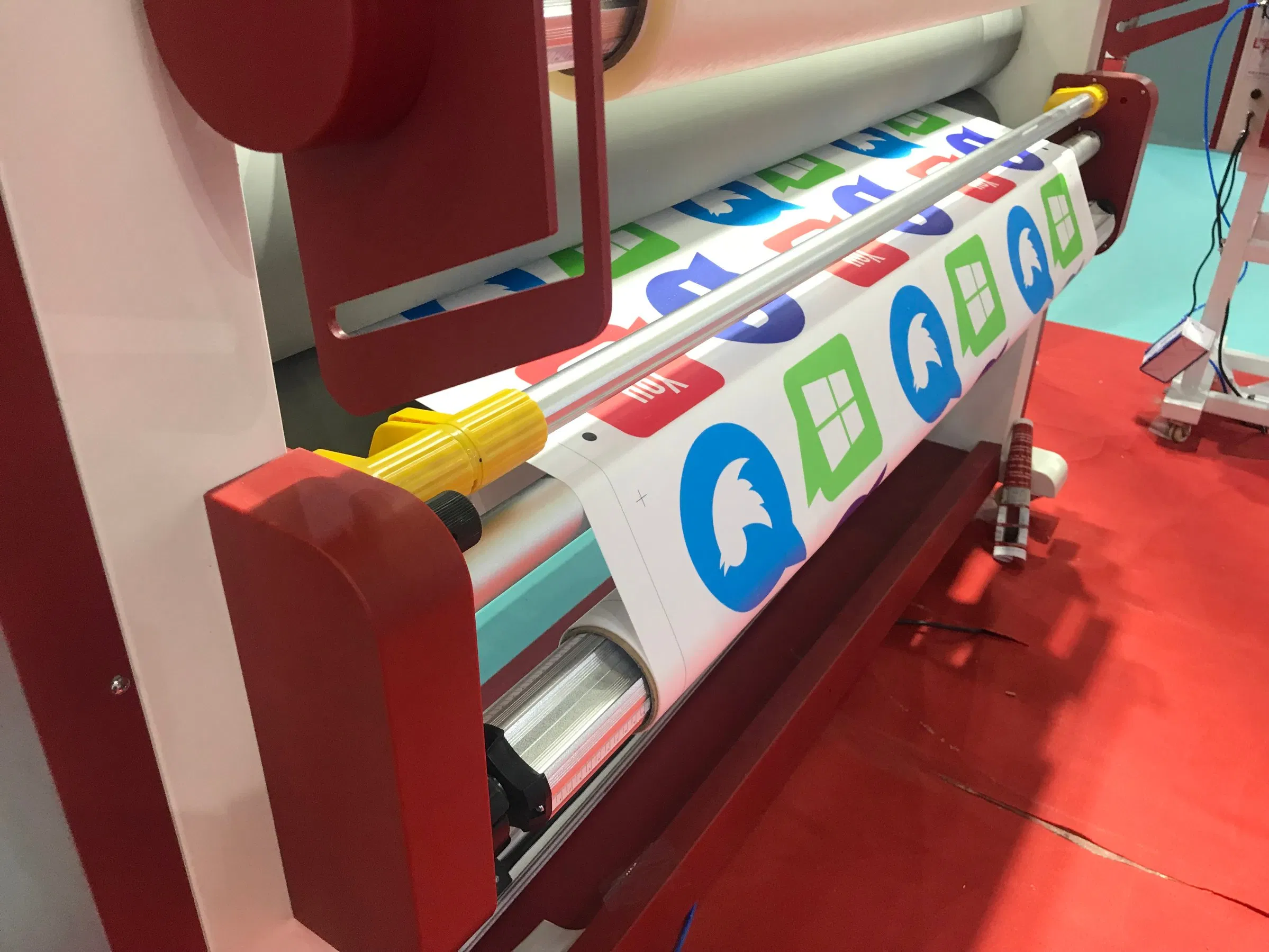

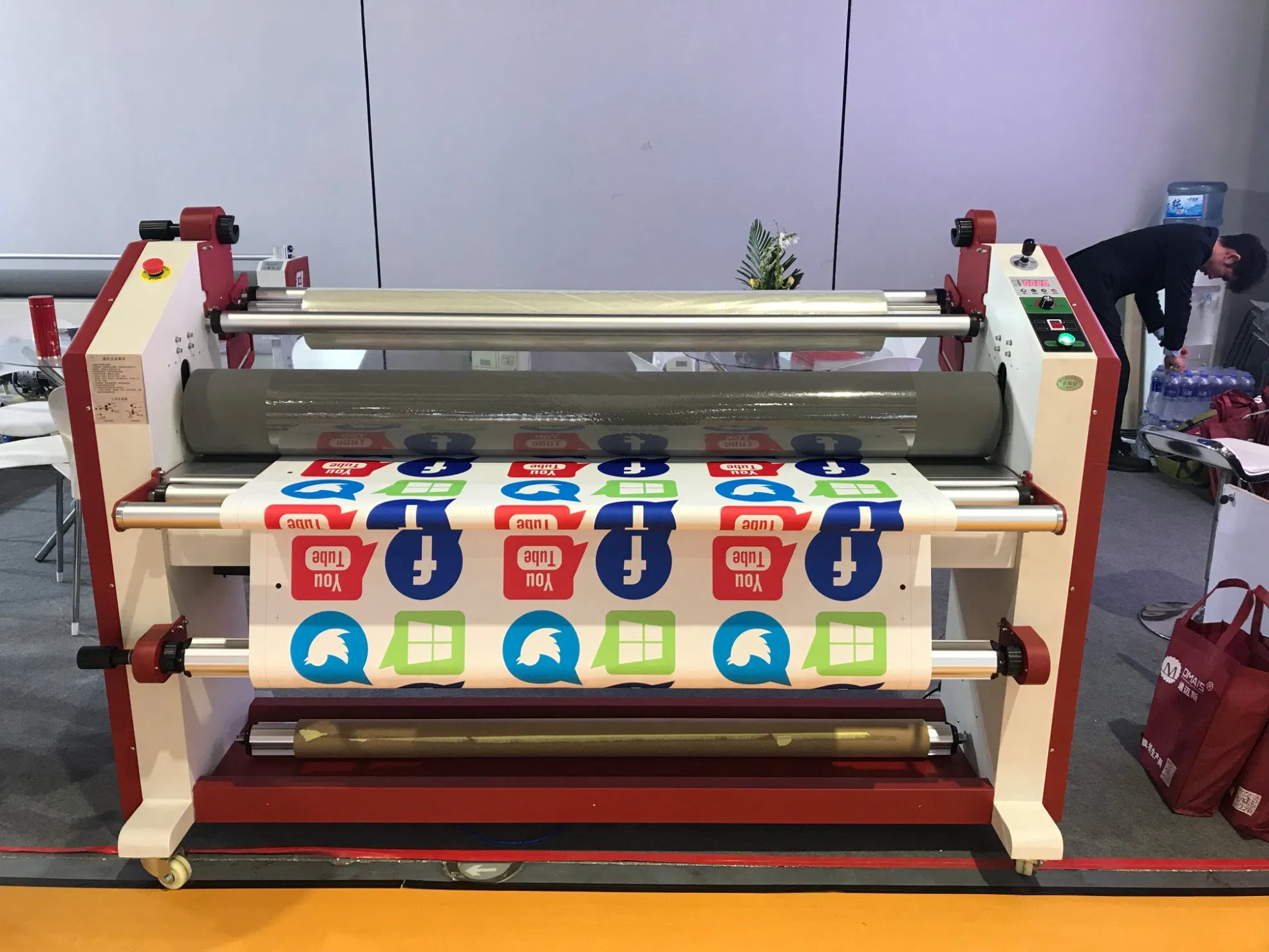

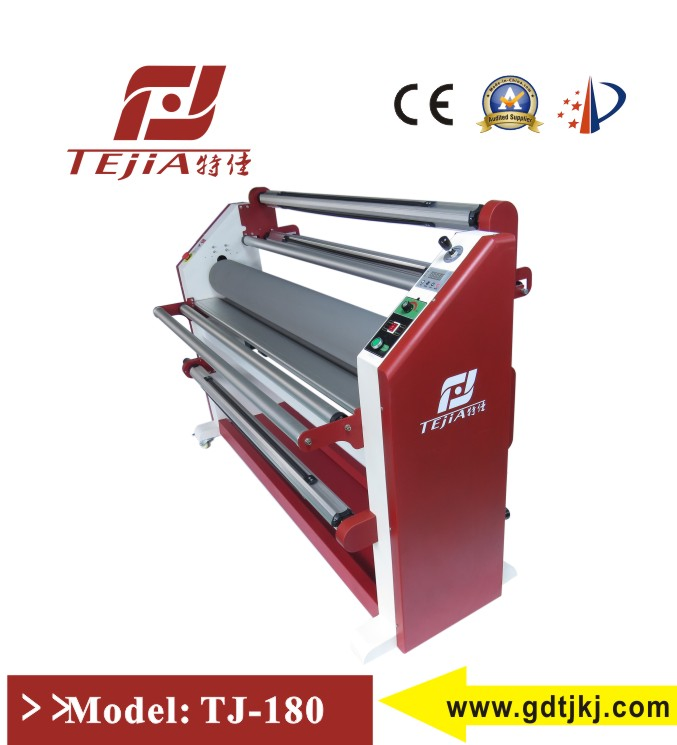

TJ-180 Best-Selling Model with 1600 mm Cold Laminator

Independent R&D of Silicone Roller, Only The Best for You------DMAIS

Technical Parameters

Model Number	TJ-180	Speed Gear Controling	Variable
Nominal Voltage	110V/220V	Maximum roll film OD	200mm
Power	200W	The diameter specification of Roll film	3 inches
Heating Power	1800W	The raise height of roller	30mm
Frequency Respons	50HZ-60HZ	Method of pressure adjustment	Pneumatic
Operating Temperature	0ºC-60ºC	Automatically uncovering film androlling body paper equipment	Motor
Scope Of Suitable Film Tthickness	10-250μm	Foot-propelled switch	Yes
Warm-up Time	0-10/Min	Diameter of roller	180mm
Laminating Width	≤1580mm	Weight	330kg
Laminating speed	0-30m/Min	Product Size(mm)	1950×770×1180
Laminating Thickness	28mm	Packing Size(mm)	2030×820×1470

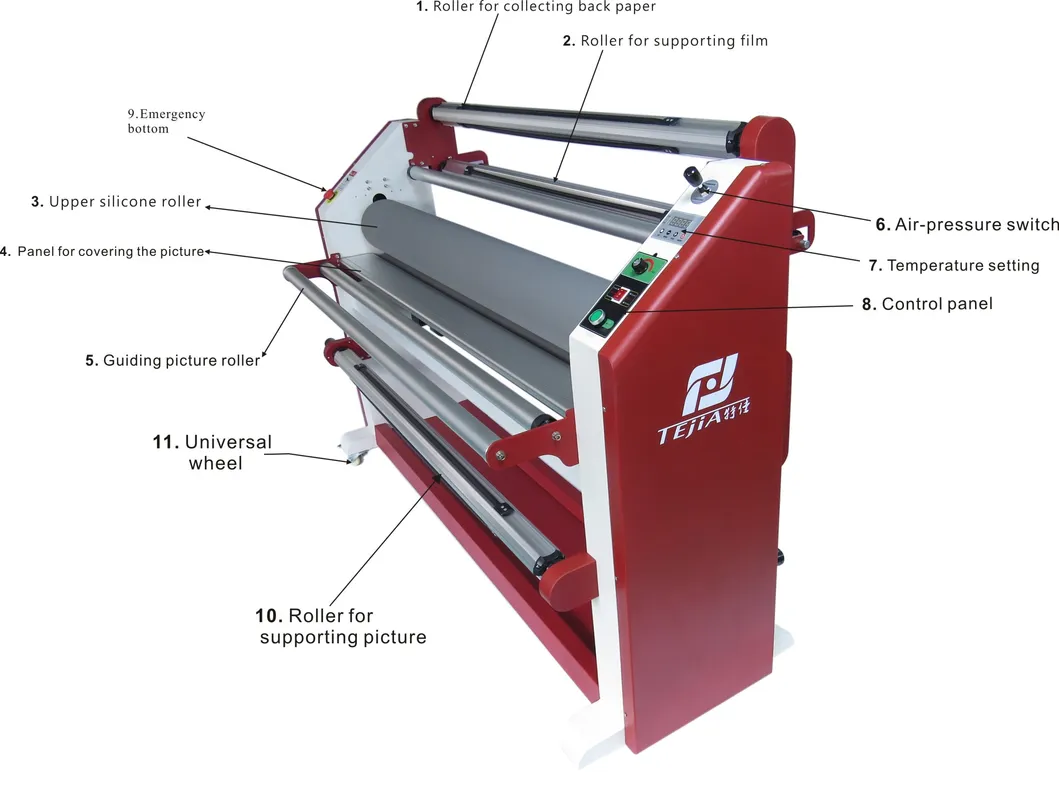

Equipment Features
1.Unique method of putting film from the back, easily operate.
2.Unilateral linkage , up and down easily.
3.Three laminating ways: auto/foot control/manual.
4.Stepless speed regulation.
5.With reversing function.
6. Uncovering backing paper and finishing products automatically.
7. Only need one person to operate, save cost.
8.Heating to 60ºC to avoid bubble thoroughly.
9. High efficiency and high yield of laminating, whole film of 50m don't bevel.
10. Film and paper tightness-degree system make the cold lamination have good tension, reduce the risk of laminating fold.
11.Infrared ray control temperature, much precise to control temperature.
