Tj -170 Cold Hot Thermal Automatics LCD Display Rolls Wide Format Cardboard Laminator Machines
Tj-170 Cold Hot Thermal Automatics LCD Display Rolls Wide Format Cardboard Laminator MachinesIndependent R&D of Silicone Roller, Only The Best for You------DMAISTechnical ParametersModel NumberTJ-170Speed Gear ControlingVariableNominal Voltage110V/220VMaximum roll film OD200mmPower200WThe diamet......
Send Inquiry
Product Description

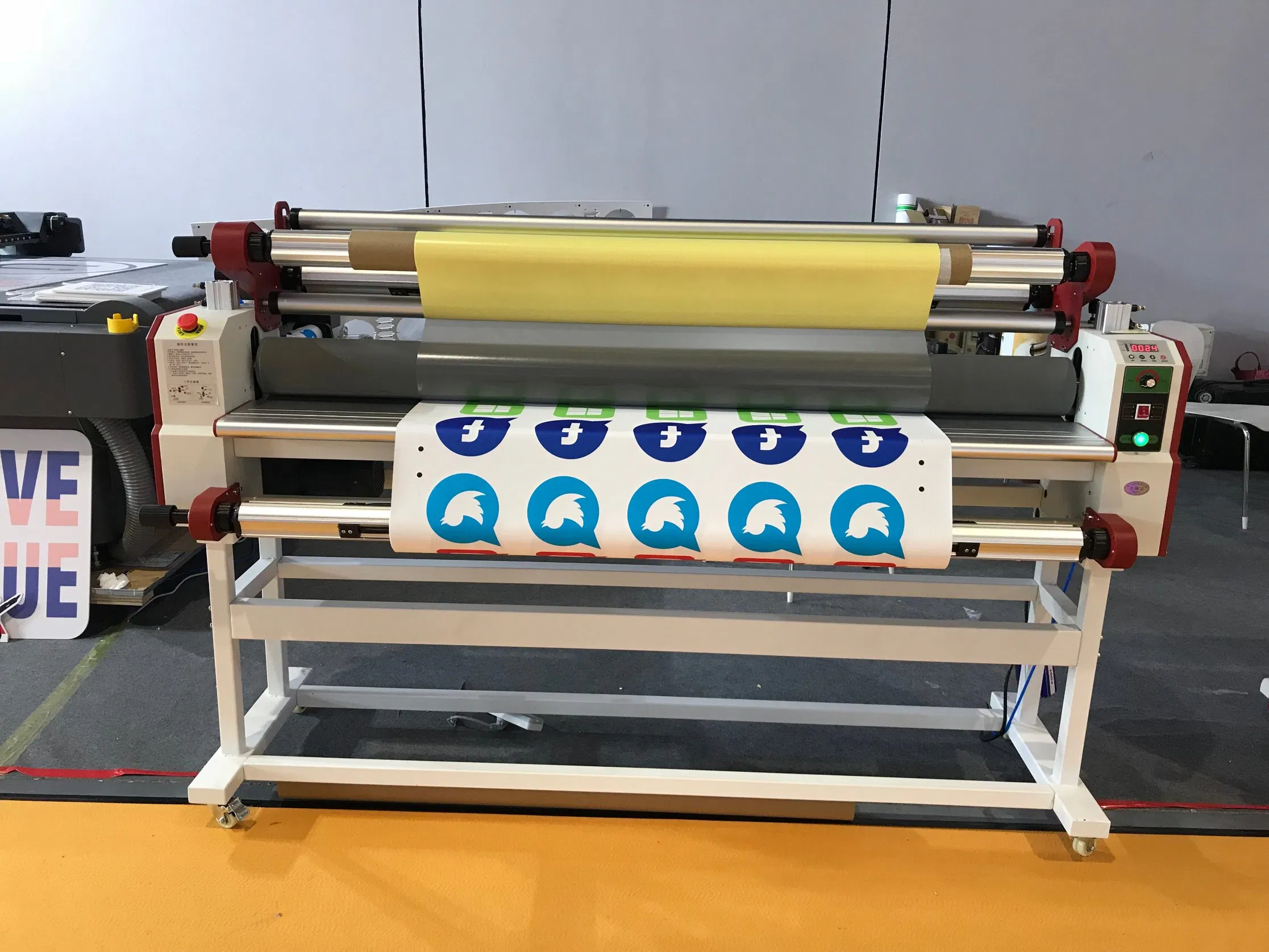

Tj-170 Cold Hot Thermal Automatics LCD Display Rolls Wide Format Cardboard Laminator Machines
Independent R&D of Silicone Roller, Only The Best for You------DMAIS
Technical Parameters
Equipment Features
1.Unique method of putting film from the back, easily operate.
2.Unilateral linkage , up and down easily.
3.Three laminating ways: auto/foot control/manual.
4.Stepless speed regulation.
5.With reversing function.
6. Uncovering backing paper and finishing products automatically.
7. Only need one person to operate, save cost.
8.Heating to 60ºC to avoid bubble thoroughly.
9. High efficiency and high yield of laminating, whole film of 50m don't bevel.
10. Film and paper tightness-degree system make the cold lamination have good tension, reduce the risk of laminating fold.
11.Infrared ray control temperature, much precise to control temperature.
Independent R&D of Silicone Roller, Only The Best for You------DMAIS
Technical Parameters
| Model Number | TJ-170 | Speed Gear Controling | Variable |
| Nominal Voltage | 110V/220V | Maximum roll film OD | 200mm |
| Power | 200W | The diameter specification of Roll film | 3 inches |
| Heating Power | 1500W | The raise height of rolle | 30mm |
| Frequency Respons | 50HZ-60HZ | Method of pressure adjustment | Pneumatic |
| Operating Temperature | 0ºC-60ºC | Automatically uncovering film androlling body paper equipment | Motor |
| Scope Of Suitable Film Tthickness | 10-250μm | Foot-propelled switch | Yes |
| Warm-up Time | 0-10/Min | Diameter of roller | 130mm |
| Laminating Width | ≤1650mm | Weight | 260kg |
| Laminating speed | 0-10m/Min | Product Size(mm) | 2000*660*1300mm |
| Laminating Thickness | 28mm | Packing Size(mm) | 2115*720*880mm |
Equipment Features
1.Unique method of putting film from the back, easily operate.
2.Unilateral linkage , up and down easily.
3.Three laminating ways: auto/foot control/manual.
4.Stepless speed regulation.
5.With reversing function.
6. Uncovering backing paper and finishing products automatically.
7. Only need one person to operate, save cost.
8.Heating to 60ºC to avoid bubble thoroughly.
9. High efficiency and high yield of laminating, whole film of 50m don't bevel.
10. Film and paper tightness-degree system make the cold lamination have good tension, reduce the risk of laminating fold.
11.Infrared ray control temperature, much precise to control temperature.
