Supu Popular High Speed and Big Press Pressure Roll Film Lamination Machine Hl 520ya
SUPU Popular High Speed And Big Press Pressure Roll Film Lamination Machine HL 520YA The laminator is widely used by medium and small enterprises,Copy center and schools . HY-520YA is semi-automatic laminator machine.1.It have large enrance width 520MM to meet more needs;2. Infrared heating,Int......
Send Inquiry
Product Description

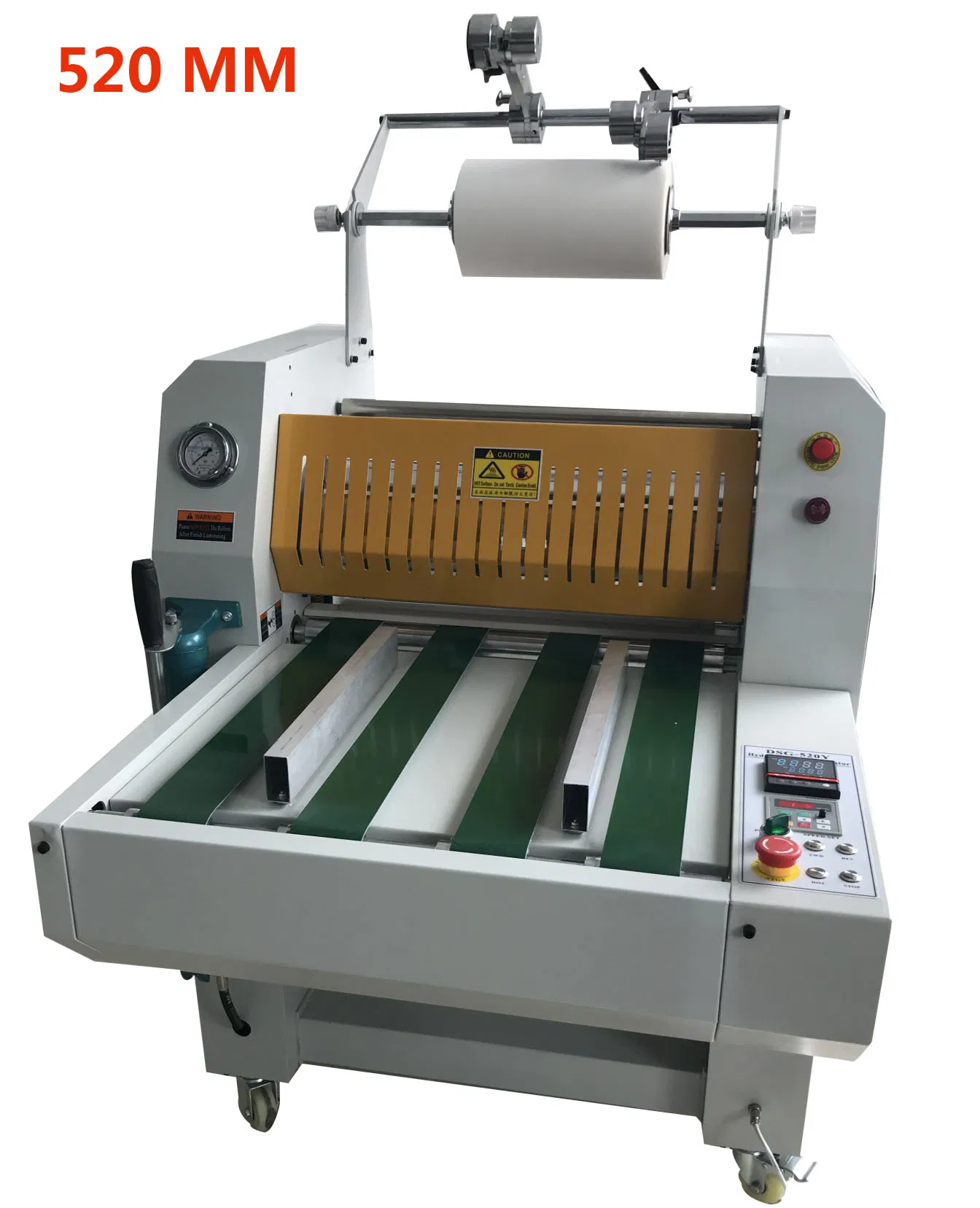

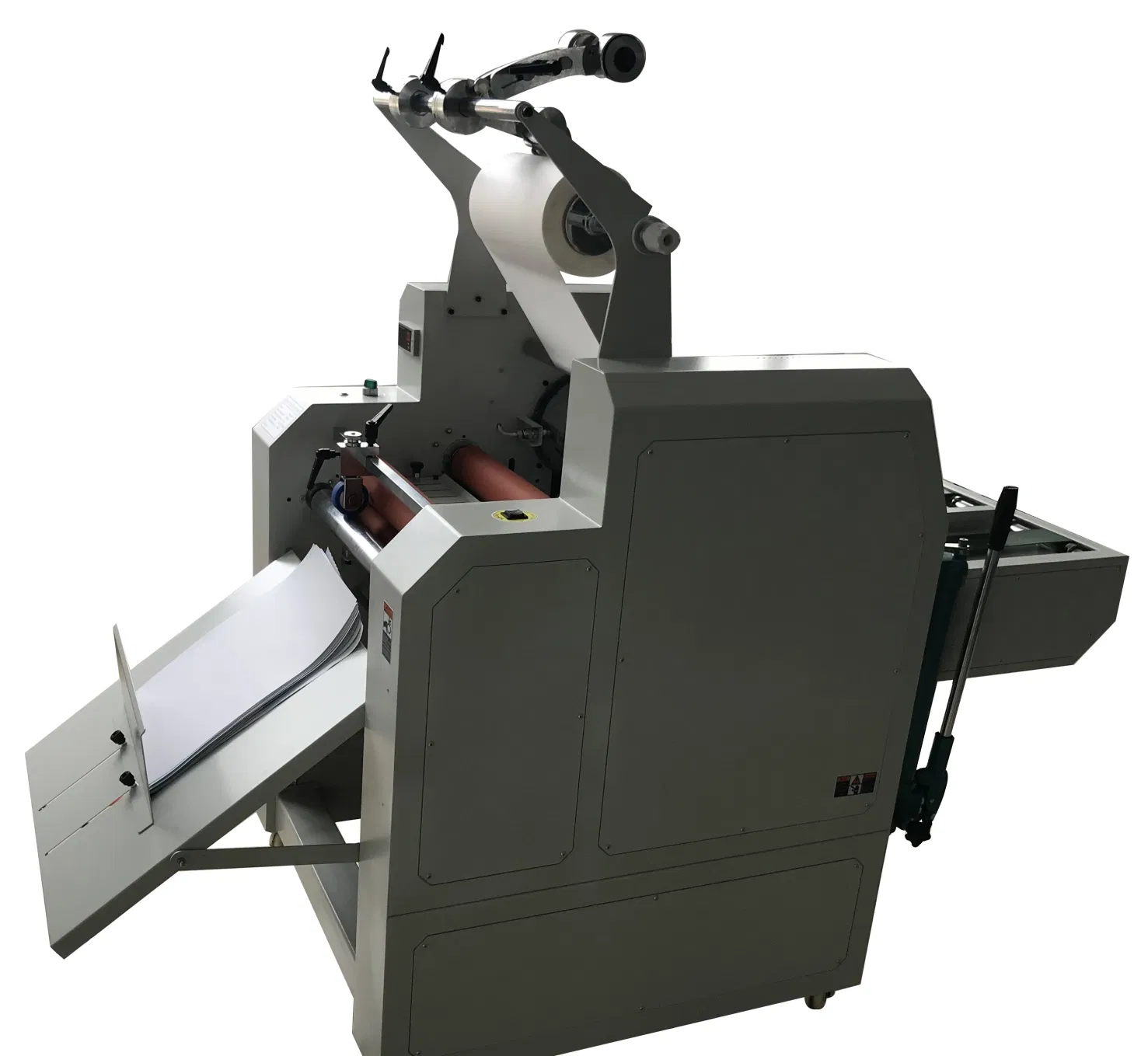

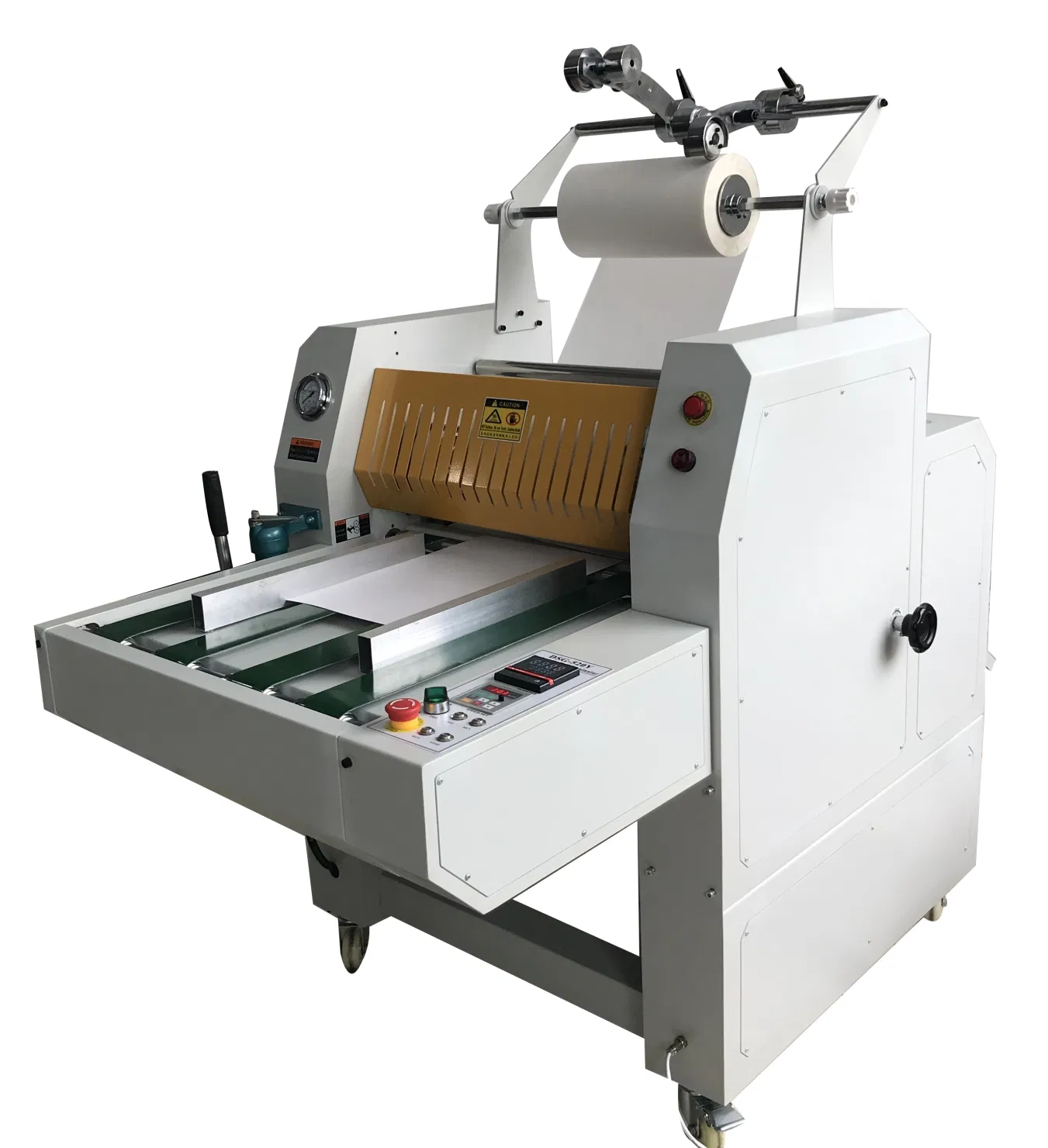

SUPU Popular High Speed And Big Press Pressure Roll Film Lamination Machine HL 520YA
The laminator is widely used by medium and small enterprises,Copy center and schools .
HY-520YA is semi-automatic laminator machine.
1.It have large enrance width 520MM to meet more needs;
2. Infrared heating,Intelligent temperature control:It automatically alarms when the temperature exceeds 140 degrees Celsius.
3.It adopts the designs of manual feeding but automatic lamination , auto paper winding and auto-pheumatic cutter and collect.
4.Manual hydraulic control, shockproof display table:provides big pressure to guarantee good laminating quality.
5.Excellent laminating performance solves completely the problem of snowflake spots in traditional lamination, and perfects products quality .
6.Electric adjustment single side anti - crimp function.
Our Factory:
Hangzhou Supu Buisiness Machine Co., Ltd. is a professional company with 25 yeas of Binding machine ,Creasing machine,Shredder ,Laminator in china ,With reasonable factory prices and absolutely good quality.We have got a subsequent development
by hard work following the principle of eternity innovation ,excellent qulity and satisfied service with all operations conducted according to CE ,ETL,SAA,CB,RoHS and ISO9001.
innovation design value custom-made quality
We supply comb binding machine , wire binding machine ,spiral binding machine ,perfect binding machine ,punching machine ,creasing machine ,laminating,shredder.
The laminator is widely used by medium and small enterprises,Copy center and schools .
HY-520YA is semi-automatic laminator machine.
1.It have large enrance width 520MM to meet more needs;
2. Infrared heating,Intelligent temperature control:It automatically alarms when the temperature exceeds 140 degrees Celsius.
3.It adopts the designs of manual feeding but automatic lamination , auto paper winding and auto-pheumatic cutter and collect.
4.Manual hydraulic control, shockproof display table:provides big pressure to guarantee good laminating quality.
5.Excellent laminating performance solves completely the problem of snowflake spots in traditional lamination, and perfects products quality .
6.Electric adjustment single side anti - crimp function.
Product specification:
| Laminating speed : | 0~15 meter/min |
| Max Lamianting temperature : | 140 Degree |
| Heating power : | 4300W |
| Power supply | AC 110/60HZ or 220V ,50HZ |
| Motor Power | 400W |
| Heating Method | Infrared Heating by hot air |
| Steel roller | 200MM |
| Rollers | 150MM |
Our Factory:
Hangzhou Supu Buisiness Machine Co., Ltd. is a professional company with 25 yeas of Binding machine ,Creasing machine,Shredder ,Laminator in china ,With reasonable factory prices and absolutely good quality.We have got a subsequent development
by hard work following the principle of eternity innovation ,excellent qulity and satisfied service with all operations conducted according to CE ,ETL,SAA,CB,RoHS and ISO9001.
innovation design value custom-made quality
We supply comb binding machine , wire binding machine ,spiral binding machine ,perfect binding machine ,punching machine ,creasing machine ,laminating,shredder.
