High Speed Flute Laminator Machine; 1450 Laminating Paperboard Machine
AUTOMATIC TOP SPEED FLUTE LAMINATOR MACHINE modelHRB-1450GHRB-1650GMax. Sheet Size (W*L)1450mm*1450mm1650mm*1650mmMin. Sheet Size (W*L)450mm*450mm450mm*450mmTop paper thickness120~600g/m²120~600g/m²Bottom sheet thickness0.5-10mm(B,A,AB,E flute, etc.)0.5-10mm(B,A,AB,E flute, etc.)La......
Send Inquiry
Product Description

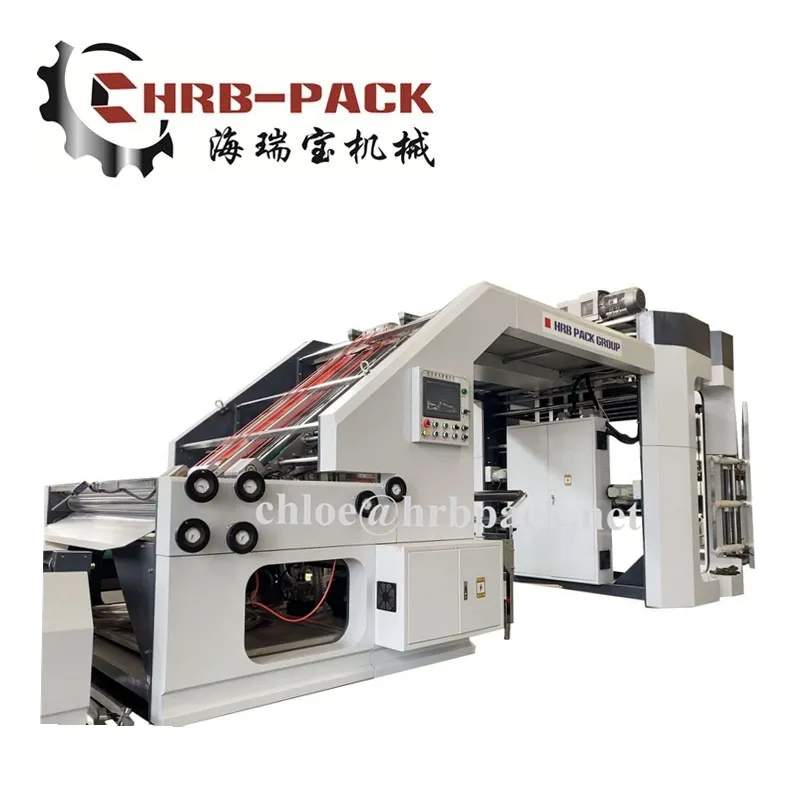

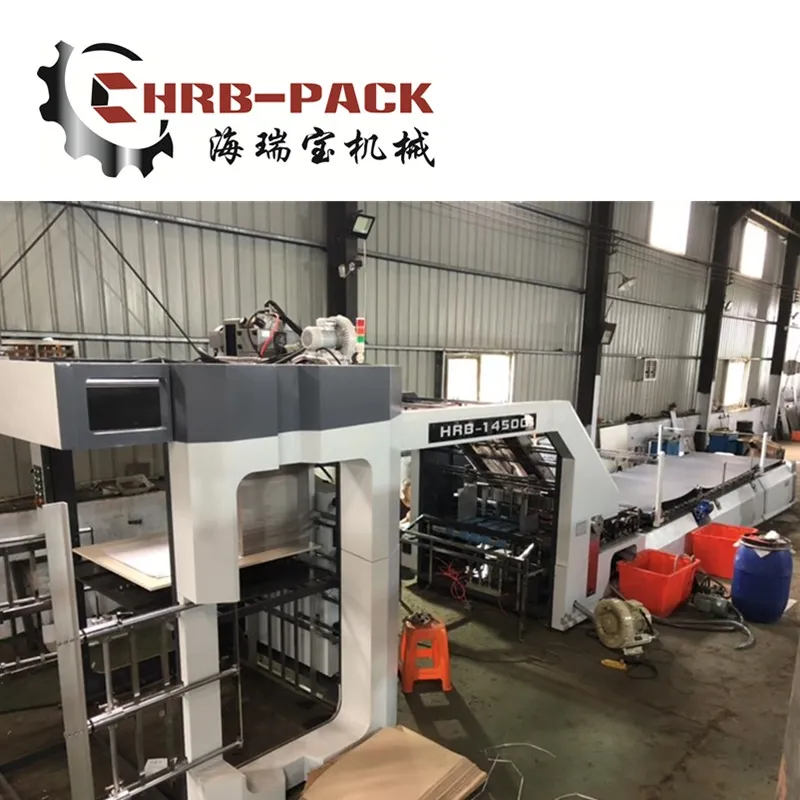

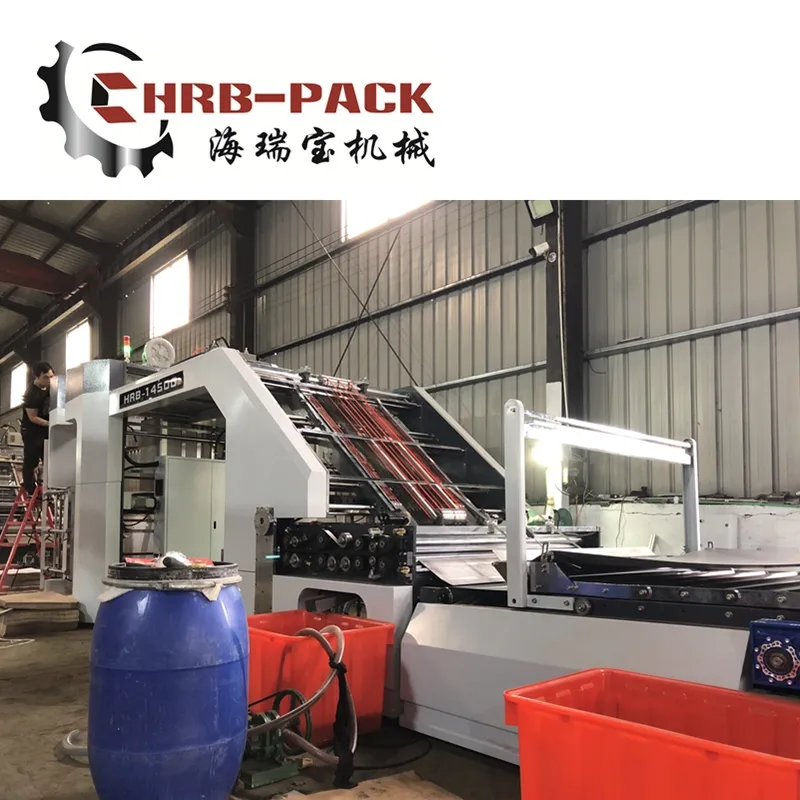

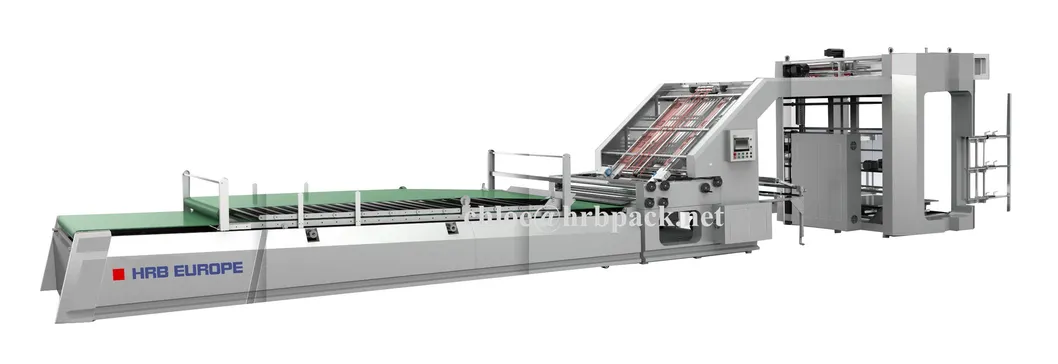

AUTOMATIC TOP SPEED FLUTE LAMINATOR MACHINE
| model | HRB-1450G | HRB-1650G |
Max. Sheet Size (W*L) | 1450mm*1450mm | 1650mm*1650mm |
Min. Sheet Size (W*L) | 450mm*450mm | 450mm*450mm |
| Top paper thickness | 120~600g/m² | 120~600g/m² |
| Bottom sheet thickness | 0.5-10mm(B,A,AB,E flute, etc.) | 0.5-10mm(B,A,AB,E flute, etc.) |
| Laminating Accuracy | ±1.5mm | ±1.5mm |
| Max. Speed | 12000p/h 150m/min | 12000p/h 150m/min |
| Power | 22KW | 22KW |
| Dimension L*W*H | 13.5m*2.4m*2.4m | 14.5m*2.6m*2.6m |
| Height of Bottom Paper | 400mm | 400mm |
| Height of Top Paper | 1800mm | 1800mm |

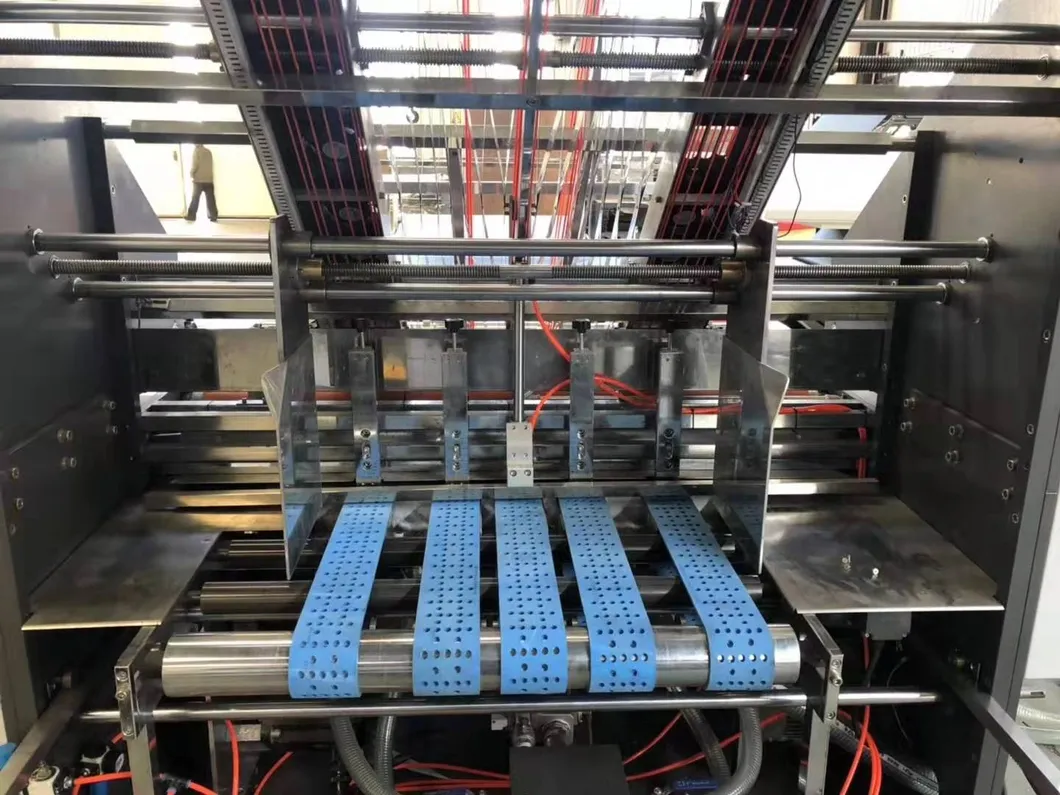

FEEDING BOTTOM PAPER PART:

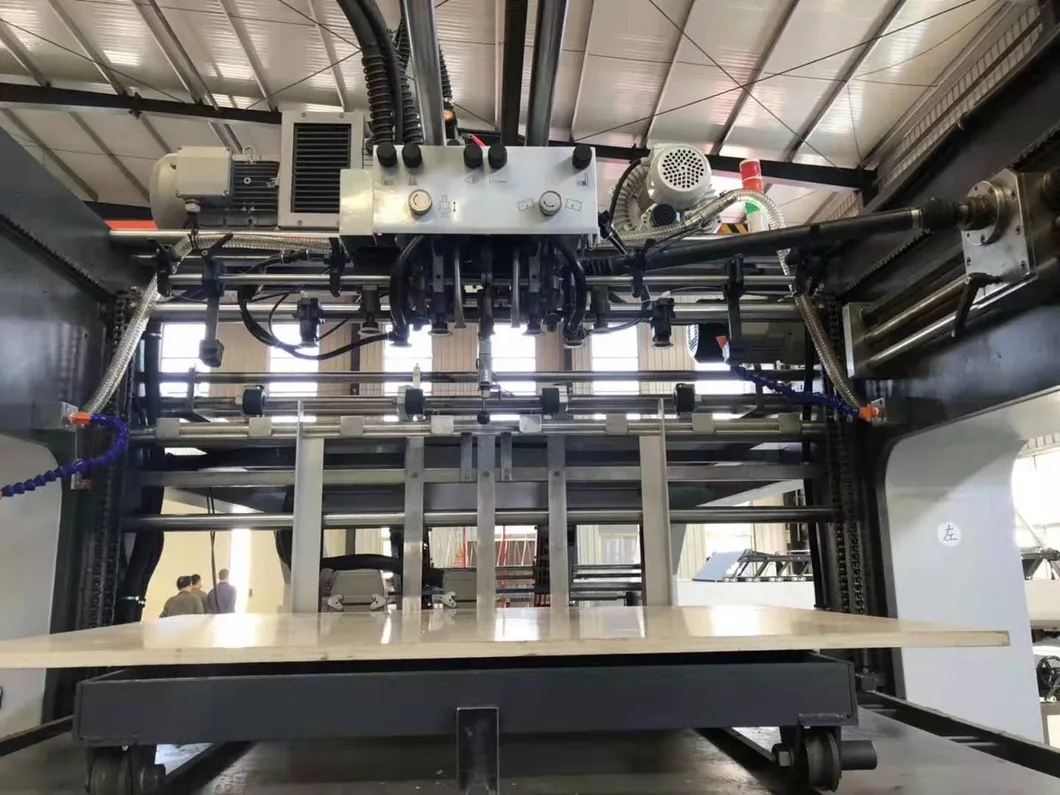

FEEDING FACE PAPER PART:

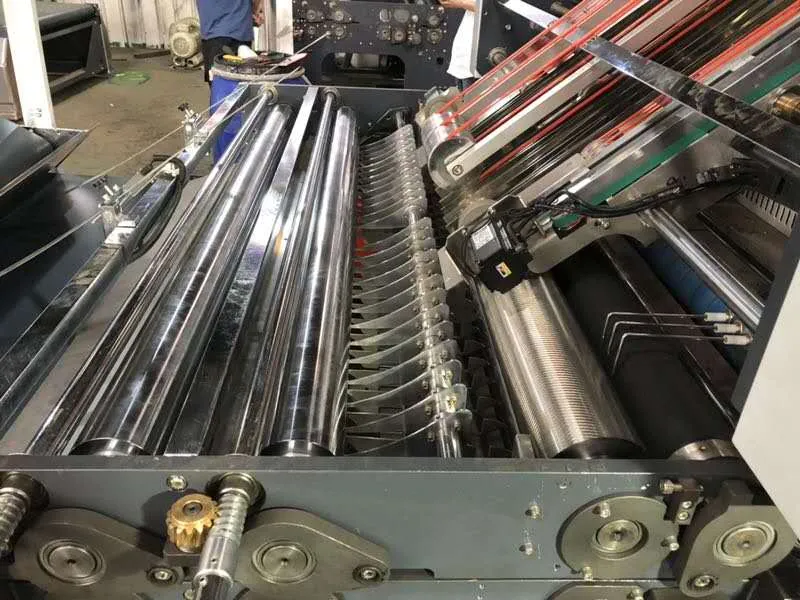

Laminate part:
- Paper mounting accuracy: the standard precision is 1.5 mm, at a speed of 9000 sheets per hour, the accuracy can reach to 1.0 mm;
- Glue consumption: glue consumption is generally 25 to 30 grams per square meter, operator's operation technology and pit type of pit paper will also affect glue consumption
- The import servo is used to drive the suction belt bottom paper conveying structure, matching the Japanese neon suction belt and SMC high-frequency valve, so that the base paper (corrugated, paper jam) transmission distance is accurate and smooth.
- Adopt the structure of four-suction and four-feed paper, conjugate cam structure to feed paper, feed paper smoothly
